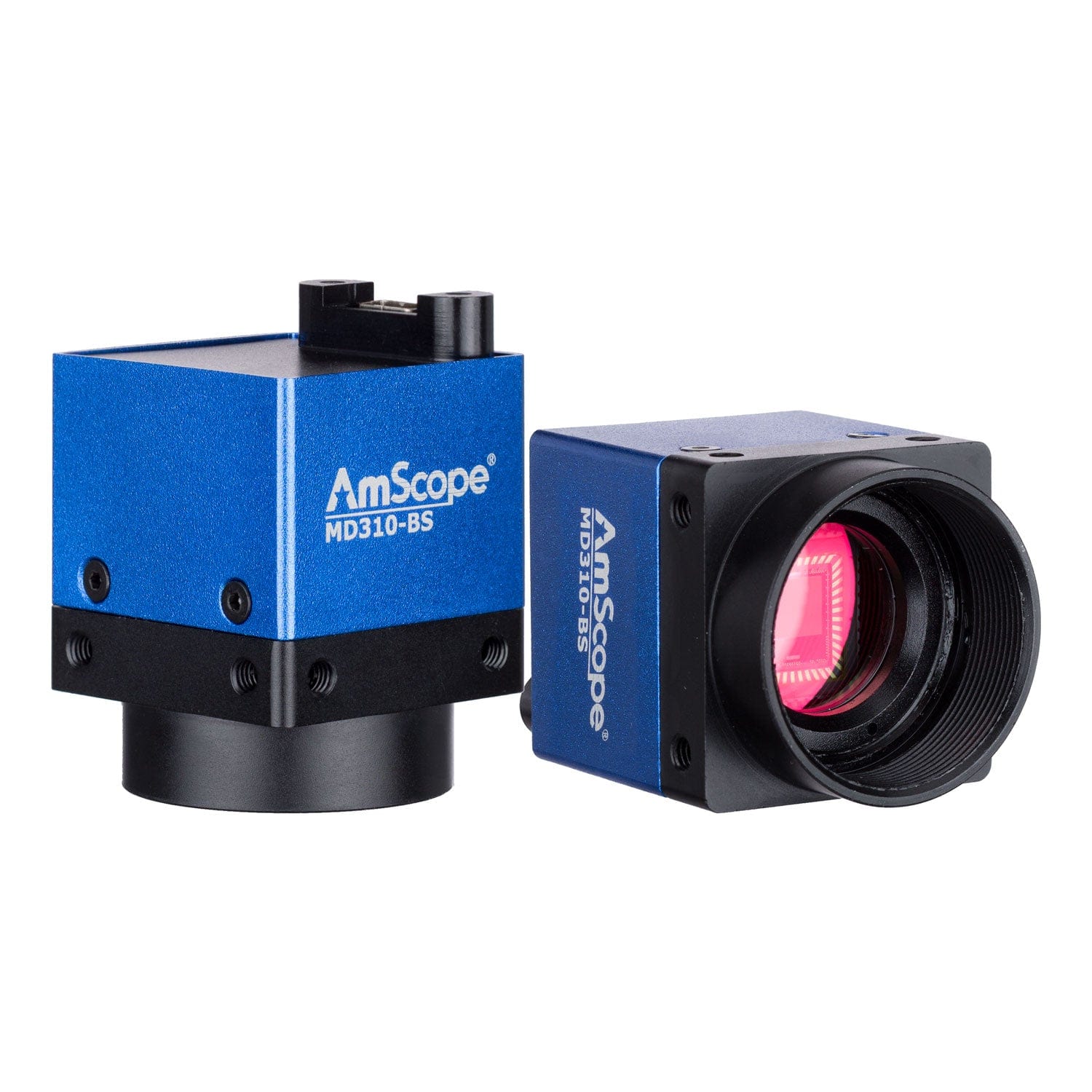

AmScope MD Series 3.1MP USB 2.0 High-speed Color CMOS C-mount Microscope Camera

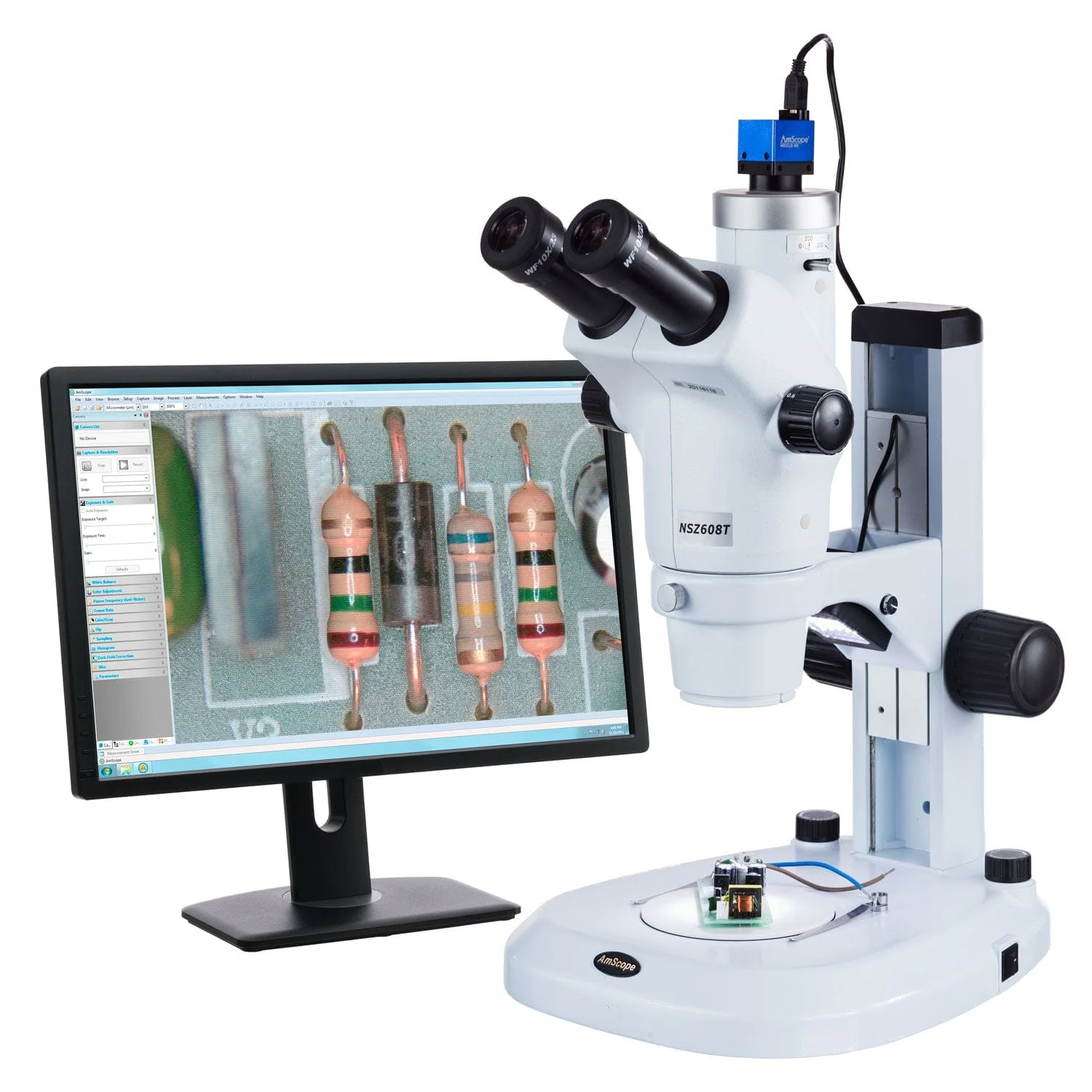

The MD310C-BS is a 3.1MP USB digital camera designed primarily for industrial inspection. The ultra-compact design, and industry-standard C-mount lens port make this a versatile camera for microscopy and inspection lines. Attach the camera directly to a C-mount photo-port, or use an optional C-mount lens. The optimized digital sensor and imaging buffer provide extremely high frame-rates, up to 94fps. Using the USB interface for both connectivity and power, only a single cable is needed.

With software available for Windows, Mac, and Linux, this camera package is a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

Camera Specifications:

• Sensor: IMX123 (color)
• Sensor Type: CMOS
• Sensor Optical Format: 1/2.8"
• Sensor Active Recording Area: 5.12mm x 3.84mm
• Pixel Size: 2.5&microm; x 2.5&microm;
• Pixels: 3.1MP
• Frame rates: 11.3fps @ 2048x1536, 44.5fps @1024x768, 94.5fps @ 680x510
• Sensitivity: 600mV @ 1/30s
• Connectivity: USB 2.0
• Compatibility: Windows (32/64 bit) 7/8/10/11, Mac OSX, Linux

Software Specifications:

• OS Requirements: Windows (32/64 bit) 7/8/10/11, Mac OS 10.8+, Linux kernel 3.13+
• Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port for maximum speed
• Advanced software for Windows:
  - offers Stitching, EDF, video recording and measurement functions
  - conducts measurements for lengths, angles, arcs, areas and etc.
  - saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
  - live video and still image capture can be set in different resolutions simultaneously
  More features: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, granulation, diffusion; transform images via edge detection, digital image warping; conducts measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors; conducts measurements in microns, millimeters, centimeters, inches, feet, and etc. under any magnification powers with desired tolerances
• Life-time free software upgrades

Contents:

• One Digital Camera
• One USB Cable
• Software
