$133.70The Story
OMAX Digital Microscopes integrate advanced digital-imaging with precision optical-microscopy. Digital integration promotes uniformity and presents a simplified method for setting up and using microscopes.
OMAX provides a large range of solutions for education, research, and industry. Building on industry standards, we provide a full range of accessories to suit your needs.

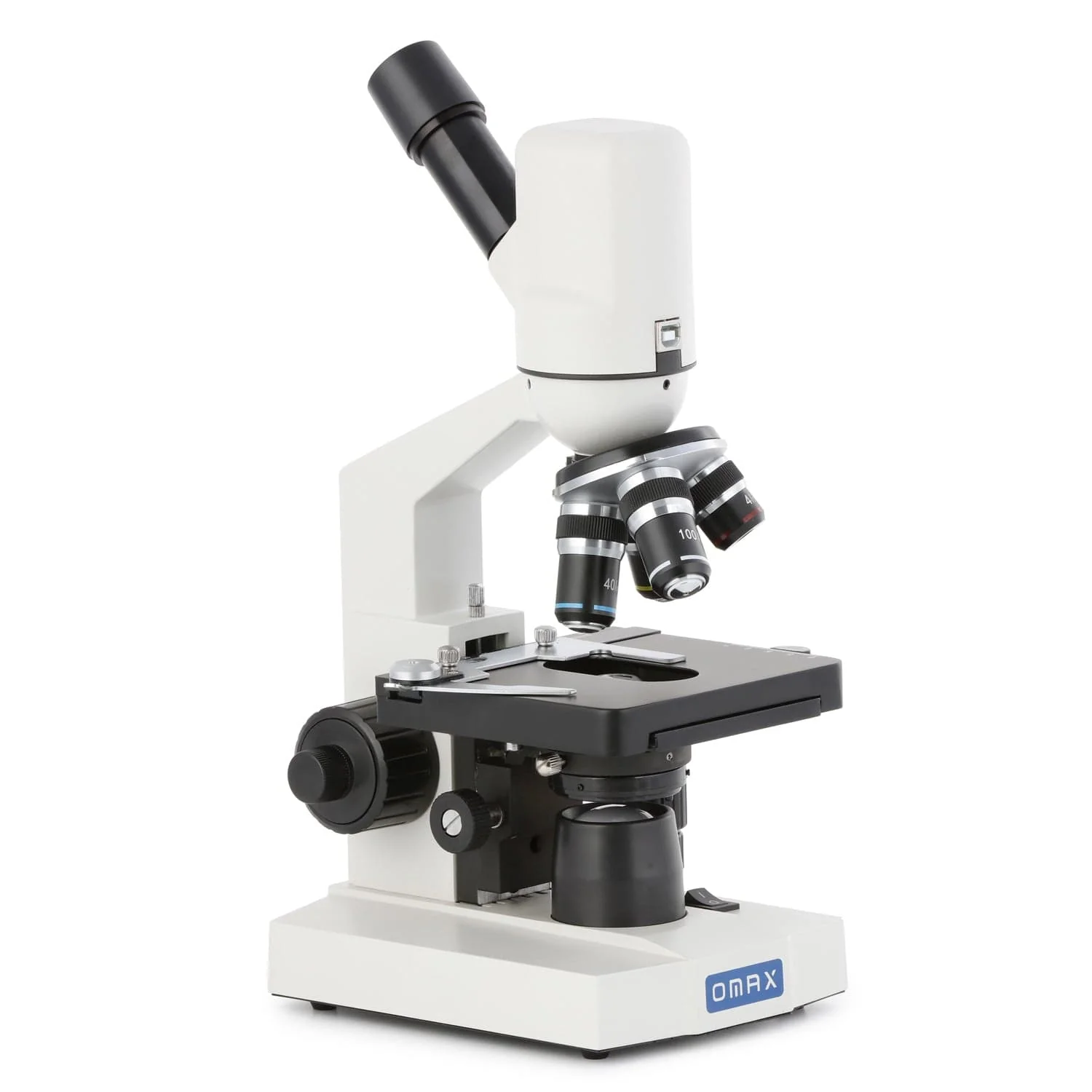

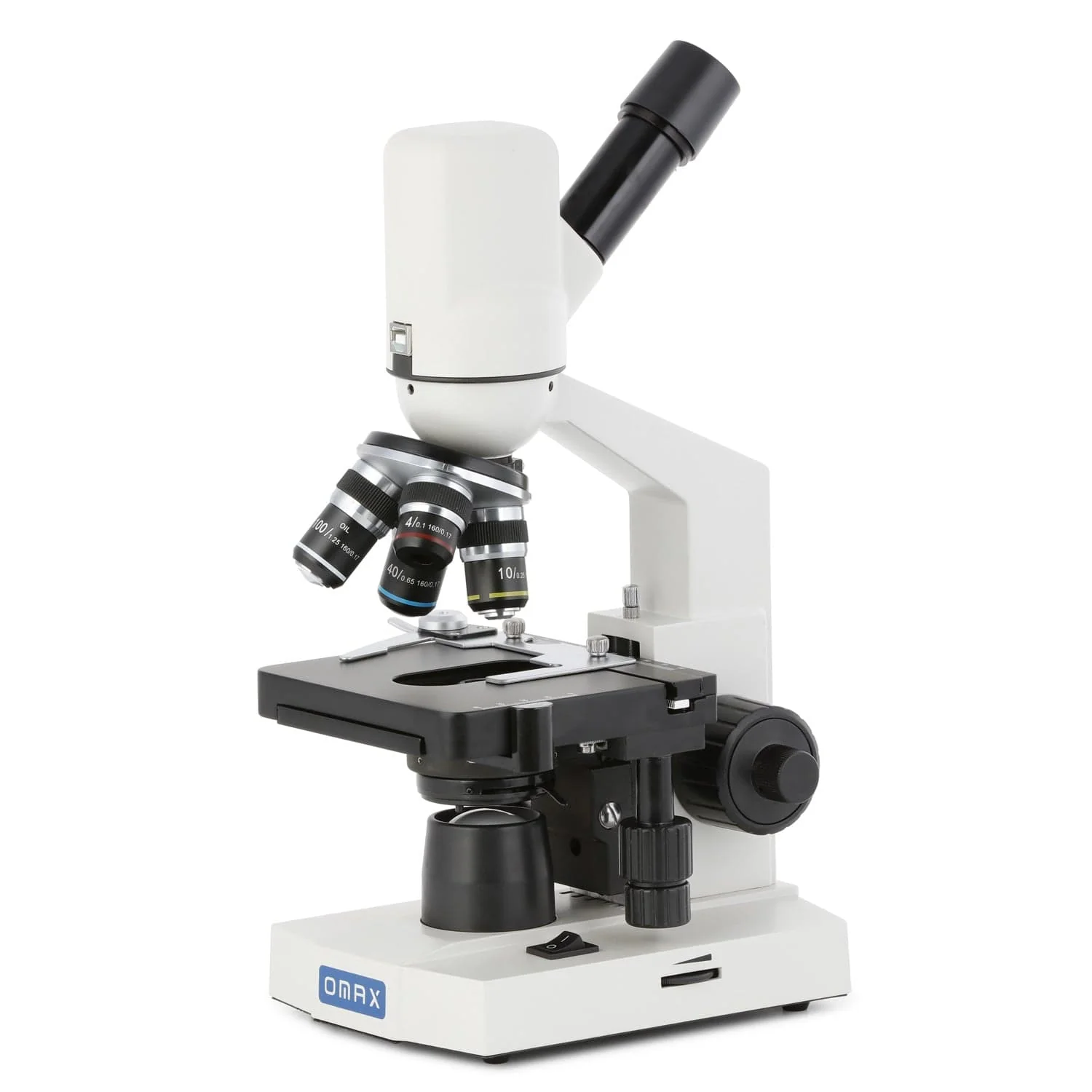

The OMAX MD810T provides all of the essential functionality needed in the classroom or lab for common microscopy applications. The digital-integrated head offers an amazing amount of flexibility, allowing for simultaneous viewing through the eyepiece and on a computer. A professional software platform for Windows is provided to capture photos and video, with editing tools to optimize images, and aid in analysis. The imaging process is further enhanced by achromatic color-corrected optics which provide sharp, clear images over a wide range of magnifications. Coaxial focus, and mechanical stage-movements provide precision and ease.

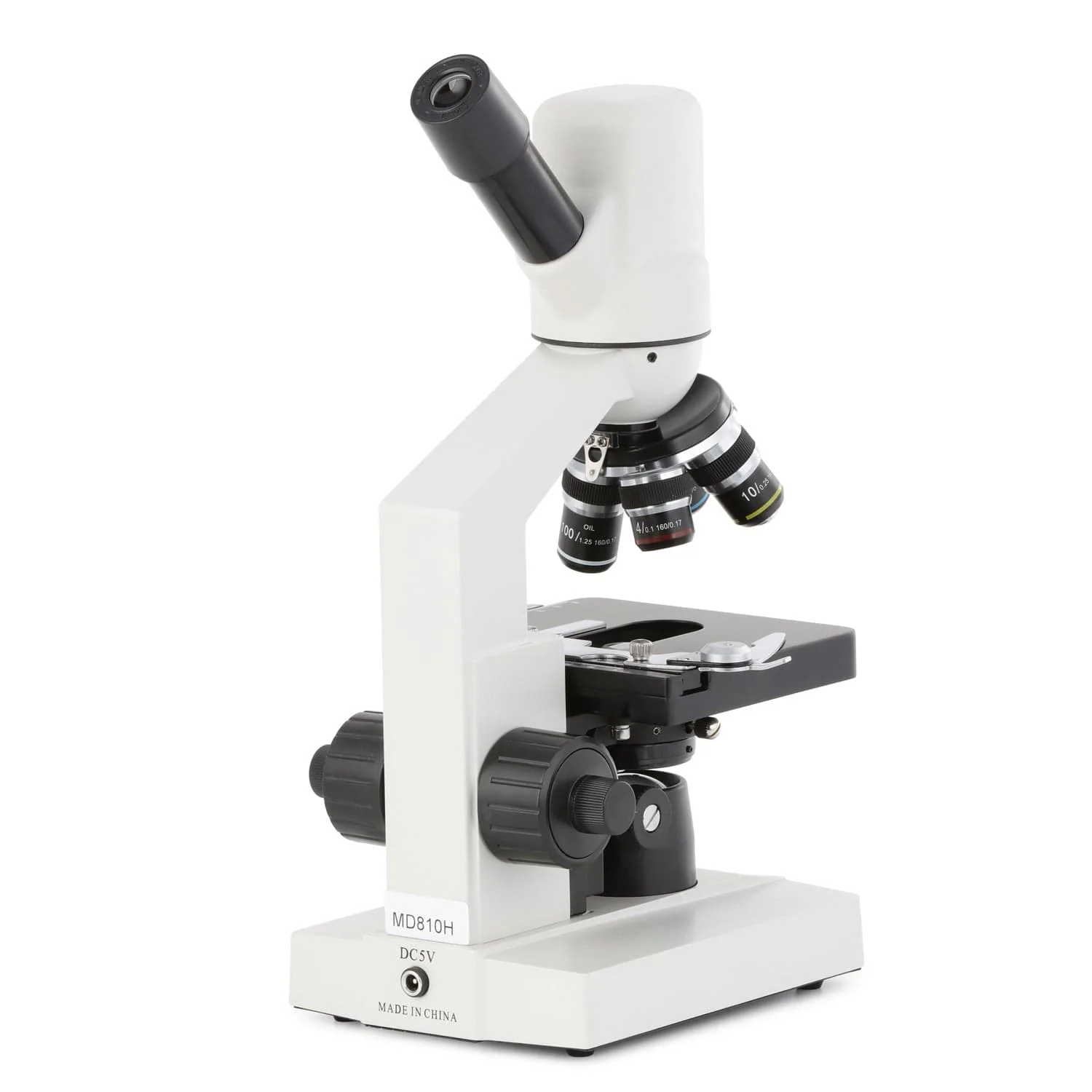

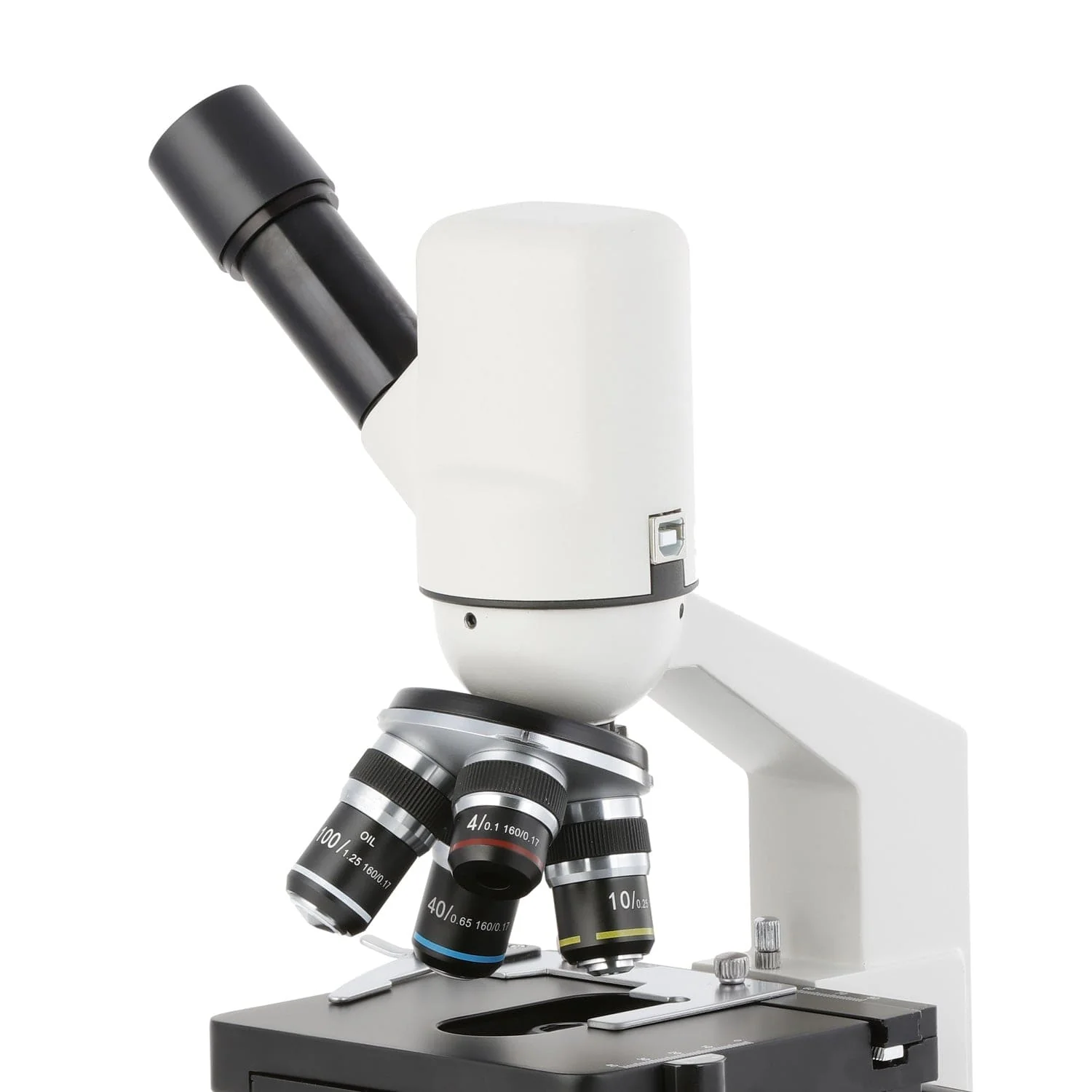

The MD810 series microscope uses a monocular viewing head. The ocular tube is angled at 45° and can be rotated 360° to accommodate sitting or standing. Various eyepieces can be used to increase the overall optical magnification without changing the camera's magnification.

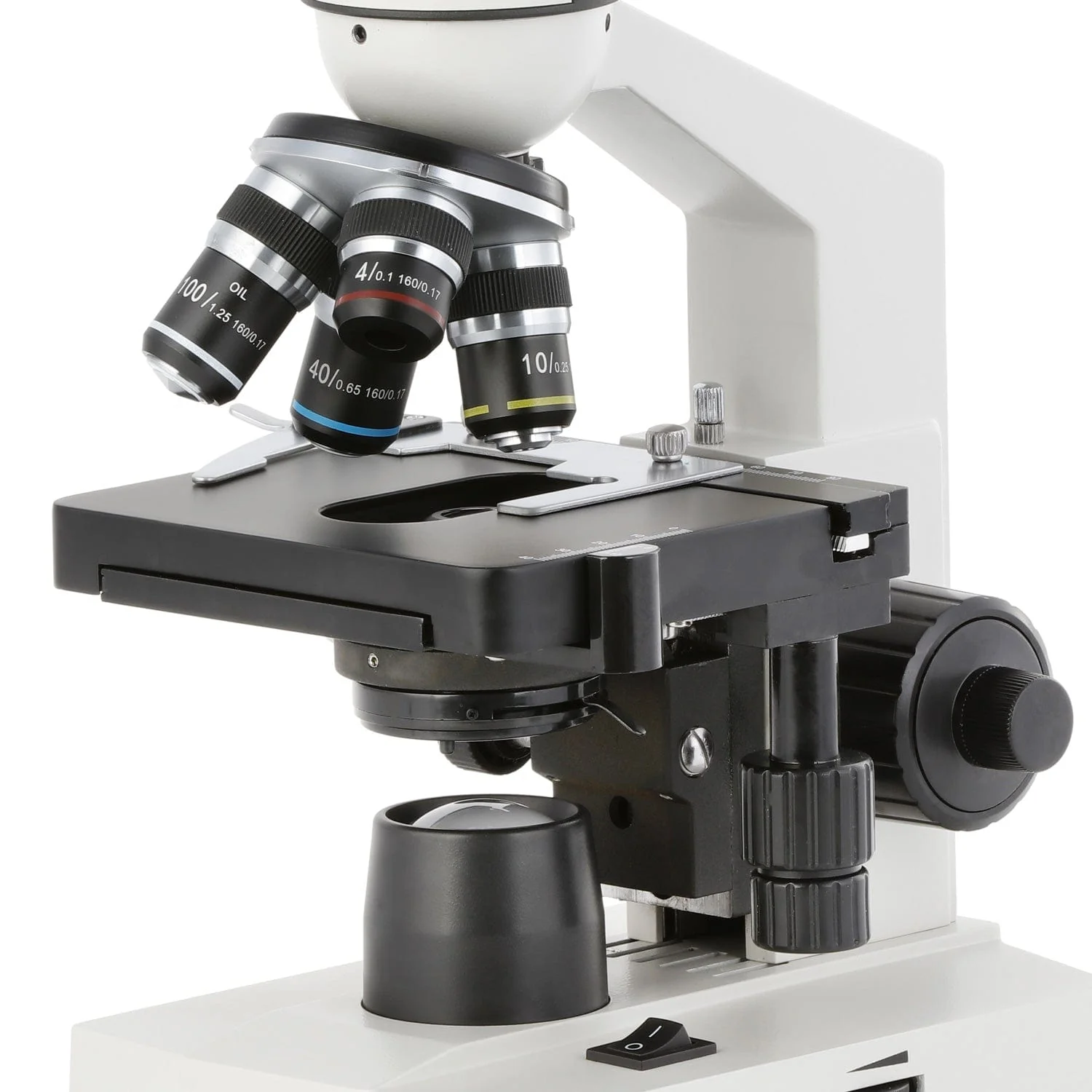

The objective turret provides instant access to 4 magnification levels to easily focus in on minute details from 40X to 1000X. For traditional viewing, an additional 16X eyepiece extends the maximum magnification to 1600X, and provides 8 distinct levels of magnification. The high-quality lenses are achromatically corrected to improve resolution and color accuracy.
The 2-layer mechanical stage provides smooth and precise movement for examination of specimen slides. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Variable-intensity LED lighting offers bright, daylight-balanced illumination to produce high-contrast, color-correct images.
Specifications
| Optical System | finite |
| Tube Length | 160mm |
| Head | Digital-integrated monocular, 45° incline, 360° rotatable |
| Ocular Diameter | 23mm |
| Eyepieces | 10X, 16X |
| Objective Turret | quadruple |
| Focusing System | coaxial coarse and fine focus |
| Stage | 2-layer mechanical |
| Stage Dimensions | 125mm x 115mm |
| Stage X-Y Travel Range | 70mm x 20mm |
| Specimen Holders | Slide caliper |
| Transmitted Illumination | 1W LED, variable intensity |
| Condenser | Abbe condenser with iris diaphragm, NA1.25 |
| Sub-stage Condenser-holder | Rack-and-pinion |
| Power | 100-240VAC 50/60Hz wide-band |
| Dimensions | 7-1/8" x 5-1/8" x 13-1/8" (18.2cm x 13cm x 33.3cm) |
Objective Lenses
| Magnification | Corrections | NA | Immersion Medium | Cover-glass Thickness |
|---|---|---|---|---|
| 4X | achromatic | 0.10 | none | 0.17mm |
| 10X | achromatic | 0.25 | none | 0.17mm |
| 40X | achromatic | 0.65 | none | 0.17mm |
| 100X | achromatic | 1.25 | oil | 0.17mm |
| Camera Specifications | |
| Sensor Type | CMOS |
| Sensor Optical Format | 1/2.5" |
| Active Pixels | 1.3M (1280 x 1024) |
| Shutter | electronic rolling shutter |
| Capture Resolution and Maximum Framerate | 6fps @ 1280x1024 10fps @ 1024x768 |
| Connectivity | USB 2.0 |
| Power | 5VDC over USB |
Software
| OS Requirements | Windows (32/64 bit) XP/Vista/7/8/10 | ||||||
|---|---|---|---|---|---|---|---|
| Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port | ||||||
| Features |
|
