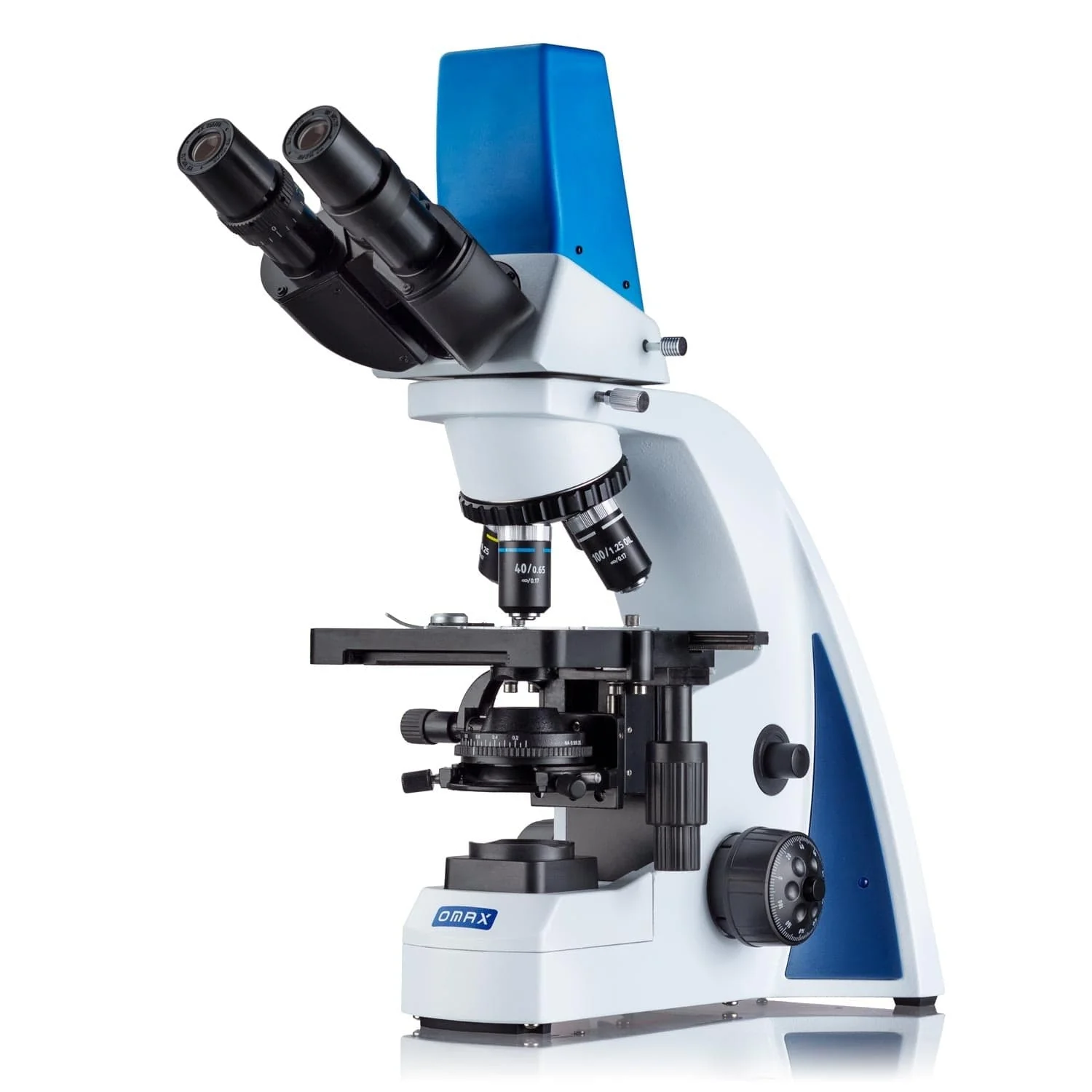

40X-2000X Infinity-corrected 5MP Digital Integrated Microscope with LED Illumination

The OMAX MD8233S50 is a highly versatile, digitally-integrated microscope for laboratories, clinics, and advanced education. Built around a precision, infinity-corrected optical system, this microscope provides excellent ergonomics, smooth mechanics, and expansive scalability. The integrated digital-imaging system further enhances functionality with turnkey efficiency.

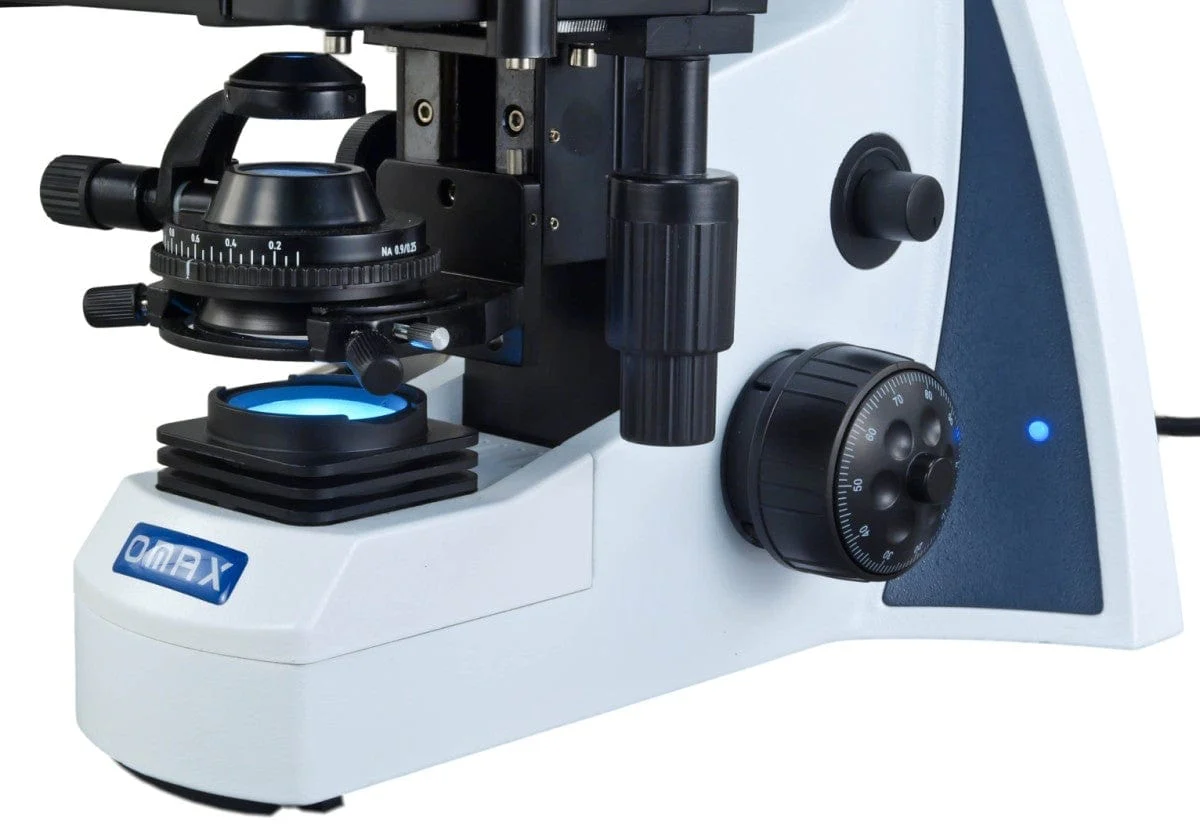

Infinity-corrected optics provide better control over optical aberrations, resulting in improved resolution. Four objective lenses and two pairs of eyepieces provide a wide magnification range from 40X to 2000X. With precision mechanics, stage movements and focusing are smooth and reliable. The LED sub-stage lighting provides cool, energy-efficient illumination. Advanced functionality is available with optional dark-field and phase-contrast kits, as well as both mercury and LED-based fluorescence kits.

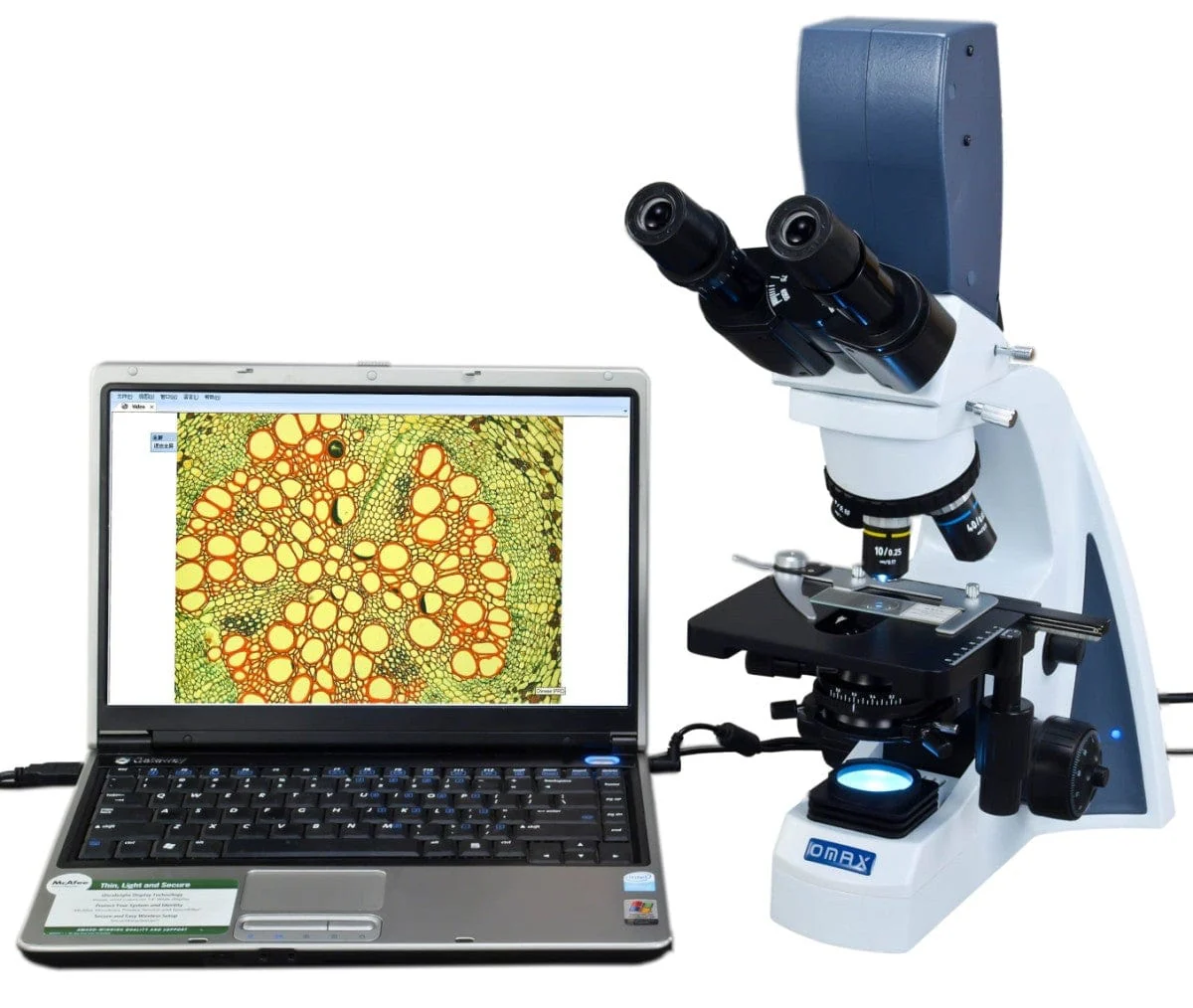

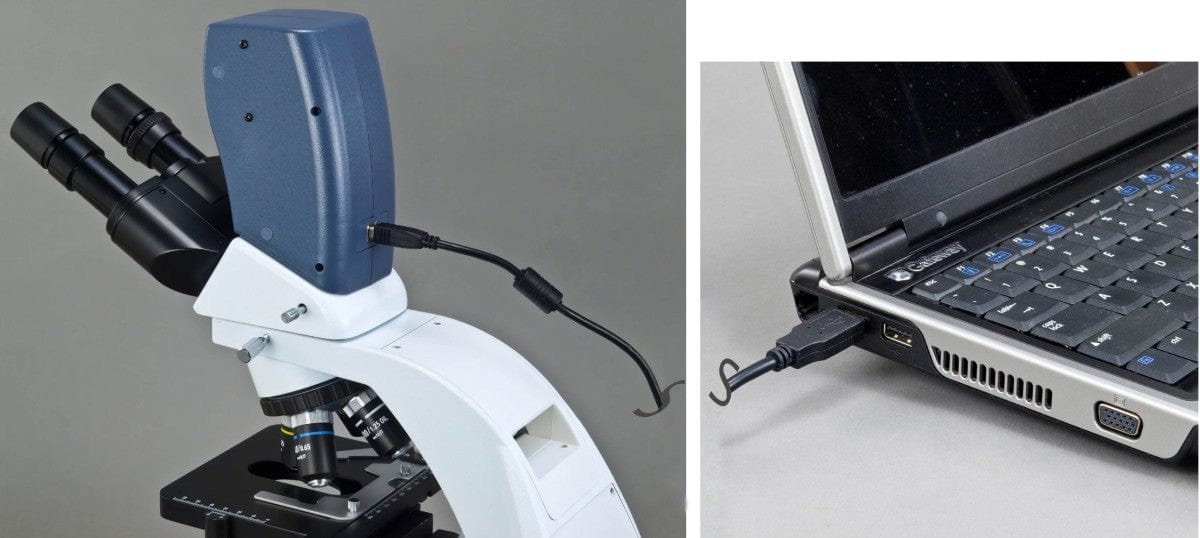

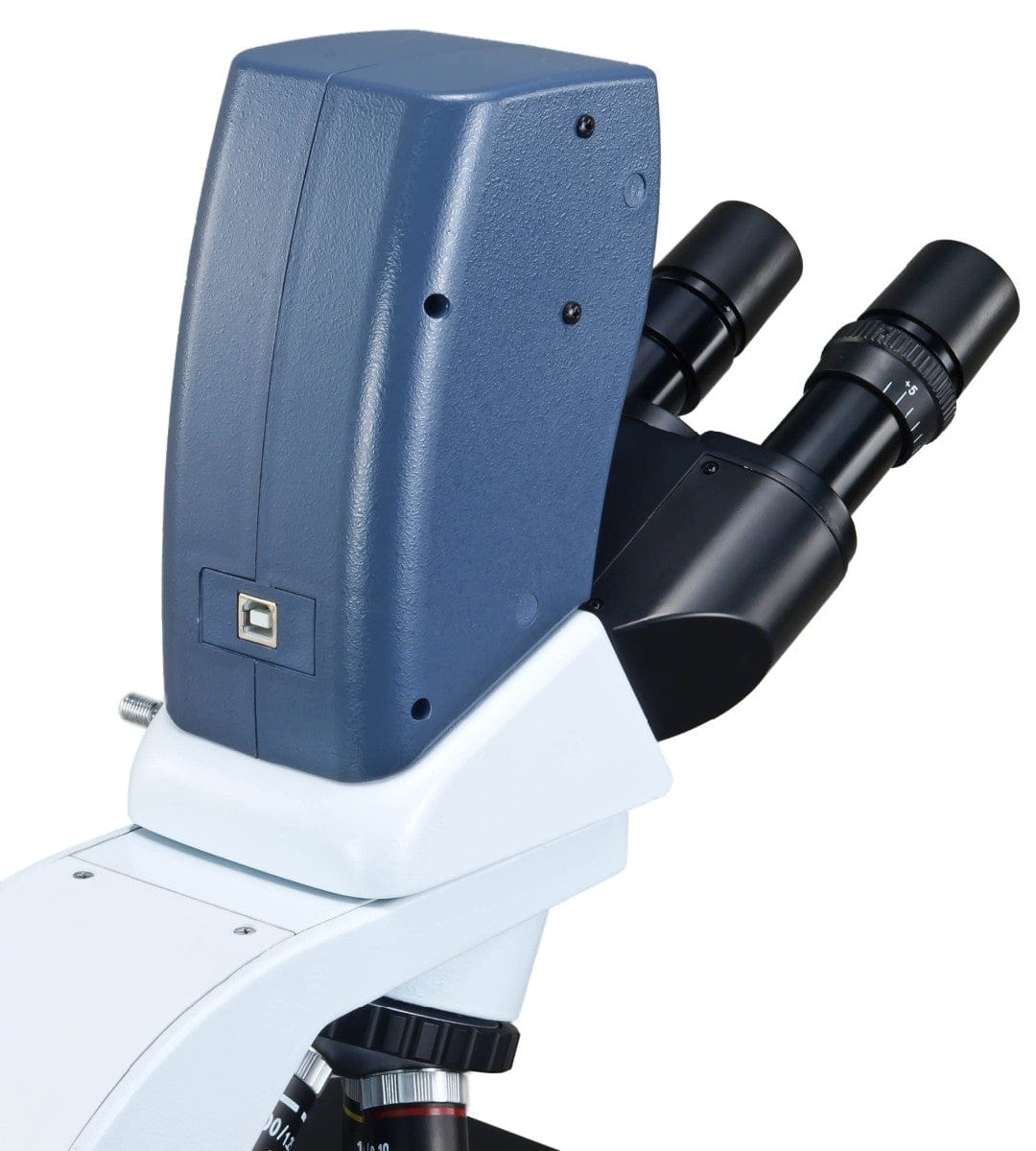

The integrated 5-megapixel camera can be used for a live video stream, and recording still images and video, all done with a single USB connection. The included Windows software features a wide range of measurement and editing tools, lending itself perfectly to the classroom or clinic with its ability to record, measure, and comment.

Specifications

Optical System	Infinity-corrected
Head	Binocular, 30° incline, 360° rotatable
Ocular Diameter	23mm

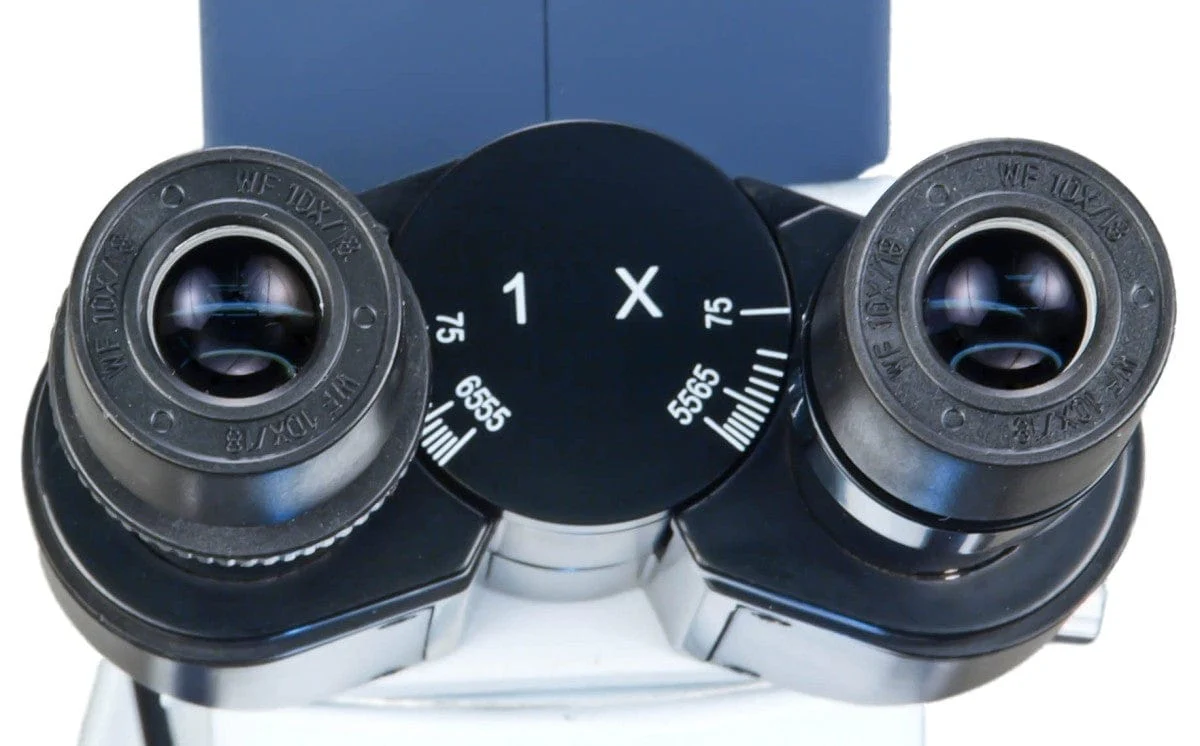

Interpupillary Adjustment	Siedentopf, 55-75mm
Eyepieces	10X FN18, 20X
Nosepiece	Reverse, Quadruple
Objective Lenses	Achromatic 4X, 10X, 20X, 40X (spring), 100X (spring, oil)

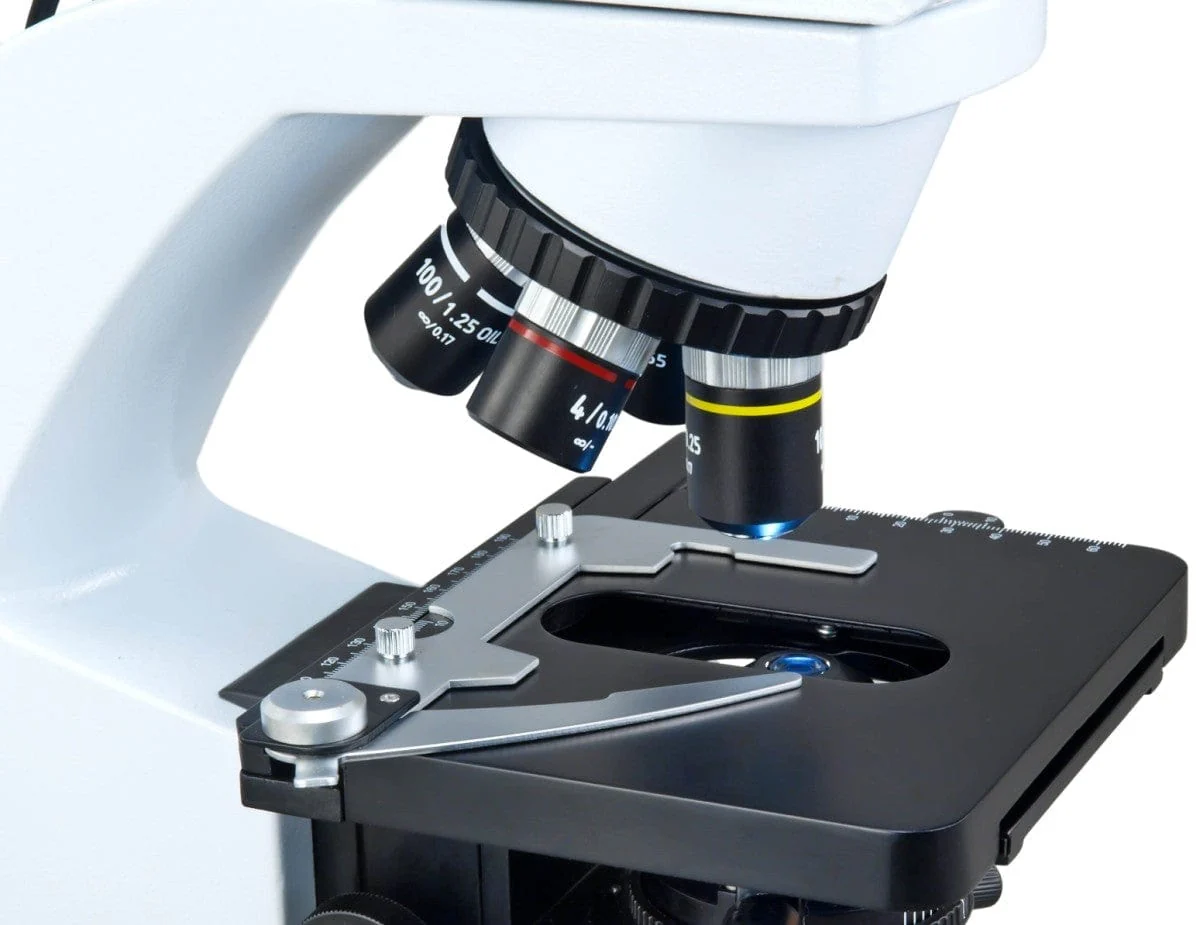

Stage	Double-layer mechanical 140mm x 110mm
X-Y Translation Range	78mm x 46mm
Sub-stage Condenser-holder	Rack-and-pinion
Condenser	Abbe condenser with iris diaphragm, NA1.25
Transmitted Illumination	LED

Components

Eyepieces	10X ♦ 15X 20X ♦ 25X
Objective Lenses	4X ♦ 10X ♦ 20X 40X ♦ 60X 100X ♦
Condenser	Abbe Brightfield ♦ Dry Darkfield Oil Darkfield Phase-contrast Modular Phase-contrast Turret

Camera

Sensor Type	Shutter	Optical Format	Pixels
CMOS	Rolling Shutter	1/2.5"	5M (2592x1944)
Frame Rate(s) (Maximum)	SNR	Power	Connectivity
2.5fps @ 2048x1536 10fps @ 1024x768	>40dB	5V over USB	USB 2.0

Software

OS Requirements	Windows (32/64 bit) XP/Vista/7/8/10
Hardware Requirements	Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port for maximum speed
Features	Windows Version Live video preview Captures still images and video Exposure and white-balance controls Image processing Measurement tools, including lines, arcs, polygons

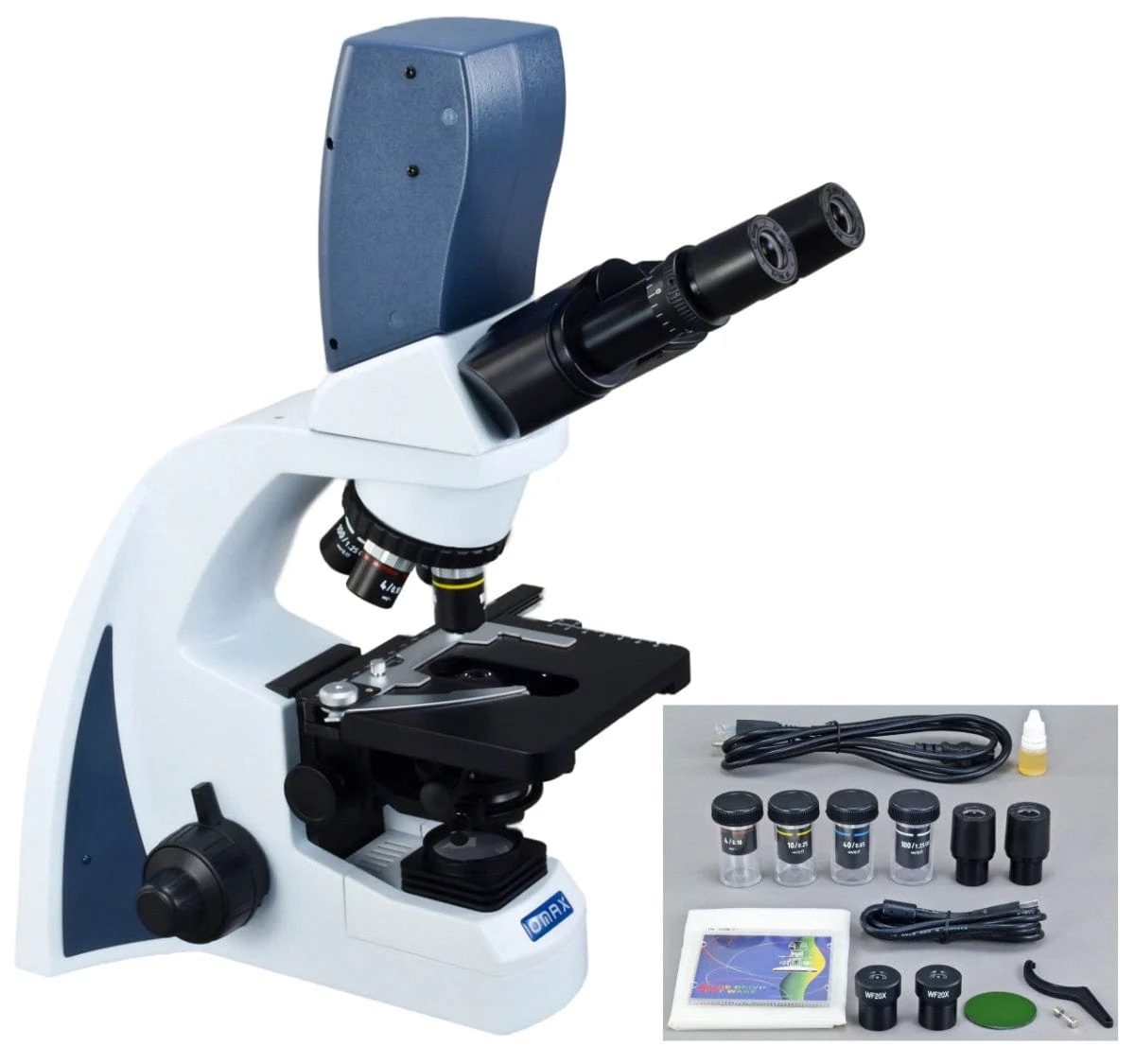

Packing List:

• Digital binocular microscope head
• Microscope body

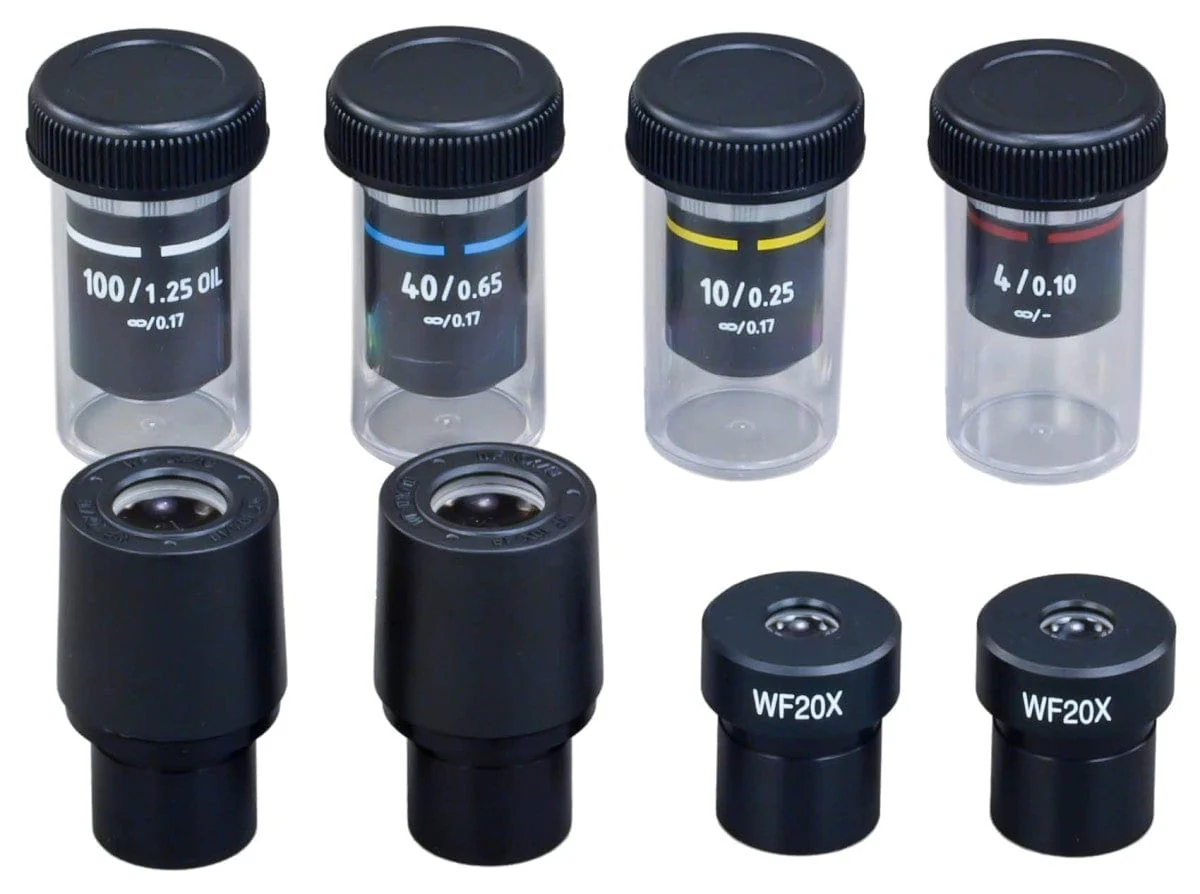

• 4 objectives: 4X, 10X, 40X, 100X
• A pair of eyepieces WF10X/18
• A pair of eyepieces WF20X
• A bottle of Immersion oil
• Power cord (US and Canada standard)
• Dust cover

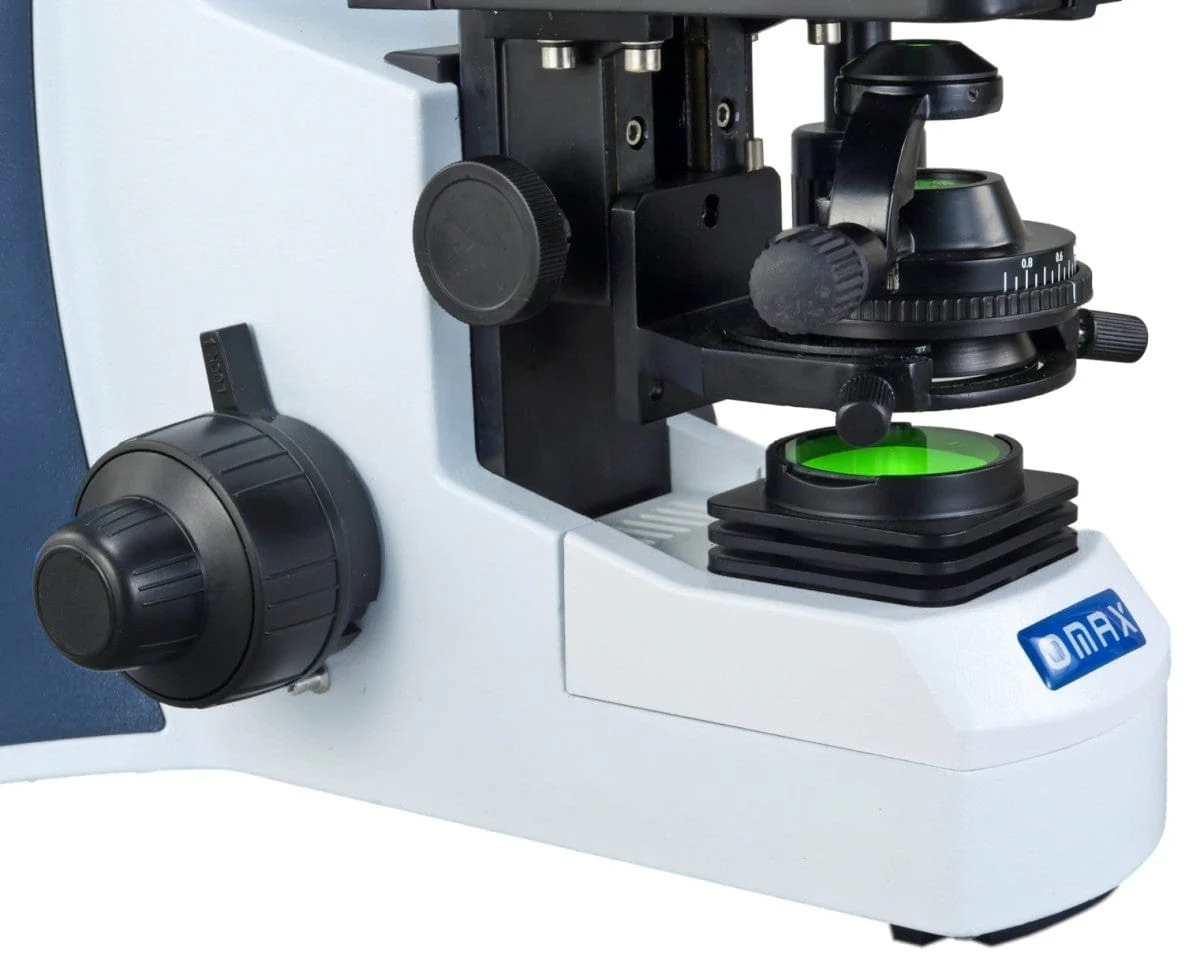

• Color filter (green)
• Extra fuse
• Tension wrench
• CD (camera driver and software)
• USB2.0 cable
