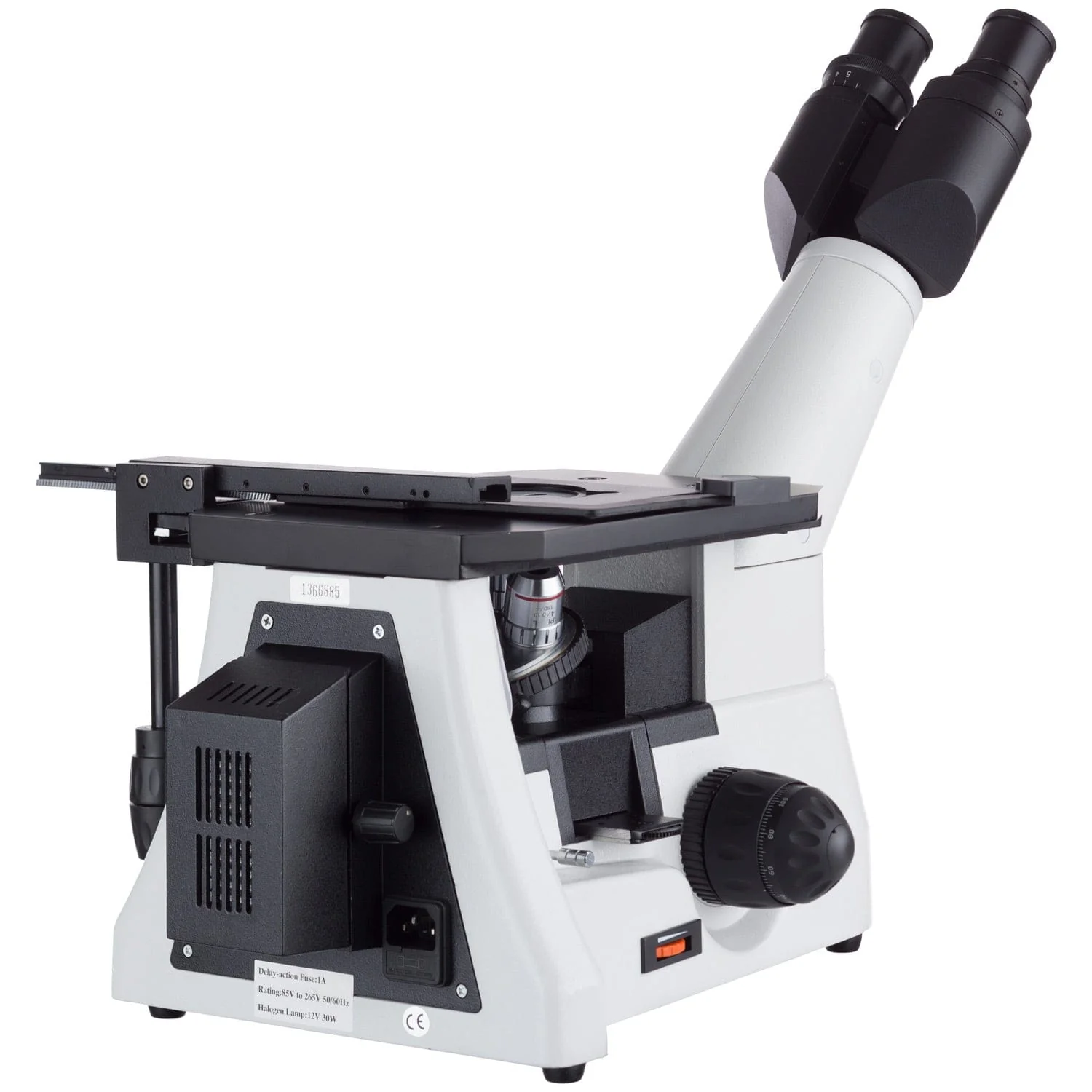

AmScope ME1400 Series Inverted Metallurgical Binocular Compound Microscope 40X-1000X Magnification

This is a professional binocular inverted polarizing metallurgical microscope with Epi-Kohler illumination. It offers 40X, 100X, 200X, 250X, 400X, 500X & 1000X magnification settings, designed to observe, identify and analyze the structures of metals and alloys. It comes with super widefield optics, polarizer & Analyzer, quintuple nosepiece, 30W wide band voltage (85V-230V) EPI-Kohler illumination, and double-layer mechanical stage with coaxial coarse & fine focusing. This microscope is ideal for studying metallography, heat treatment and metal physics. It is widely used in the inspection of crystal structures, integrated circuits, semiconductor chips, micro-electronics, etc.

Features :

A professional super widefield polarizing metallurgical inverted microscope!

Seven magnification settings, 40X, 100X, 200X, 250X, 400X, 500X & 1000X

30W wide band (85V-230V) EPI-Kohler illumination with variable brightness

Polarizer & Analyzer included

Super widefield eyepiece with reticule 0.1mm

Fully coated optical system with high resolution

Sharp clear metallurgical microscopy images

Diopter adjustment on ocular

Extra-large 3-D double layer mechanical stage with stain resistant finish

Low position coaxial stage movement control knobs

Coaxial coarse & fine focusing with CA knob tension control

Top light house with filters

Dual side mounted focusing controls

Full optical glass elements

Precise ground glass lenses

All metal mechanical components

Adjustable interpupillary distance

Rugged cast alloy frame and stand with stain resistant enamel finish

Manufactured under ISO 9001 quality control standard

Excellent five (5) year factory warranty

Specification :

Head: Compensation Free Binocular Head, Inclined 45°

Eyepiece: WH10X/20mm, WH25X and WH10X/20mm with reticule 0.1mm, super widefield

Objective: 195 metallurgical objectives, 4X/0.1 (W.D .25mm), 10x/0.25 (W.D .11mm), 20X/0.4 (W.D .9mm) and 40X/0.6 (W.D. 3.8mm)

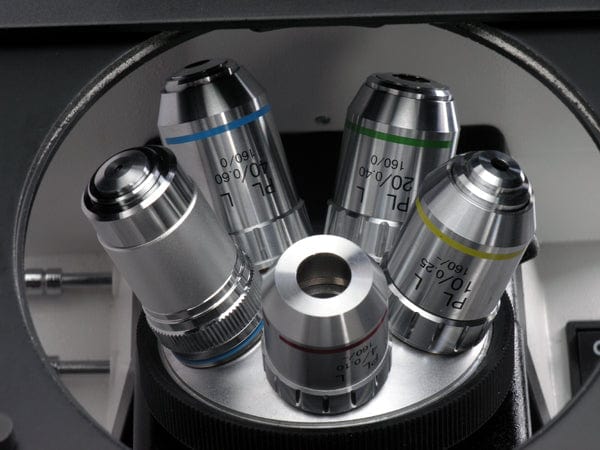

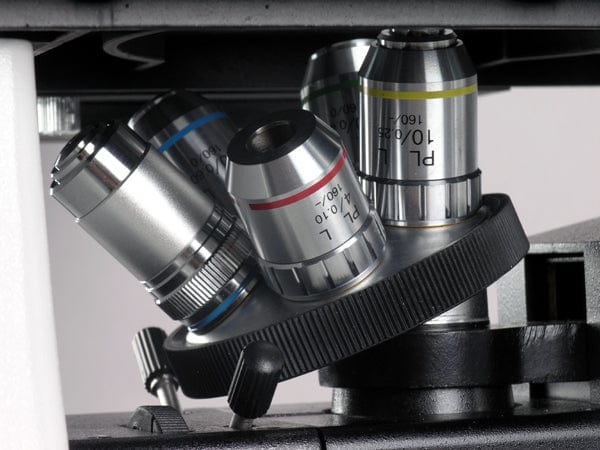

Nosepiece: quintuple

Interpupillary Distance: 2"-3" (50mm-75mm)

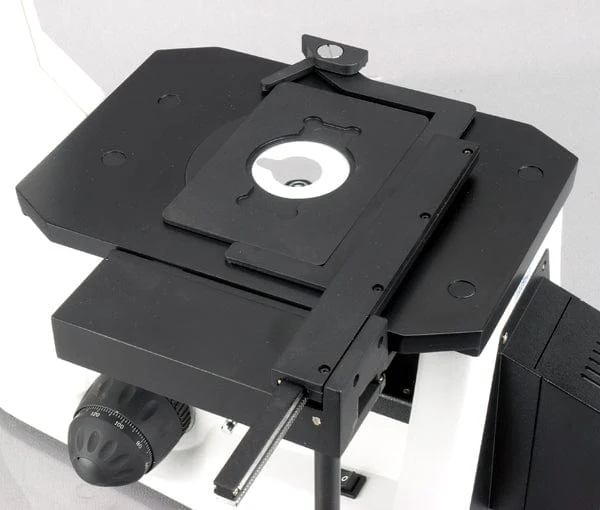

Mechanical Stage: two-layer; size: 9.53"x6.77" (242x172mm); traveling range: 3"x1.97" (75x50mm)

Central Stage: 4.33" (110mm) in diameter

Condenser: NA 0.3 Abbe with iris diaphragm, working distance: 3" (75mm)

Focus: coaxial coarse & fine focusing system rack and pinion with tension control; fine focusing scale value 0.000079" (0.002mm)

lllumination: Epi-Kohler 12V/30W, with aperture iris diaphragm and field iris diaphragm

Power Supply: AC 85V-230V

Filter: blue, green, yellow

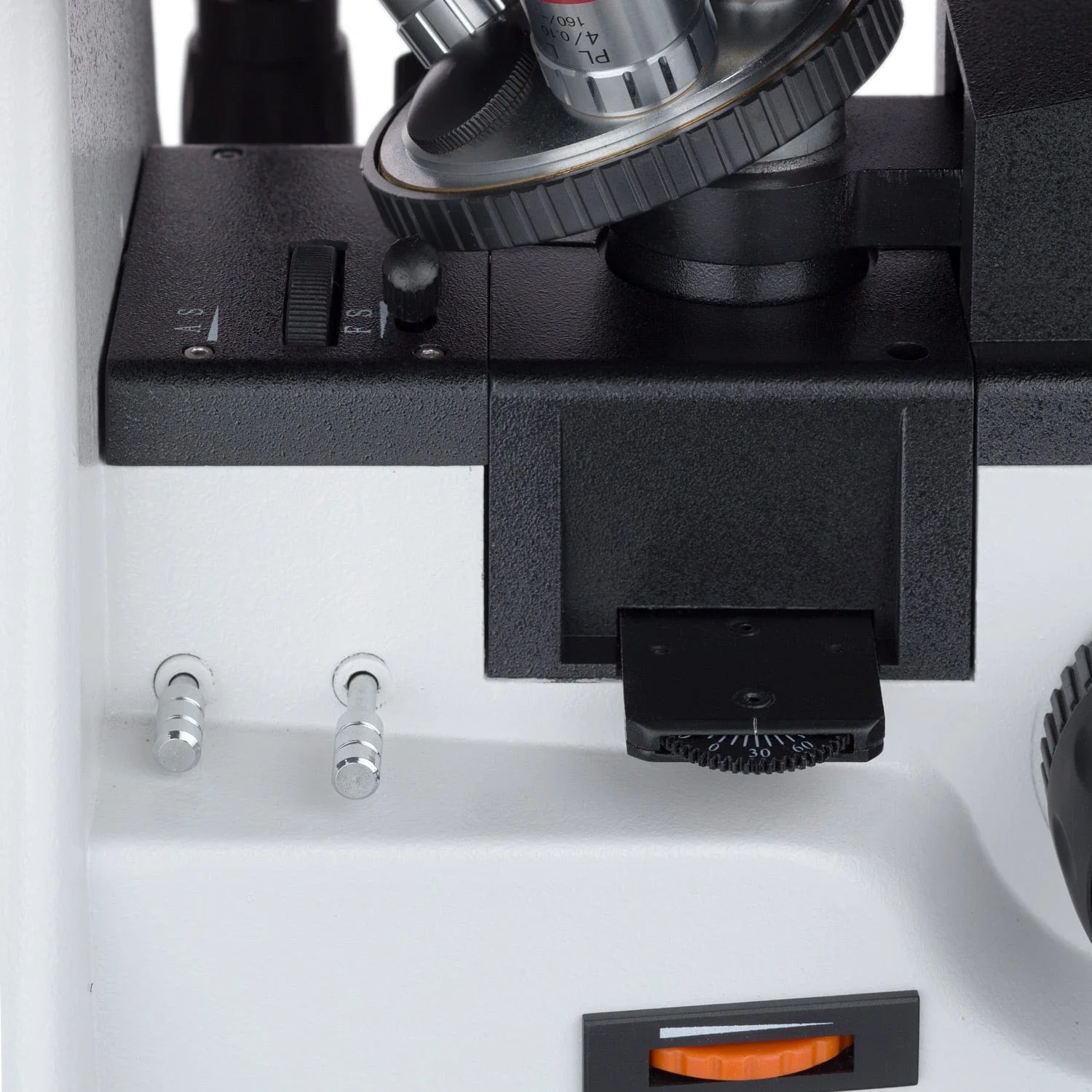

Polarizing Outfit: analyzer 360 degree rotatable, polarizer & analyzer can be slided in/out of the optical path

Micrometer Slide: 0.01mm

Packing List :

One Binocular Compensation-Free Head

One Inverted Metallurgical Microscope Body with Frame, Base and Illumination

Four Metallurgical Objectives, 4X, 10X, 20X & 40X

One Pair of Super Widefield WH10X Eyepieces

One Pair of Extreme Widefield WH25X Eyepieces

One Super Widefield 10X Eyepiece with Reticule 0.1mm

One 0.01mm Micrometer Slide

One 30W halogen bulb

One Dust Cover

Color Filters

Power Cord and Other Accessories

User's Manual

Shipping Weight: 55 lbs
