AmScope ME300 Series Metallurgical Trinocular Compound Microscope 40X-640X Magnification with

This is a brand new trinocular metallurgical microscope that offers six magnification settings, 40X, 64X, 100X, 160X, 400X & 640X, and advanced features. It comes with a 30 degree inclined 360 degree swiveling trinocular head that enables to add photographic or video capability. This microscope is perfect for metallurgical labs, foundries for silicon wafer inspection, and quality control applications.

Features:

• High quality trinocular professional upright metallurgical metallographic microscope
• Perfect for detail examination and micro-analysis of surface structures of metallic materials!
• Excellent for quality control in industrial and research applications including silicon wafer inspection and foundries!
• Six total magnification settings: 40X, 64X, 100X, 160X, 400X and 640X
• 30 degree inclined 360 degree rotatable sliding trinocular head
• Fully coated optical system with high resolution

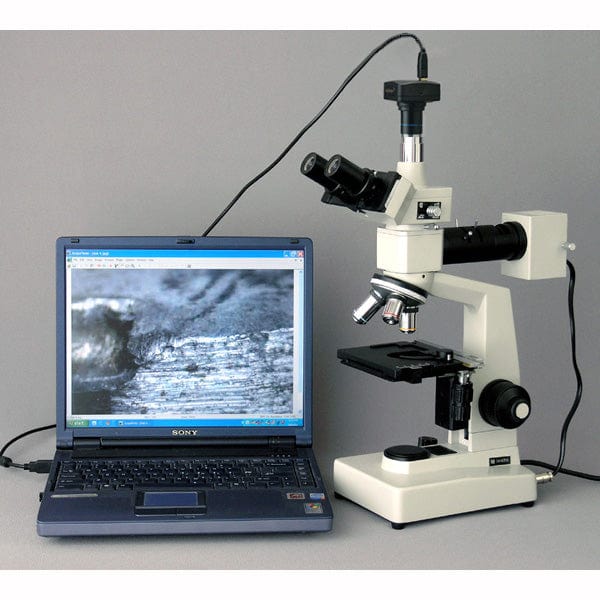

• 23mm universal/standard photo port for adding photographic or video capability
• Adjustable interpupillary distance
• Adjustable diopters on both eye tubes
• Three superior quality PLAN DIN objectives, 4X, 10X and 40X (spring)

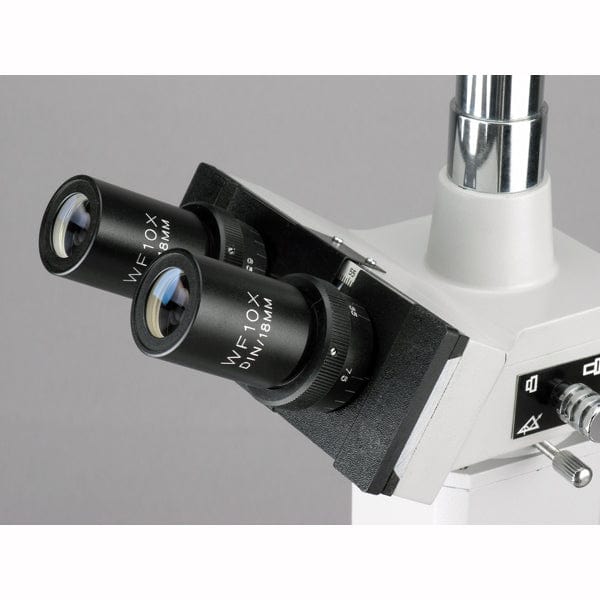

• Two pairs of widefield eyepieces, 10X and 16X

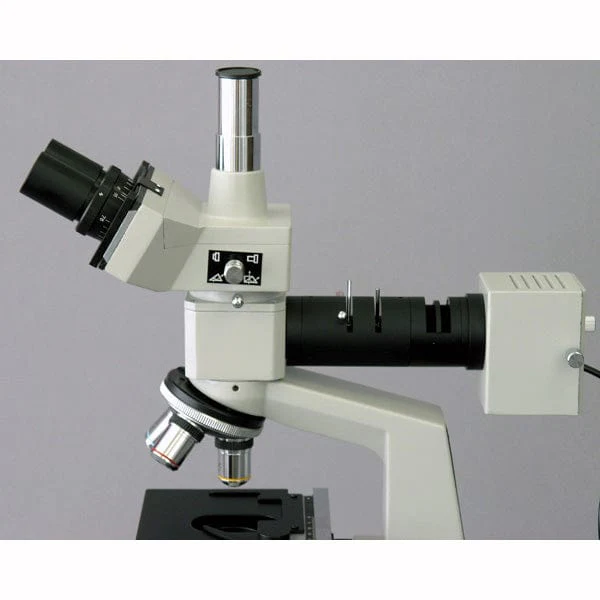

• Advanced EPI-illumination design offers excellent halogen illumination and optimal image clarity
• Epi-Illumination has independent filter holders, aperature/field diaphragms and diaphragm alignment controls

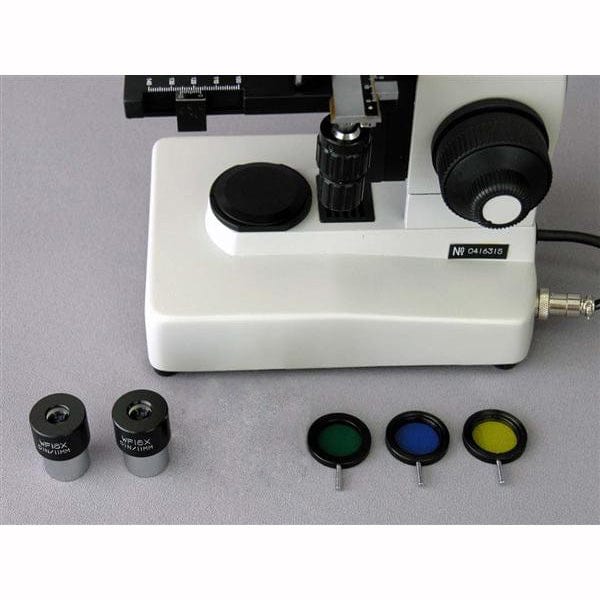

• Yellow, blue, green, and frosted filters included
• Coaxial coarse and fine focusing system
• Dual side focusing controls
• Focusing tension control mechanism
• Locking mechanism for controlling coarse focusing range and protecting objectives and specimens
• Large graduated mechanical stage with stain resistant finish
• Low position coaxial X-Y stage traveling controls
• Solid metal frame construction with stain resistant enamel finish
• Full optical glass elements
• Precise ground glass lenses
• All metal mechanical parts
• Manufactured under ISO 9001 quality control standards
• Excellent five (5) year factory warranty



Specifications:

• Nosepiece: Quadruple
• Focusing Range: 1-9/16" (40mm)
• Interpupillary Adjustment Range: 2-3/16" - 3-0" (55 - 75mm)
• Mechanical Tube Length: 6-5/16" (160mm)
• Head: 30 degree inclined trinocular
• Trinocular Port: 23mm universal/standard photo tube
• Eyepieces: WF10X (18mm field of view), Widefield 16X (11mm)
• Objectives: PL 4X (0.1 NA), 10X (0.25 NA), 40X (spring, 0.65 NA)
• Stage Dimensions: 5-1/8"x 4-13/16" (130x122mm)
• Stage Traveling Range: 1-3/16"x2-3/4" (30x70mm)
• Vernier Division: 0.004" (0.1mm)
• Illumination: 20W halogen
• Power Supply: 110V
• Shipping Weight: 25 lbs



Packing List:

• One Trinocular Metallurgical Microscope Head
• One Metallurgical Microscope Body with Transmitted and EPI Illumination System
• One Pair of Widefield 10X Eyepieces
• One Pair of Widefield 16X Eyepieces
• Three Plan Objectives: 4X, 10X, 40X
• Four Filters: Yellow, Blue, Green and Frosted (built-in already)
• User's Manual Download
