AmScope ME300 Series Metallurgical Trinocular Compound Microscope 40X-1000X Magnification with 18MP USB 3.0 Camera

This is a brand new trinocular metallurgical microscope that offers five magnification settings, 40X, 100X, 250X, 400X & 1000X, and advanced features. It comes with a 30 degree inclined 360 degree swiveling trinocular head with a dedicated photo-port. The episcopic illumination system features both field- and aperture-diaphragm control for efficient, even lighting. This microscope is perfect for metallurgical labs, foundries for silicon wafer inspection, and quality-control applications.

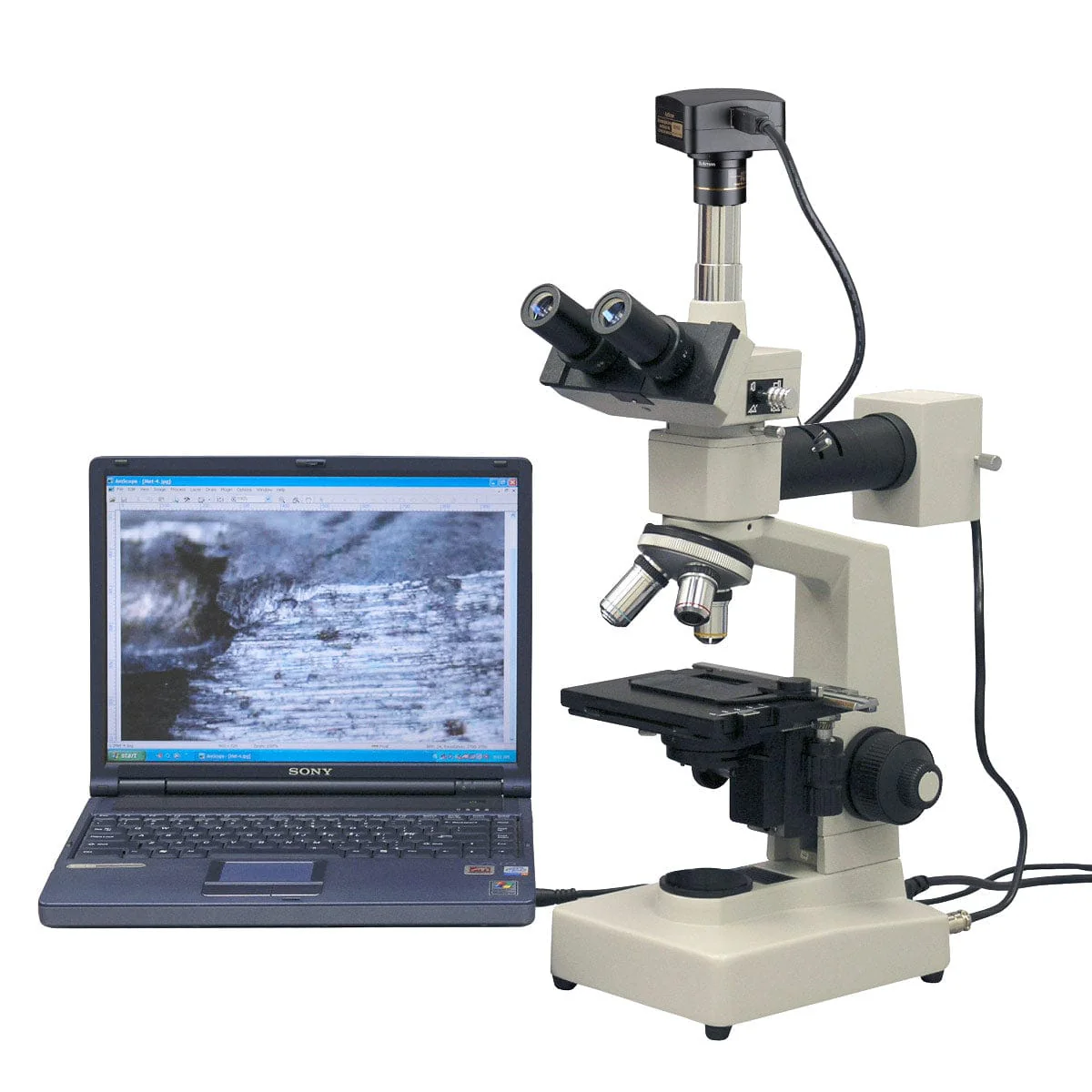

The 18MP USB 3.0 digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

Features:

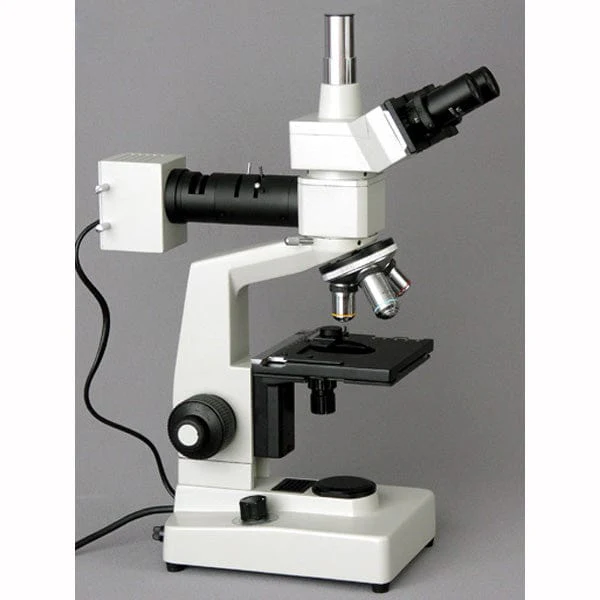

High quality trinocular professional upright metallurgical metallographic microscope

Perfect for detail examination and micro-analysis of surface structures of metallic materials!

Excellent for quality control in industrial and research applications including silicon wafer inspection and foundries!

Five total magnification settings: 40X, 100X, 250X, 400X & 1000X

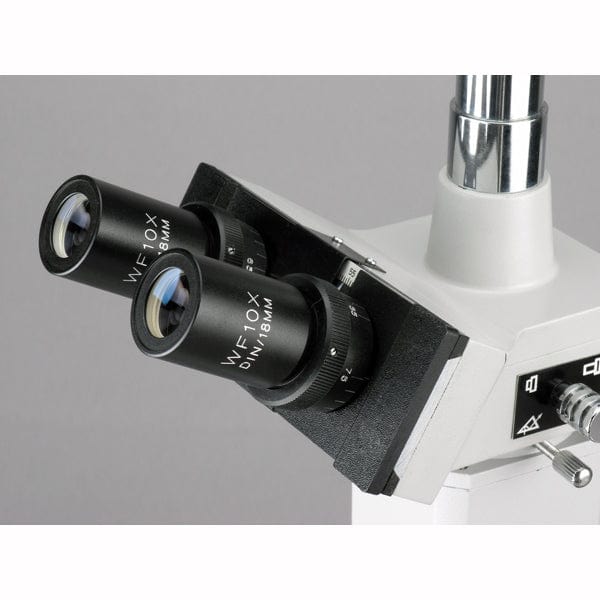

30 degree inclined 360 degree rotatable sliding trinocular head

Fully coated optical system with high resolution

23mm photo port for camera

Adjustable interpupillary distance

Adjustable diopters on both eye tubes

Three superior quality PLAN DIN objectives, 4X, 10X and 40X (spring)

Two pairs of widefield eyepieces, 10X and 25X

Advanced epi-illumination design offers excellent halogen illumination and optimal image clarity

Episcopic illumination has independent filter holders, aperature/field diaphragms and diaphragm alignment controls

Yellow, blue, green, and frosted filters included

Coaxial coarse and fine focusing system

Dual side focusing controls

Focusing tension control mechanism

Locking mechanism for controlling coarse focusing range and protecting objectives and specimens

Large graduated mechanical stage with stain resistant finish

Low position coaxial X-Y stage traveling controls

Solid metal frame construction with stain resistant enamel finish

Full optical glass elements

Precise ground glass lenses

All metal mechanical parts

Manufactured under ISO 9001 quality control standards

Excellent five (5) year factory warranty

Unbeatable lowest price guaranteed or the difference back!

Satisfaction guaranteed or your money back!

Specifications:

Nosepiece: Quadruple

Focusing Range: 1-9/16" (40mm)

Interpupillary Adjustment Range: 2-3/16" - 3-0" (55 - 75mm)

Mechanical Tube Length: 6-5/16" (160mm)

Head: 30 degree inclined trinocular

Trinocular Port: 23mm universal/standard photo tube

Eyepieces: WF10X (18mm field of view), Widefield 25X

Objectives: PL 4X (0.1 NA), 10X (0.25 NA), 40X (spring, 0.65 NA)

Stage Dimensions: 5-1/8"x 4-13/16" (130x122mm)

Stage Traveling Range: 1-3/16"x2-3/4" (30x70mm)

Vernier Division: 0.004" (0.1mm)

Illumination: 20W halogen

Power Supply: 110V

Camera Specifications:

Sensor: Aptina (color)

Sensor Type: CMOS

Sensor Size: 6.14x4.61mm

Pixel Size: 1.25

Resolution: 18.0MP

Frame Rate: 32.2fps @ 1228x922, 18.1fps @ 2456x1842, 5.6fps @ 4912x3684

Sensitivity: 0.62 V/lux-sec

Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Software Specifications:

OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS X, Linux kernel 3.13+

Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed

Packing List:

One Trinocular Metallurgical Microscope Body with Episcopic Illumination System

One Pair of Widefield 10X Eyepieces

One Pair of Widefield 25X Eyepieces

Three Plan Objectives: 4X, 10X, 40X

Four Filters: Yellow, Blue, Green and Frosted (built-in already)

One 18MP USB3.0 Digital Camera

One Reduction Lens

Two Sizing Adapters

One USB Cable

One Software CD
