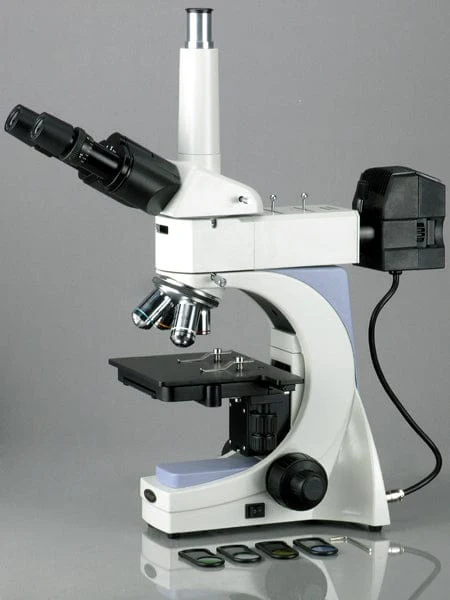

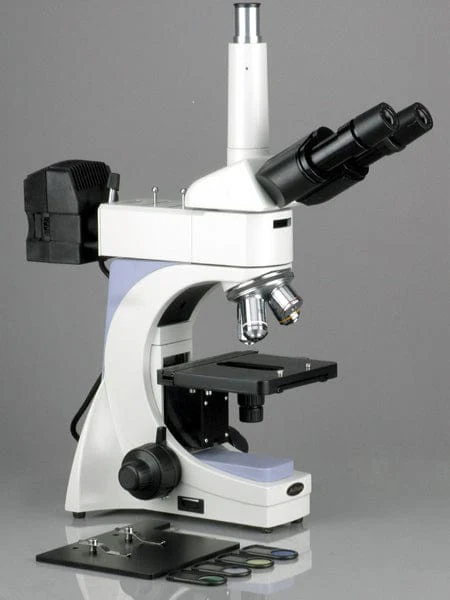

AmScope ME400 Series Infinity-corrected Metallurgical Trinocular Compound Microscope 40X-800X Magnification with 5MP Digital Camera

This professional infinity plan metallurgical microscopy system with 5MP digital camera offers six magnification settings, 40X, 80X, 100X, 200X, 400X & 800X, and advanced features. It comes with four Plan Achromatic objectives, two pairs of widefield eyepieces, and a 30 degree inclined 360 degree swiveling trinocular head. The 5MP digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac, there is a lite version with limited processing features. This microscope is perfect for metallurgical labs, foundries for silicon wafer inspection, and quality control applications.

Features:

• An infinity plan metallurgical and metallographic microscope with 5MP camera!
• Comes with 5MP high resolution, high quality color USB2.0 digital camera
• Captures microscope images and streams live video on your computer screen
• Displays 5MP full-screen clear images with high resolution
• Saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
• Measures accurately lengths, angles and areas across microscope images
• Edits microscope images on your computer in a similar manner to PhotoShop
• Built-in reduction lens for the possible largest field of view
• EPI-illumination reflected light microscopy system
• Photo/video capability with 23mm universal/standard photo port
• Fully coated optical system with high resolution
• 30 degree inclined 360 degree rotatable trinocular Siedentopf head
• Six levels of magnification, 40X, 80X, 100X, 200X, 400X & 800X
• Four DIN standard infinity Plan objectives included
• Two sets of widefield eyepiece included
• Intensity-variable halogen EPI-illumination
• Two filter frames and one blue EPI-illumination filter included
• Extra large mechanical stage with stain resistant finish
• Low position stage traveling controls
• Full optical glass elements
• Precise ground glass lenses
• All metal mechanical parts
• Coaxial coarse and fine focusing
• Dual side focusing controls
• Focusing tension control mechanism
• Adjustable interpupillary distance
• Adjustable diopter on both eye tubes
• Solid metal frame construction with stain resistant enamel finish
• Dust cover included
• Manufactured under ISO 9001 quality control standards
• Excellent five (5) year factory warranty



Specifications :

• Nosepiece: triple
• Focusing Range: 1-9/16" (40mm)
• Interpupillary Adjustment Range: 2-3/16" - 3-0" (55 - 75mm)
• Mechanical Tube Length: 6-5/16" (160mm)
• Head: 30 degree inclined trinocular
• Camera/Video Trinocular Port: 23mm universal/standard photo tube
• Eyepiece: WF10X (18mm Field of View), WF16X (11mm)
• Objective: infinity Plan Achromatic 4X (0.1 NA, WD25.4mm), 10X (0.25 NA, WD11.0mm), 20X (0.4 NA, WD6.0mm), 40X (Spring, 0.60 NA WD3.7mm)
• Stage Dimensions: 5.9"x 5.5" (150x140mm)
• Stage Traveling Range: 3.0"x2.0" (75x50mm)
• Venire Division: 0.000079" (0.002mm)
• Illumination: halogen lamp, 6V/20W
• Power Supply: 110V

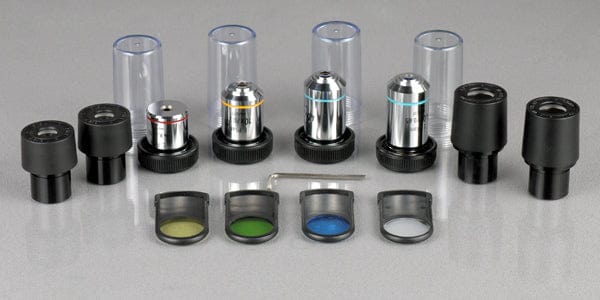

Packing List :

• One Trinocular Compensation-Free Compound Microscope Head
• One Microscope Body with Frame, EPI Illumination System and Base
• Two Pairs of Widefield Eyepieces: WF10X & WF20X
• Four Plan Achromatic Metallurgical Objectives, 4X, 10X, 20X & 40X
• Two Filter Frames and One Blue Filter
• One Power Cord
• Dust Cover
• User's Manual Download

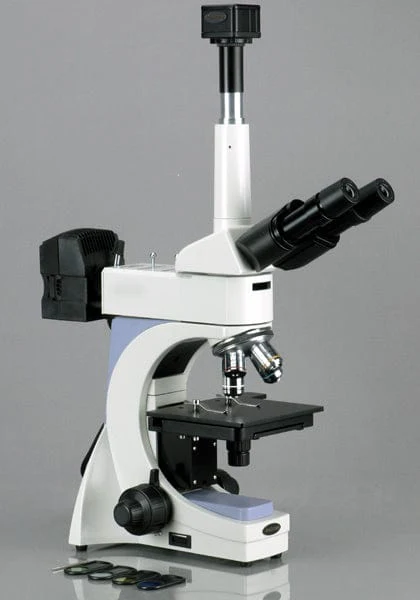

• One 5MP USB2.0 Digital Camera
• Two Camera Adapters
• One USB Cable
• One CD with Software, Driver and Step-by-Step User's Instructions
• Shipping Weight: 25 lbs
