AmScope MU Series 10.0MP USB 3.0 Color CMOS C-Mount Microscope Camera with Reduction Lens

This 10MP USB3.0 high speed microscope digital camera has a unique design that comes with a reduction lens, a USB cable and two adapters. The high speed digital camera captures still microscopy images, streams real time live videos on your computers, and is compatible with Windows 8.1/10/11 and Linux. The user-friendly software for Windows offers advanced features including Stitching, EDF (Extended Depth of Focus), and video recording. Live video and still image capture can be set in different resolutions simultaneously. The reduction lens gives larger field of view.

The software included allows you to make notes, shapes, and watermarks with ease. You can analyze, present, and share images of samples and specimen by simply plugging one end into your computer's USB3.0 port, and the other on your microscope's eye-tube or trinocular port. Featuring built-in C-mount compatibility and 23mm reduction lens adapter, our camera can be attached to any instrument with a C-mount or a 23mm, a 30mm and a 30.5mm photo port. The camera is equipped with CMOS color sensor, and comes with a high-speed USB cord, four mounting sizes (23mm, 30mm, 30.5mm, and C-mount), and instructions.

Camera Specifications:

• Sensor: Aptina MT9J003 CMOS (Color)
• Sensor Size: 1/2.2" (6.119mm(H) x 4.589mm(V), diagonal 7.649mm)
• Resolution: 3584 x 2748 (approx. 10,000,000 pixels)
• Reduction Lens: 0.5X
• Pixel Size: 1.67µm x 1.67µm
• G Sensitivity: 0.31v / lux-sec (550nm)
• Frame Rate: 25fps @1792x1372 (Multiple Speed Level), 7.2fps @3584x2746
• Exposure: 0.38~2000ms, ROI Auto & Manual

Scan Mode: ProgressiveDynamic Range: 65.2dBA/D Converter: 12-bit Parallel, 8-bit R.G.B to computerSN Ratio: 34dBSpectral Range: 380-650nm (with IR-filter)Binning: 1x1, 2x2, 4x4White balance: ROI White Balance/ Manual Temp-Tint AdjustmentColor Rendering Technique: Ultra Fine Color EngineCapture/Control API: Native C/C++, C#, Directshow, Twain, LabviewRecording System: Still Picture and MovieCooling System: NaturalOperating Temperature: -10°C~50°CStorage Temperature: -20°C~60°COperating Humidity: 30~80%RHStorage Humidity: 10~60%RHPower Supply: DC 5V over USB3.0 Port



Software Features:

• Operating System: Windows 8.1/10/11 (32 & 64 bit) and Linux
• Computer Requirements: CPU equals to Intel Core2 2.8GHz or higher, Memory: 2GB or more, USB2.0 High-speed Port
• Advanced software for Windows:
  - offers Stitching, EDF, video recording and measurement functions
  - conducts measurements for lengths, angles, arcs, areas and etc.
  - saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
  - edit and process microscopy images in a manner similar to PhotoShop
  - live video and still image capture can be set in different resolutions simultaneously

More features: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, granulation, diffusion; transform images via edge detection, digital image warping; conducts measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors; conducts measurements in microns, millimeters, centimeters, inches, feet, and etc. under any magnification powers with desired tolerancesLife-time free software upgrades

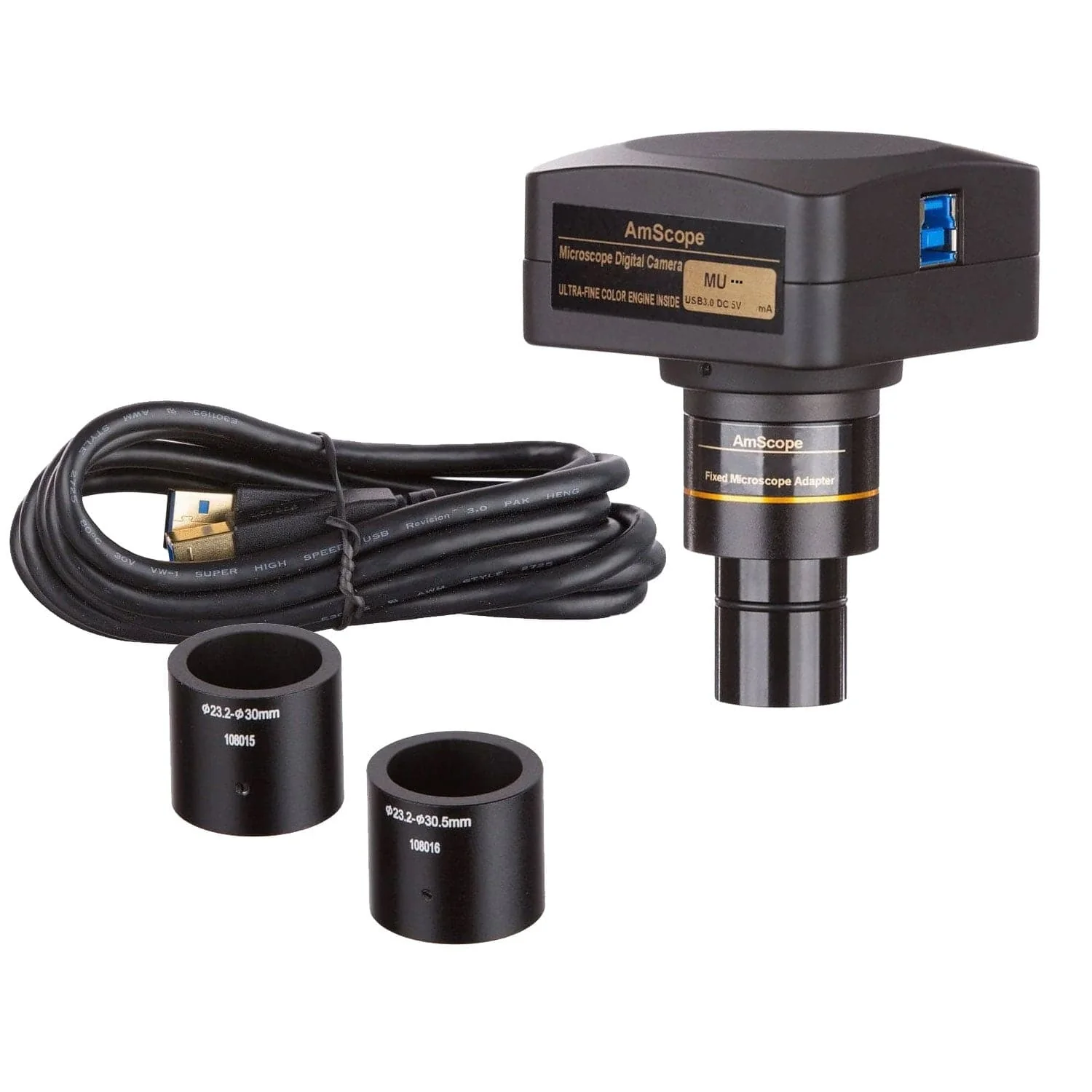

Packing List:

• One 10MP USB3.0 Digital Camera
• One Reduction Lens
• One 6' (1.8m) USB Cable
• Two Adapters: 30mm and 30.5mm
• One CD with Software and User's Instructions



• Shipping Weight: 3 lbs
