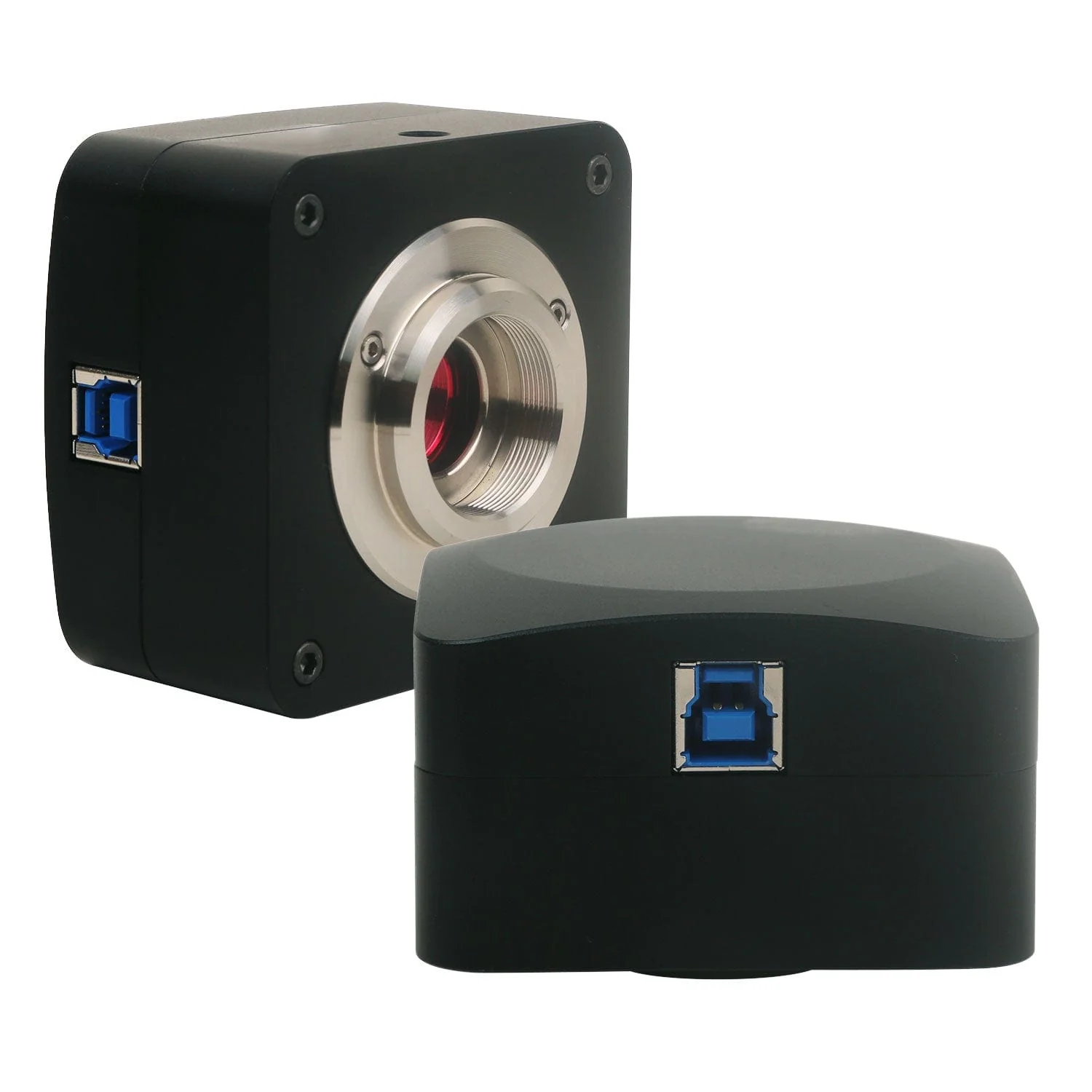

The MU1203-CCD-FL is a highly-sensitive 12-megapixel CCD digital camera. The large sensor provides a high signal-to-noise ratio, delivering excellent results in low-light applications such as fluorescence and dark-field microscopy.
With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.
Sensor
| Sensor |
Sensor Type |
Shutter |
Sensitivity
?
|
| Sony ICX834AQG |
CCD (color) |
Global Shutter |
420mV @ 1/30s (f5.6) |
| Sensor Size |
Pixels |
Pixel Size |
| 1" format (13.15mm x 8.77mm) |
12 Megapixels |
3.1µm x 3.1µm |
Camera
| Frame Rate(s) |
Connectivity |
Lens-mount |
Compensating Lens |
Compatibility |
3.6fps @ 4284x2836
3.6fps @ 2124x1418 |
USB 3.0 |
C-mount |
-- |
Windows (32/64 bit) 8.1/10/11, Mac OSX, Linux |
Software
| OS Requirements |
Windows (32/64 bit) 8.1/10/11, Mac OS 10.8+, Linux kernel 3.13+ |
| Hardware Requirements |
Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed |
| Features |
| Windows Version |
| Live video preview |
| Captures still images and video |
| Time-lapse capture |
| Exposure and white-balance controls |
| Dark-field correction |
| Digital binning |
| Image processing |
| Measurement tools, including lines, arcs, polygons |
| Segmentation and counting tools |
| Image-stitching, extended depth-of-field, HDR |
| Fluorescence color-mapping |
| Mac/Linux Versions |
| Live video preview |
| Captures still images and video |
| Exposure control |
| Color adjustment |
| Measurement tools, including lines, arcs, polygons |
|
