AmScope MU Series 1.5MP Color Global-Shutter CMOS USB 3.0 Microscope Camera
HomeStore

AmScope MU Series 1.5MP Color Global-Shutter CMOS USB 3.0 Microscope Camera

AmScope MU Series 1.5MP Color Global-Shutter CMOS USB 3.0 Microscope Camera

$289.45

Original: $826.99

-65%
AmScope MU Series 1.5MP Color Global-Shutter CMOS USB 3.0 Microscope Camera—

$826.99

$289.45

The Story

The MU153-GS is a highly-sensitive, high-speed global-shutter camera designed for low-light microscopy applications including fluorescence. The 1.5MP sensor favors speed and sensitivity over resolution. Able to capture faint signals, the sensor can rapidly produce images with a maximum framerate of 164fps at full resolution, and 320fps at lower resolution. Using a global shutter, the camera does not suffer from rolling-shutter distortion. This will be beneficial when imaging moving specimens.

With software available for Windows, Mac, and Linux, this camera package is a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

Sensor

Sensor Sensor Type Transfer Method Binning Sensitivity
?
Sony IMX273 Color CMOS Global Shutter 1x1 1146mv @ 1/30s
Optical Format Sensor Size Pixels Pixel Size Aspect Ratio
1/2.9" 4.97mm x 3.73mm 1.5M 3.45µm x 3.45µm 4:3

Camera

Spectral Range
(IR Cut Filter)		 Frame Rate(s)
(Maximum)		 Exposure Time Connectivity
380nm - 650nm 164fps @ 1440x1080
320fps @ 720x540		 0.1ms - 15s USB 3.0
Lens-mount Compensating Lens Power Compatibility
C-mount 0.37X 5V over USB Windows (32/64 bit) 8.1/10/11, Mac OSX, Linux

Software

OS Requirements Windows (32/64 bit) 8.1/10/11, Mac OS 10.8+, Linux kernel 3.13+
Hardware Requirements Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed
Features
Windows Version
Live video preview
Captures still images and video
Time-lapse capture
Exposure and white-balance controls
Dark-field correction
Digital binning
Image processing
Measurement tools, including lines, arcs, polygons
Segmentation and counting tools
Image-stitching, extended depth-of-field, HDR
Fluorescence color-mapping
Mac/Linux Versions
Live video preview
Captures still images and video
Exposure control
Color adjustment
Measurement tools, including lines, arcs, polygons

Contents:

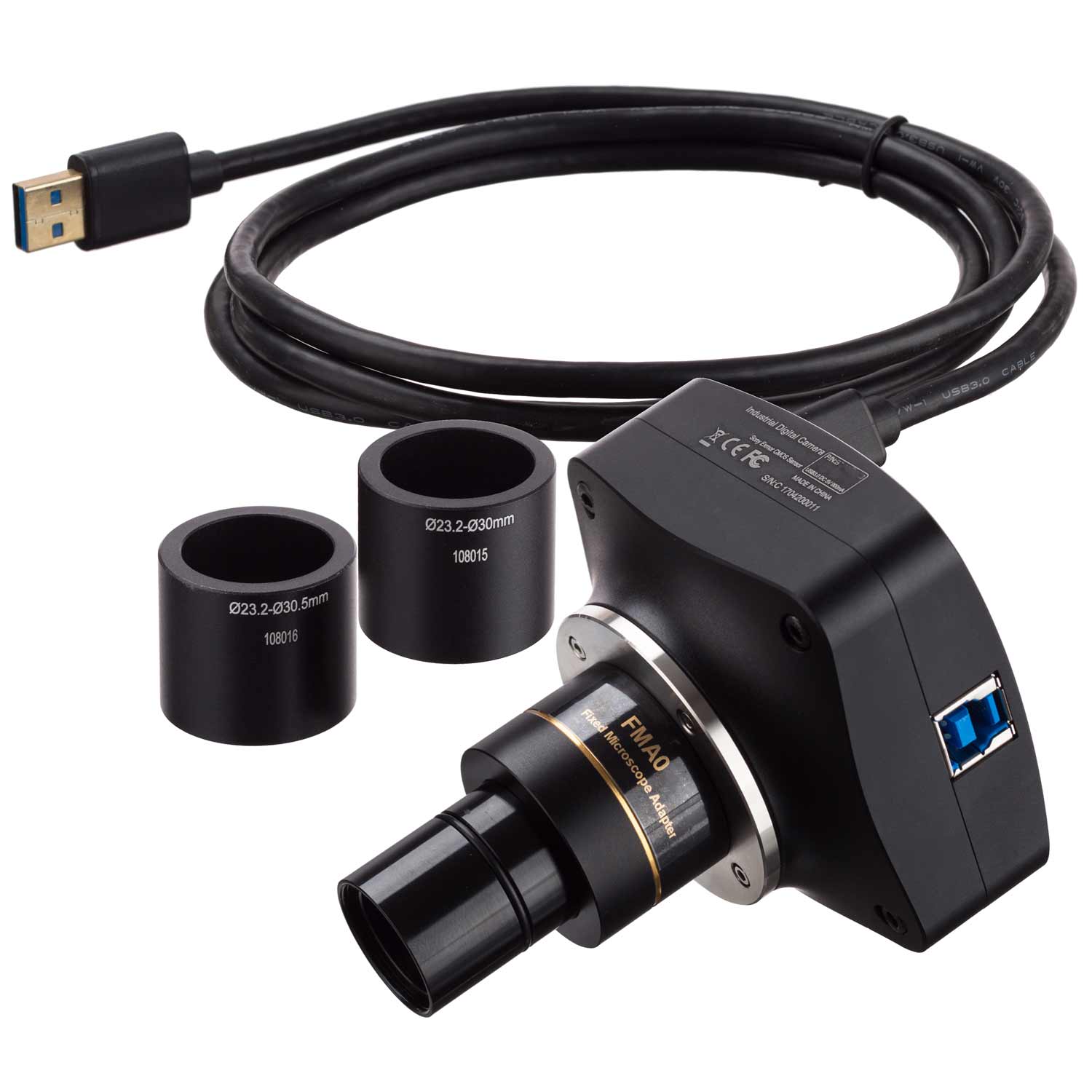

  • One USB3.0 Digital Camera
  • One reduction lens
  • Two Sizing adapters
  • One 6' (1.8m) USB cable
  • One CD with software and instructions

    • Description

    The MU153-GS is a highly-sensitive, high-speed global-shutter camera designed for low-light microscopy applications including fluorescence. The 1.5MP sensor favors speed and sensitivity over resolution. Able to capture faint signals, the sensor can rapidly produce images with a maximum framerate of 164fps at full resolution, and 320fps at lower resolution. Using a global shutter, the camera does not suffer from rolling-shutter distortion. This will be beneficial when imaging moving specimens.

    With software available for Windows, Mac, and Linux, this camera package is a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

    Sensor

    Sensor Sensor Type Transfer Method Binning Sensitivity
    ?
    Sony IMX273 Color CMOS Global Shutter 1x1 1146mv @ 1/30s
    Optical Format Sensor Size Pixels Pixel Size Aspect Ratio
    1/2.9" 4.97mm x 3.73mm 1.5M 3.45µm x 3.45µm 4:3

    Camera

    Spectral Range
    (IR Cut Filter)    		 Frame Rate(s)
    (Maximum)    		 Exposure Time Connectivity
    380nm - 650nm 164fps @ 1440x1080
    320fps @ 720x540    		 0.1ms - 15s USB 3.0
    Lens-mount Compensating Lens Power Compatibility
    C-mount 0.37X 5V over USB Windows (32/64 bit) 8.1/10/11, Mac OSX, Linux

    Software

    OS Requirements Windows (32/64 bit) 8.1/10/11, Mac OS 10.8+, Linux kernel 3.13+
    Hardware Requirements Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed
    Features
    Windows Version
    Live video preview
    Captures still images and video
    Time-lapse capture
    Exposure and white-balance controls
    Dark-field correction
    Digital binning
    Image processing
    Measurement tools, including lines, arcs, polygons
    Segmentation and counting tools
    Image-stitching, extended depth-of-field, HDR
    Fluorescence color-mapping
    Mac/Linux Versions
    Live video preview
    Captures still images and video
    Exposure control
    Color adjustment
    Measurement tools, including lines, arcs, polygons

    Contents:

  • One USB3.0 Digital Camera
  • One reduction lens
  • Two Sizing adapters
  • One 6' (1.8m) USB cable
  • One CD with software and instructions
