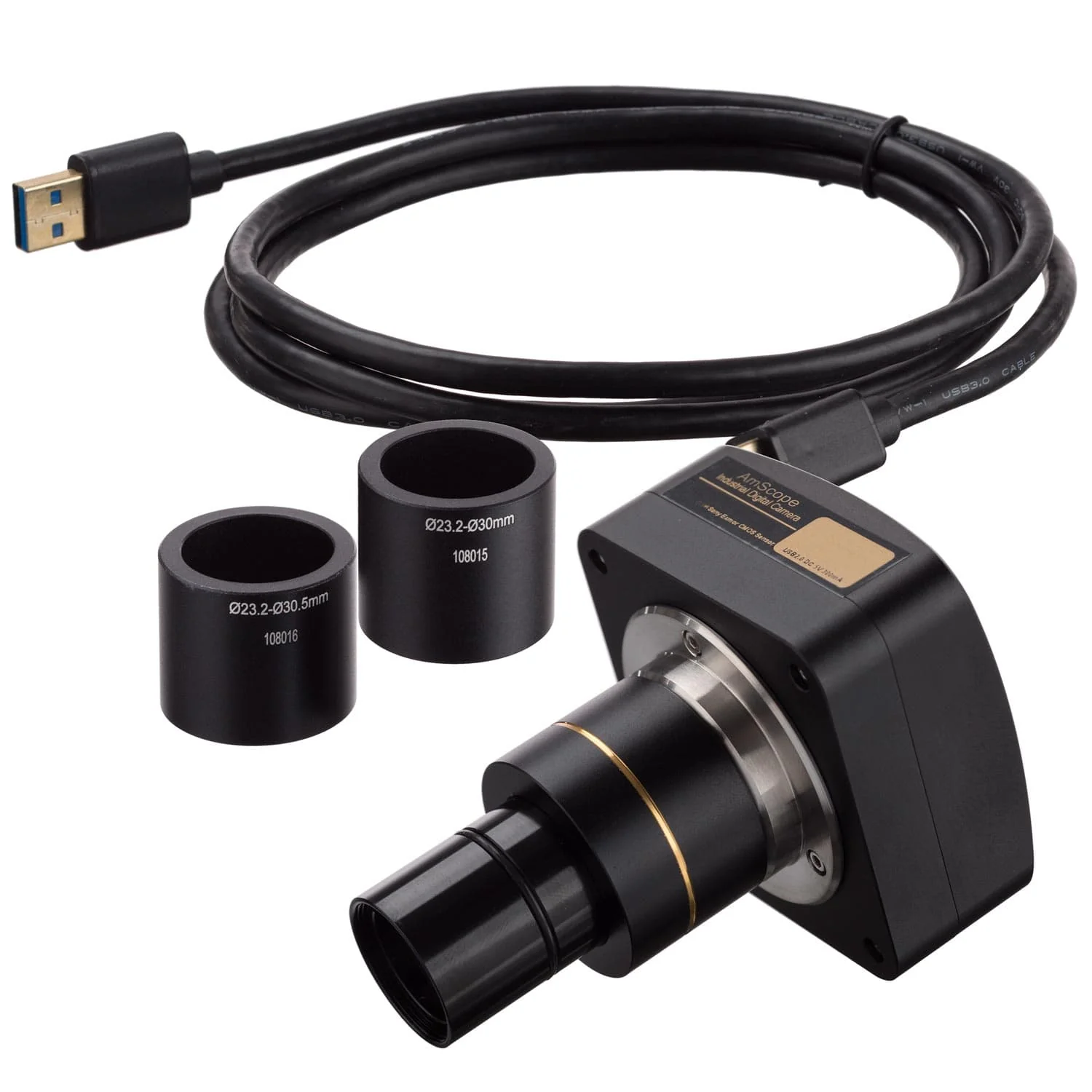

AmScope MU Series 5.3MP USB 2.0 Back-illuminated Color CMOS C-Mount Microscope Camera with Reduction Lens and Calibration Slide

The 5.3MP USB2.0 MU530-BI is part of our back-illuminated CMOS camera series. Back-illuminated CMOS sensors provide higher quantum-efficiency by moving the photo-diode layer in front of the electronic components, increasing photon-absorption. This translates to less image-noise and dark-current while maintaining high speeds.

The included software for Windows, Mac, and Linux provides an imaging solution for photography and videography. The Windows (8.1/10/11) version provides an extensive toolset for image-processing and measurements. A lite version of the application is provided for Mac and Linux.

Camera Specifications:

Sensor: Sony IMX178 (color)

Sensor Type: BSI CMOS

Sensor Size: 1/1.9" (8.51mm diagonal)

Pixel Size: 2.4µm x 2.4µm

Sensor Pixels: 5.3MP (3072x1728)

Sensitivity: 425mv (1/30s)

Max Framerates: 5.5fps @ 3072 x1728, 35fps @ 1280x720

Binning: 1x1, 2x2

Exposure Time: 0.105ms - 15s

Reduction Lens: 0.5X

Connectivity: USB 2.0

Compatibility: Windows (32/64 bit) 8.1/10/11, Mac OSX, Linux
