The Story

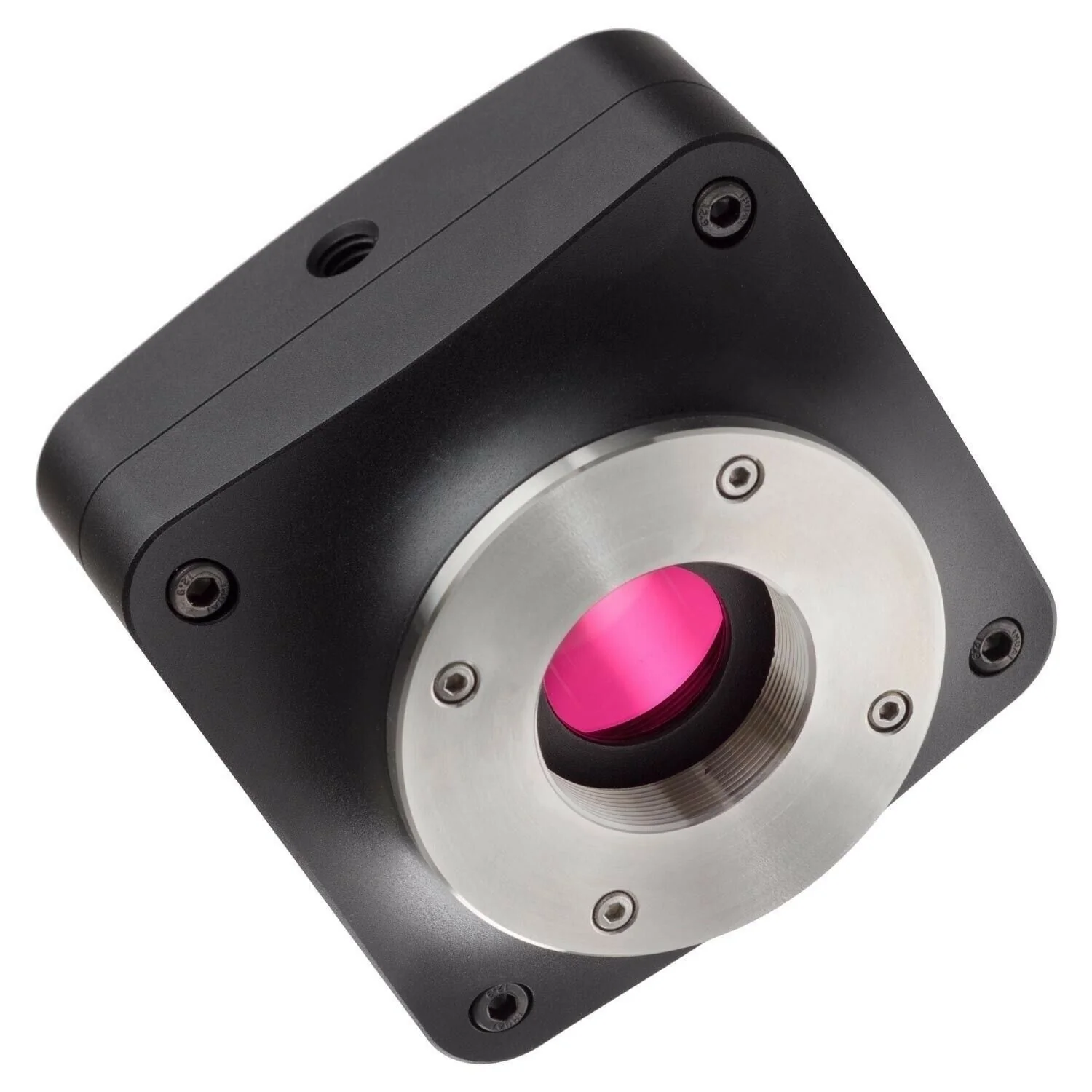

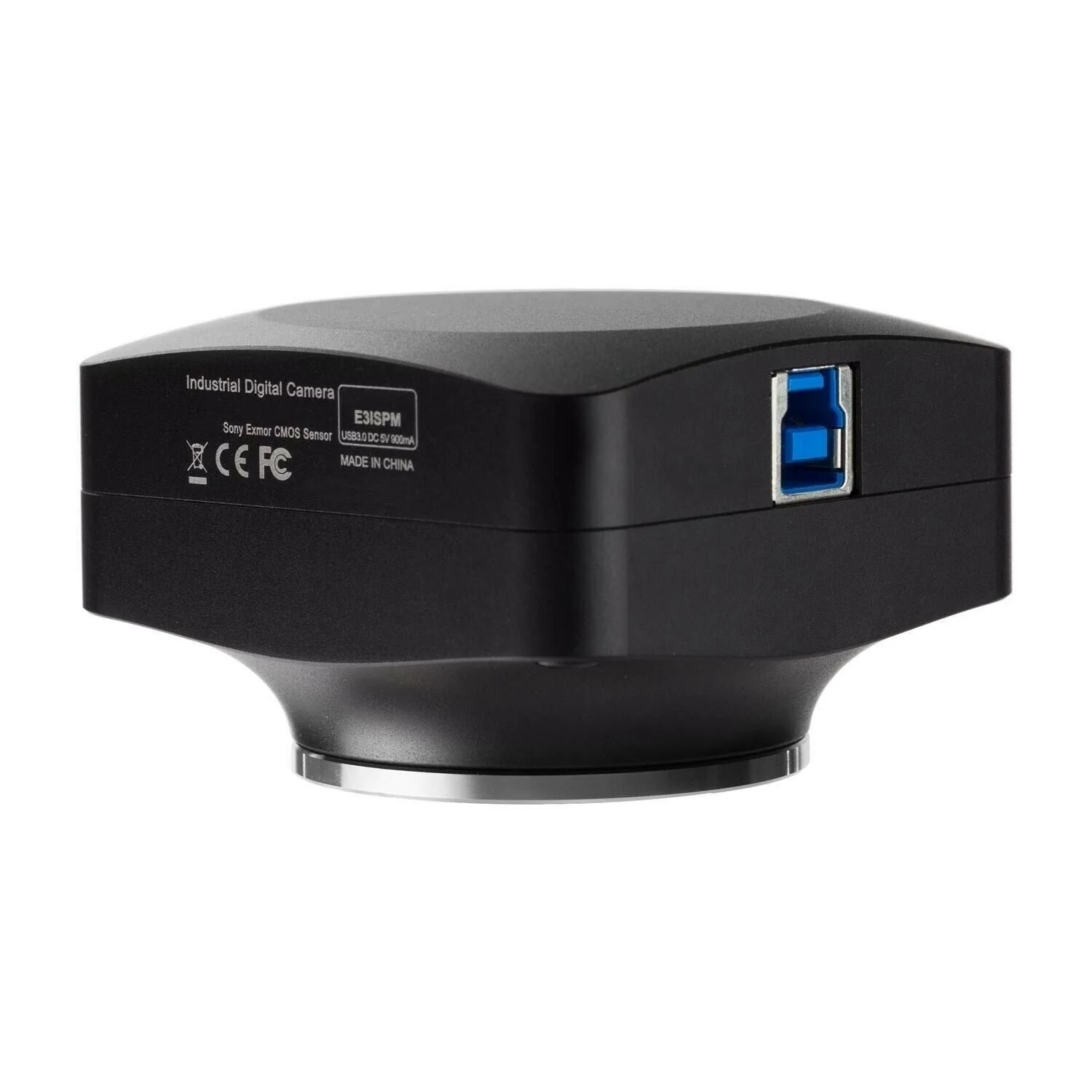

This pinnacle in imaging-technology provides high sensitivity and speed with global-shutter scanning. The MU903-GS uses Sony's cutting-edge 9-megapixel global-shutter CMOS sensor for high resolution with high quantum-efficiency. Using a 1" optical format, larger pixels can be used to increase well-capacity, improving sensitivity and dynamic-range. This translates to shorter exposure-times, lower noise, and the ability to better capture faint emissions. The global shutter improves imaging of moving subjects through simultaneous pixel-capture, avoiding the focal-plane distortion seen in rolling-shutter sensors. With a maximum framerate of 60fps, a new level of responsiveness will be seen during live-viewing, with .
With a large 1" sensor, this camera is best-suited for microscopes with a direct C-mount interface. Smaller photo-ports, such as 23mm ports, will typically cause vignetting, unless used with a magnifying relay lens such as our RU100.
With software available for Windows, Mac, and Linux, this camera package is a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.
Sensor
| Sensor | Sensor Type | Transfer Method | Binning | Sensitivity ?
|
|---|---|---|---|---|
| Sony IMX305 | Color CMOS | Global Shutter | 1x1 2x2 |
1146mV @ 1/30s |
| Optical Format | Sensor Size | Pixels | Pixel Size | Aspect Ratio |
| 1" | 14.13mm x 7.45mm 15.97mm diagonal |
9M | 3.45µm x 3.45µm | 17:9 |
Camera
| Spectral Range (IR Cut Filter) |
Frame Rate(s) (Maximum) |
Exposure Time | Connectivity |
|---|---|---|---|
| 380nm - 650nm | 34fps @ 4096x2160 60fps @ 2048x1080 |
0.1ms to 15s | USB 3.0 |
| Lens-mount | Compensating Lens | Power | Compatibility |
|---|---|---|---|
| C-mount | -- | 5V over USB | Windows (32/64 bit) 8.1/10/11, Mac OSX, Linux |
Software
| OS Requirements | Windows (32/64 bit) 8.1/10/11, Mac OS 10.8+, Linux kernel 3.13+ | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed | ||||||||||||||||
| Features |
|
