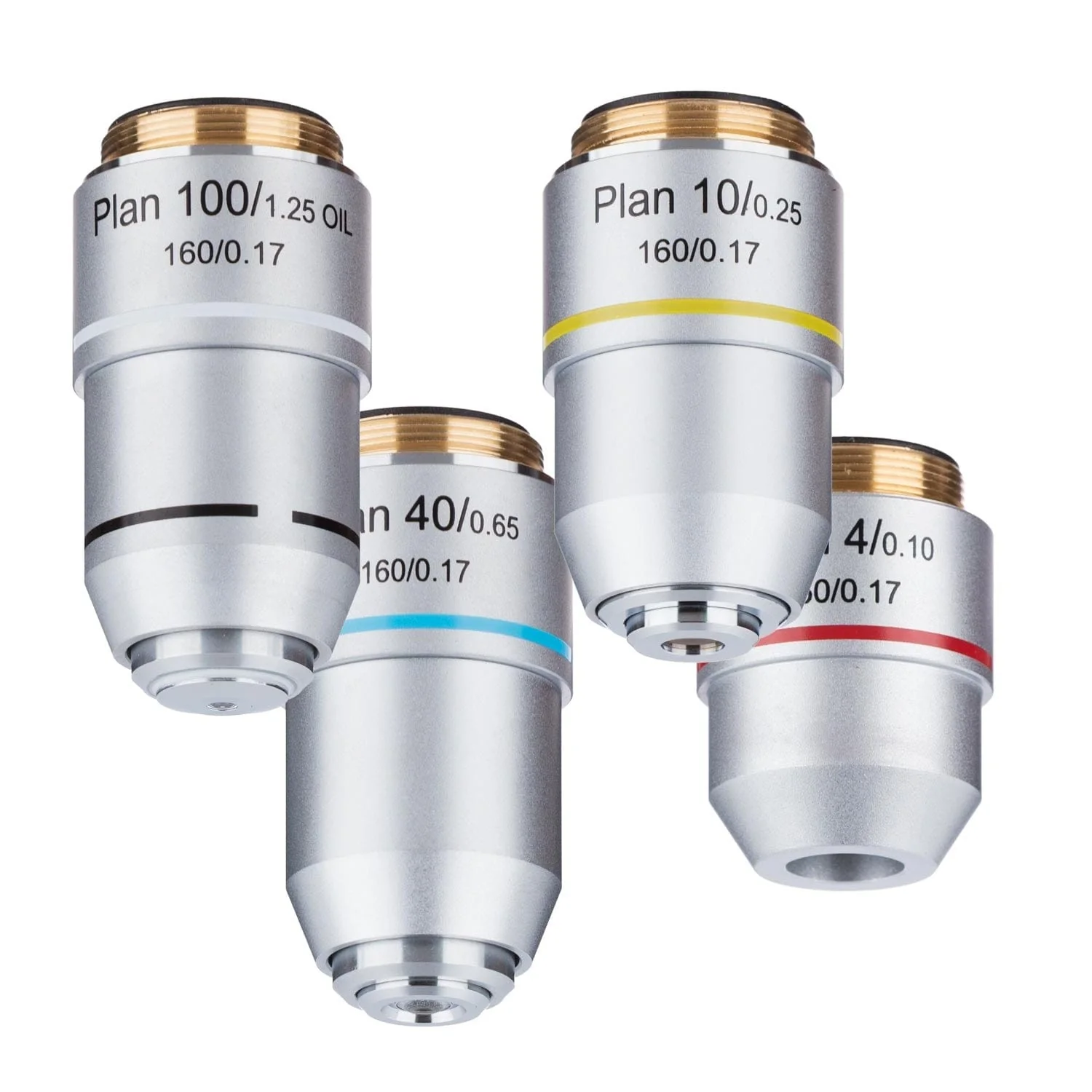

AmScope Plan Objective Lens Set 4X 10X 40X 100X

This is a set of Plan Achromatic objective lenses, fitting common-size (DIN standard) compound / biological microscopes. It comes with 4X, 10X, 40X & 100X Plan Achromatic objective lenses, each in a protective container.

Features & Specifications:

• 4X, 10X, 40X, 100X Plan achromat objective lenses
• Plan flat-field corrections for a flat, well-focused field of view
• Achrmotaic color corrections
• 160mm tube-length
• DIN/JIS standard fittings





• PA4X 4X Lens
• NA: 0.10
• Tube Length: 160mm
• Cover Glass Thickness: 0.17mm





• PA10X 10X Lens
• NA: 0.25
• Tube Length: 160mm
• Cover Glass Thickness: 0.17mm





• PA40X 40X (Spring) Lens
• NA: 0.65
• Tube Length: 160mm
• Cover Glass Thickness: 0.17mm





• PA100X 100X (Spring) Lens
• NA: 1.25
• Tube Length: 160mm
• Cover Glass Thickness: 0.17mm
• Immersion Medium: Oil
