The Story

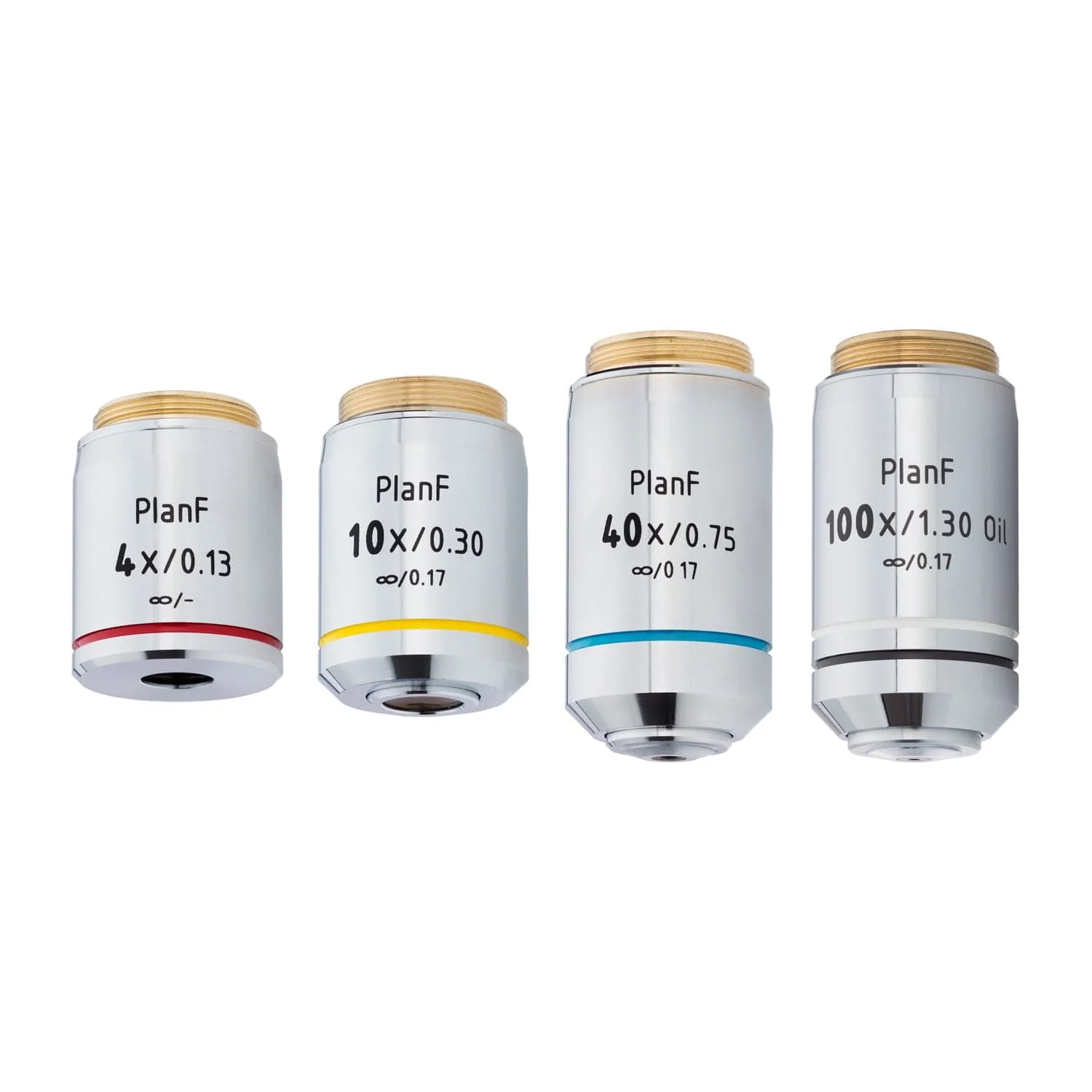

This is a set of 4 plan-fluor objective lenses for high-resolution biological and fluorescence applications. The set includes 4X, 10X, 40X, and 100X lenses. Semi-apochromatic optical corrections improve resolution and color accuracy by realigning blue, green, and red wavelengths. Plan field corrections further improve image quality by providing edge-to-edge sharpness. Along with improvements in resolution, the optics provide better transmittance in the ultraviolet and near-infrared bands for use in fluorescence microscopy.
The lens is designed for use with AmScope upright, infinity-corrected microscopes, as well as other microscopes using RMS mounts and 45mm parfocal distance.
| Compatibility | |
| Optical System | Infinite |
| Reference Focal Length | 180mm |
| Mounting Thread | RMS 20.32mm |
| Parfocal Distance | 45mm |
| Lens Specifications | |
| Magnification | Corrections | NA | Working Distance | Cover-glass Thickness | Immersion Medium | Nosecone |
|---|---|---|---|---|---|---|
| 4X | Plan, semi-apochromatic | 0.13 | 16.3mm | — | — | Fixed |
| 10X | Plan, semi-apochromatic | 0.30 | 12.4mm | 0.17 | — | Fixed |
| 40X | Plan, semi-apochromatic | 0.75 | 0.35mm | 0.17mm | — | Spring |
| 100X | Plan, semi-apochromatic | 1.30 | 0.13 | 0.17mm | Oil | Spring |
Description
This is a set of 4 plan-fluor objective lenses for high-resolution biological and fluorescence applications. The set includes 4X, 10X, 40X, and 100X lenses. Semi-apochromatic optical corrections improve resolution and color accuracy by realigning blue, green, and red wavelengths. Plan field corrections further improve image quality by providing edge-to-edge sharpness. Along with improvements in resolution, the optics provide better transmittance in the ultraviolet and near-infrared bands for use in fluorescence microscopy.
The lens is designed for use with AmScope upright, infinity-corrected microscopes, as well as other microscopes using RMS mounts and 45mm parfocal distance.
| Compatibility | |
| Optical System | Infinite |
| Reference Focal Length | 180mm |
| Mounting Thread | RMS 20.32mm |
| Parfocal Distance | 45mm |
| Lens Specifications | |
| Magnification | Corrections | NA | Working Distance | Cover-glass Thickness | Immersion Medium | Nosecone |
|---|---|---|---|---|---|---|
| 4X | Plan, semi-apochromatic | 0.13 | 16.3mm | — | — | Fixed |
| 10X | Plan, semi-apochromatic | 0.30 | 12.4mm | 0.17 | — | Fixed |
| 40X | Plan, semi-apochromatic | 0.75 | 0.35mm | 0.17mm | — | Spring |
| 100X | Plan, semi-apochromatic | 1.30 | 0.13 | 0.17mm | Oil | Spring |
