Original: $195.99
-65%$195.99
$68.60The Story

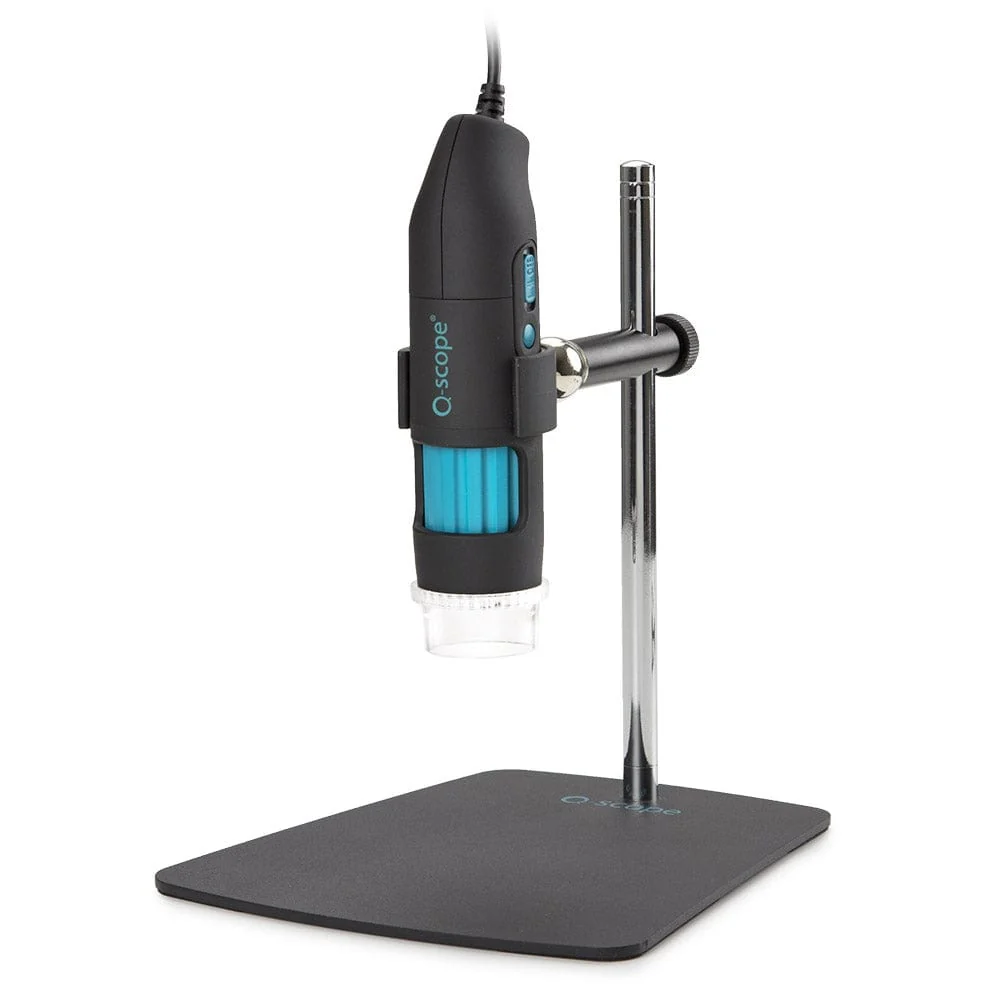

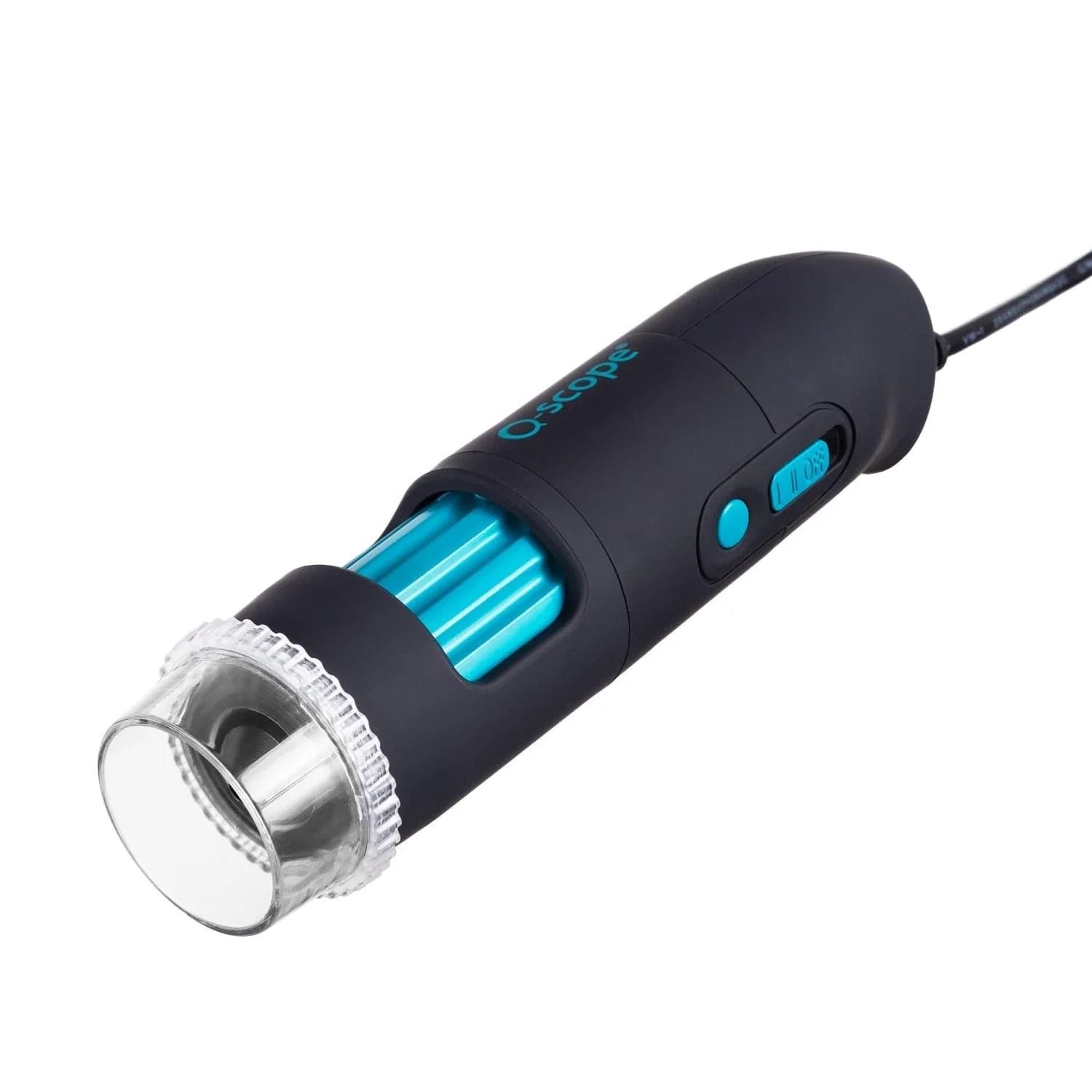

The QS-20200-P is part of the Q-scope range of digital microscopes, offering the best solutions for a broad range of applications like industrial quality-control, medical & life sciences, forensics, science & education, art restoration and many other fields. The MS10 stand features metal construction for durability, and a magnetic ball-joint for the easiest adjustments you've ever seen.
Connect to your Windows or Mac computer with USB for realtime on-screen viewing. You can capture images and video using Q-focus -- the user-friendly software that makes viewing and editing images fast and fun.
Q-Scope stands use metal construction for precision and reliability. The multi-axis positioning arm provides incredible flexibility with a unique magnetic ball-joint -- a simple feature with a huge impact. It takes only one hand to position your Q-Scope at virtually any angle, with no slipping, thanks to the high-power magnetic joint.
Specifications
 |
Connect to Windows or Mac with USB 2.0 |
 |
Designed to fit your hand comfortably |
 |
Q-focus software provides tools for measurements. |
 |
A polarizer can prevent unwanted reflections and detect stress in transparent materials |
| Connection | USB 2.0 | |
| OPTICS | Magnification | 10-50X and 200X (effective magnification on 21" monitor) 1/∞-0.5X, 2X (optical) |
| Zoom | Yes, distance controlled | |
| Working distance | Standard | |
| Lens type | High grade optical glass with multi-layer anti-reflection coating | |
| Focus range | Manual focus from 10 to 500 mm | |
| Polarizer | Yes | |
| SENSOR | Sensor type | CMOS |
| Size | 2.0 megapixel | |
| Resolution | 1600x1200, 1280x960, 800x600, 640x480 | |
| Max. frame rate | 30 fps | |
| FEATURES | Illumination | 8 white power LEDs |
| Software | Q-focus analysis software with measurement and annotation functions | |
| BODY | Dimensions | (d) 34 x (l) 140 mm |
| Weight | 115 grams |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The QS-20200-P is part of the Q-scope range of digital microscopes, offering the best solutions for a broad range of applications like industrial quality-control, medical & life sciences, forensics, science & education, art restoration and many other fields. The MS10 stand features metal construction for durability, and a magnetic ball-joint for the easiest adjustments you've ever seen.
Connect to your Windows or Mac computer with USB for realtime on-screen viewing. You can capture images and video using Q-focus -- the user-friendly software that makes viewing and editing images fast and fun.
Q-Scope stands use metal construction for precision and reliability. The multi-axis positioning arm provides incredible flexibility with a unique magnetic ball-joint -- a simple feature with a huge impact. It takes only one hand to position your Q-Scope at virtually any angle, with no slipping, thanks to the high-power magnetic joint.
Specifications
|
Connect to Windows or Mac with USB 2.0 |
|
Designed to fit your hand comfortably |
|
Q-focus software provides tools for measurements. |
|
A polarizer can prevent unwanted reflections and detect stress in transparent materials |
| Connection | USB 2.0 | |
| OPTICS | Magnification | 10-50X and 200X (effective magnification on 21" monitor) 1/∞-0.5X, 2X (optical) |
| Zoom | Yes, distance controlled | |
| Working distance | Standard | |
| Lens type | High grade optical glass with multi-layer anti-reflection coating | |
| Focus range | Manual focus from 10 to 500 mm | |
| Polarizer | Yes | |
| SENSOR | Sensor type | CMOS |
| Size | 2.0 megapixel | |
| Resolution | 1600x1200, 1280x960, 800x600, 640x480 | |
| Max. frame rate | 30 fps | |
| FEATURES | Illumination | 8 white power LEDs |
| Software | Q-focus analysis software with measurement and annotation functions | |
| BODY | Dimensions | (d) 34 x (l) 140 mm |
| Weight | 115 grams |
