$34.30The Story

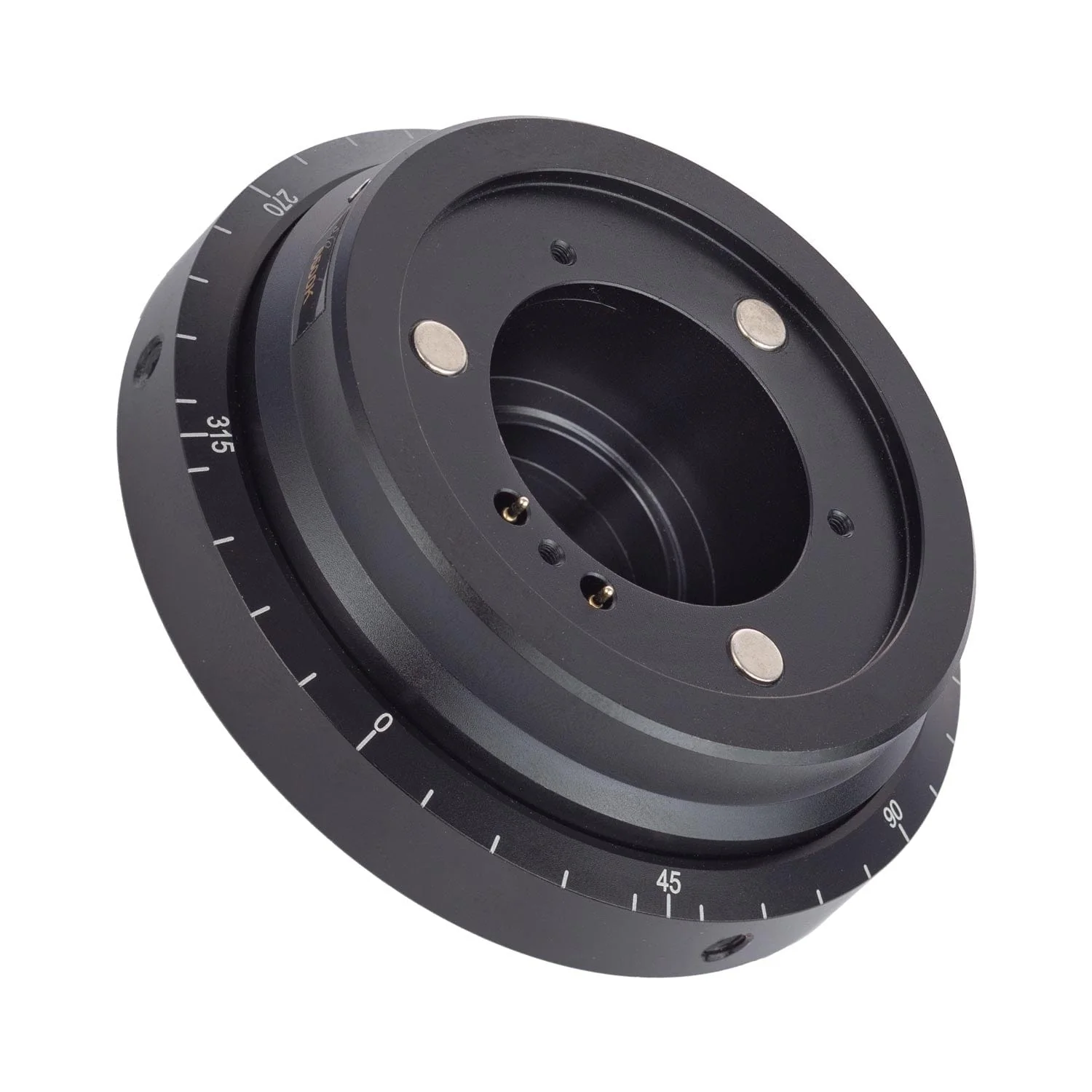

Polarizing filters have become staple tools in various fields of microscopy. This specialized ring light for DM756 series digital microscopes provides bright LED illumination with adjustable polarization. The ability of polarizing filters to enhance contrast and eliminate glare make this an indispensable tool for PCB inspection, mineralogy, dermatology, and much more.
Why is polarization important? Working with metallic surfaces can be especially difficult due to glare which obscures surface details. This ring light can greatly reduce glare to reveal those hidden details. By using two separate polarizing filters, the orientation of the polarization can be changed to optimize contrast for different materials. This method also works with other reflective surfaces including liquids, minerals, and even skin.
Like other illuminators in the DM756 line, the ring light attaches to the microscope using magnetic coupling. This allows you to quickly switch between a standard ring light and this polarizing version for comparison. All of the necessary power comes from the microscope, so no additional cords are needed. The brightness can be controlled by the microscope’s multi-position switch or through software.
Specifications
| Light Source | LED x 60 |
| Color Temperature | 6500K (biased by polarizer) |
| Maximum Power | 3W |
| Maximum Current | 1.056A (17.6mA/LED) |
| LED Driver | Voltage Control |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Polarizing filters have become staple tools in various fields of microscopy. This specialized ring light for DM756 series digital microscopes provides bright LED illumination with adjustable polarization. The ability of polarizing filters to enhance contrast and eliminate glare make this an indispensable tool for PCB inspection, mineralogy, dermatology, and much more.
Why is polarization important? Working with metallic surfaces can be especially difficult due to glare which obscures surface details. This ring light can greatly reduce glare to reveal those hidden details. By using two separate polarizing filters, the orientation of the polarization can be changed to optimize contrast for different materials. This method also works with other reflective surfaces including liquids, minerals, and even skin.
Like other illuminators in the DM756 line, the ring light attaches to the microscope using magnetic coupling. This allows you to quickly switch between a standard ring light and this polarizing version for comparison. All of the necessary power comes from the microscope, so no additional cords are needed. The brightness can be controlled by the microscope’s multi-position switch or through software.
Specifications
| Light Source | LED x 60 |
| Color Temperature | 6500K (biased by polarizer) |
| Maximum Power | 3W |
| Maximum Current | 1.056A (17.6mA/LED) |
| LED Driver | Voltage Control |
