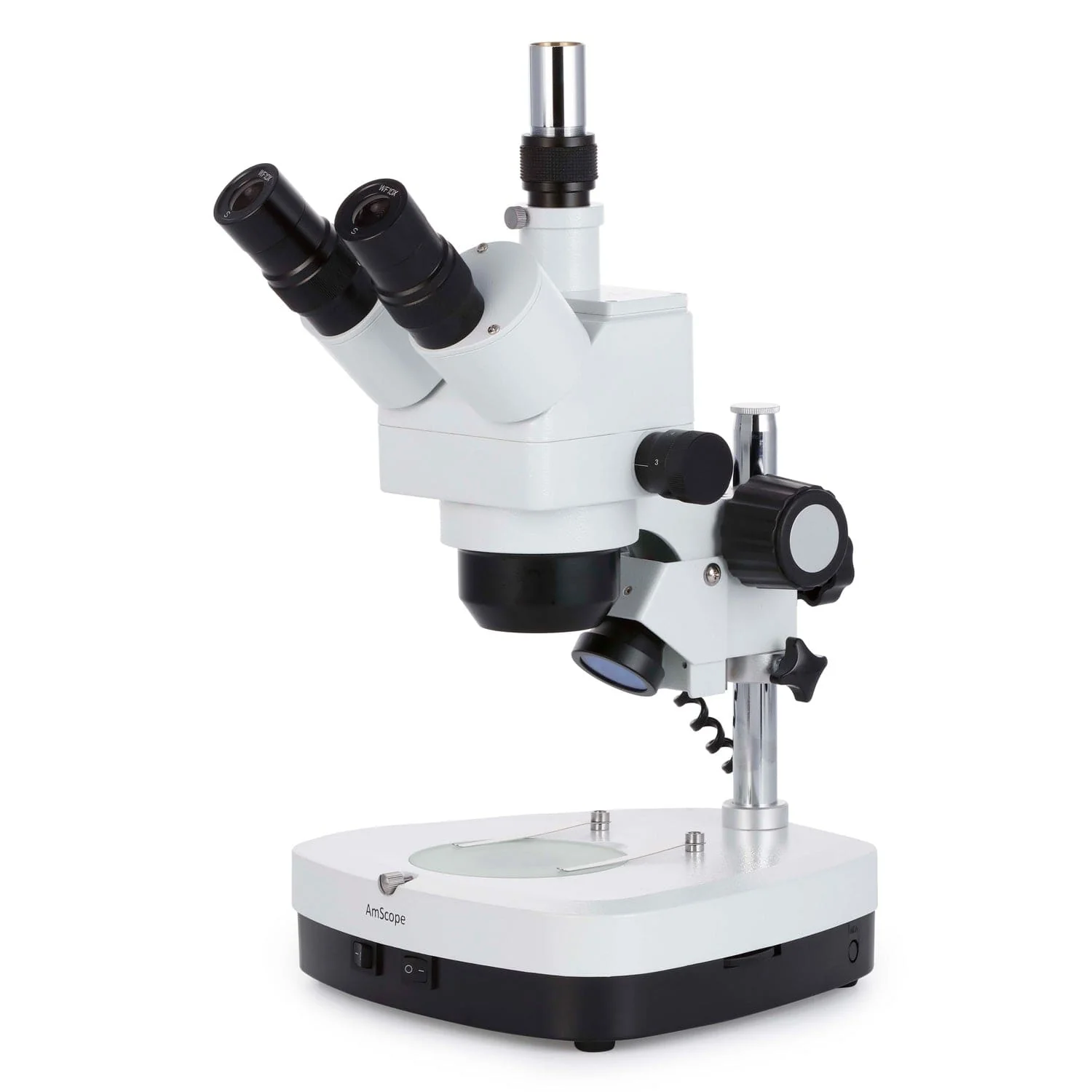

AmScope Outlet 10X-40X Student Trinocular Stereo Zoom Microscope

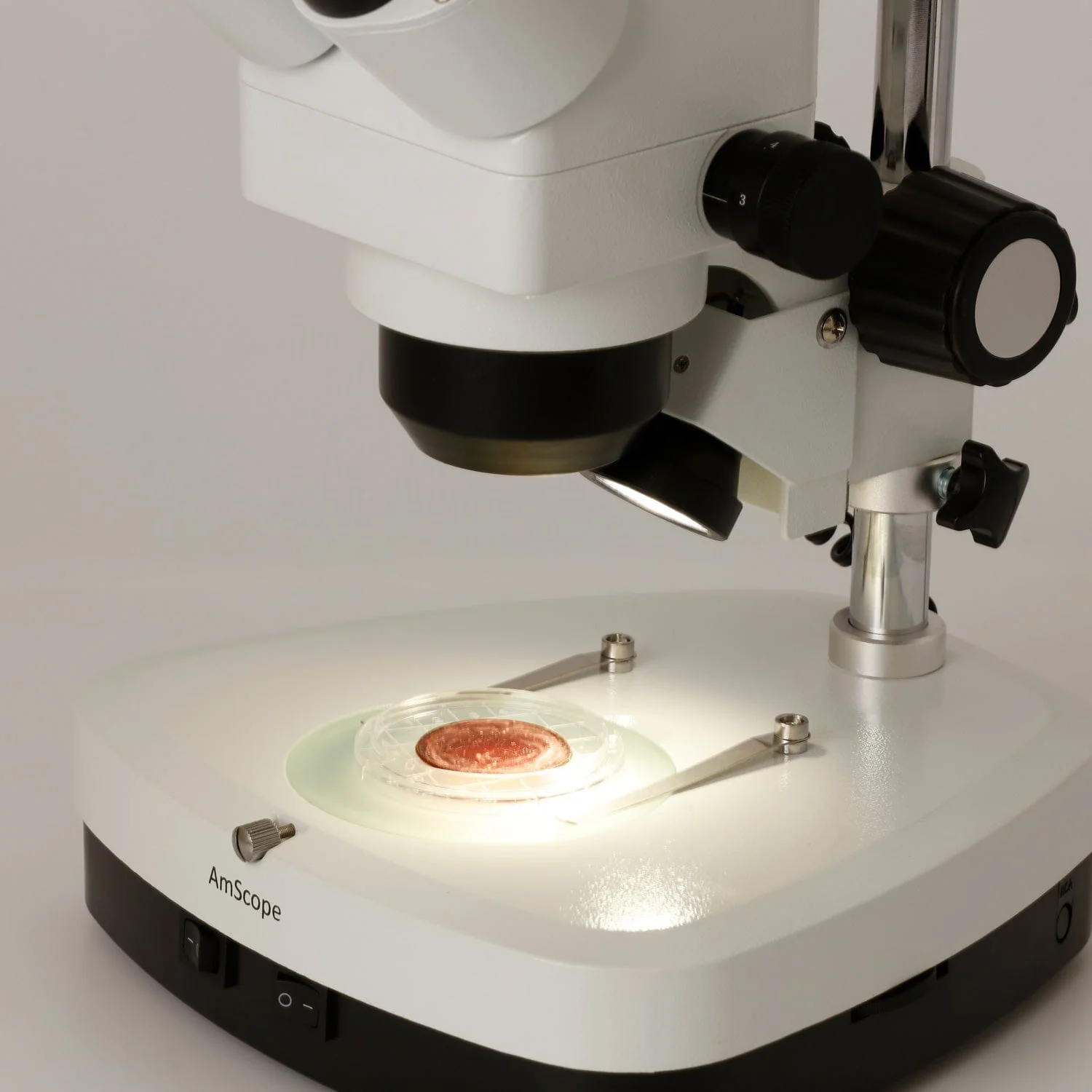

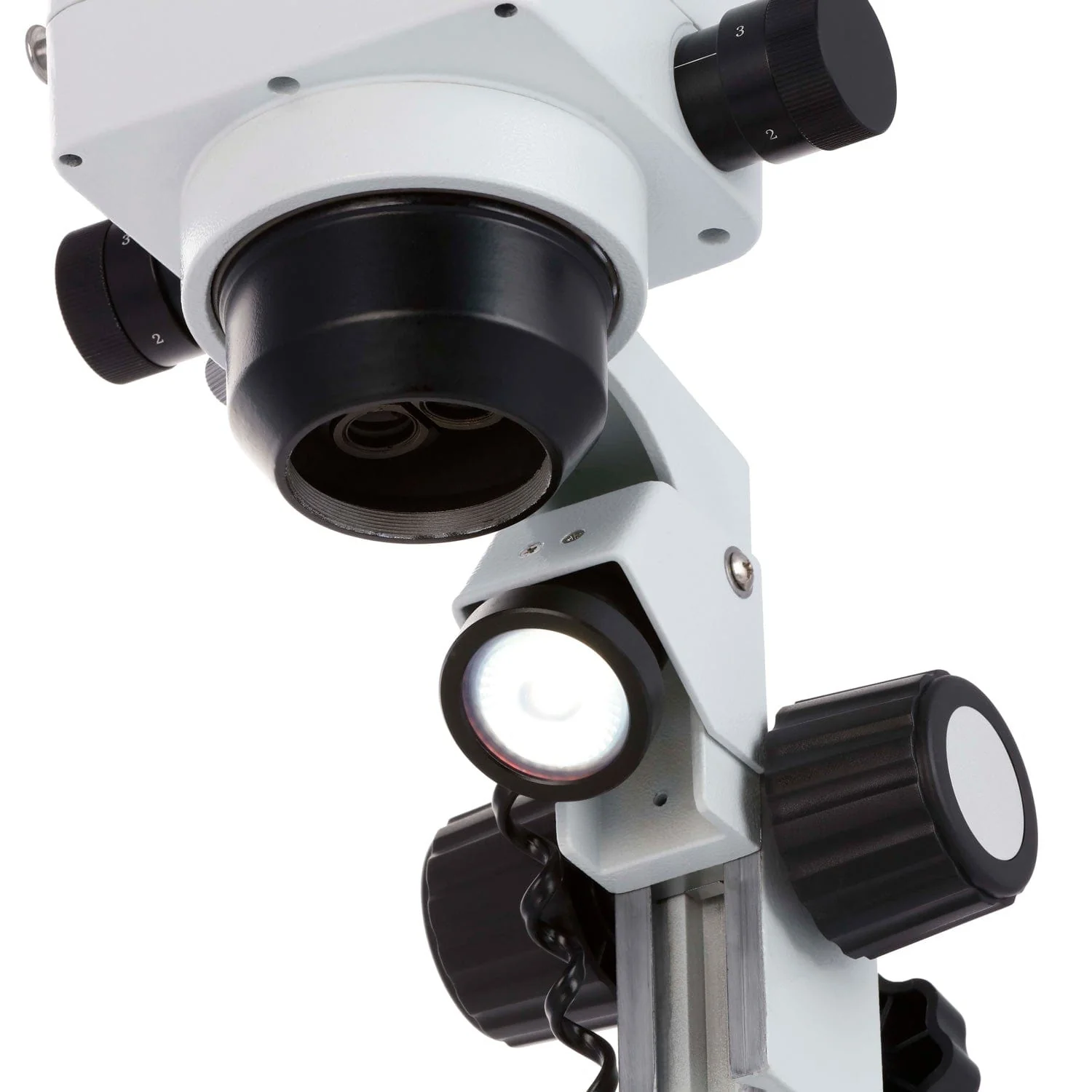

This 10X-40X trinocular stereo zoom microscope is designed to meet the demands of modern microscopy applications, exceeding all expectations. The microscope comes with versatile illumination system that provides both incident (top) lighting and transmitted (bottom) illumination. You can choose between incident illumination shining down onto the object or transmitted illumination through the frosted stage plate. The first is used for the observation of three-dimensional objects like circuit boards, gem stones and insects; the second for the inspection of the objects that allow light to get through them like prepared slides.

This microscope offers crystal clear sharp stereo images, large zoom magnification range and working distance. Its 45° inclined trinocular head ensures an easy observation and rubber eyeguards provide further comfort. It is great for the exploration of the world of surface details and fine structures of various materials like wood, metal, solder, semiconductor and gemstone. It is perfect for the examination of insects, plants, rocks, stamps, jewel, soldered points, microelectronic components, circuit boards or virtually any three dimensional objects.

Features :

• 10X-40X Large Zoom Magnification Range
• Trinocular Port for Photo or Video Capability
• 45 degree Inclined 360 degree Rotatable Trinocular Head
• High Quality Optical Glass Elements
• High Resolution with Great Flatness and Contrast
• Sharp Stereo Erect Images over a Wide Field of View
• Crystal Clear Original True Color Images
• Both Ocular-Tubes with Adjustable Diopter
• Metal Pillar Stand Finished with Stain Resistant Enamel
• Accurate Alignment Ensuring Fatigue-Free Observation
• All Metal Mechanical Components
• Adjustable Interpupillary Distance
• Dual Halogen Illumination System
• CE Approval Electric Apparatus
• Manufactured under ISO 9001 Quality Control Standard
• Excellent Five (5) Year Manufacturer Warranty



Specifications :

• Head: 45 degree inclined 360 degree swiveling trinocular
• Eyepiece: 30.5mm super widefield 10X
• Objective: 1.0-4.0X
• Zoom Range: 4:1
• Diopter Adjustment: ±5dp
• Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
• Working Distance: 3-1/8" (80mm)
• Stage Plates: 3-3/4" (95mm) frosted glass plate and 3-3/4" (95mm) white/black plastic plate
• Illumination: 12V/10W halogen bulbs
• Power Supply: 110V power supply

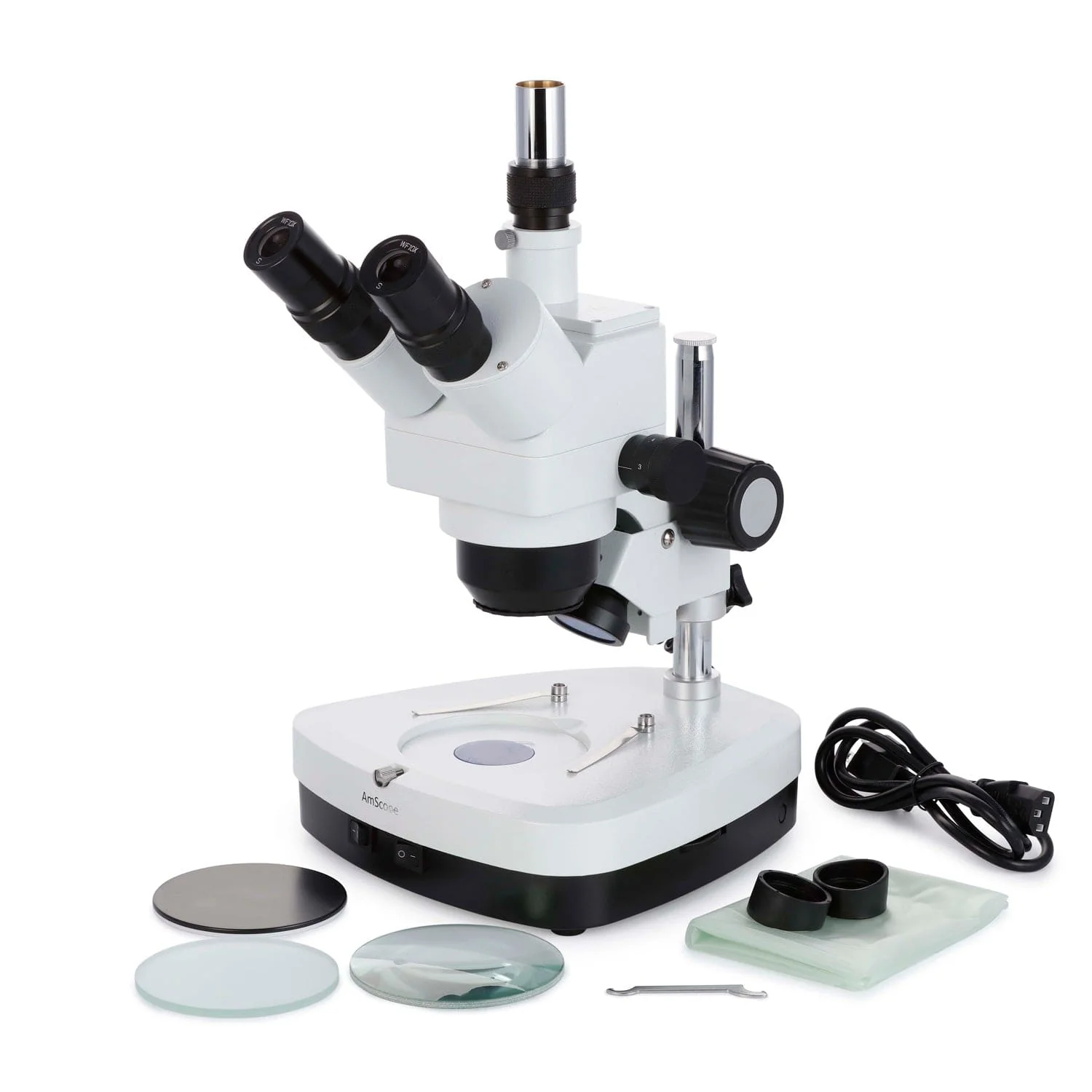

Packing List :

• One Trinocular Stereo Zoom Head
• One Pillar Base with Top and Bottom Lights and Focusing Rack
• One Pair of Widefield 10X Eyepieces
• One Frosted Round Glass Plate
• One White/Black Round Plastic Plate
• One Power Cord
• One Pair of Clips
• One Pair of Eye-guards
• One Dust Cover
• User's Manual Download
• Shipping Weight: 20 lbs
