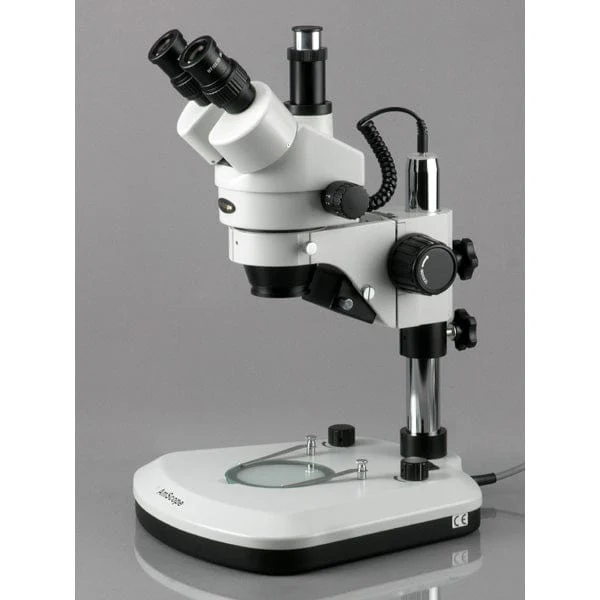

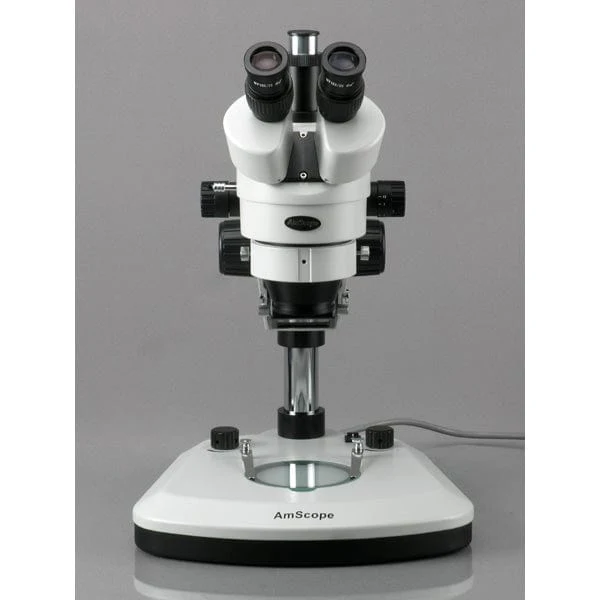

3.5X-90X LED Low Heat Zoom Stereo Microscope + 5MP Digital Camera

This is a top of the line 3.5X-90X trinocular stereo zoom microscope, equipped with SUPER widefield optics, and a versatile dual LED illumination system and a 5MP digital camera. Our low-temperature LED system allows you to use both incident illumination, which shines light down onto a 3-dimensional object, and reflecting-plate bottom illumination, which shines light up through a transparent object. The optics of this microscope features a super large zoom magnification range (26:1), which produces sharp, crystal-clear stereo images, while providing a generous working distance of 8 inches. The 360 degree swiveling, trinocular head is attached at a 45 degree angle, which ensures easy and comfortable observation.

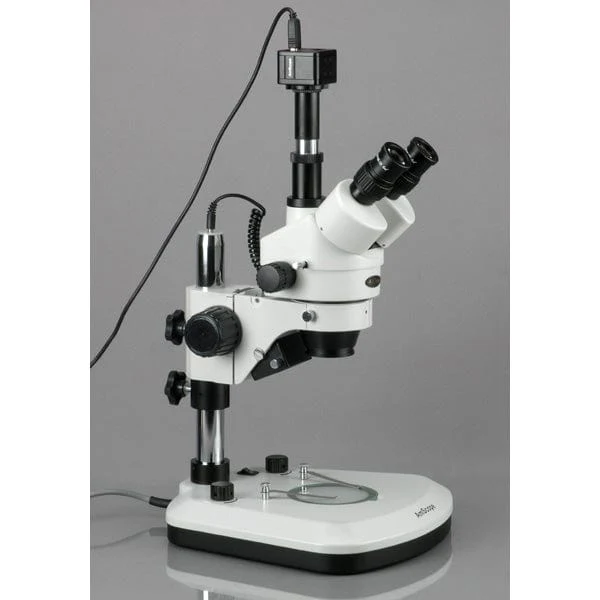

The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

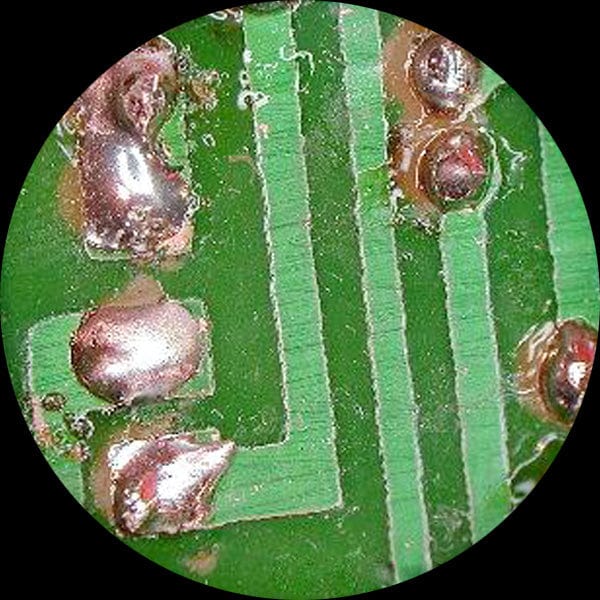

This microscopy system is a perfect for industrial inspection applications. With its high resolution, good depth, and broad field of view, it is also well-suited for gemologists, manufacturing engineers, and anyone in the semiconductor or electronic industry. It can also be used for biological laboratory applications that require low heat release.

Features:

• A great 3.5X-90X zoom microscopy system with contemporary LED incident (top) cool lighting and reflecting-plate bottom illumination
• Brightness-adjustable with separate dimmer controls
• 3.5X-90X Super large zoom magnification
• 26:1 super large zoom range
• 8" (200mm) large working distance
• 45 degree inclined 360 degree swiveling trinocular head with SUPER widefield eyepieces
• High-eyepoint design for easy observation including eyeglass wearers
• 23mm upright tube for photo or video accessories
• One pair of 30mm SUPER widefield eyepieces (see the difference in the above picture)
• High resolution with great flatness and contrast
• Sharp stereo erect images over a SUPER widefield of view
• Crystal clear original true color images
• Both ocular-tubes with adjustable diopter
• Metal pillar stand finished with stain resistant enamel
• Accurate alignment ensuring a fatigue-free long time viewing
• Full optical glass elements
• Precise ground glass lenses
• All metal mechanical components
• Adjustable interpupillary distance
• Rubber eyeguards included
• CE approval electric apparatus
• Manufactured Under ISO 9001 Quality Control Standard
• Excellent Five (5) Year Factory Warranty

Specifications:

• Head: 45 degree inclined 360 degree swiveling trinocular
• Eyepiece: 30mm super wide field high-eyepoint WF10X/20
• Barlow Lens: 0.5X & 2.0X
• Objective: 0.7X-4.5X
• Zoom Range: 26:1
• Diopter Adjustment: +/-5dp
• Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
• Working Distance: 8" (200mm)
• Incident (Top) Illumination: 30 high-intensity LED white-color bulbs
• LED Reflecting-Plate (Bottom) Illuminator: 3-3/4" (95 mm in diameter) LED reflecting plate
• Power Supply: 110V/60Hz
• Accessories: dust cover, eye-guards and clips

Camera Specifications:

• Sensor: Aptina MT9P001
• Sensor Type: CMOS
• Sensor Size: 5.7x4.28mm
• Pixel Size: 2.2
• Resolution: 5.1MP
• Frame Rate: 5@2592x1944, 18@1280x960, 60@640x480
• Sensitivity: 0.53 V/lux-sec
• Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Software Specifications:

• OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
• Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port

Packing List:

• One Trinocular Stereo Zoom Head
• One Pair of Super Widefield High-Eyepoint Eyepieces, 10X
• Two Barlow Lenses, 0.5X & 2.0X
• One LED-Bulb Top Light
• One Pillar Stand with LED Reflecting-Plate
• Focusing Rack
• Pair of Clips
• One Pair of Eye-guards
• One Power Cord
• One Dust Cover
• User's Manual Download
• One 5MP Digital Camera with 0.5X Reduction Lens
• One 6' (1.8m) USB Cable
• Two Adapter Sleeves (23.2mm-30mm & 23.2mm-30.5mm)
• Shipping Weight: 40 lbs
