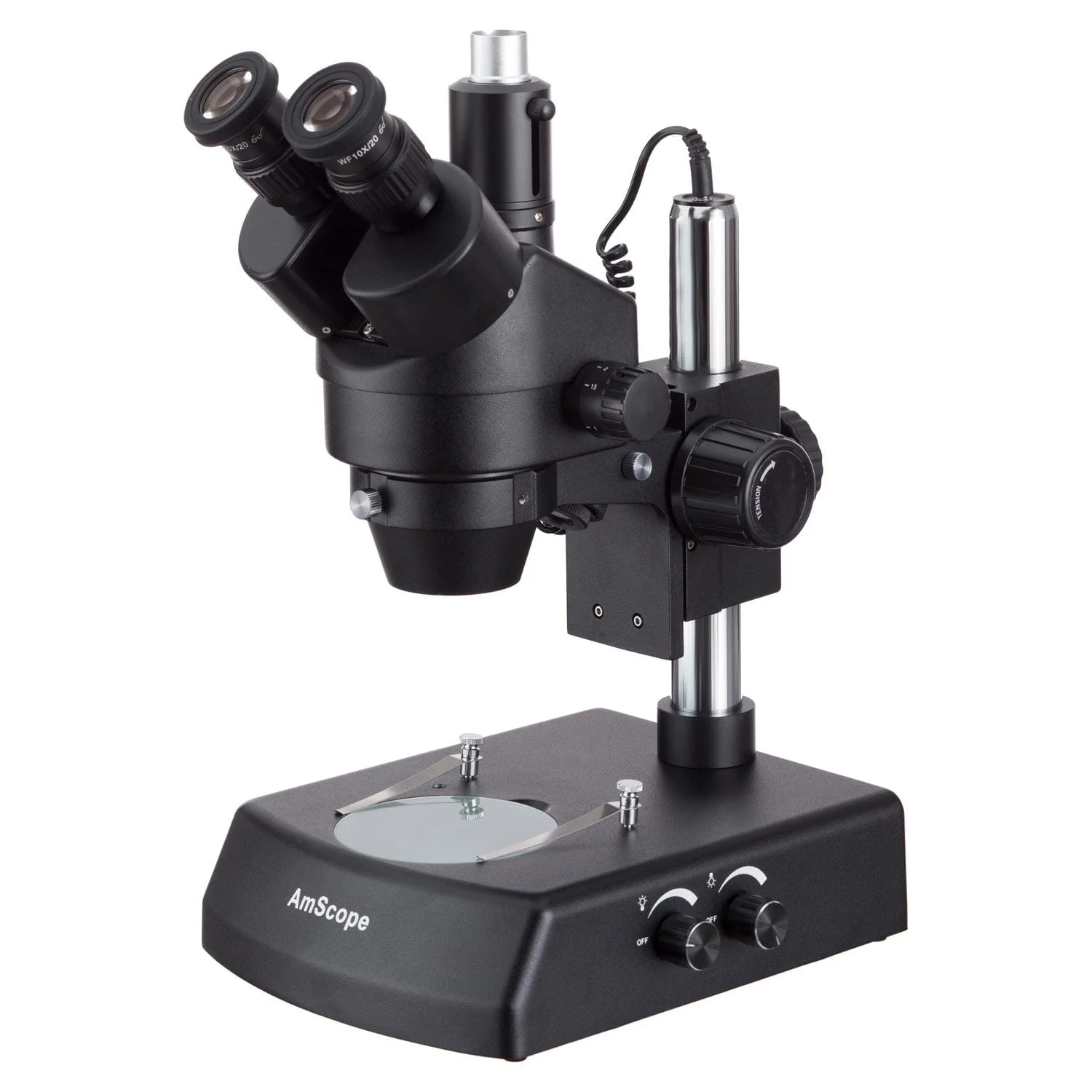

AmScope SM-2 Series Zoom Black Trinocular Stereo Microscope 7X-45X Magnification on Pillar Stand with Dual Halogen Lights

The SM-2T is our best-selling dual-light stereo microscope, due in large part to its simplicity and durability. The time-tested design provides versatility in application, with transmitted and reflected light-sources. The 0.7-4.5X continuous-zoom objective lenses provide an ample magnification range with smooth adjustments for real, hands-on work. The included 10X wide-field eyepieces provide pristine clarity with a large working-area.

Originally designed for dissection, the practical uses have broadened greatly to include such things as gemology, PCB-inspection, and electronics-repair. The reflected lighting allows for inspection of opaque objects, including circuit-boards, coins and stamps, minerals, and agricultural materials. The transmitted light provides the pass-through light necessary for translucent objects, such as fluids, tissues, and gems.

Features :

7X-45X continuous zoom magnification range

Large 4" (100mm) working-distance

Sharp, erect stereo images with a wide field-of-view

30mm 10X wide-field eyepieces

Precise, high-grade optical glass elements

45° inclined head

Trinocular design for stable imaging platform

Flexible interpupillary adjustment and dual ocular diopters

Built-in reflected and transmited illumination with adjustable intensity

Metal pillar stand finished with stain-resistant enamel

All Metal Mechanical Components

Rubber eye-guards included

Manufactured under ISO 9001 Quality Control Standard

Excellent Five (5) Year Manufacturer Warranty

Specifications :

Head: 45 degrees inclined 360 degree swiveling trinocular

Eyepieces: 30mm super widefield high-eyepoint WF10X/20

Objective: 0.7-4.5X

Zoom Range: 6.5:1

Maximum Field of View: 1-1/4" (31.75mm)

Minimum Field of View: 3/16" (4.75mm)

Working Distance: 4" (100mm)

Diopter Adjustment: +/-5dp

Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)

Frosted Glass Plate: 3-3/4" (95mm) in diameter

White/Black Plastic Plate: 3-3/4" (95mm) in diameter

Incident (Top) Illumination: 12V/15W halogen bulb

Transmitted (Bottom) Illumination: 12V/15W halogen bulb

Power Supply: 110V/60Hz

Packing List :

One Trinocular Stereo Zoom Microscope Head

One Pair of Super Widefield High-Eyepoint 10X Eyepieces

One Pillar Stand with Bottom Light

One Focusing Rack

One Halogen Top Light

One Frosted Round Glass Plate

One White/Black Round Plastic Plate

One Pair of Stage-clips

One Pair of Eye-guards

One Power Cord

One Dust Cover

Halogen Spare Bulb
