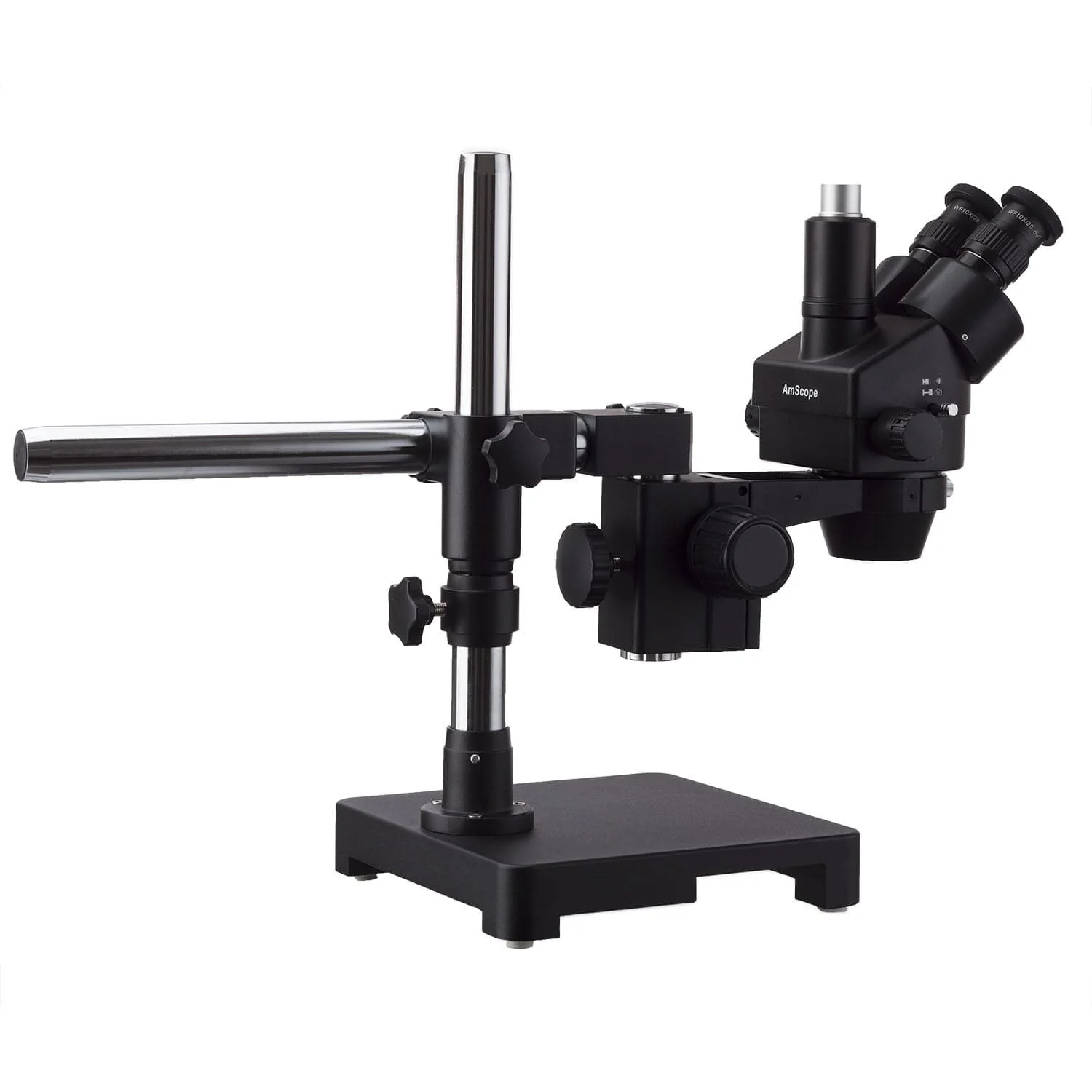

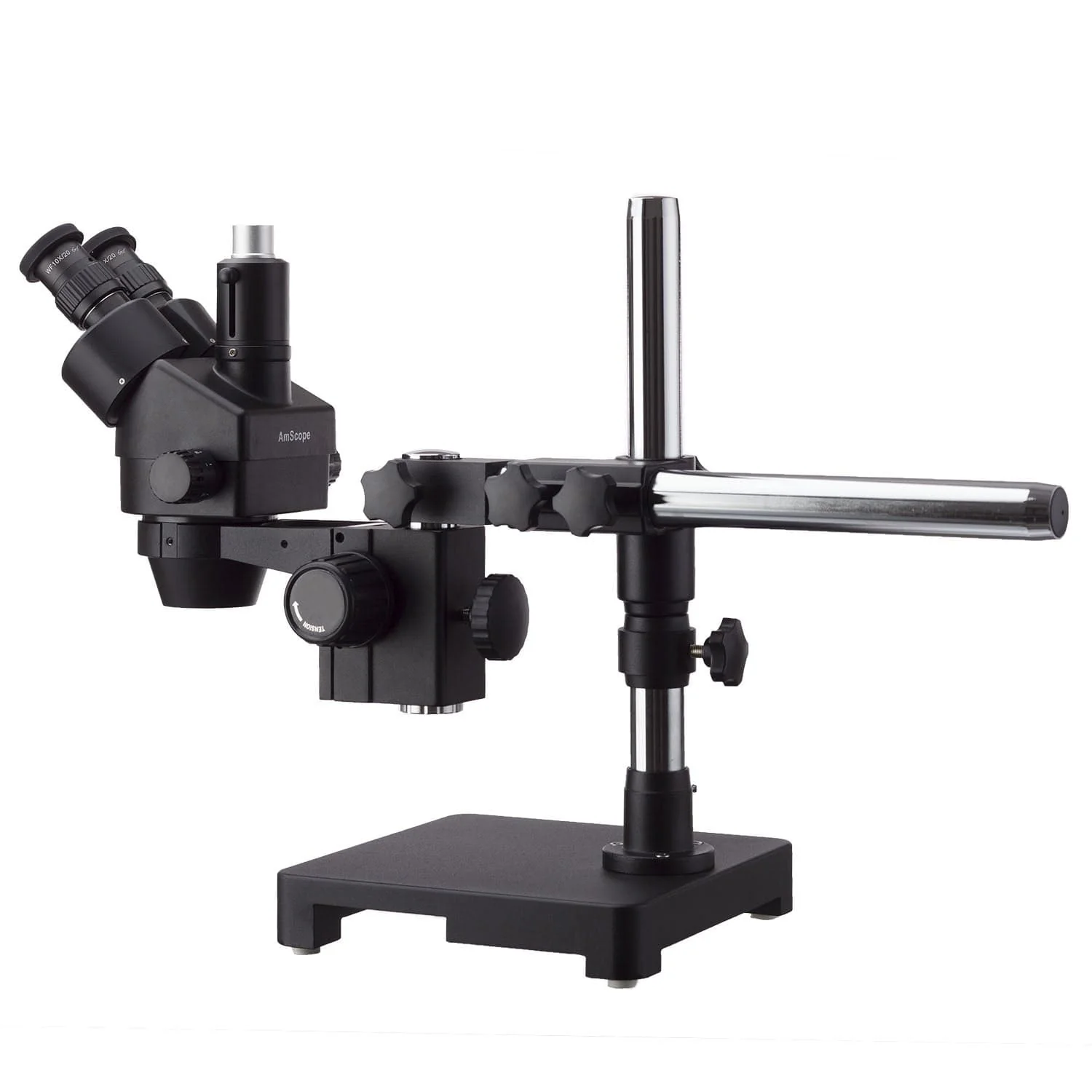

AmScope SM-3 Series Zoom Black Trinocular Stereo Microscope 3.5X-45X Magnification on Single Arm Boom Stand + 144 Direction Adjustable LED Ring Light & HD Recording Camera

This is a black version of our popular 3.5X-45X zoom stereo microscope mounted on a single-arm boom stand. It comes with a trinocular head with super widefield optics, 10X eyepieces, for a zoom ratio of 13:1, and a sturdy single-arm boom-stand. The 144-LED ring light is lighting-direction changeable and lighting-intensity adjustable, providing cool, even and bright LED illumination. It features a separate control box allowing you to turn on/off each portion of the 4 light zones individually as well as changing the lighting direction so you may obtain the best images for your stereo microscope.. The trinocular port enables to add photographic or video capability to the microscope. Its 45 degree inclined trinocular oculars and high-eyepoint optical design ensures a comfortable observation for all kinds of users including eyeglass wearers. The single-arm boom stand allows to turn the microscope head around two different axes, allowing you to point microscope head in various directions. This microscope offers high resolution, super widefield of view, large magnifying zoom range and long working distance. It is an ideal instrument for researchers, gemologists, engravers, and anyone in semiconductor and/or electronics industry.

This package includes a 1080p digital camera with built-in recording, and HDMI output for live-viewing. The camera's compact, all-metal design make it sturdy yet unobtrusive. Video can be viewed live on an HDMI monitor or television at a smooth 60fps, and recorded onto MicroSD (not included) at 30fps.

Features:

3.5X-45X Zoom Stereo Microscope with Super Widefield Optics

Trinocular Design for High Quality Photographs or Video

30mm Super Widefield 10X Eyepieces with 20mm Field of View

8 inch (200mm) Large Working Distance

45 Degree Inclined Trinocular Head

Sharp Stereo Erect Images over a Wide Field View

Crystal Clear Original True Color Images

High Resolution with Great Flatness and Contrast

Eye Tube with Adjustable Diopter

Adjustable Interpupillary Distance

High-eyepoint Optic Design Ensuring an Easy and Comfortable Viewing, Especially for Eyeglass Wearers

Accurate Alignment Ensuring a Fatigue-Free Comfortable Observation

Rubber Eyeguards Providing Further Comfort

Full Optical Glass Elements

Precise Ground Glass Lens

Sturdy Boom Stand for Versatility and Large Working Area

Stand Finished with Stain Resistant Enamel

1.5" Rugged Solid Cast Metal Stand Base

An ideal stereo inspection microscope with variable 144-LED ring light

Intensity-adjustable and direction-adjustable bright LED cool light illumination

All Metal Mechanical Components

Manufactured under ISO 9001 Quality Control Standard

Excellent Five (5) Year Manufacturer Warranty

Specifications:

Head: 45 degree inclined 360 degree swiveling trinocular

Eyepiece: 30mm super widefield high-eyepoint WF10X/20

Objective: 0.7-4.5X

Zoom Ratio: 13:1

Maximum Field of View: 2-1/2" (65mm)

Minimum Field of View: 3/16" (4.75mm)

Diopter Adjustment: +/-5dp

Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)

Working Distance: 8" (200mm)

Boom Stand: 16" arm (overall length: 24"), 17" high pillar, 9" x 9" x 1-3/4" solid cast steel base

Illumination: 144 white LEDs

Power input: 110-240V, 50-60HZ, Automatic Switching

Camera Specifications:

Camera Sensor: Sony IMX291

Sensor Type: CMOS

Sensor Resolution: 2MP (1920 x 1080)

Sensor Size: 1/2.8" class -- 6.06mm(w) x 4.42mm(h), 7.50mm(diag)

Pixel Size: 2.9µm

Dynamic Range: 128dB

Signal Noise Ratio: 30dB

Light Spectrum Response: 380nm to 650nm

HDMI Output: 1920x1080p60

Image Capture: 1920x1080

Image Format: JPEG

Video Capture: 1920x1080 @ 30fps, 1280x720 @ 60fps

Video Format: MOV

Storage: MicroSD Card (TF) max 128GB (not included)

Power: 5V (micro USB)

Packing List :

One Trinocular Stereo Zoom Head

One Pair of Super Widefield 10X Eyepieces

One 0.5X Barlow Lens

One Single-Arm Boom-Stand

One Focus Rack

One Pair of Eye-Guards

One 4-zone 144-LED Ring Light with Control Box

One HDMI Camera

One HDMI Cable

One Power Adapter for Camera

One 0.5X C-mount Reduction Lens/Adapter

User's Manual Download
