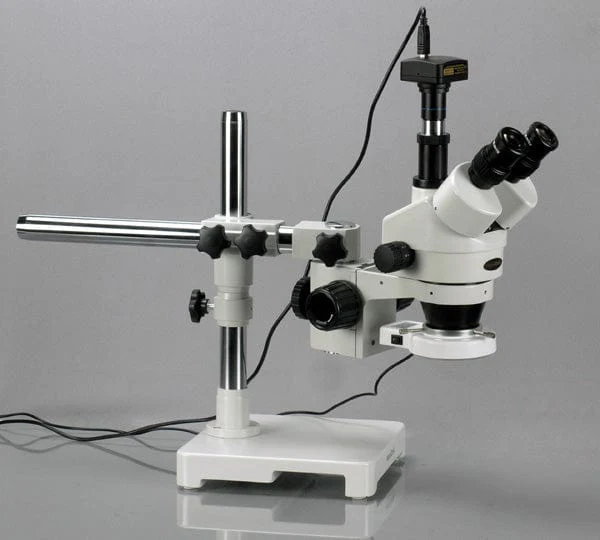

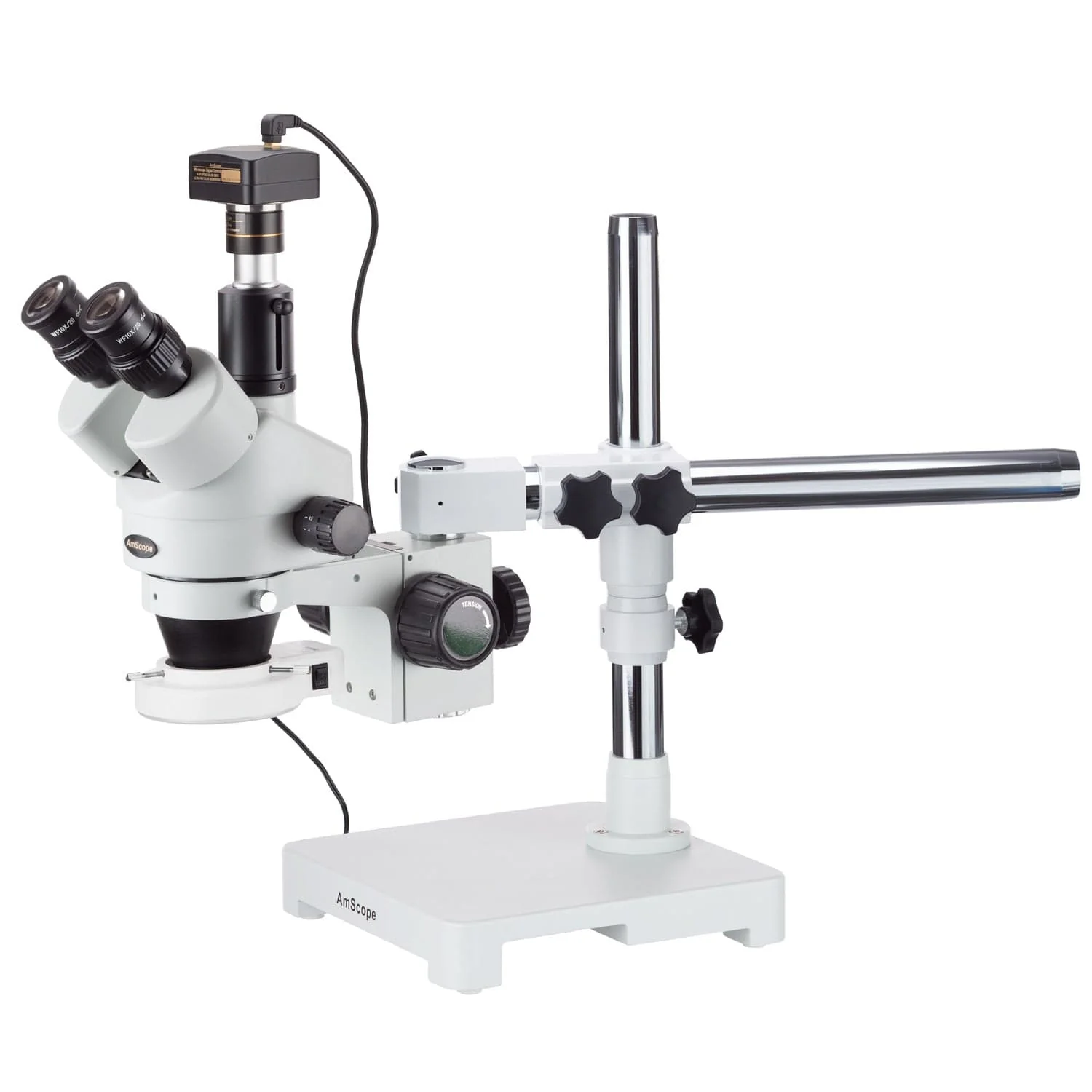

AmScope SM-3 Series Zoom Trinocular Stereo Microscope 3.5X-90X Magnification on Single Arm Boom Stand with 54 LED Light and 3MP USB 3.0 C-mount Camera

This 3.5X-90X trinocular stereo zoom microscope is on a boom stand. It has a trinocular head with super widefield optics, a heavy-duty single-arm boom stand, a 54-LED ring light with dimmer, and a 3MP color digital camera. It offers crystal clear erect stereo images, 2-1/2" (65mm) super widefield of view, 26:1 large magnification zoom range, and 8" (200mm) large working distance. The high-eyepoint optical design ensures an easy and comfortable observation for all users including eyeglass wearers.

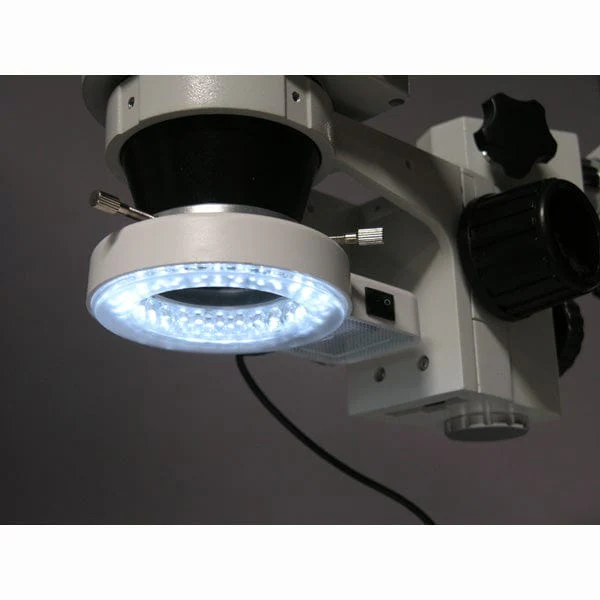

The boom stand gives your microscope the flexibility to cover a large working area. The intensity-adjustable LED ring light provides bright, even, and cool light illumination.

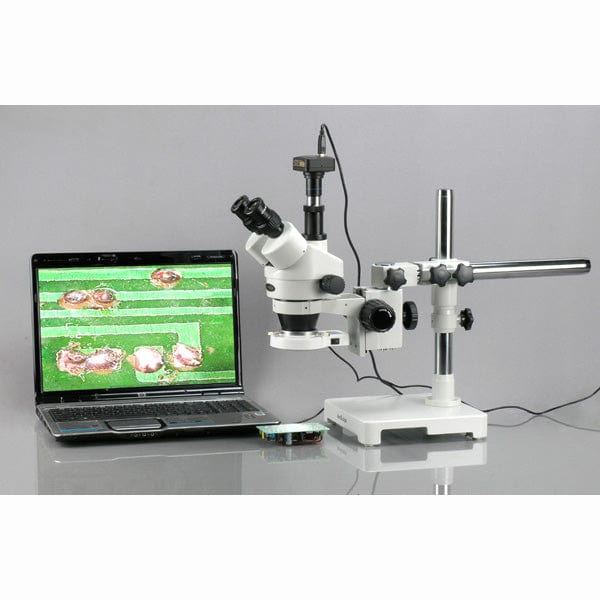

T The digital camera captures still images and video and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended depth of focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

This microscopy system is an ideal instrument for researchers, gemologists, engravers, collectors, and anyone in the semiconductor and electronics industries. It is also a perfect microscope for biological laboratory applications that require low heat release.

Features :

A 3.5X-90X Continuous Zoom Magnification Microscopy System with Digital Camera on Boom Stand!

54-LED Bright, Even and Cool Lighting Illumination

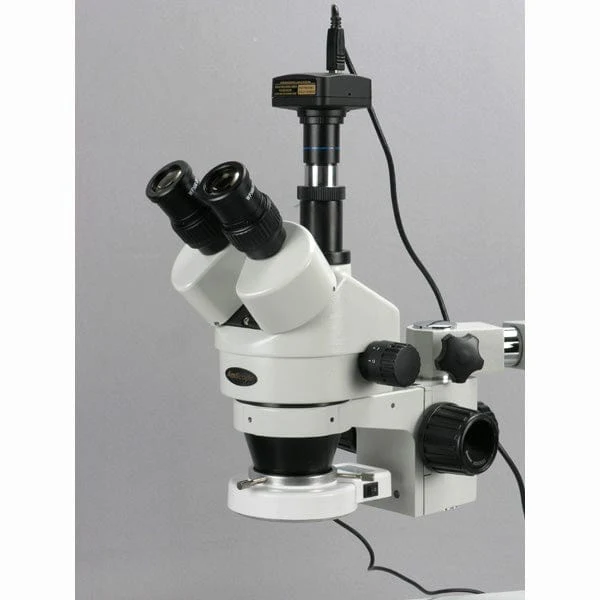

45 Degree Inclined Trinocular Head with SUPER Widefield High-Eyepoint Eyepieces

Erect Stereo Sharp Images over a SUPER Widefield of View

Full Optical Glass Elements

Precise Ground Glass Lenses

High Resolution with Great Flatness and Contrast

Crystal Clear Original True Color Images

30mm SUPER Widefield WF10X/20 Eyepieces

Large Working Distance

Accurate Alignment Ensuring Fatigue-Free Observation

Both Ocular-Tubes with Adjustable Diopter

Adjustable Interpupillary Distance

Versatile Boom Stand Covering Large Working Area

Heavy-Duty Cast Steel Stand Finished with Stain Resistant Enamel

Rugged Solid Cast Steel Base

All Metal Mechanical Components

Rubber Eye-guards Included

Mounting Adapter for LED Ring Light Included

Camera Adapters for Fitting All Other Microscopes Included

Manufactured Under ISO 9001 Quality Control Standard

Excellent Five (5) Year Factory Warranty

Specifications :

Head: 45-degree inclined 360-degree swiveling trinocular

Eyepiece: 30mm Super widefield high-eyepoint WF10X/20

Objective: 0.7-4.5X

Barlow Lens: 0.5X and 2.0X

Zoom Range: 26:1

Diopter Adjustment: +/-5dp

Interpupillary Distance: 2-3/16" - 2-15/16" (55-75mm)

Working Distance: 8" (200mm)

Widefield of View (Maximum): 2-1/2" (65mm) in diameter, super widefield

Illumination: 54-LED

Power input: 110-240V, 50-60HZ, Automatic Switching

Boom Stand: 16" arm (overall length: 24"), 17" high pillar, 9" x 9" x 1-3/4" solid cast steel base

Accessories: eye-guards

Shipping Weight: 65 lbs

Packages: 2

Camera Specifications:

Sensor: Aptina AR0330 CMOS (Color)

Sensor Type: CMOS

Sensor Size: 1/3" (diagonal 6.0mm)

Reduction Lens: 0.5X

Pixel Size: 2.2µm x 2.2µm

Resolution: 3MP, 2048 x 1536 (approx.3,200,000 pixels)

Frame Rate: 53fps @1024x770, 28fps @2048x1534 (Multiple Speed Level)

Sensitivity: 2v / lux-sec (550nm)

Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Software Specifications:

OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+

Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB port

Packing List :

One Trinocular Stereo Zoom Head

One Pair of SUPER Widefield 10X Eyepieces

One SUPER Widefield 0.5X Barlow Lens

One SUPER Widefield 2.0X Barlow Lens

One Single-Arm Boom Stand with Focus Rack

One Pair of Eye-Guards

User's Manual for the Microscope

One 54-LED Ring Light with Mounting Adapter

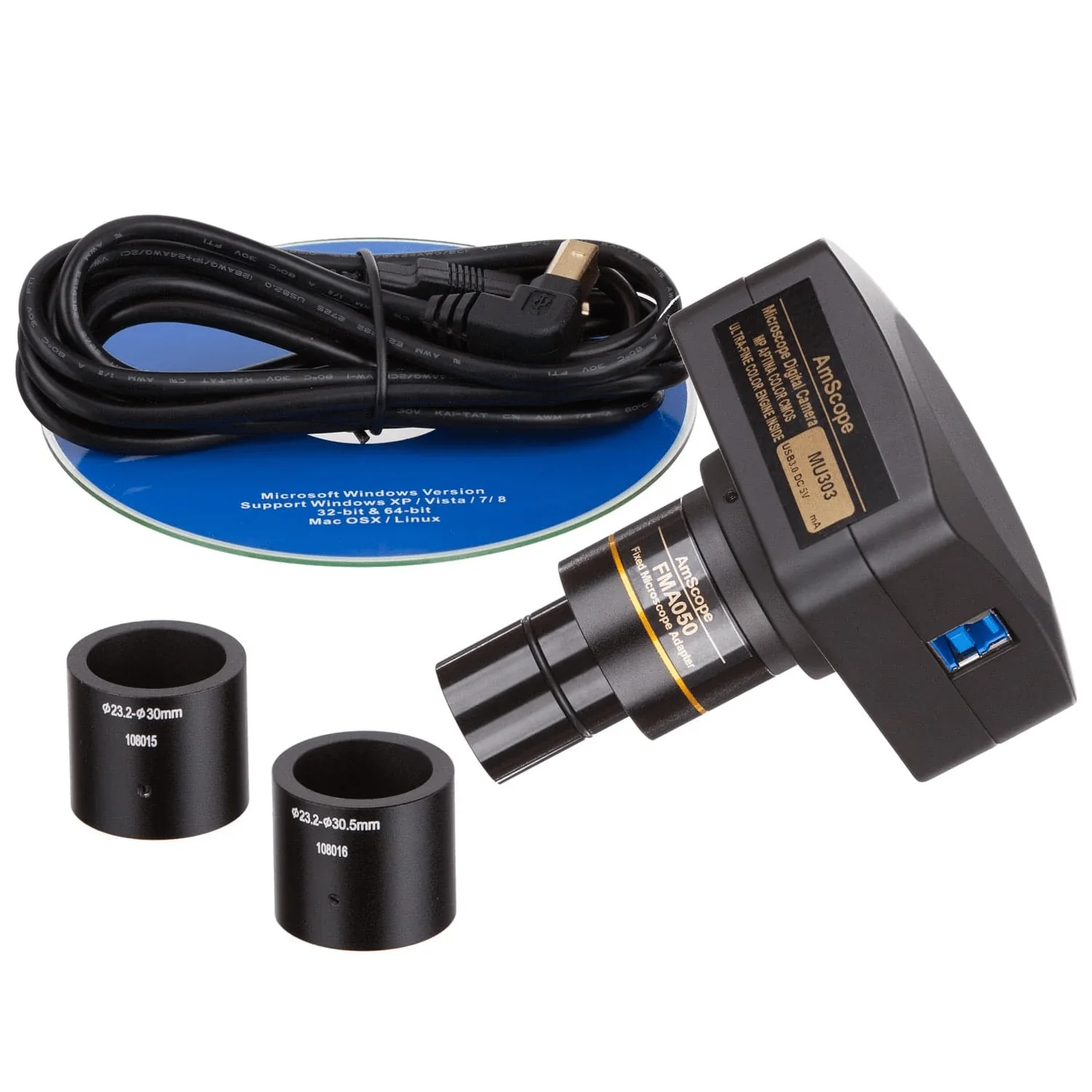

One 3MP USB 3.0 Digital Camera with Reduction Lens

Two Adapters

One 6' USB Cable

One CD with Software, Driver, and Step-by-Step User Instructions
