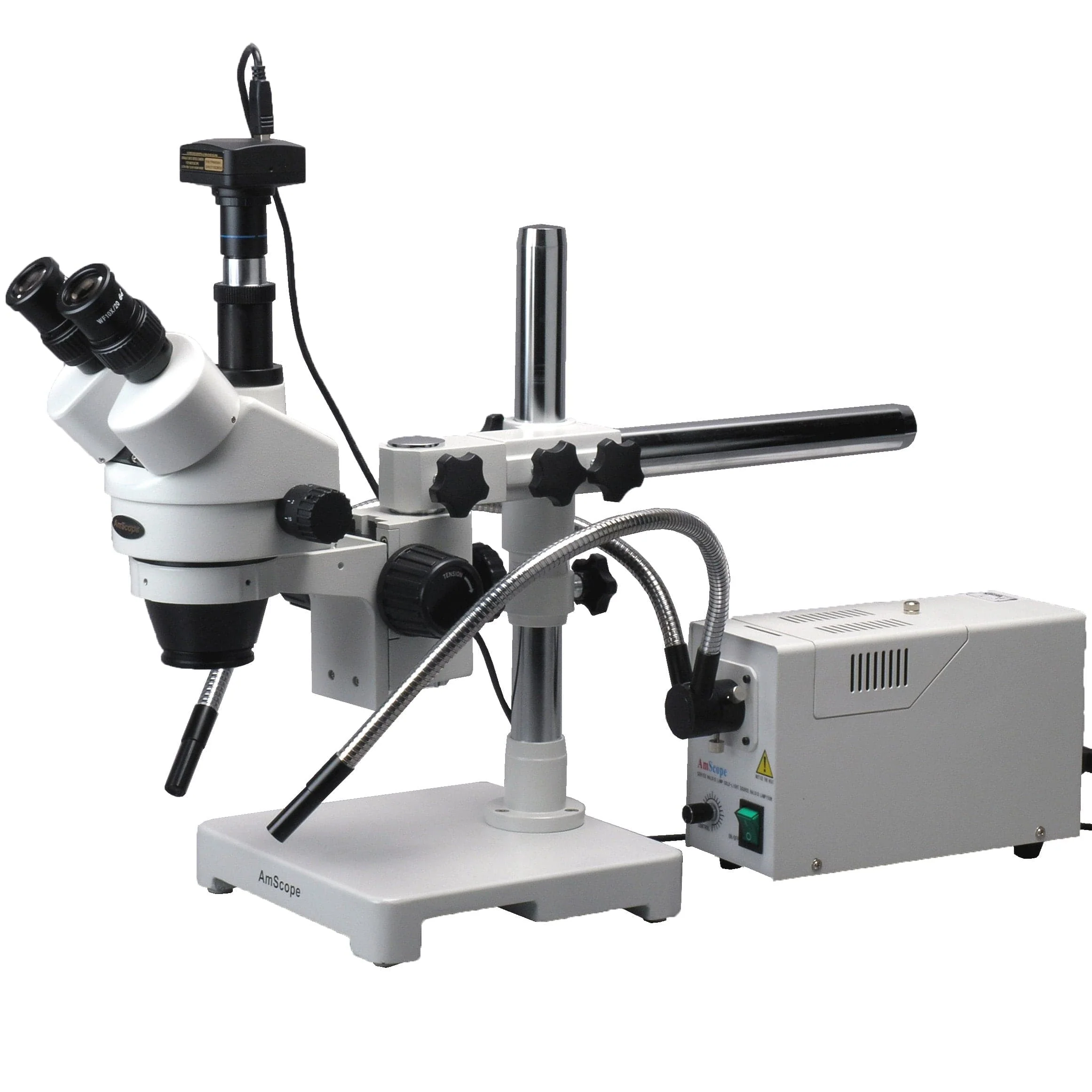

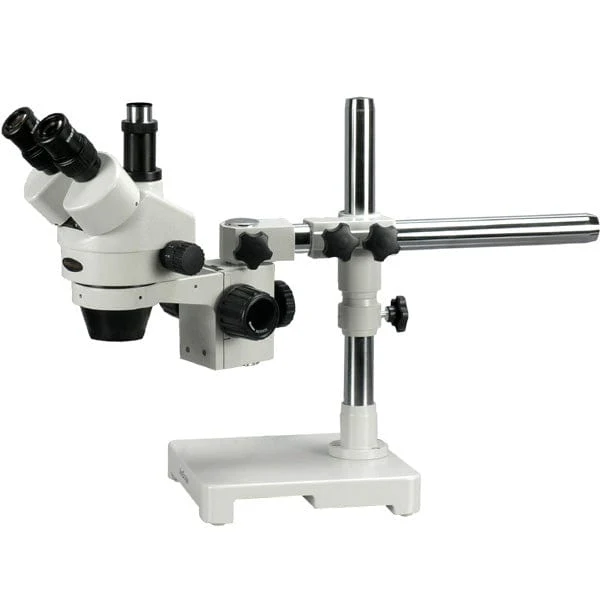

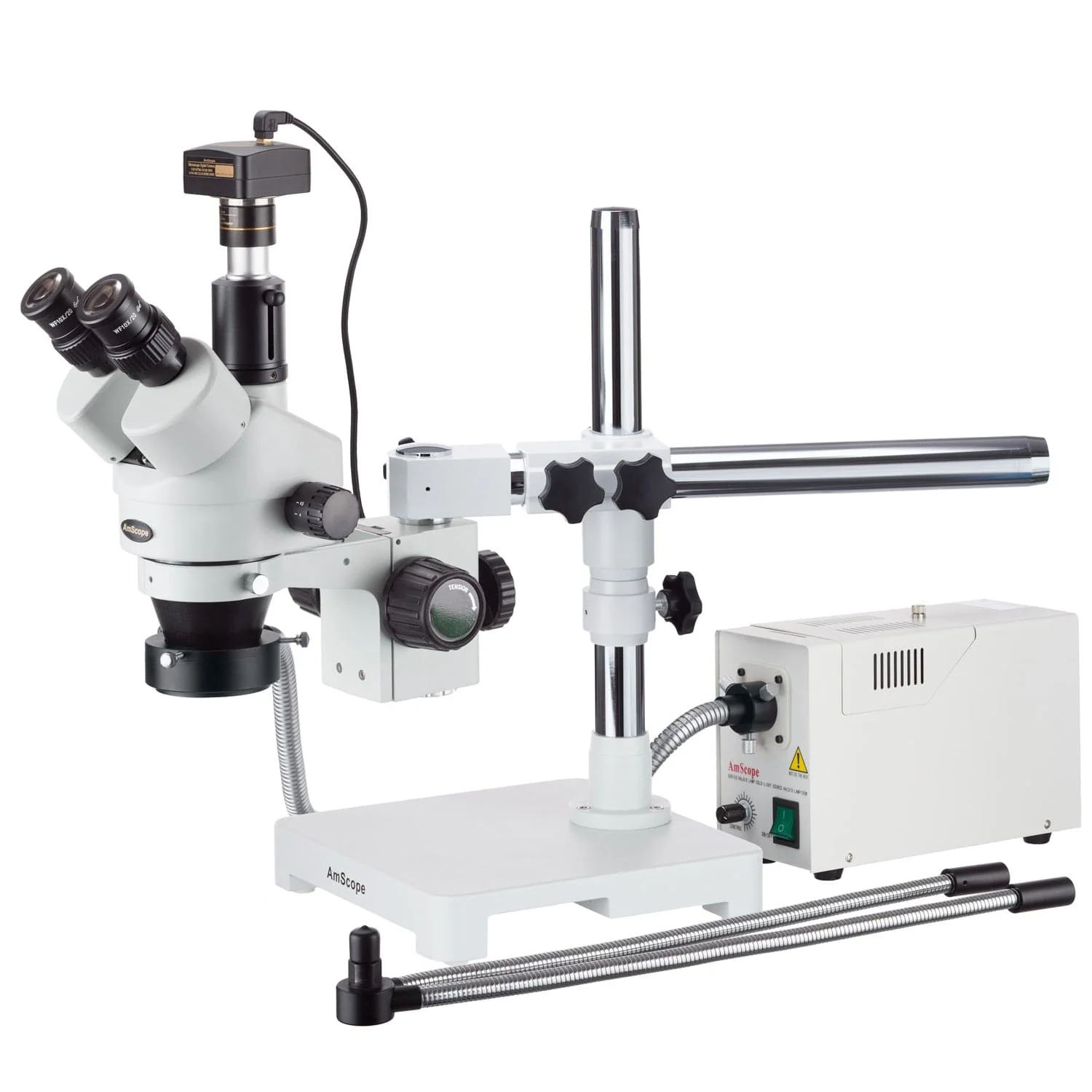

AmScope SM-3 Series Zoom Trinocular Stereo Microscope 3.5X-90X Magnification on Single Arm Boom Stand with Fiber Optic Y-Shape & Ring Lights + Camera

This trinocular 3.5X-90X super widefield zoom stereo microscope with 640x480 pixel USB2 digital camera provides crisp clear sharp images. It comes with a trinocular zoom microscope with super widefield optics, versatile single-arm boom stand, and 150W fiber optic illuminator with both dual gooseneck (Y-shape) light and ring light. It offers 2-1/2" (65mm) SUPER wide field of view, 8" (200mm) long working distance and 26:1 large zoom magnification ratio.

The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

This microscope is an ideal instrument for engineers, researchers, engravers, gemologists, and anyone in semiconductor and/or electronic industry.

Features :

• A wonderful convenient turnkey package with color digital camera
• 3.5X-90X super large zoom magnification power
• Versatile single-arm boom stand covering large working area
• 45° inclined trinocular head with super widefield high-eyepoint eyepieces
• Super widefield 30mm WF10X/20 eyepieces (10X power with 20mm field of view)
• High resolution optical system with great flatness and contrast
• Sharp stereo erect images over a wide field of view
• Crystal clear original true color microscope images
• Dual eye tubes with adjustable diopter
• Sturdy cast metal boom stand finished with stain-resistant enamel
• Accurate alignment ensuring a fatigue-free long hour viewing
• Full optical glass elements
• Precise ground glass lenses
• Full metal chrome-plated mechanical components
• Adjustable interpupillary distance
• Rubber eye guards included
• 110V, 150W variable-Intensity fiber optic light source
• High Intensity 21V,150W halogen bulb
• Perfect even Quartz halogen illumination without heating
• Forced air cooling system
• 3200 degrees Kelvin lamp color temperature
• Manufactured Under ISO 9001 Quality Control Standard
• Excellent Five (5) Year Factory Warranty

Specifications :

• Head: 45° inclined 360° swiveling trinocular
• Eyepiece: 30mm super widefield high-eyepoint WF10X eyepieces with 20mm field of view
• Barlow Lens: 0.5X and 2.0X super widefield
• Objective Zoom Range: 0.35X-9.0X
• Zoom Ratio: 26:1
• Working Distance: 8" (200mm)
• Field of View: 2-1/2" (65mm) super widefield
• Diopter Adjustment: ±5dp
• Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
• Boom Stand: 16" single-arm (overall length: 24"), 17" high pillar, 9"x9"x1-3/4" solid steel base
• Fiber Optic Light Source: 21V,150W halogen bulb
• Power Supply: 110V (220V version available, please email)

Camera Specifications:

• Sensor: Aptina MT9V011
• Sensor Type: CMOS
• Sensor Size: 3.58x2.69mm
• Pixel Size: 5.6
• Resolution: 0.3MP
• Frame Rate: 30@640x480, 80@320x240
• Sensitivity: 1.9V/lux-sec
• Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Software Specifications:

• OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
• Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port

Packing List :

• One Trinocular Stereo Zoom Head
• One Pair of Super Widefield High-Eyepoint 10X Eyepieces
• Two Barlow Lenses, 0.5X 2.0X
• One Single-Arm Boom Stand and Focusing Rack

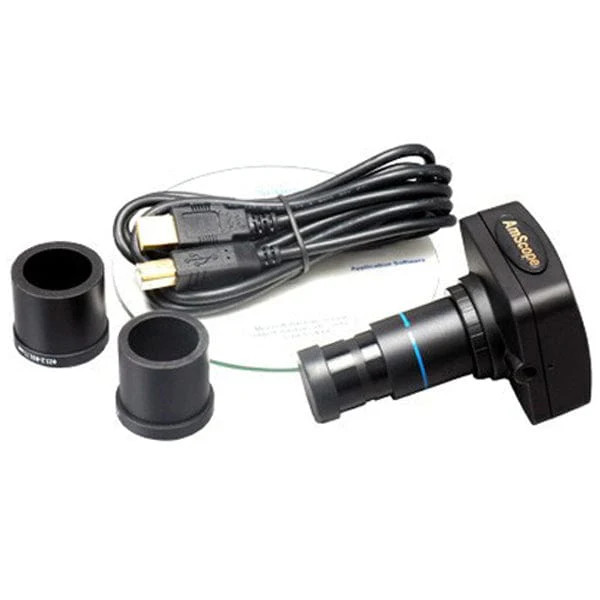

• One 640x480 Pixel USB2.0 Microscope Digital Camera with Reduction Lens
• One 6' (1.8m) USB Cable
• Two Mounting Adapters (30mm and 30.5mm)

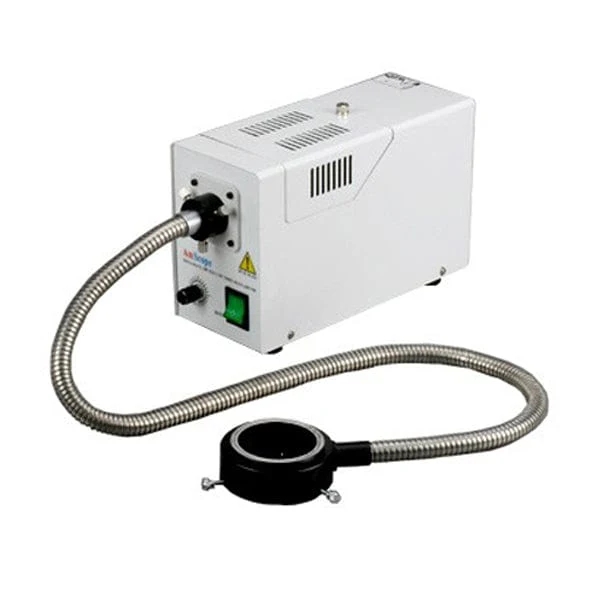

• One Fiber Optic Ring Light

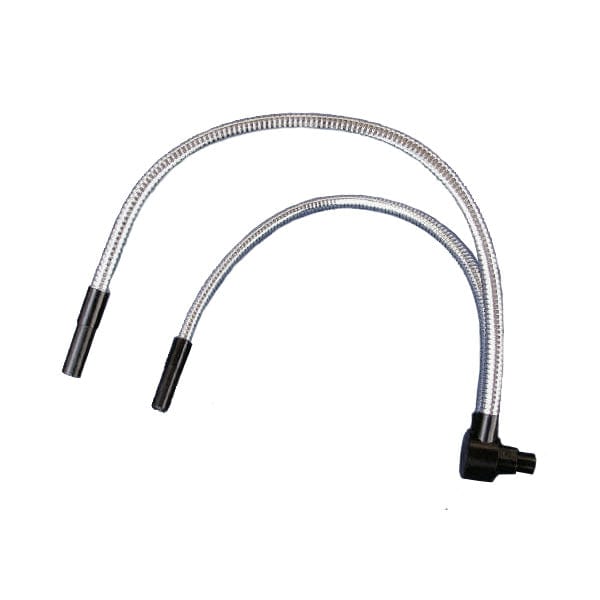

• One Dual Gooseneck Fiber Optic Light
• One 150W Halogen Light Source
• One Pair of Eye-Guards
• User's Manual Download
• Shipping Weight: 70 lbs
