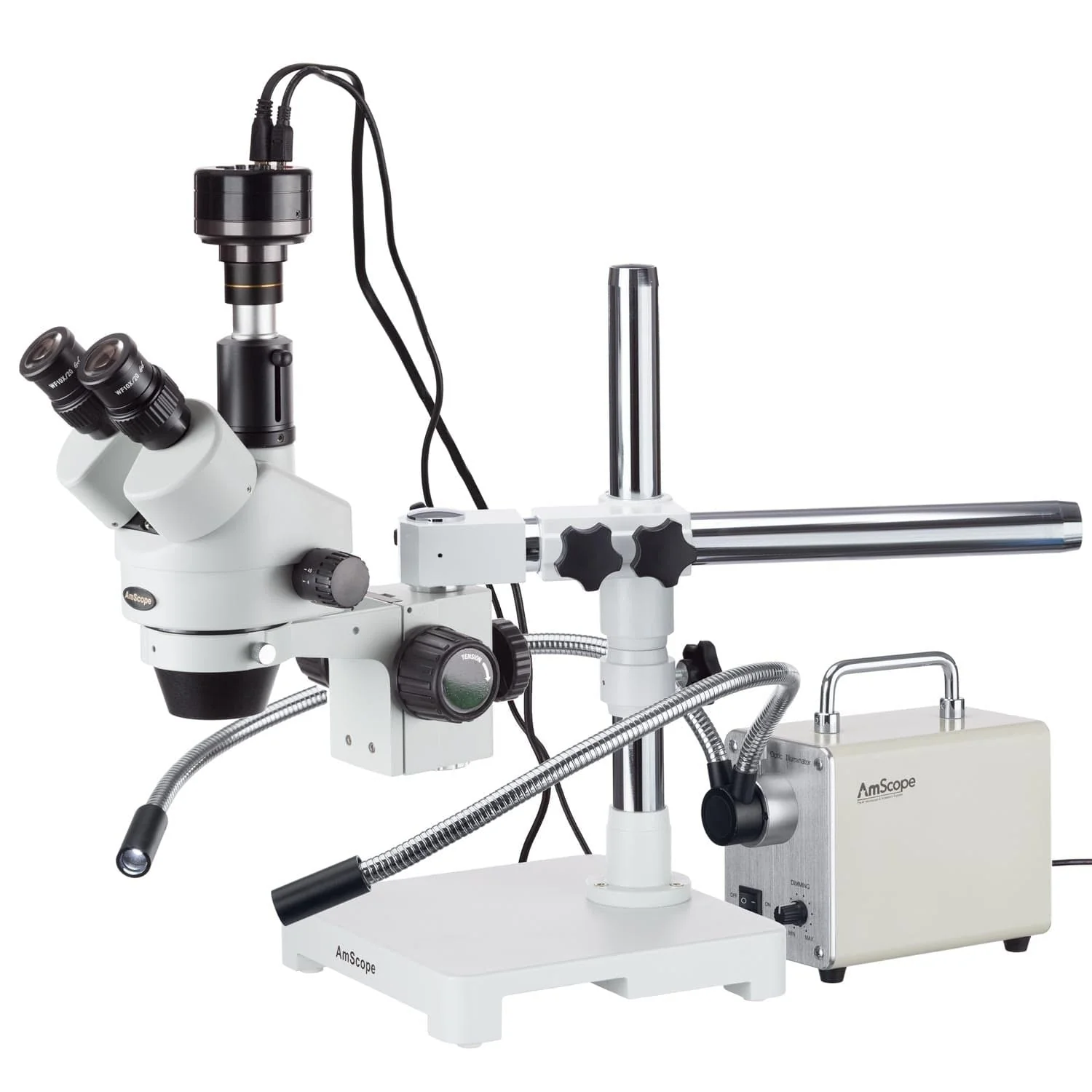

AmScope SM-3 Series Zoom Trinocular Stereo Microscope 3.5X-180X Magnification on Single Arm Boom Stand with Fiber Optic Light and HDMI Camera

This stereo microscope system includes a versatile boom-stand, a 30W LED illuminator with dual goosenecks, and a 1080p HDMI camera with recording capabilities. The stereo objective lenses provide 0.7X to 4.5X contiuous-zoom magnification. Using the 10X and 20X eyepieces, and the 0.5X and 2X Barlow lenses, the overall-magnification ranges from 3.5X to 180X. The switched trinocular-port adds a stable platform for the 1080p camera which can be used with an HDMI monitor or television, and can record video directly to a MicroSD card. Illumination is provided by a powerful 30W LED projector, with a dual-gooseneck fiber-optic attachment. The highly-flexible goosenecks provide angled illumination for a wide variety of lighting scenarios. This system is ideal for electronics-repair and dissection.

Features:

3.5X-180X Extended-range Zoom Stereo Microscope with Super Widefield Optics

Trinocular Design for High Quality Photographs or Video

30mm Super Widefield 10X Eyepieces with 20mm Field of View

Up to 8 inch (200mm) Large Working Distance

45 Degree Inclined Trinocular Head

30 watt strong, even, cool LED illumination.

Sharp Stereo Erect Images over a Wide Field View

Crystal Clear Original True Color Images

High Resolution with Great Flatness and Contrast

Eye Tube with Adjustable Diopter

Adjustable Interpupillary Distance

High-eyepoint Optic Design Ensuring an Easy and Comfortable Viewing, Especially for Eyeglass Wearers

Accurate Alignment Ensuring a Fatigue-Free Comfortable Observation

Rubber Eyeguards Providing Further Comfort

Full Optical Glass Elements

Precise Ground Glass Lens

Sturdy Boom Stand for Versatility and Large Working Area

Stand Finished with Stain Resistant Enamel

1.5" Rugged Solid Cast Metal Stand Base

All Metal Mechanical Components

Manufactured under ISO 9001 Quality Control Standard

Excellent Five (5) Year Manufacturer Warranty

Specifications:

Head: 45 degree inclined 360 degree swiveling trinocular

Eyepiece: 30mm super widefield high-eyepoint WF10X/20 and WF20X/10

Objective Lenses: 0.7-4.5X

Barlow Lens: 0.5X and 2.0X

Maximum Field of View: 2-1/2" (65mm)

Minimum Field of View: 3/16" (4.75mm)

Diopter Adjustment: +/-5dp

Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)

Maximum Working Distance: 8" (200mm) with 0.5X Barlow

Head Mounting Size: 3" (76mm) diameter

Nosecone Accessory Mounting Size: 1-7/8" (48mm female thread) diameter

Boom Stand: 16" arm (overall length: 24"), 17" high pillar, 9" x 9" x 1-3/4" solid cast steel base

Camera Specifications:

Camera Sensor: Sony IMX291

Sensor Type: CMOS

Sensor Resolution: 2MP (1920 x 1080)

Sensor Size: 1/2.8" class -- 6.06mm(w) x 4.42mm(h), 7.50mm(diag)

Pixel Size: 2.9µm

Dynamic Range: 128dB

Signal Noise Ratio: 30dB

Light Spectrum Response: 380nm to 650nm

HDMI Output: 1920x1080p60

Image Capture: 1920x1080

Image Format: JPEG

Video Capture: 1920x1080 @ 30fps, 1280x720 @ 60fps

Video Format: MOV

Storage: MicroSD Card (TF) max 128GB (not included)

Power: 5V (micro USB)

Packing List :

One Trinocular Stereo Zoom Head

One Pair of Super Widefield 10X Eyepieces

One Pair of Super Widefield 20X Eyepieces

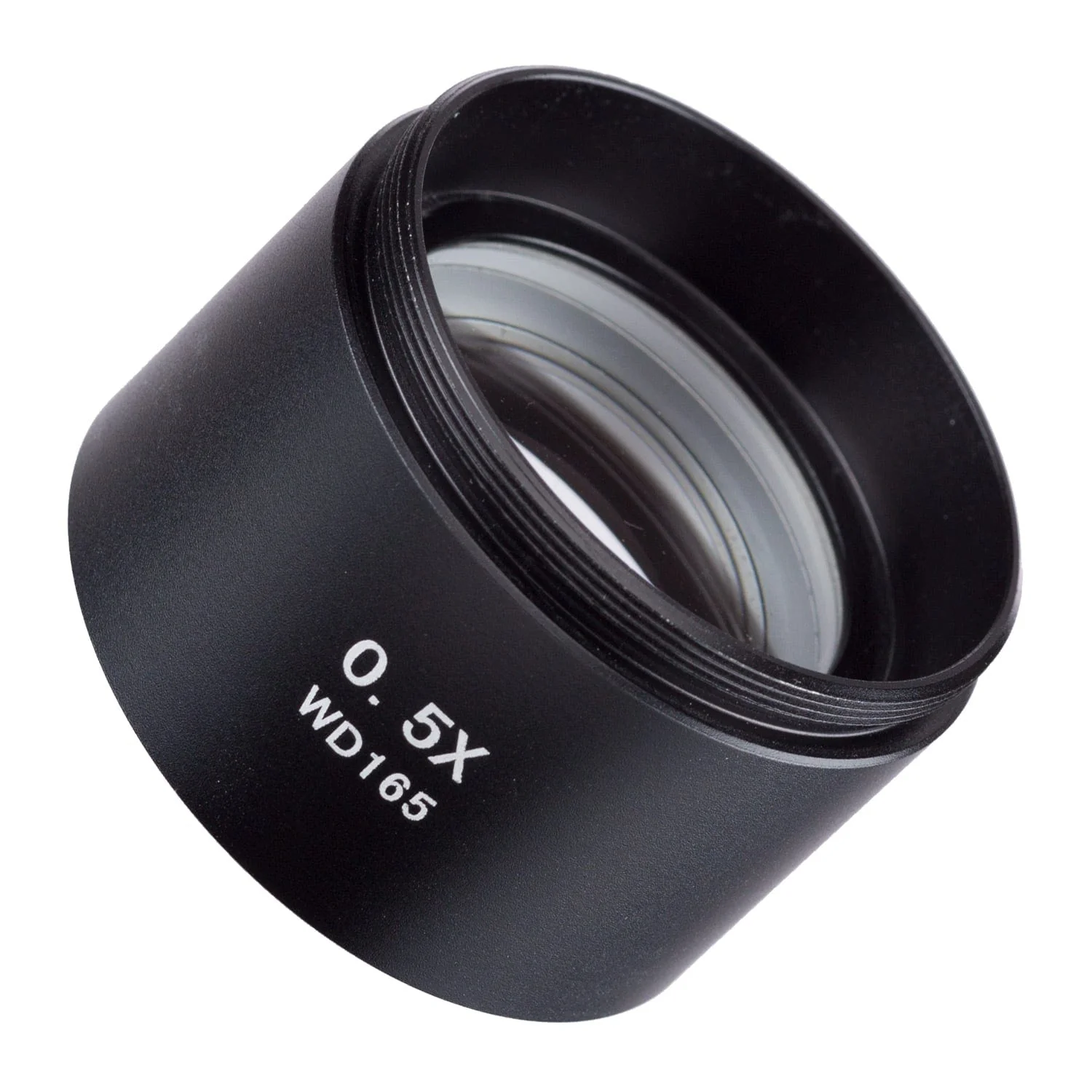

One Super Widefield 0.5X Barlow Lens

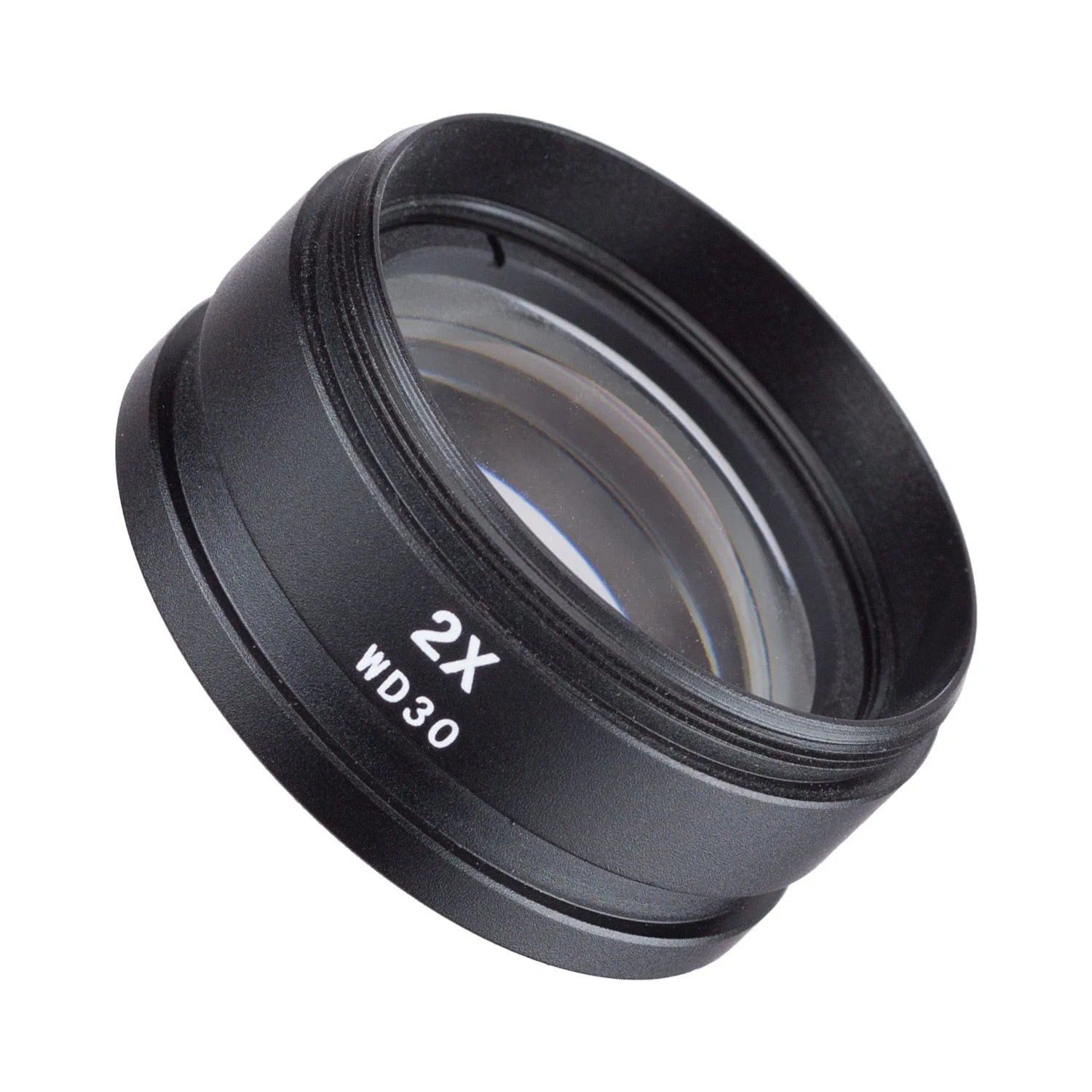

One Super Widefield 2.0X Barlow Lens

One Single-Arm Boom Stand

One Focus Rack

One Pair of Eye-Guards

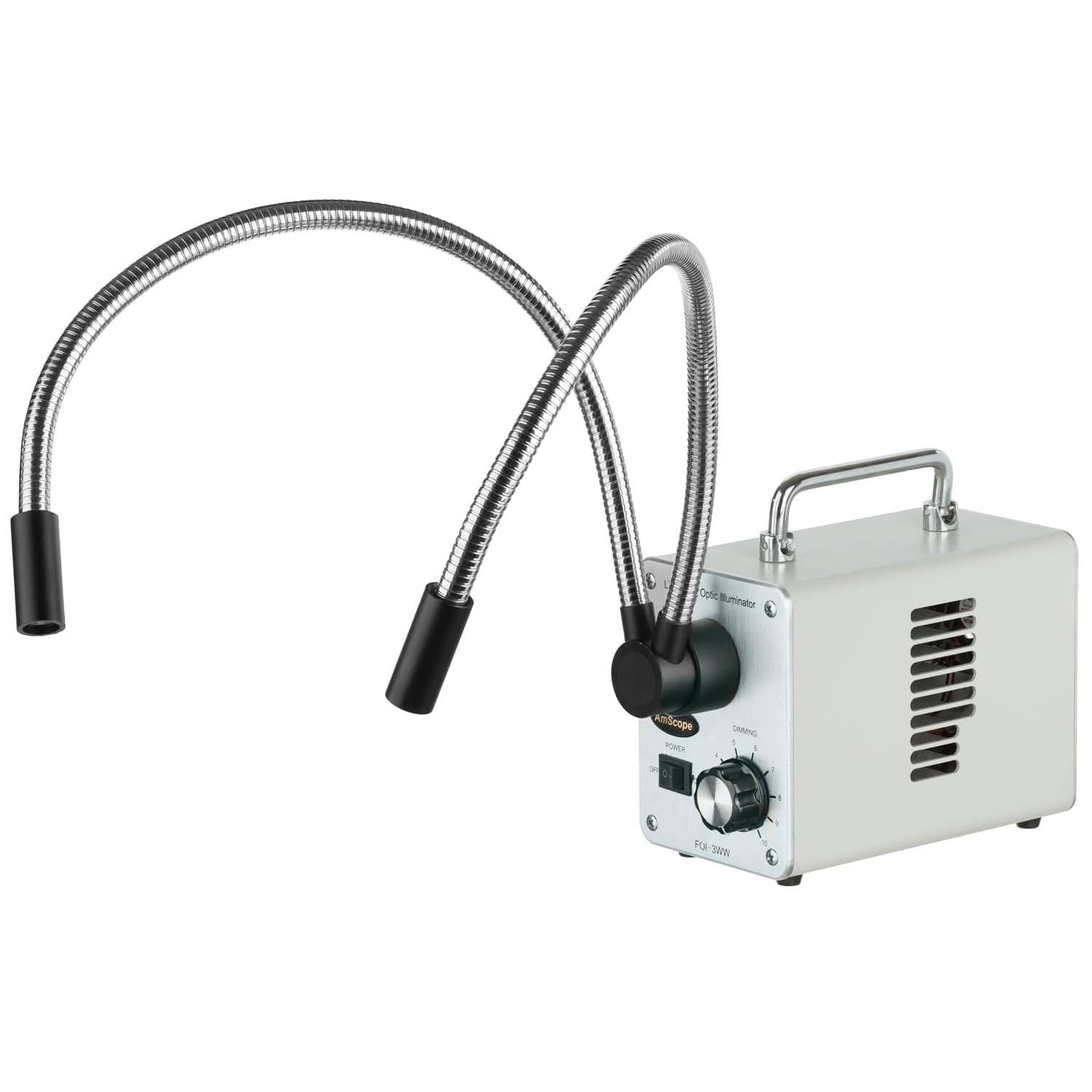

One 30W LED Fiber Optic Illuminator

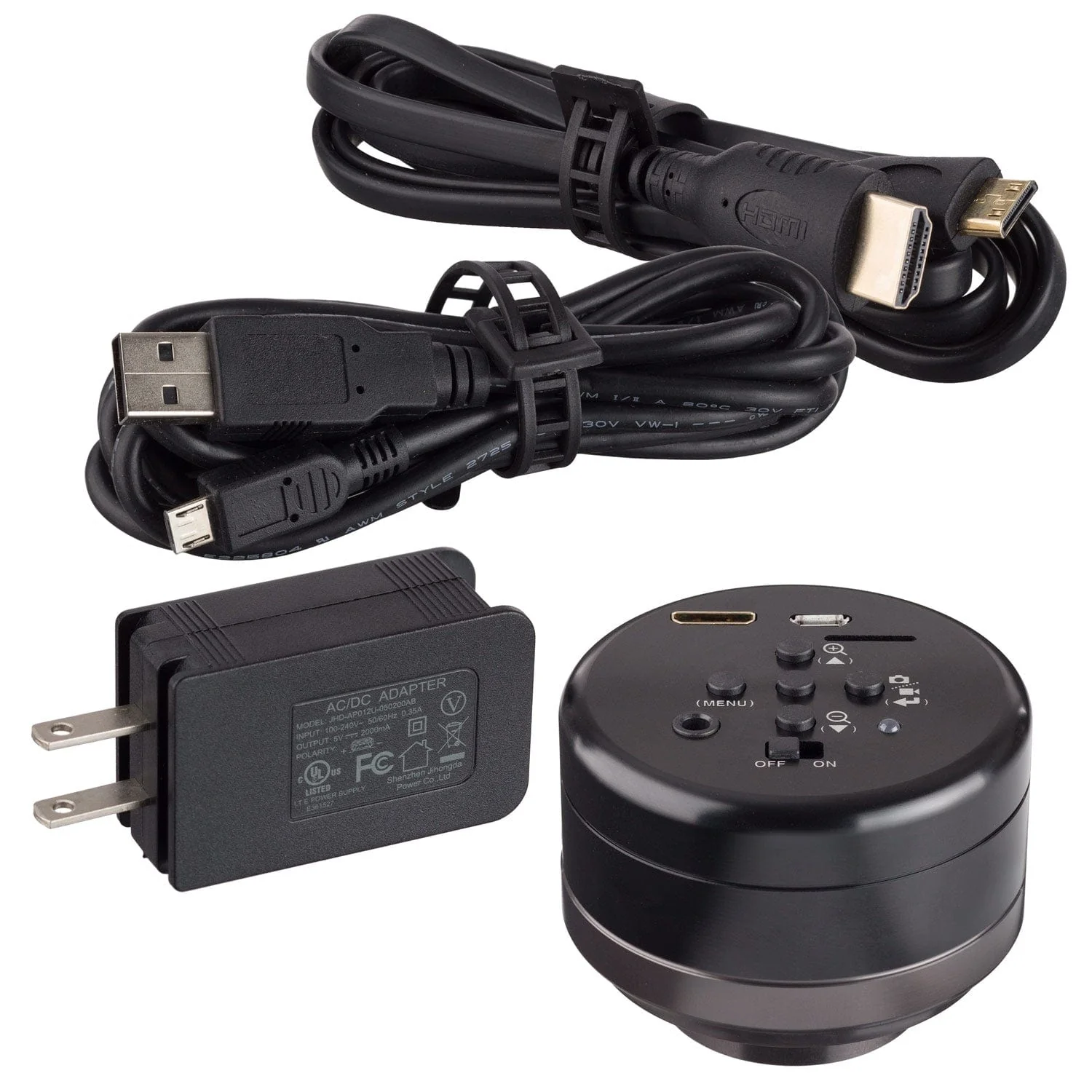

One HDMI camera

One HDMI cable

One power adapter for camera
