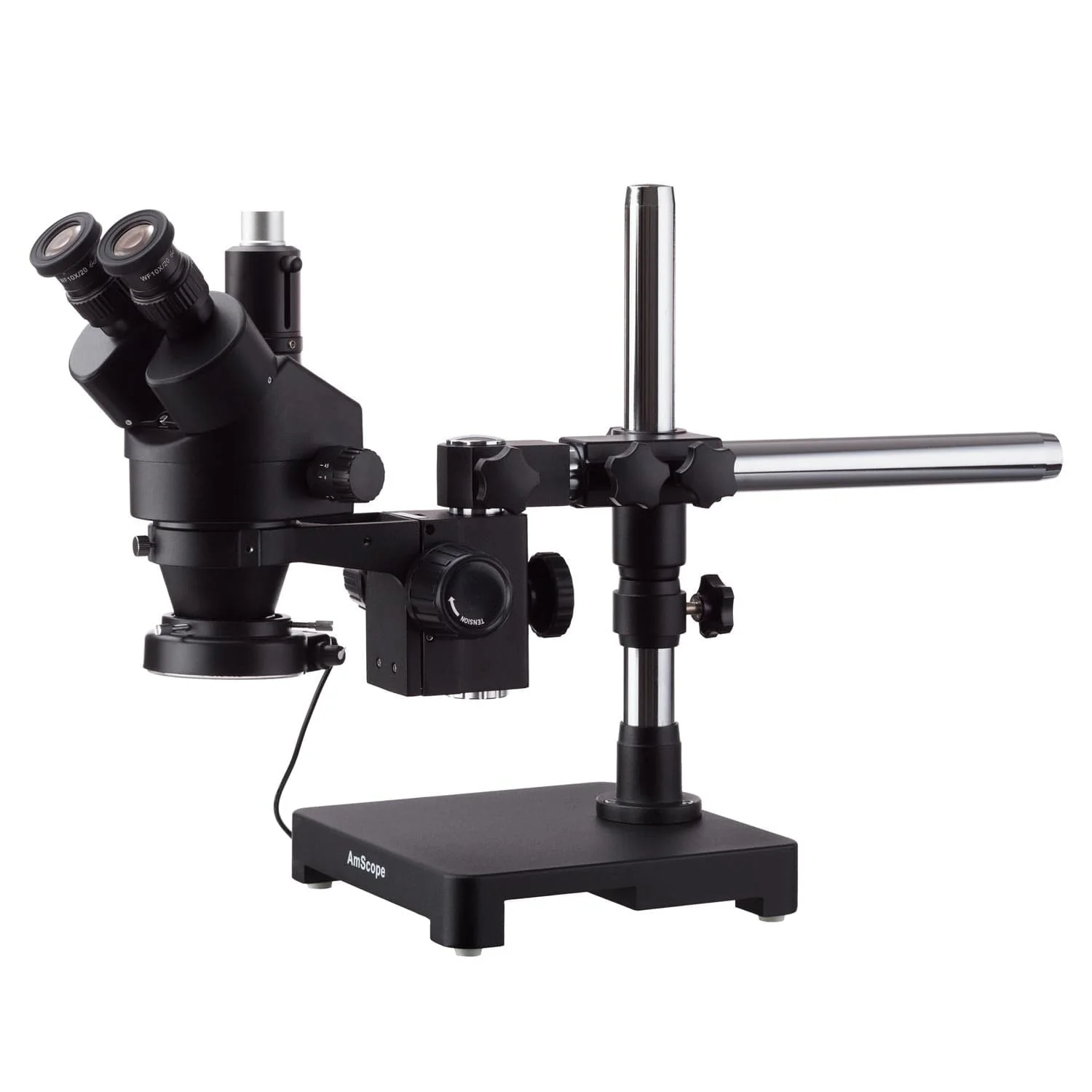

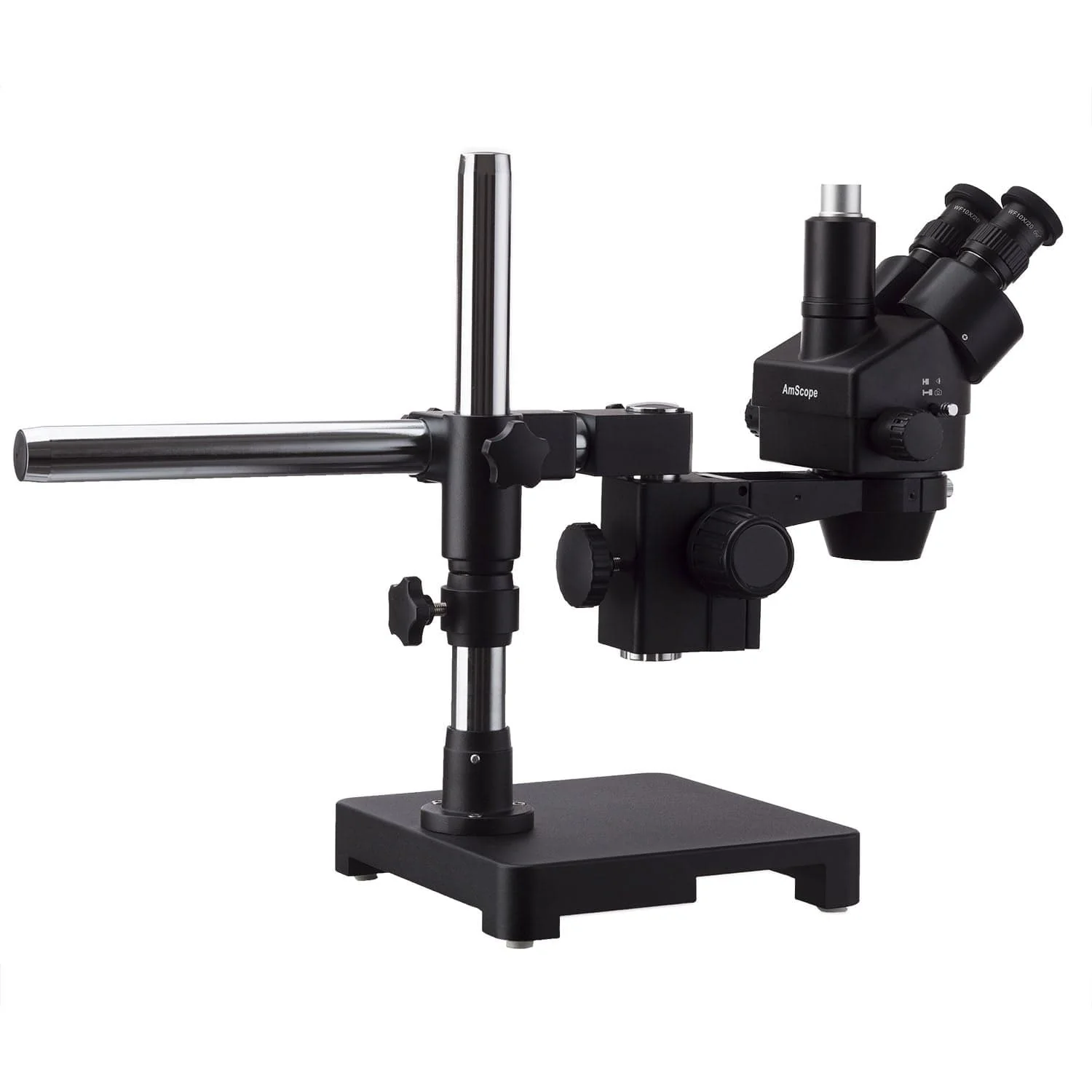

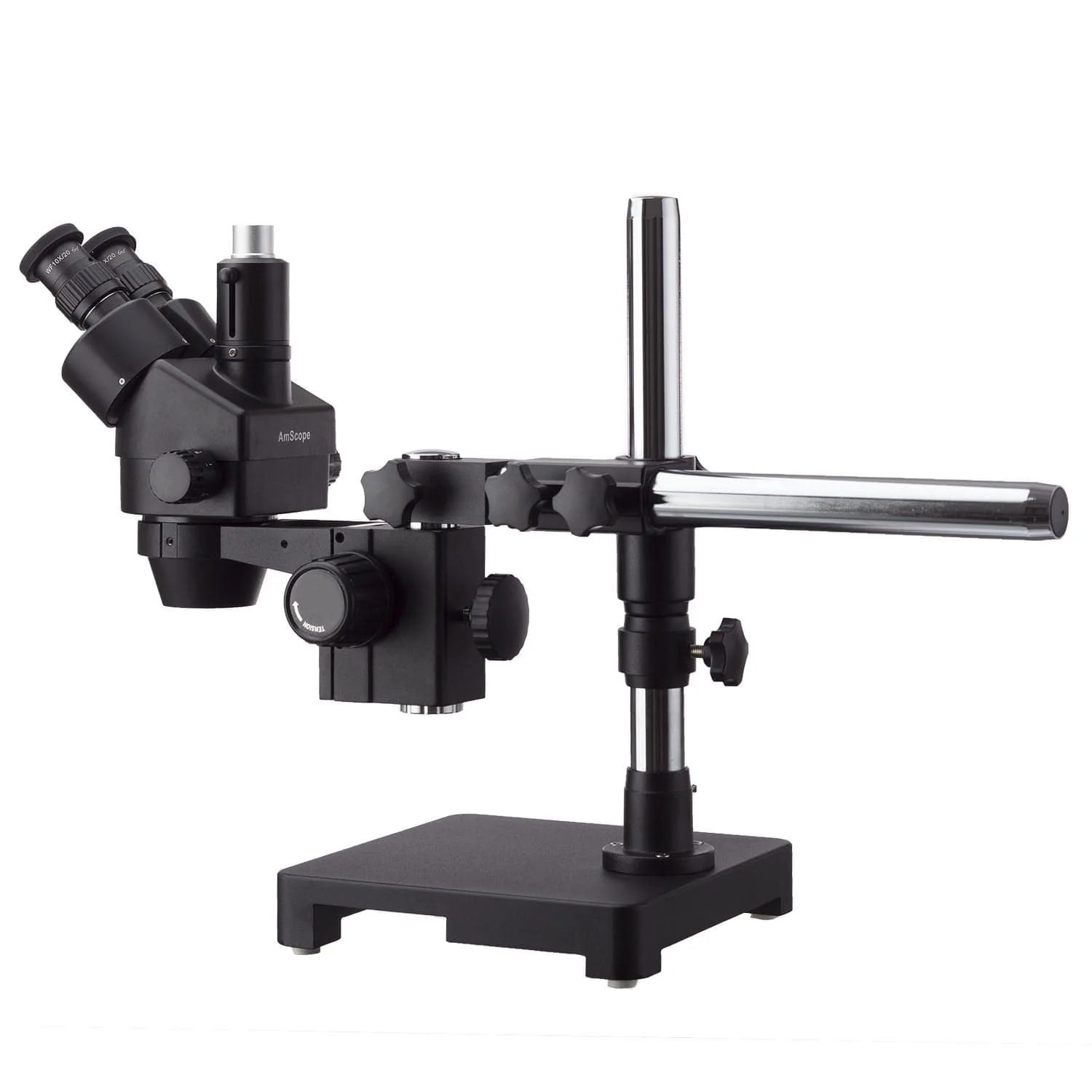

AmScope SM-3 Series Zoom Black Trinocular Stereo Microscope 3.5X-180X Magnification on Single Arm Boom Stand + Fluorescent Ring Light

This is a black version of our popular 3.5X-180X zoom stereo microscope mounted on a single-arm boom stand. It comes with a trinocular head with super widefield optics, 10X eyepieces, for a zoom ratio of 51:1, a sturdy single-arm boom-stand, and a 12 watt fluorescent ring light. The trinocular port enables to add photographic or video capability to the microscope. Its 45 degree inclined trinocular oculars and high-eyepoint optical design ensures a comfortable observation for all kinds of users including eyeglass wearers. The single-arm boom stand allows to turn the microscope head around two different axes, allowing you to point microscope head in various directions. This microscope offers high resolution, super widefield of view, large magnifying zoom range and long working distance. It is an ideal instrument for researchers, gemologists, engravers, and anyone in semiconductor and/or electronics industry.

Features:

3.5X-180X Zoom Stereo Microscope with Super Widefield Optics

Trinocular Design for High Quality Photographs or Video

30mm Super Widefield 10X Eyepieces with 20mm Field of View

8 inch (200mm) Large Working Distance

45 Degree Inclined Trinocular Head

Sharp Stereo Erect Images over a Wide Field View

Crystal Clear Original True Color Images

High Resolution with Great Flatness and Contrast

Eye Tube with Adjustable Diopter

Adjustable Interpupillary Distance

High-eyepoint Optic Design Ensuring an Easy and Comfortable Viewing, Especially for Eyeglass Wearers

Accurate Alignment Ensuring a Fatigue-Free Comfortable Observation

Rubber Eyeguards Providing Further Comfort

Full Optical Glass Elements

Precise Ground Glass Lens

Sturdy Boom Stand for Versatility and Large Working Area

Stand Finished with Stain Resistant Enamel

1.5" Rugged Solid Cast Metal Stand Base

All Metal Mechanical Components

Manufactured under ISO 9001 Quality Control Standard

Excellent Five (5) Year Manufacturer Warranty

Specifications:

Head: 45 degree inclined 360 degree swiveling trinocular

Eyepiece: 30mm super widefield high-eyepoint WF10X/20

Objective: 0.7-4.5X

Zoom Ratio: 51:1

Maximum Field of View: 2-1/2" (65mm)

Minimum Field of View: 3/16" (4.75mm)

Diopter Adjustment: +/-5dp

Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)

Working Distance: 8" (200mm)

Boom Stand: 16" arm (overall length: 24"), 17" high pillar, 9" x 9" x 1-3/4" solid cast steel base

Power Input: 110V

Packing List :

One Trinocular Stereo Zoom Head

One Pair of Super Widefield 10X Eyepieces

One Pair of Super Widefield 20X Eyepieces

One 0.5X Barlow Lens

One 2.0X Barlow Lens

One Single-Arm Boom-Stand

One Focus Rack

One Pair of Eye-Guards

One Fluorescent Ring Light + Mounting Adapter

User's Manual Download
