AmScope SM-4T Series Circuit Zoom Stereo Microscope 3.5X-90X Magnification with 144 LED Light + 5MP Digital Camera

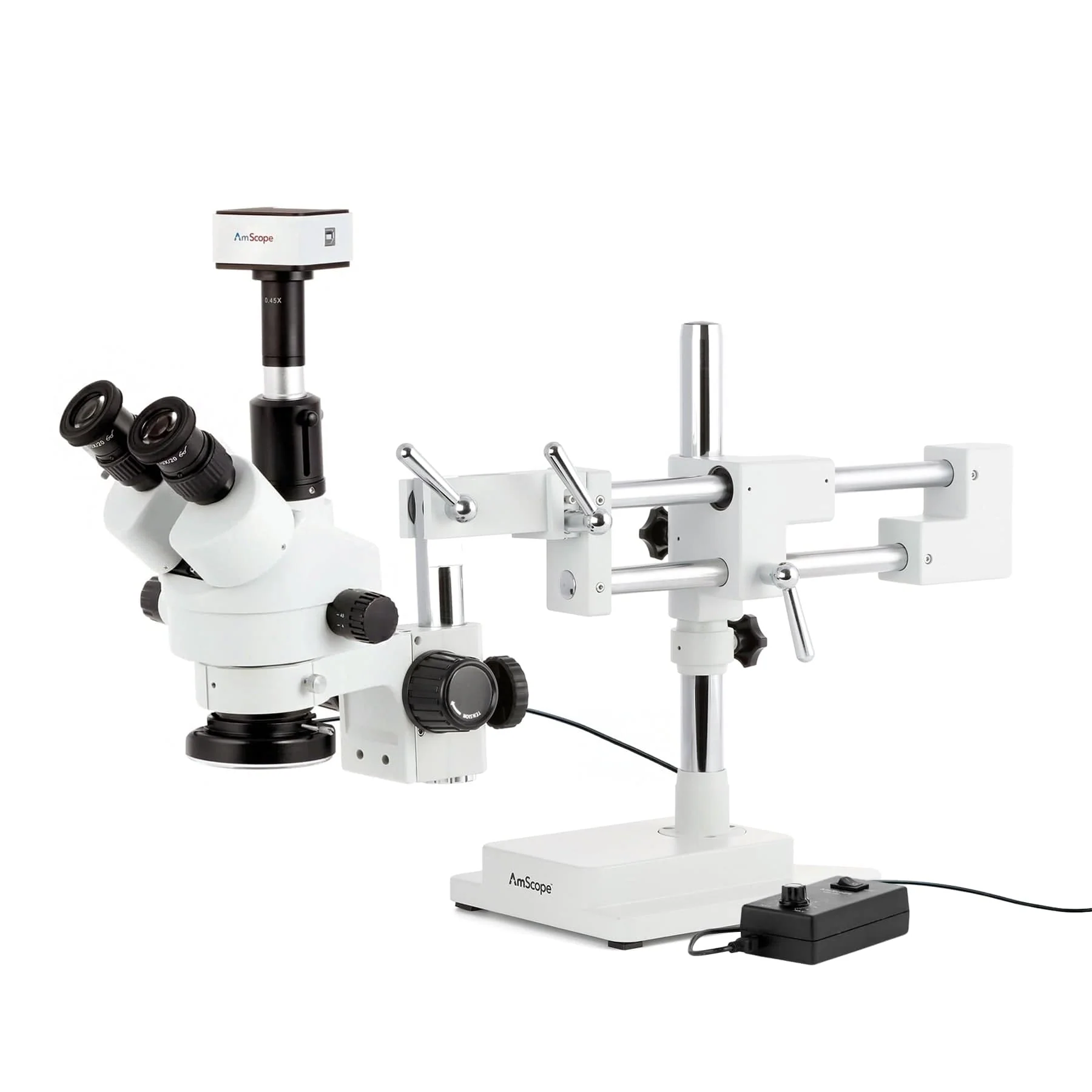

This is a trinocular 3.5X-90X zoom stereo boom microscope with 5MP heavy-duty high resolution digital camera. It comes with a trinocular head, 30mm super widefield high-eyepoint eyepieces, 3D double-arm heavy-duty boom stand, and 144-LED ring light with control box. This microscope offers crystal clear images, super widefield of view, very large magnification zoom range (26:1), and large working distance (8", 200mm). Its high-eyepoint optical design ensures an easy and comfortable observation, including eyeglass wearers.

The 5MP digital camera captures still images and video, and allows you to view a live stream on your PC. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images.

The 3D double-arm boom stand allows you to turn the microscope head around three different axis (x, y, and z), allowing you to point the microscope head to ANY direction you wish. The intensity-adjustable LED ring light provides bright, even and cool light illumination. This microscopy system is an ideal instrument for gemologists, engravers, collectors and anyone in semiconductor and/or electronic industry. It is also a right microscope for biological laboratory applications that require low heat release.

Features:

• A 3.5X-90X large zoom power microscope on boom with 144-LED ring light and 5MP color digital camera!
• 144-LED bright, even and cool lighting illumination
• 45 degree inclined trinocular head with super widefield high-eyepoint eyepieces
• Erect stereo sharp images over a super widefield of view
• Full optical glass elements; precise ground glass lenses
• High resolution with great flatness and contrast
• Crystal clear original true color images
• 30mm super widefield 10X eyepieces with 20mm field of view
• 8" (200mm) large working distance
• Accurate alignment ensuring fatigue-free long time view
• Both ocular-tubes with adjustable diopter
• Adjustable interpupillary distance
• 3D versatile double-arm boom stand covering large working area
• 3-degree freedom allows pointing microscope head in any direction desired!
• Heavy-duty cast steel stand finished with stain resistant enamel
• All metal mechanical components
• Manufactured under ISO 9001 quality control standard
• Excellent five (5) year manufacturer warranty



Specifications:

• Head: 45 degree inclined 360 degree swiveling trinocular
• Eyepieces: 30mm super widefield high-eyepoint WF10X/20
• Objective: 0.7-4.5X
• Auxiliary Objective: 0.5X 2.0X
• Zoom Range: 26:1
• Diopter Adjustment: +/-5dp
• Interpupillary Distance: 2-3/16" - 2-15/16" (55-75mm)
• Working Distance: 8" (200mm)
• Illumination: 144 LED bulbs
• Power input: 110-240V, 50-60HZ, Automatic Switching
• Boom Stand: 20" double-arm (overall length: 30"), 17" high pillar, 10-1/4"x8-1/4"x2-0" solid cast steel base
• Shipping Weight: 75 lbs



Camera Specifications:

• Image Sensor: Micron (color)
• Sensor Type: CMOS
• Sensor Size: 1/2.5"
• Pixel Size: 2.2µm
• Resolution: 5.0MP
• Frame Rate: 30 fps @ 640x480, 8 fps @ 2592x1944
• Sensitivity: 0.53V/lux-sec (550 nm)
• Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX



Contents:

• Trinocular Stereo Zoom Head
• Super Widefield 10X Eyepieces with Eye-Guards (Pair)
• 0.5X Barlow Lens
• 2.0X Barlow Lens
• Double-Arm Boom Stand
• Focus Rack

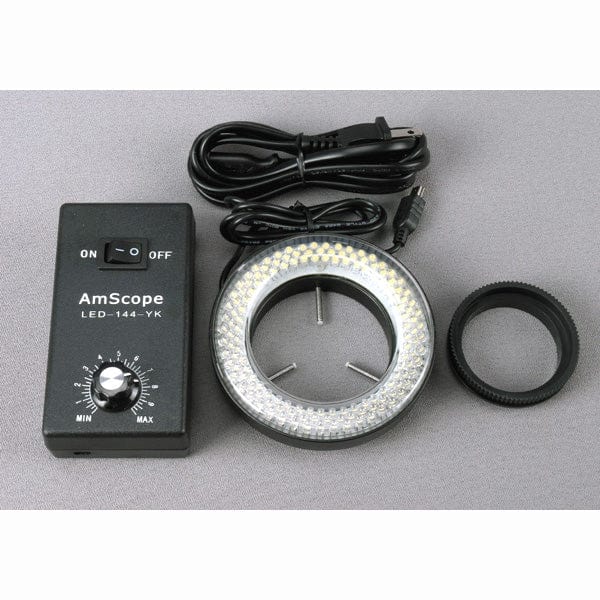

• 144-LED Ring Light with Control Box
• Mounting Adapter for Ring Light

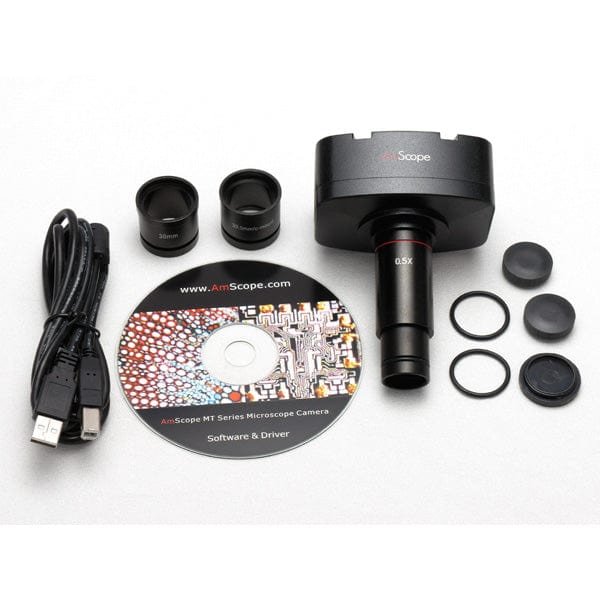

• 5MP Heavy-duty USB2.0 Digital Camera
• One 6' (1.8m) USB Cable
• One CD with Camera Software & Driver
• Two Adapter Sleeves (23.2mm-30mm & 23.2mm-30.5mm)
• User's Manual Download
