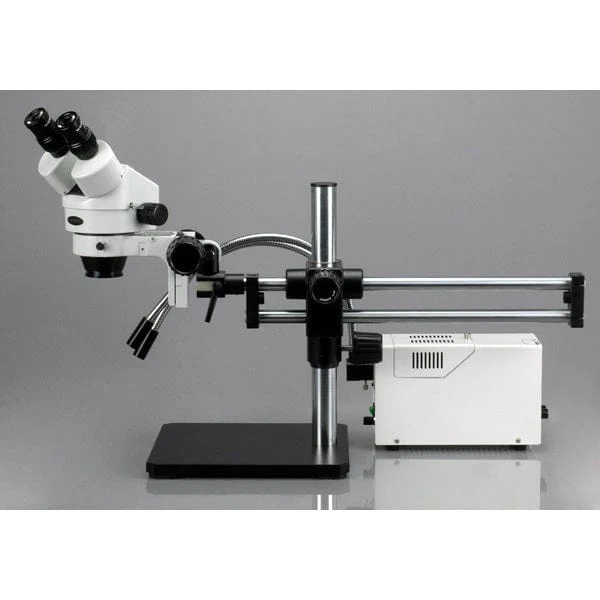

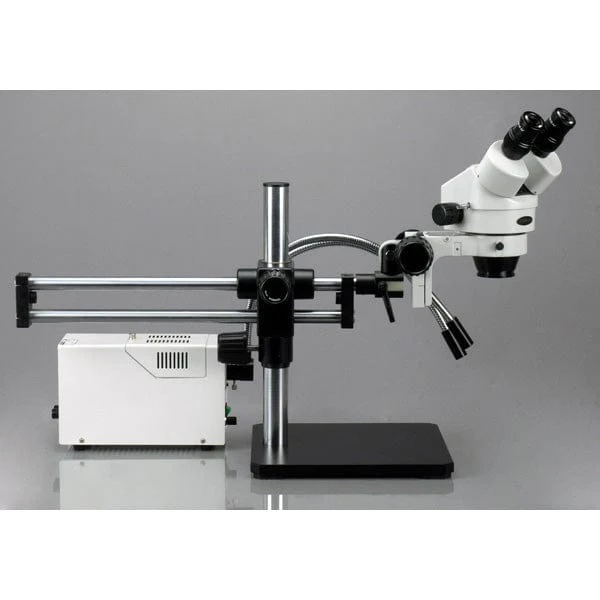

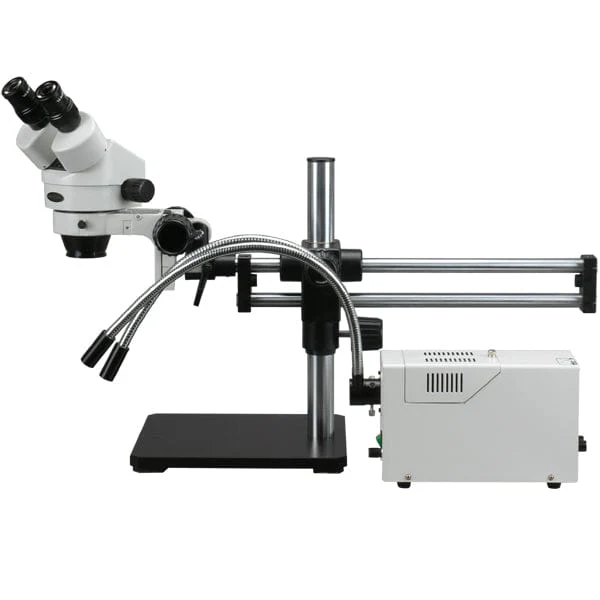

AmScope SM-5 Series Binocular Stereo Microscope 3.5X-90X Magnification with Fiber Y-Light on Ball Bearing Boom Stand

This binocular 3.5X-90X zoom stereo microscopy system is mounted on a versatile ball-bearing boom stand. It comes with a 150W fiber optical dual gooseneck illuminator. The binocular head includes 30mm super widefield, high-eyepoint WF10X/20 eyepieces, giving users sharp, crystal clear images. The double-arm boom stand is equipped with a versatile ball-bearing design, which allows users to make horizontal adjustments at the touch of a finger. The fiber optical halogen illuminator provides even, bright, full-spectrum light illumination. The top window design of the illuminator makes it convenient to change bulbs, and the auto-shut-off mechanism cuts off electricity automatically when the window is open. The high optical resolution, super-wide field of view, large magnifying zoom range, and long working distance makes this microscopy system an ideal instrument for manufacturers, engravers, gemologists, collectors and anyone in semiconductor and/or electronic industry.

Features :

• 3.5X-90X Ball-Bearing Boom Stereo Zoom Microscope with Fiber Optical Illuminator
• Friction-free Double-Arm Boom Stand Allows You to Adjust its Horizontal Position of the at the Touch of a Finger!

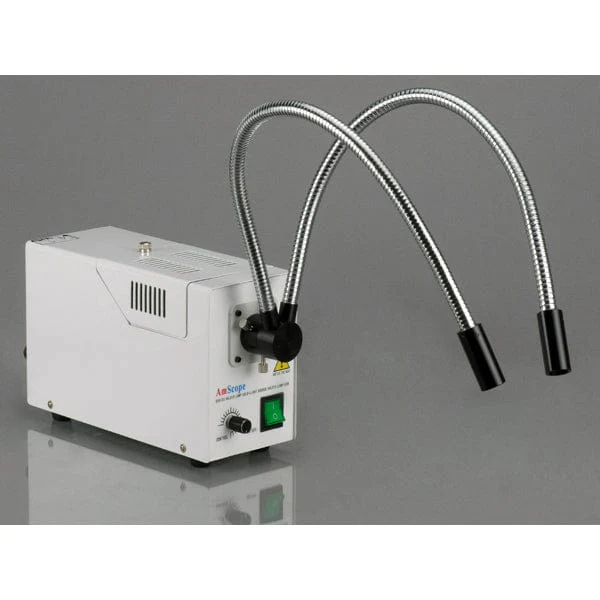

• 150W Fiber Optic Dual Gooseneck Illumination with Dimmer
• High Resolution Optical System with Superior Flatness and Contrast, and True Color Images
• Erect Stereo Sharp Images Over a SUPER-Wide Field of View
• Accurate Alignment Ensures Extended, Fatigue-Free Viewing
• 45° Inclined Binocular Head with 30mm WF10X/20 SUPER Widefield Eyepieces
• Adjustable Diopters on Both Ocular-Tubes
• Adjustable Interpupillary Distance
• Full Optical Glass Elements
• Precise Ground Glass Lenses
• 8" Large Working Distance
• Heavy-Duty Solid Steel Stand Finished with Stain Resistant Enamel
• Rugged Solid Steel Base
• All Metal Mechanical Components
• Rubber Eye-guards Included
• Manufactured under ISO 9001 Quality Control Standard
• Excellent Five (5) Year Manufacturer Warranty



Specifications :

• Head: 45° inclined 360° swiveling binocular
• Eyepieces: 30mm super widefield high-eyepoint WF10X/20
• Barlow Lens: 0.5X 2.0X
• Objective: 0.7-4.5X
• Zoom Range: 26:1
• Diopter Adjustment: ±5dp
• Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
• Working Distance: 8" (200mm)

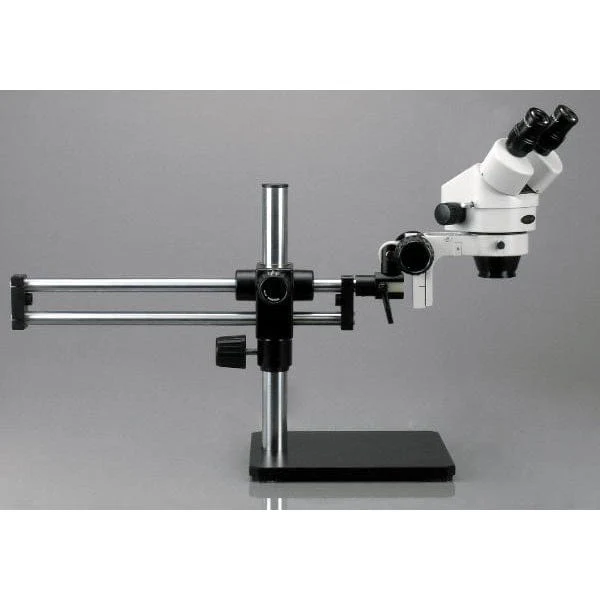

• Boom Stand: 22" ball-bearing double-arm (overall length: 30"), 16" high pillar, 11-1/2"x10-1/4"x1-0" solid cast steel base
• Accessories: eye-guards



Packing List :

• One Binocular Stereo Zoom Head
• One Pair of Super Widefield High-Eyepoint 10X Eyepieces
• Two Balow Lenses, 0.5X 2.0X
• One Ball-Bearing Double-Arm Boom Stand
• One Focusing Rack
• One Fiber Optical Dual Gooseneck Light
• One Pair of Eye-Guards
• User's Manual Download
• Two Adapters
• Shipping Weight: 69 lbs
