AmScope SM-5 Series Trinocular Stereo Microscope 7X-90X Magnification on Ball Bearing Boom Stand with Ring Light

This trinocular 7X-90X zoom stereo microscope with a fluorescent ring light is mounted on a versatile ball-bearing boom stand, giving crystal clear sharp images. It comes with a trinocular head with 30mm super widefield, high-eyepoint WF10X/20 eyepieces, a ball-bearing double-arm boom stand and a fluorescent ring light. The versatile ball-bearing design allows you to move the microscope head forward and back so easily that you can have it done by the touch of a finger. The fluorescent ring light provides cool, even and bright illumination. The trinocular port enables to add photographic or video capability. This microscope offers high resolution, super widefield of view, large magnifying zoom range and long working distance. It is an ideal instrument for engravers, gemologists, circuit board inspectors and anyone in semiconductor and/or electronics industry.

Features :

• 7X-90X Stereo Zoom Microscope on Ball-Bearing Boom Stand
• Allows You to Move the Microscope Head Forward and Back at the Touch of One Finger!

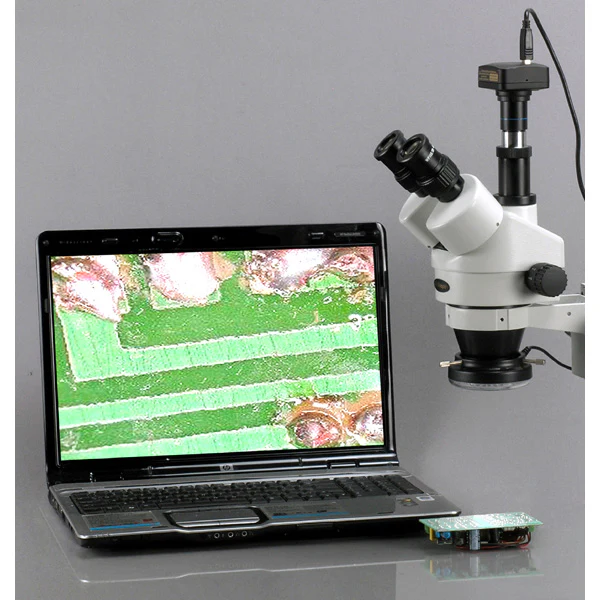

• Trinocular Port for Attaching a Microscope USB Camera, Video Camcorder or Digital Camera
• High Resolution with Great Flatness and Contrast
• Erect Stereo Sharp Images over a SUPER Widefield of View
• Accurate Alignment Ensuring Fatigue-Free Long Time Viewing
• Crystal Clear Original True Color Images
• 45 Degree Inclined Trinocular Head with SUPER Widefield High-Eyepoint Eyepieces
• 30mm WF10X/20 SUPER Widefield Eyepieces (see the difference in the above picture)
• Both Ocular-Tubes with Adjustable Diopter
• Adjustable Interpupillary Distance
• Full Optical Glass Elements
• Precise Ground Glass Lenses
• 4" Large Working Distance
• Versatile Boom Stand Covering Large Working Area
• Heavy-Duty Cast Steel Stand Finished with Stain Resistant Enamel
• Rugged Solid Cast Steel Base
• All Metal Mechanical Components
• Rubber Eye-guards Included
• Manufactured under ISO 9001 Quality Control Standard
• Excellent Five (5) Year Manufacturer Warranty



Specifications :

• Head: 45 degree inclined 360 degree swiveling trinocular
• Eyepieces: 30mm super widefield high-eyepoint WF10X/20
• Objective: 0.7-4.5X
• Barlow Lens: 2.0X
• Zoom Range: 13:1
• Diopter Adjustment: +/-5dp
• Interpupillary Distance: 2-3/16" - 2-15/16" (55-75mm)
• Working Distance: 4" (100mm)
• Field of View: 1-1/4" (33mm) in diameter
• Boom Stand: 28" (710mm) overall length, 16" (406mm) high pillar, 11-1/2" x 10-1/2" x 3/4" (292mm x 267mm x 19mm) solid steel base
• Accessories: eye-guards



Packing List :

• One Trinocular Stereo Zoom Head
• One Pair of Super Widefield High-Eyepoint 10X Eyepieces
• One 2.0X Barlow Lens
• One Ball-Bearing Double-Arm Boom Stand
• One Focusing Rack
• One Fluorescent Ring Light with Mounting Adapter
• One Pair of Eye-Guards
• User's Manual Download
• Shipping Weight: 65 lbs
