Name: AmScope SM-5 Series Trinocular Stereo Microscope 3.5X-180X Magnification with Fiber light on Ball Bearing Boom Stand
Brand: AmScope
SKU: sm-5tzz-fod
Availability: InStock

✨ New Arrivals Just Dropped!Explore

Home Store

AmScope SM-5 Series Trinocular Stereo Microscope 3.5X-180X Magnification with Fiber light on Ball Bearing Boom Stand

$1,352.99

AmScope SM-5 Series Trinocular Stereo Microscope 3.5X-180X Magnification with Fiber light on Ball Bearing Boom Stand—

$1,352.99

AmScope SM-5 Series Trinocular Stereo Microscope 3.5X-180X Magnification with Fiber light on Ball Bearing Boom Stand—

$1,352.99

The Story

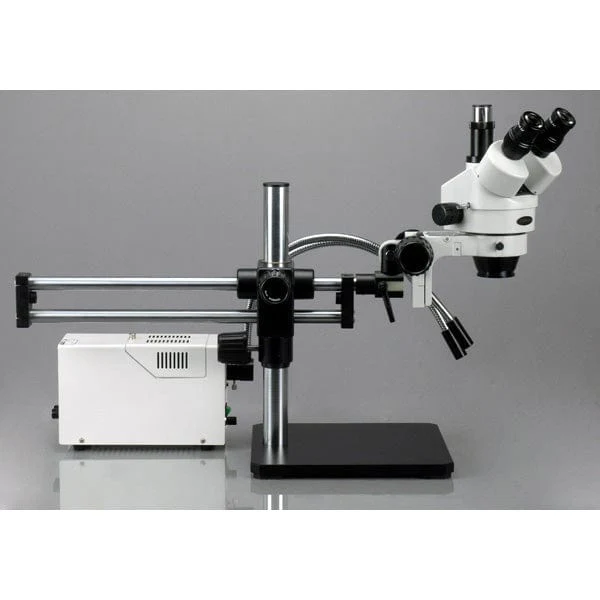

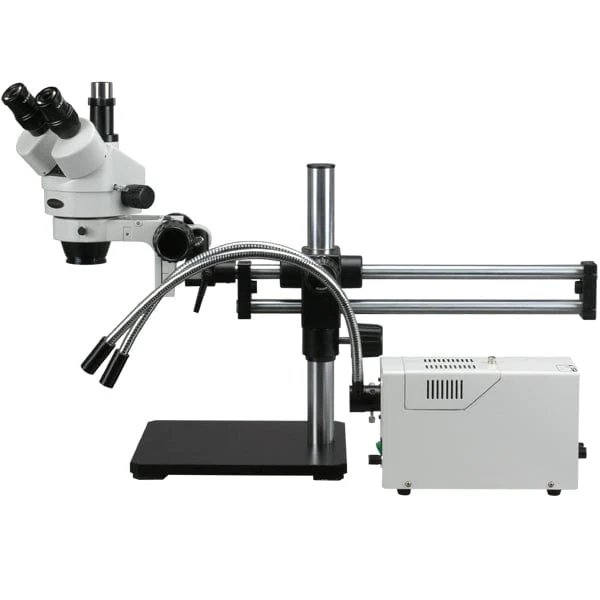

This trinocular 3.5X-180X zoom stereo microscopy system is mounted on a versatile ball-bearing boom stand. It comes with a 150W fiber optical dual gooseneck illuminator. The trinocular head includes 30mm super widefield, high-eyepoint WF10X/20 eyepieces, giving users sharp, crystal clear images. The double-arm boom stand is equipped with a versatile ball-bearing design, which allows users to make horizontal adjustments at the touch of a finger. The fiber optical halogen illuminator provides even, bright, full-spectrum light illumination. The top window design of the illuminator makes it convenient to change bulbs, and the auto-shut-off mechanism cuts off electricity automatically when the window is open. The high optical resolution, super-wide field of view, large magnifying zoom range (52:1), and long working distance (8") makes this microscopy system an ideal instrument for manufacturers, engravers, gemologists, collectors and anyone in semiconductor and/or electronic industry.

Features :

3.5X-180X Ball-Bearing Boom Stereo Zoom Microscope with Fiber Optical Illuminator

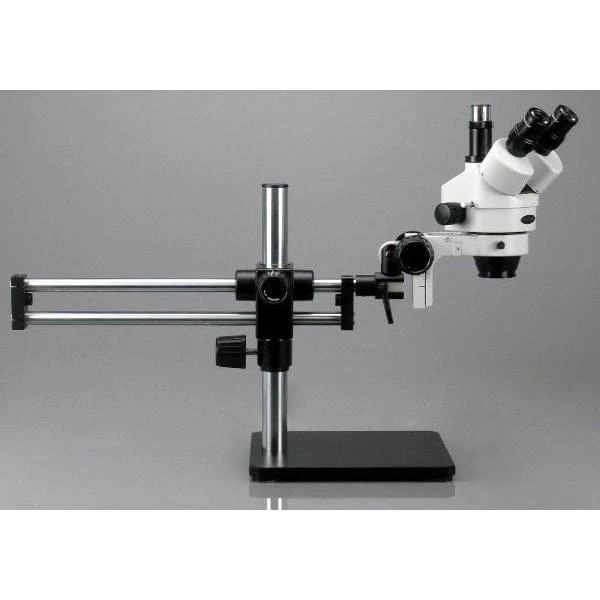

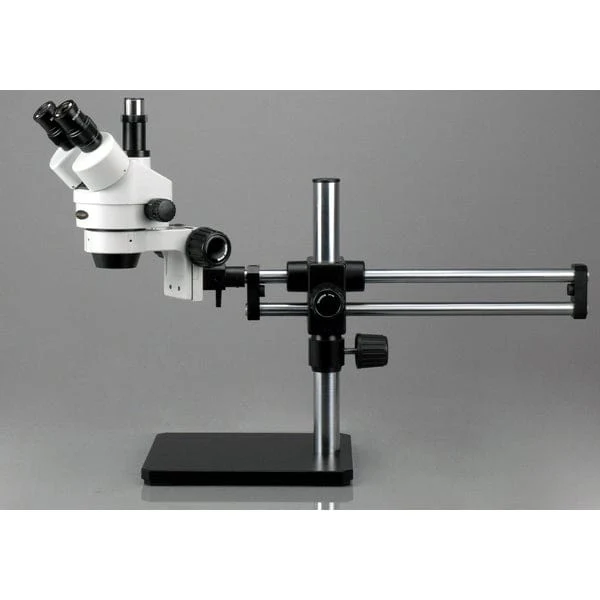

Friction-free Double-Arm Boom Stand Allows You to Adjust its Horizontal Position of the at the Touch of a Finger!

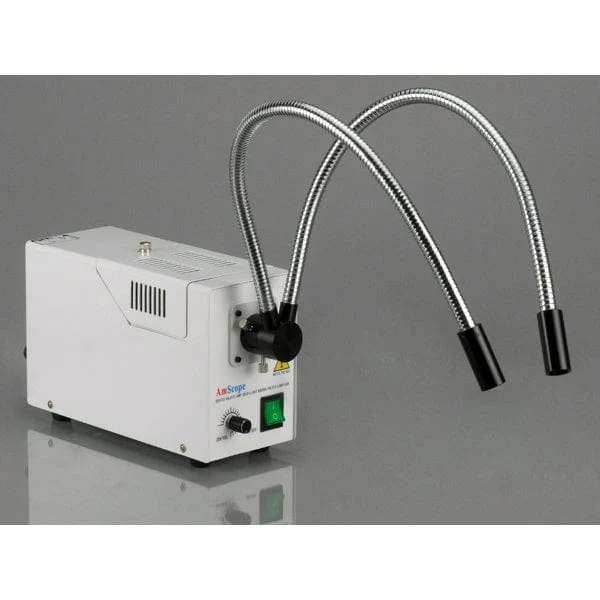

150W Fiber Optic Dual Gooseneck Illumination with Dimmer

High Resolution Optical System with Superior Flatness and Contrast, and True Color Images

Erect Stereo Sharp Images Over a SUPER-Wide Field of View

Accurate Alignment Ensures Extended, Fatigue-Free Viewing

45° Inclined Trinocular Head with 30mm WF10X/20 SUPER Widefield Eyepieces (see the difference in the above picture)

Adjustable Diopters on Both Ocular-Tubes

Adjustable Interpupillary Distance

Full Optical Glass Elements

Precise Ground Glass Lenses

8" Large Working Distance

Heavy-Duty Solid Steel Stand Finished with Stain Resistant Enamel

Rugged Solid Steel Base

All Metal Mechanical Components

Rubber Eye-guards Included

Manufactured under ISO 9001 Quality Control Standard

Excellent Five (5) Year Manufacturer Warranty

Unbeatable Low Price Guaranteed or the Difference Back!

Satisfaction Guaranteed or Your Money Back!

Specifications :

Head: 45° inclined 360° swiveling trinocular

Eyepieces: 30mm super widefield high-eyepoint WF10X/20 WF20X/10

Barlow Lens: 0.5X 2.0X

Objective: 0.7-4.5X

Zoom Range: 52:1

Diopter Adjustment: ±5dp

Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)

Working Distance: 8" (200mm)

Boom Stand: 22" ball-bearing double-arm (overall length: 30"), 16" high pillar, 11-1/2"x10-1/4"x1-0" solid cast steel base

Accessories: eye-guards

Packing List :

One Trinocular Stereo Zoom Head

Two Pairs of Super Widefield High-Eyepoint Eyepieces, 10X 20X

Two Balow Lenses, 0.5X 2.0X

One Ball-Bearing Double-Arm Boom Stand

One Focusing Rack

One Fiber Optical Dual Gooseneck Light

One Pair of Eye-Guards

User's Manual for the Microoscope

Two Adapters

Shipping Weight: 80 lbs

Packages: 2 (53 lbs and 27 lbs)
