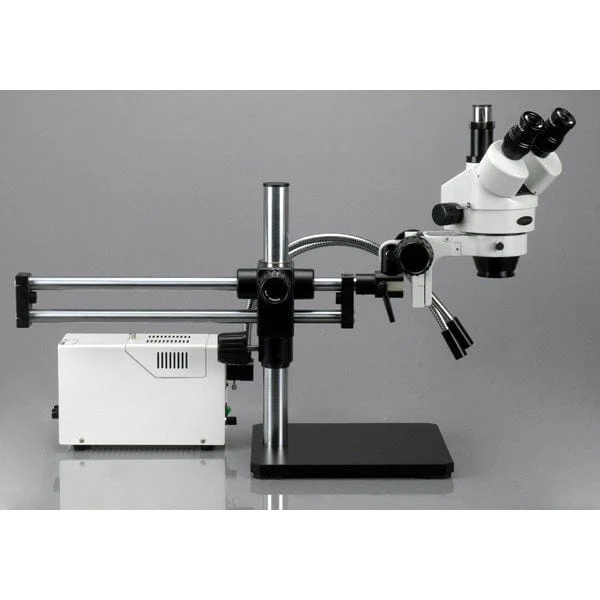

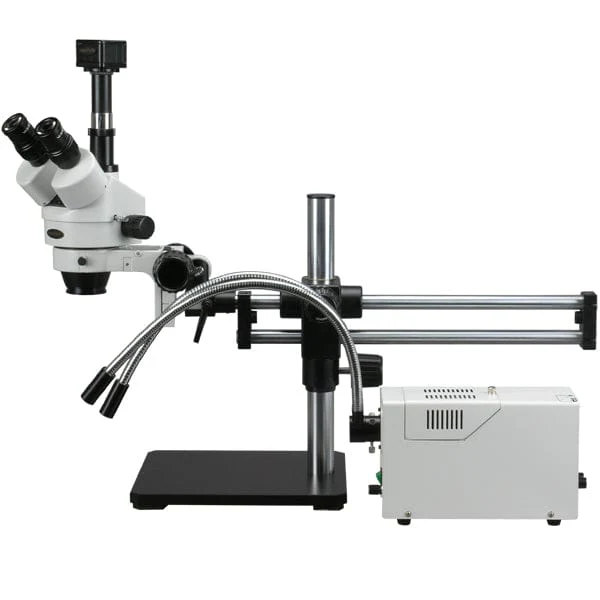

AmScope SM-5 Series Trinocular Stereo Microscope 3.5X-180X Magnification on Ball Bearing Boom Stand with 54 LED Fiber Y-Light and 1.3MP Camera

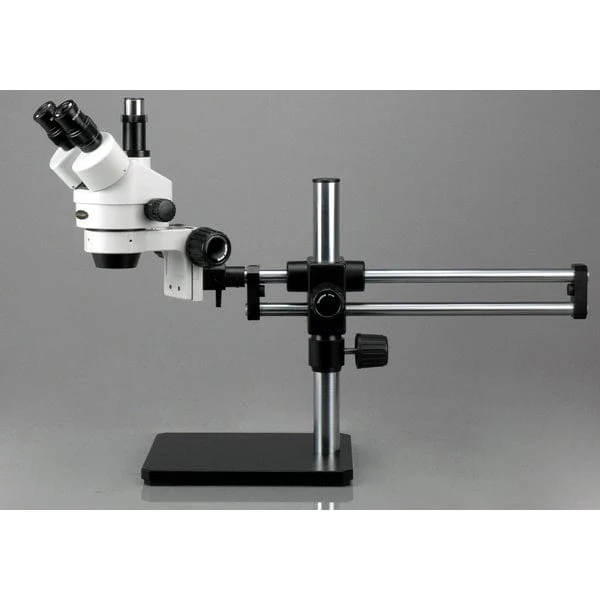

This trinocular 3.5X-180X zoom stereo microscopy system is mounted on a versatile ball-bearing boom stand. It comes with a 1.3MP digital camera and a 150W fiber optical Y-shape illuminator. The trinocular head includes 30mm super widefield, high-eyepoint WF10X/20 eyepieces, giving users sharp, crystal clear images. The double-arm boom stand is equipped with a versatile ball-bearing design, which allows users to make horizontal adjustments at the touch of a finger.

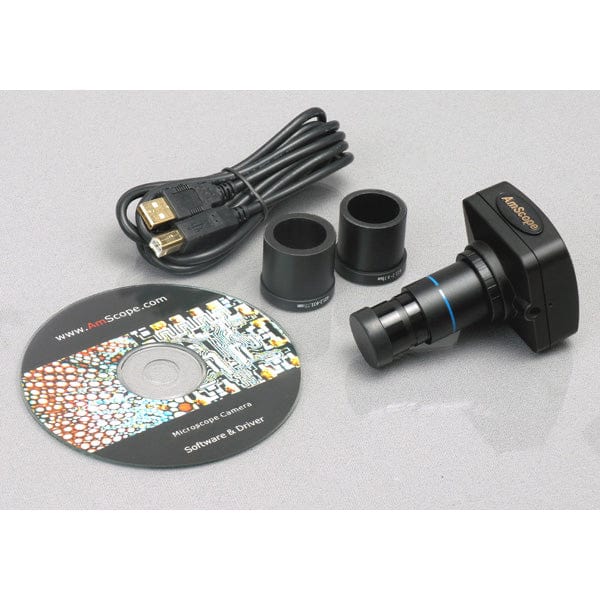

The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

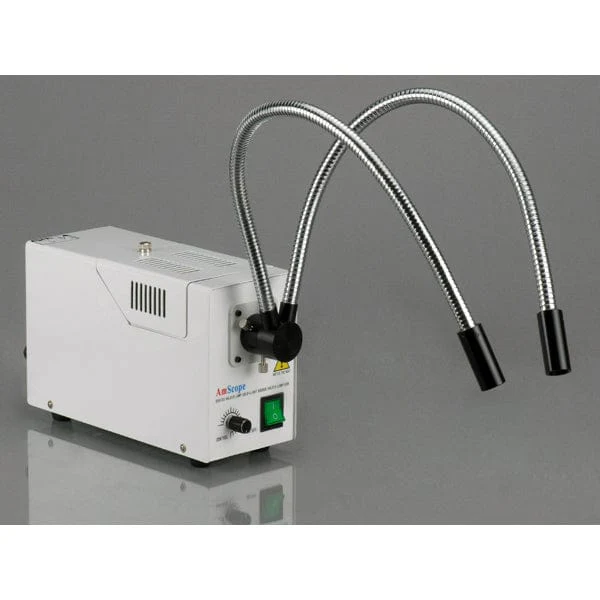

The fiber optical halogen illuminator provides even, bright, full-spectrum light illumination. The top window design of the illuminator makes it convenient to change bulbs, and the auto-shut-off mechanism cuts off electricity automatically when the window is open. The high optical resolution, super-wide field of view, large magnifying zoom range (52:1), and long working distance (8") makes this microscopy system an ideal instrument for manufacturers, engravers, gemologists, collectors and anyone in semiconductor and/or electronic industry.

Features :

3.5X-180X Ball-Bearing Boom Stereo Zoom Microscope with 1.3MP Digital Camera and Fiber Optical Illuminator

Friction-free Double-Arm Boom Stand Allows You to Adjust its Horizontal Position of the at the Touch of a Finger!

150W Fiber Optic Halogen Y-Shape Illumination with Dimmer

High Resolution Optical System with Superior Flatness and Contrast, and True Color Images

Erect Stereo Sharp Images Over a SUPER-Wide Field of View

Accurate Alignment Ensures Extended, Fatigue-Free Viewing

45° Inclined Trinocular Head with 30mm WF10X/20 SUPER Widefield Eyepieces (see the difference in the above picture)

Adjustable Diopters on Both Ocular-Tubes

Adjustable Interpupillary Distance

Full Optical Glass Elements

Precise Ground Glass Lenses

8" Large Working Distance

Heavy-Duty Solid Steel Stand Finished with Stain Resistant Enamel

Rugged Solid Steel Base

All Metal Mechanical Components

Rubber Eye-guards Included

Manufactured Under ISO 9001 Quality Control Standard

Excellent Five (5) Year Factory Warranty

Specifications :

Head: 45° inclined 360° swiveling trinocular

Eyepieces: 30mm super widefield high-eyepoint WF10X/20 WF20X/10

Barlow Lens: 0.5X 2.0X

Objective: 0.7-4.5X

Zoom Range: 52:1

Diopter Adjustment: ±5dp

Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)

Working Distance: 8" (200mm)

Boom Stand: 22" ball-bearing double-arm (overall length: 30"), 16" high pillar, 11-1/2"x10-1/4"x1-0" solid cast steel base

Accessories: eye-guards

Camera Specifications:

Sensor: Aptina MT9M111

Sensor Type: CMOS

Sensor Size: 4.6x3.7mm

Pixel Size: 3.6

Resolution: 1.3MP

Frame Rate: 15@1280x1024, 26@640x512, 50@320x256

Sensitivity: 1.0V/lux-sec

Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Software Specifications:

OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+

Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port

Packing List :

One Trinocular Stereo Zoom Head

Two Pairs of Super Widefield High-Eyepoint Eyepieces, 10X 20X

Two Balow Lenses, 0.5X 2.0X

One Ball-Bearing Double-Arm Boom Stand

One Focusing Rack

One Fiber Optical Y-shape Lights

One Pair of Eye-Guards

User's Manual for the Microoscope

One 1.3MP USB2.0 Digital Camera with Reduction Lens

Two Adapters for the Camera

One USB Cable

Shipping Weight: 80 lbs

Packages: 2 (53 lbs and 27 lbs)
