AmScope SM-6 Series Zoom Trinocular Stereo Microscope 3.5X-90X Magnification on Articulating Arm with 54-LED Light + 5MP Digital Camera

This is a great turnkey package of an articulating stereo inspection microscope that includes a 3.5X-90X trinocular zoom microscope with an articulating arm stand, a 54-LED ring light and a 5MP USB digital camera. Offering sharp, crystal clear images and great flexibility, it is a perfect inspection microscopy system for many applications. With 30mm super widefield, high-eyepoint eyepieces and reduction Barlow lenses, the microscope gives very large zoom magnification range of 26:1 and large working distance of 8". The LED ring light provides bright, even and cool illumination.

The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

This microscopy system is great for both industrial and biological applications. It is an ideal instrument for engineers, researchers, gemologists, and anyone in semiconductor and electronic industries.

Features:

• High Quality Optical System
• Well-focused clear images on your PC
• Adjustable trinocular port for simultaneously focusing
• 30mm Super Widefield 10X Eyepieces
• Sharp stereo images over a super widefield view
• High resolution with great flatness and contrast
• Crystal clear original true color images
• Versatile Heavy-Duty Articulating-Arm
• Coming with clamp
• Covering large working area
• 3.5X-90X (26:1) Zoom Magnification Range
• 45-Degree Inclined Microscope Head
• 8" (200mm) Large Working Distance
• Upright Trinocular Tube for Attaching Digital Cameras, Video Camcorders or CCD Videos
• Accurate Alignment Ensuring Fatigue-Free Comfortable Observation
• Both Ocular Tubes with Adjustable Diopters
• Adjustable Interpupillary Distance
• Full Optical Glass Elements
• Precise Ground Glass Lenses
• All Metal Mechanical Components
• Rubber Eye-guards Included
• Manufactured Under ISO 9001 Quality Control Standard
• Excellent Five (5) Year Factory Warranty

Specifications:

• Head: 45-degree inclined, 360-degree swiveling trinocular
• Eyepieces: 30mm super widefield high-eyepoint WF10X/20
• Barlow Lens: 0.5X and 2.0X
• Objective: 0.7-4.5X
• Zoom Range: 26:1
• Diopter Adjustment: +/-5dp
• Interpupillary Distance: 2-3/16" - 2-15/16" (55-75mm)
• Working Distance: 8" (200mm)
• Illumination: 54-LED
• Power input: 110-240V, 50-60HZ, Automatic Switching
• Accessories: eye-guards

Camera Specifications:

• Sensor: Aptina MT9P001
• Sensor Type: CMOS
• Sensor Size: 5.7x4.28mm
• Pixel Size: 2.2
• Resolution: 5.1MP
• Frame Rate: 5@2592x1944, 18@1280x960, 60@640x480
• Sensitivity: 0.53 V/lux-sec
• Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Software Specifications:

• OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
• Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port

Packing List :

• One Trinocular Zoom Microscope Head
• One Pair of Super Widefield High-eyepoint 10X Eyepieces
• One 0.5X Barlow Lens
• One 2.0X Barlow Lens
• One Articulating Arm with Clamp
• One Focusing Rack
• One Fluorescent Ring Light
• One Ring Light Adapter
• One Pair of Eye-guards
• User's Microscope Manual

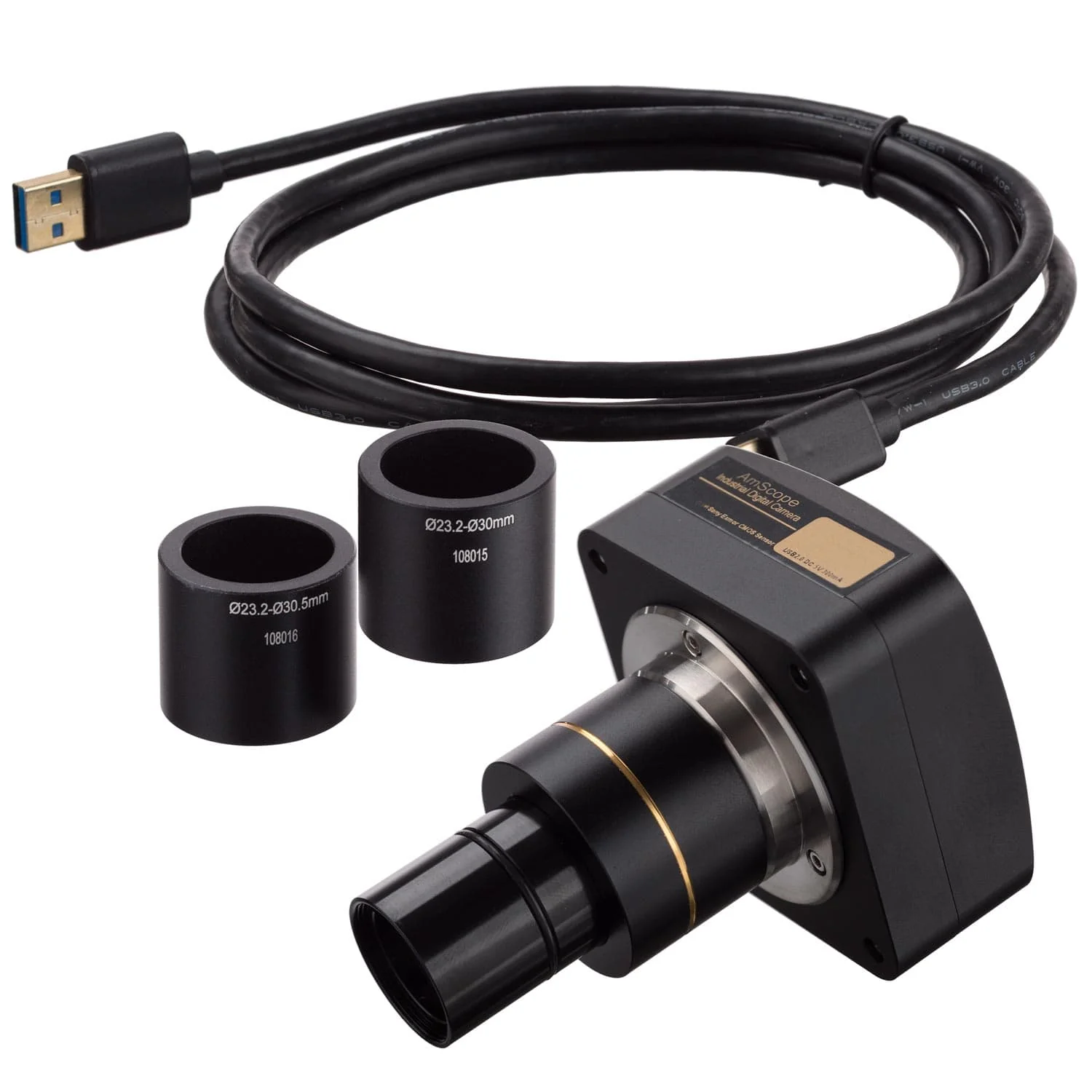

• One 5MP USB2.0 Digital Camera with 0.5X Reduction Lens
• One 6' (1.8m) USB Cable
• Two Adapter Sleeves (23.2mm-30mm & 23.2mm-30.5mm)
• User's Manual Download
• Shipping Weight: 30 lbs
