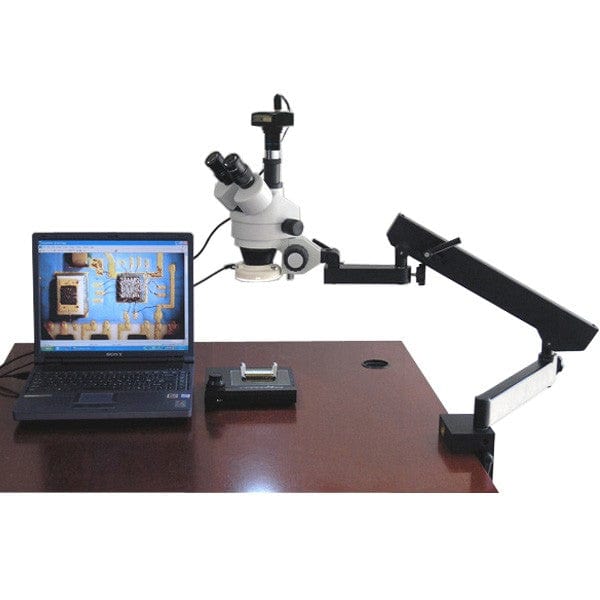

AmScope SM-6 Series Zoom Trinocular Stereo Microscope 3.5X-90X Magnification on Articulating Arm with 54-LED Light + 1.3MP Digital Camera

This is a great turnkey package of an articulating stereo inspection microscope that includes a 3.5X-90X trinocular zoom microscope with an articulating arm stand, a 54-LED ring light and a 1.3MP USB digital camera. Offering sharp, crystal clear images and great flexibility, it is a perfect inspection microscopy system for many applications. With 30mm super widefield, high-eyepoint eyepieces and reduction Barlow lenses, the microscope gives very large zoom magnification range of 26:1 and large working distance of 8". The LED ring light provides bright, even and cool illumination. The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features. This microscopy system is great for both industrial and biological applications. It is an ideal instrument for engineers, researchers, gemologists, and anyone in semiconductor and electronic industries.

Features:

High Quality Optical System Allows Simultaneous Observation Through Both the Eyepieces and the Trinocular Port

You can have well-focused clear images on your PC or video screen while you get the images in the microscope in focus

Don't need to switch between the trinocular port and the eyepieces

Don't need to re-focus the microscope after each "switch"

30mm Super Widefield 10X Eyepieces

Sharp stereo images over a super widefield view

High resolution with great flatness and contrast

Crystal clear original true color images

Versatile Heavy-Duty Articulating-Arm

Coming with clamp

Covering large working area

3.5X-90X (26:1) Continuous Zoom Magnification Range

45-Degree Inclined Microscope Head

8" (200mm) Large Working Distance

Upright Trinocular Tube for Attaching Digital Cameras, Video Camcorders or CCD Videos

Accurate Alignment Ensuring Fatigue-Free Comfortable Observation

Both Ocular Tubes with Adjustable Diopters

Adjustable Interpupillary Distance

Full Optical Glass Elements

Precise Ground Glass Lenses

All Metal Mechanical Components

Rubber Eye-guards Included

Manufactured Under ISO 9001 Quality Control Standard

Excellent Five (5) Year Factory Warranty

Specifications:

Head: 45-degree inclined, 360-degree swiveling trinocular

Eyepieces: 30mm super widefield high-eyepoint WF10X/20

Barlow Lens: 0.5X and 2.0X

Objective: 0.7-4.5X

Zoom Range: 26:1

Diopter Adjustment: +/-5dp

Interpupillary Distance: 2-3/16" - 2-15/16" (55-75mm)

Working Distance: 8" (200mm)

Illumination: 54-LED

Power input: 110-240V, 50-60HZ, Automatic Switching

Accessories: eye-guards

Camera Specifications:

Sensor: Aptina MT9M111

Sensor Type: CMOS

Sensor Size: 4.6x3.7mm

Pixel Size: 3.6

Resolution: 1.3MP

Frame Rate: 15@1280x1024, 26@640x512, 50@320x256

Sensitivity: 1.0V/lux-sec

Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Software Specifications:

OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+

Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port

Packing List :

One Trinocular Zoom Microscope Head

One Pair of Super Widefield High-eyepoint 10X Eyepieces

One 0.5X Barlow Lens

One 2.0X Barlow Lens

One Articulating Arm with Clamp

One Focusing Rack

One Fluorescent Ring Light

One Ring Light Adapter

One Pair of Eye-guards

User's Manual Download

One 1.3MP USB2.0 Digital Camera with 0.5X Reduction Lens

One 6' (1.8m) USB Cable

Two Adapter Sleeves (23.2mm-30mm & 23.2mm-30.5mm)

Shipping Weight: 30 lbs
