Original: $233.99
-65%$233.99
$81.90The Story

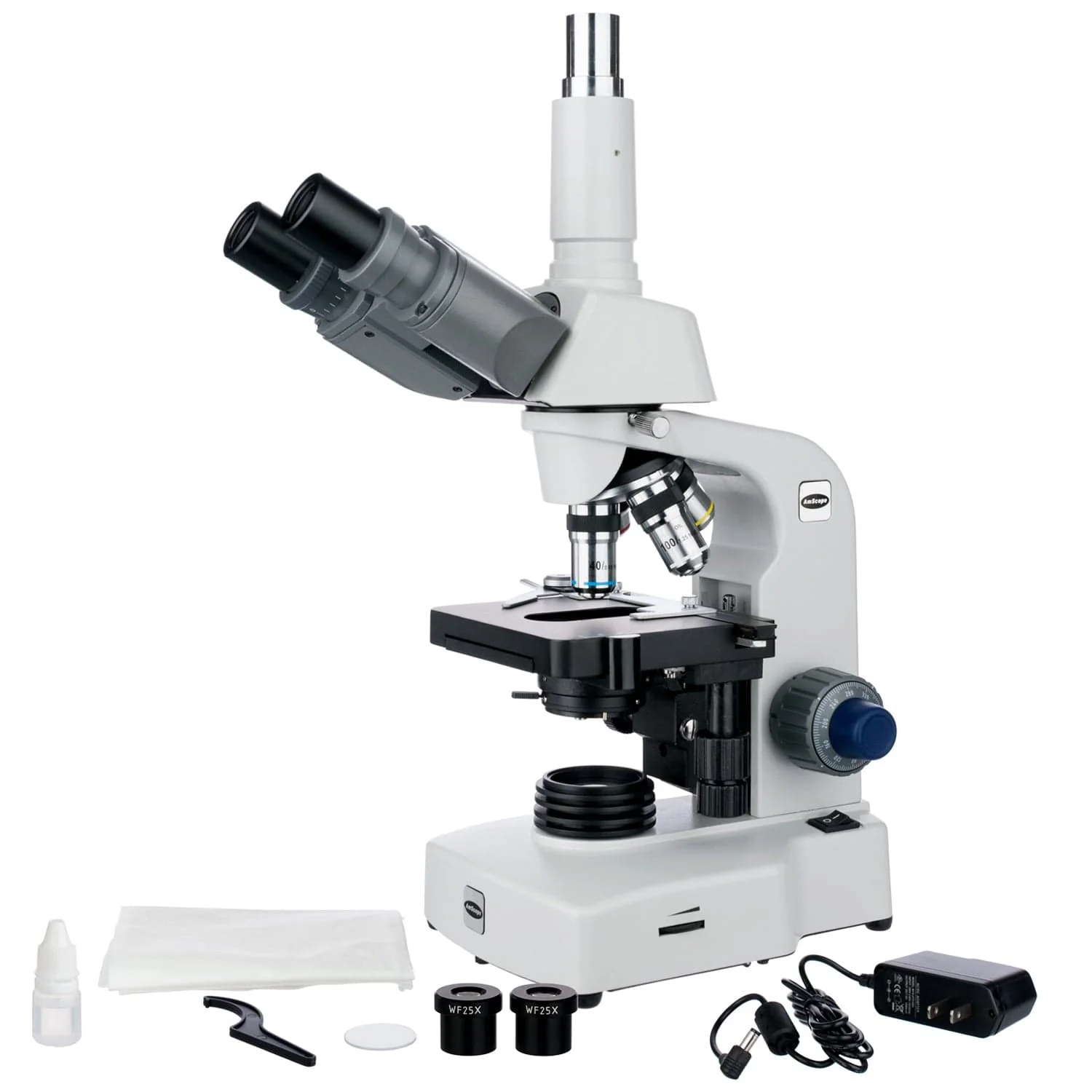

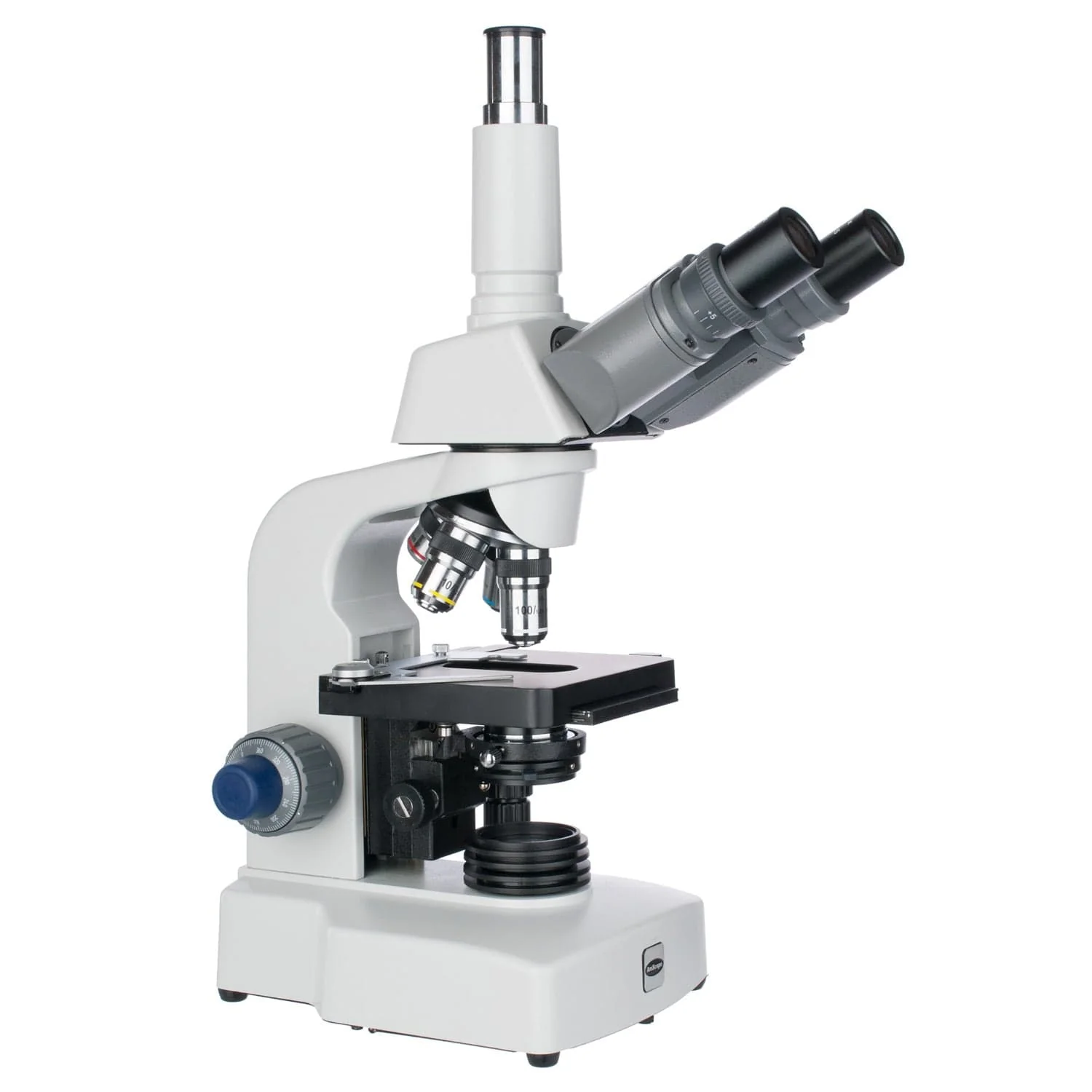

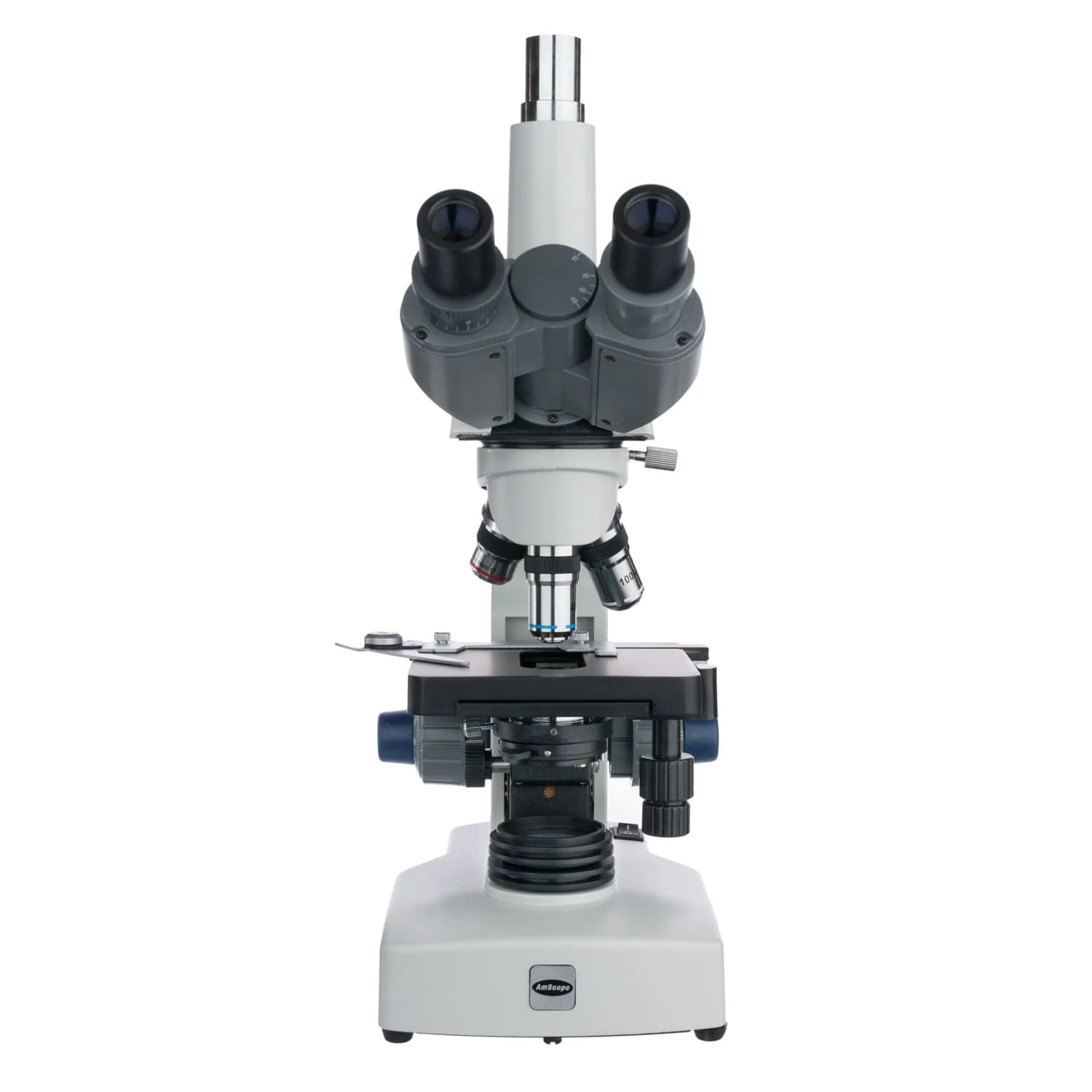

This trinocular compound microscope is designed for clinical examination and teaching demonstration in medical fields, veterinary offices, laboratories and colleges. The observation head has a 30° incline for comfort, and can swivel 360° for flexible viewing angle. The Siedentopf interpupillary adjustment allows easy fitting for any user. The 3D mechanical stage provides a wide range of movement, and is ergonomically designed for low-fatigue use. The variable-intensity LED illumination system provides a super-bright light source while maintaining a much lower temperature than halogen illumination. The trinocular port adds an additional port for a camera.

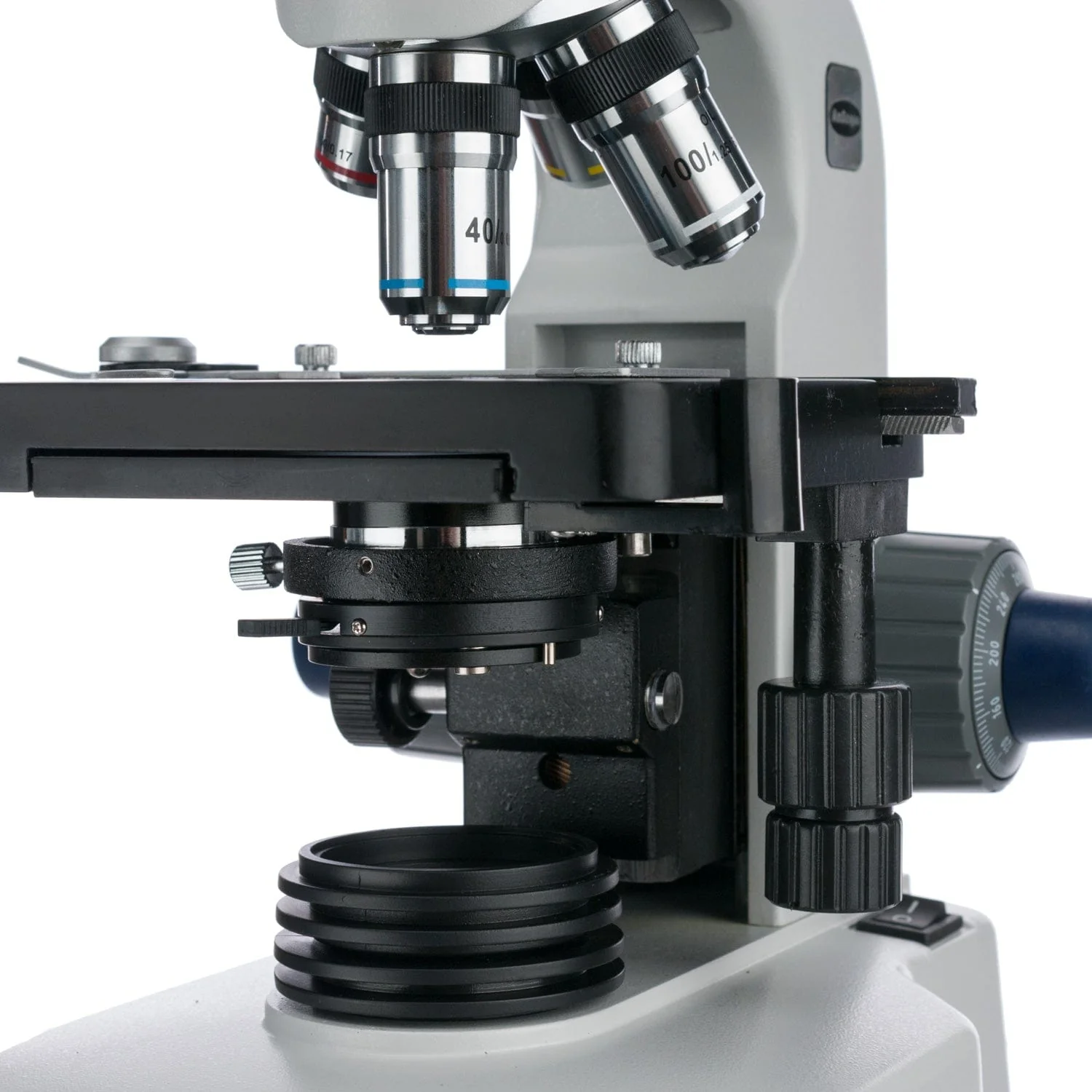

The reversed objective turret is less obstructive than conventional forward turrets, and provides instant access to 4 magnification levels to easily focus in on minute details from 40X to 1000X. Additional 25X eyepieces extend the maximum magnification to 2500X, and 6 distinct levels of magnification to cover a wide range of specimens. The high-quality lenses are achromatically corrected to improve resolution and color accuracy.
This is an ideal instrument for schools, clinics, veterinarians, and general use. It offers a wide range of optional accessories to expand the functionality. The magnification range can be expanded with a large selection of objective and ocular lenses. Specialized condensers are available for dark-field and phase-contrast applications, ideal for bloodwork, fluid-analysis, and pathology.
Specifications
| Optical System | Finite |
| Mechanical Tube-length | 160mm |
| Head | Trinocular, 30° incline, 360° rotatable |
| Interpupillary Adjustment | Compensation-free gemel |
| Interpupillary Range | 53-77mm |
| Ocular Tube Diameter | 23mm |
| Eyepieces | 10X, 25X |
| Photo-port | Height-adjustable 23mm tube |
| Nosepiece | Quadruple reverse |
| Objective Lenses | 4X, 10X, 40X (spring), 100X (spring, oil) |
| Focusing System | Coaxial coarse and fine focus, upper limit-stop, tension-control |
| Stage | Double-layer 142mm x 114mm |
| X-Y Translation Range | 78mm x 53mm |
| Sub-stage Condenser-holder | Rack-and-pinion |
| Condenser | Achromatic Abbe condenser, NA1.25 |
| Transmitted Illumination | LED |
Objective Lenses
| Magnification | Corrections | NA | Cover-glass Thickness |
|---|---|---|---|
| 4X | Achromatic | 0.10 | 0.17mm |
| 10X | Achromatic | 0.25 | 0.17mm |
| 40X | Achromatic | 0.65 | 0.17mm |
| 100X | Achromatic | 1.25 | 0.17mm |
Magnification Chart
| Eyepiece | Objective | |||
| 4X | 10X | 40X | 100X | |
| 10X | 40X | 100X | 400X | 1000X |
| 25X | 100X | 250X | 1000X | 2500X |
Packing List :
