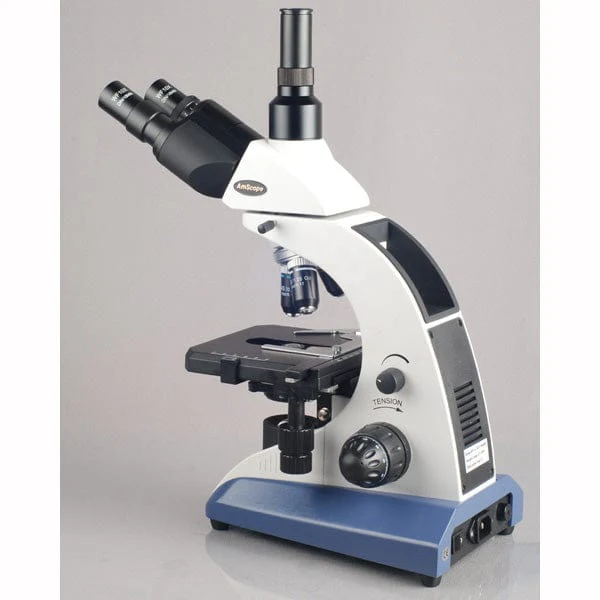

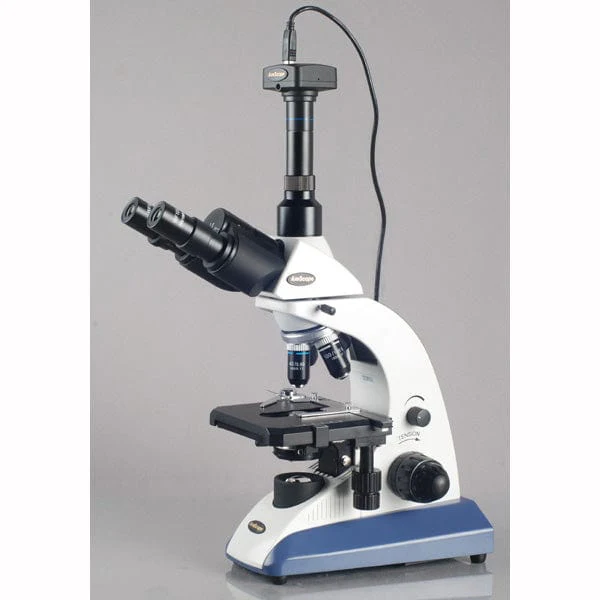

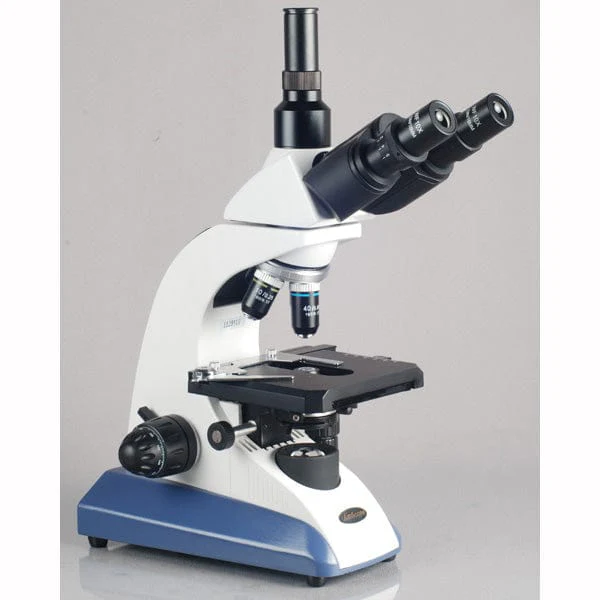

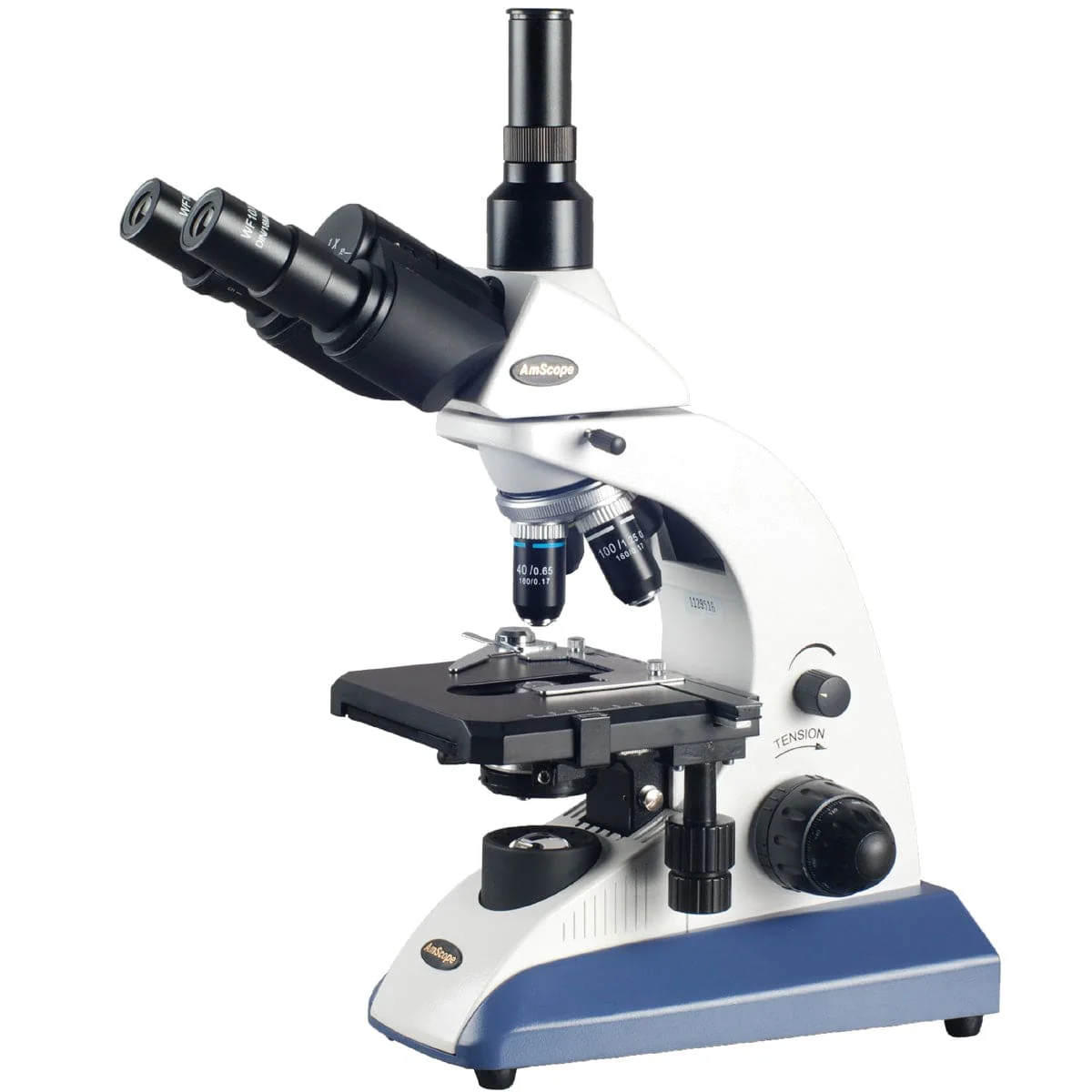

AmScope T520 Series Biological Trinocular Compound Microscope 40X-2000X Magnification with 20W Halogen, 3D Mechanical Stage

This brand new widefield trinocular compound microscope offers sharp clear images. It comes with a 30 degree inclined 360 degree swiveling trinocular Siedentopf head, coaxial coarse & fine focusing and 3-D mechanical stage. The backward nosepiece configuration allows spacious room for convenient operation and comfortable observation. This microscope provides eight levels of magnification: 40X, 80X, 100X, 200X, 400X, 800X, 1000X and 2000X. It is a great microscope for clinic offices, veterinary offices and biological laboratories.

Features :

• An High Quality Compound Microscope, Unbeatable Price!
• Backward Nosepiece Allowing Spacious Room for Comfortable Observation
• Fully Coated Optical System with High Resolution
• Precise Mechanical Control System
• Backward Nosepiece Design for Spacious Operation Room
• 30 Degree Inclined 360 Degree Swiveling Trinocular Siedentopf Head
• Eight Magnification Levels: 40X, 80X, 100X, 200X, 400X, 800X, 1000X and 2000X
• Intensity-Variable Transmitted Halogen Lighting System
• Abbe Condenser with Iris Diaphragm and Swing-Out Filter Holder
• Rack and Pinion Adjustment for Condenser
• Low Position Coaxial Stage Movement Control Knobs
• Dual Side Coaxial Coarse and Fine Focusing Control
• Adjustable Interpupillary Distance
• Adjustable Diopter on Ocular
• Durable Cast Alloy Frame & Stand with Stain Resistant Enamel Finish
• Four Objectives Included: 4X, 10X, 40X, 100X
• Two Sets of Wide Field Eyepieces: Wide Field 10X and 20X
• Large Double Layer Mechanical Stage with Stain Resistant Finish
• Upward Stage Stopper to Protect Objectives and Slides
• Manufactured under ISO 9001 Quality Control Standards
• Excellent Five (5) Year Factory Warranty



Specifications :

• Nosepiece: backward, ball bearing quadruple
• Head: Siedentopf trinoculor head, 30-degree inclined
• Eyepiece: WF10X and WF20X
• Objective: Achromatic 4X, 10X, 40X (spring), 100X (spring, oil)
• Focusing: low position coaxial focus system
• Interpupillary Adjustment: 2-3/16" - 3-0" (55 - 75mm)
• Mechanical Stage: 5.5"x5.5" (140mm × 132mm)
• Stage Traveling Range: 3"x 2" (75x30mm)
• Division of Fine Focusing: 0.0000787" (0.002mm)
• Condenser: N.A. 1.25, swing with iris diaphragm & filter
• Illumination: halogen 6V/20W
• Wide voltage power supply: 85-265V, CE certified



Packing List :

• One Trinocular Siedentopf Head
• One Microscope Body Frame with Base and Illumination System
• Four High Quality Achromatic Objectives: 4X, 10X, 40X and 100X
• Two Pairs of Widefield Eyepieces: WF10X and WF20X
• One Power Cord
• One Spare Halogen Bulb
• One Spare Fuse
• One Dust Cover
• Color Filters
• Immersion Oil
• User's Manual Download
• Shipping Weight: 20 lbs
