AmScope T570 Series Plan Kohler Laboratory Research Grade Trinocular Compound Microscope 40X-3000X Magnification

This trinocular biological compound microscope features an infinity-corrected optical system with semi-plan achromatic lenses, and a Koehler illumination system. This instrument is ideal for clinics and labs, and higher education.

The extreme wide-field, infinity-corrected optical system improves accuracy and resolution, and increases the viewable field. The 30° inclined oculars with Siedentopf adjustment offer flexibility and comfort. The trinocular format provides a dedicated photo port for mounting a camera for capturing photos or videos.

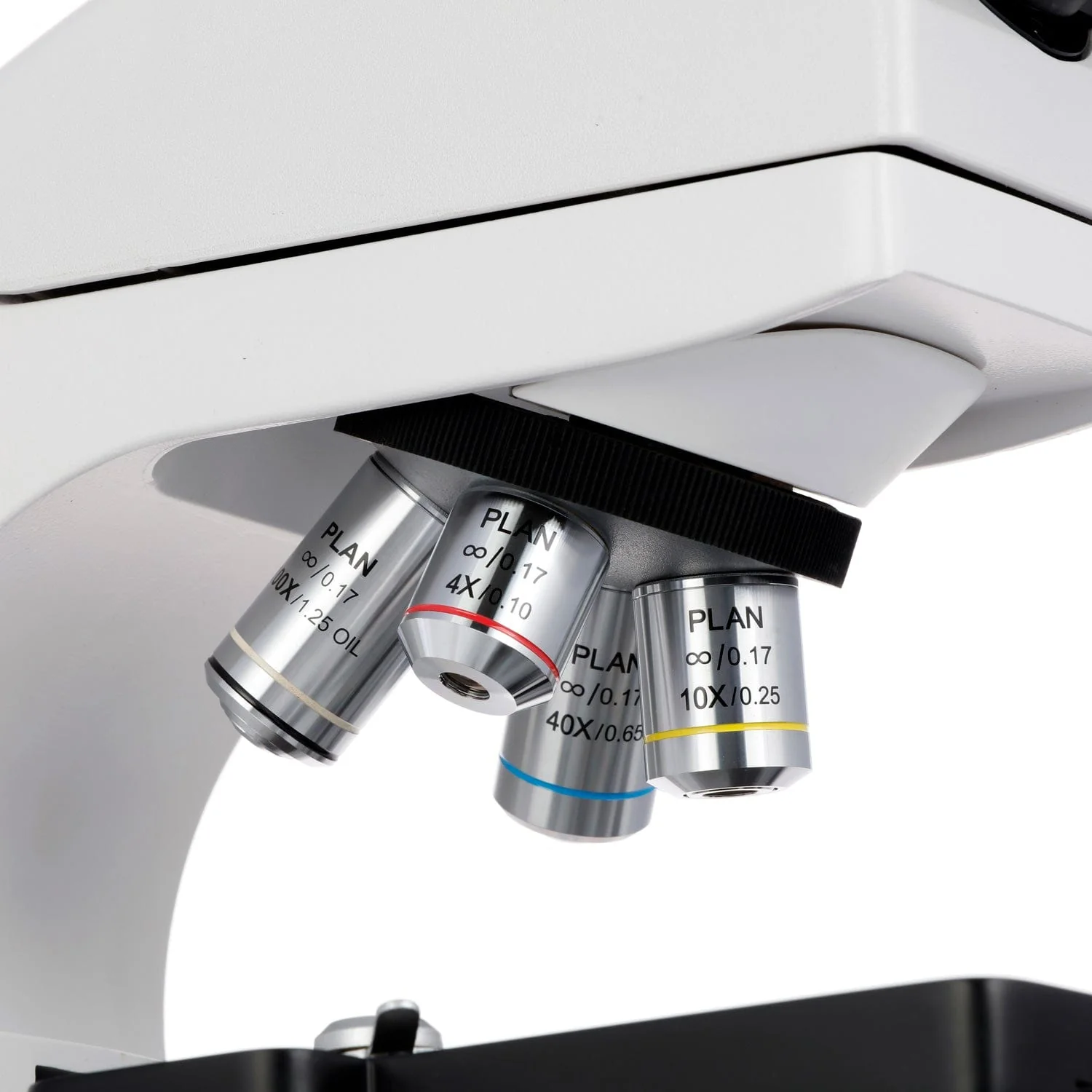

The reversed-orientation objective turret provides instant access to 4 magnification levels to easily focus in on minute details from 40X to 1000X. Additional 30X eyepieces extend the maximum magnification to 3000X with 8 distinct levels of magnification to cover a wide range of specimens. The semi-plan achromatic lenses are corrected to improve resolution and color accuracy as well as sharpness across the field of view.

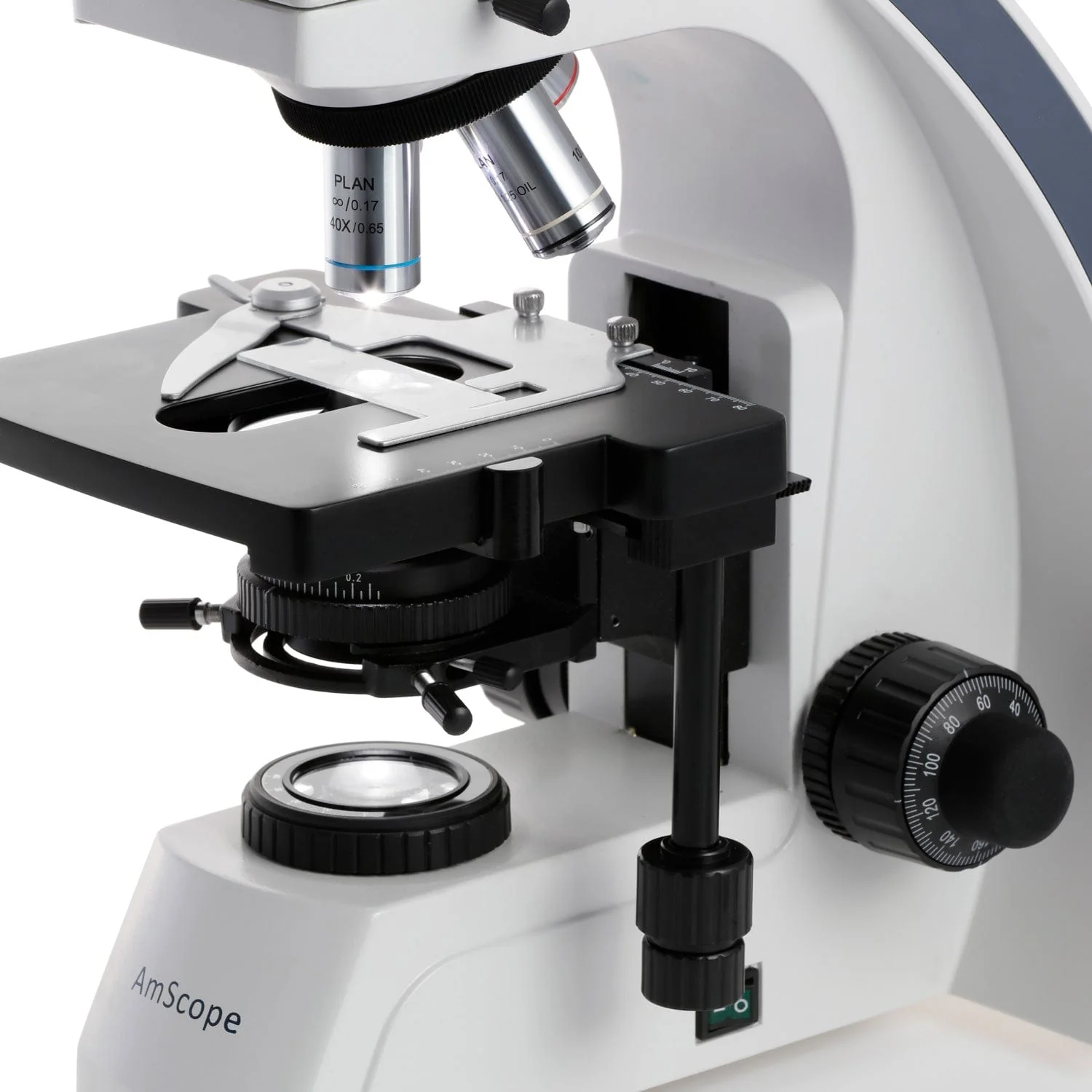

The high-power illumination system conforms to Koehler principles, with field and aperture diaphragms, and a centerable condenser. This provides even lighting for brightfield observation and contrast-enhancing techniques.

Specifications

Optical System	Infinity-corrected
Head	Trinocular, 30° incline, 360° rotatable
Interpupillary Adjustment	Compensation-free gemel, 48mm-75mm
Ocular Tube Diameter	30mm
Eyepieces	10X FN 22mm, 30X
Photo-port	Height-adjustable 23mm
Nosepiece	Quadruple reverse
Objective Lenses	Semi-plan achromatic 4X, 10X, 40X (spring), 100X (spring, oil)
Focusing System	Coaxial coarse and fine focus
Stage	Double-layer 180mm x 160mm
X-Y Translation Range	75mm x 50mm
Fine-focus Precision	0.002mm
Sub-stage Condenser-holder	Rack-and-pinion, centerable
Condenser	Achromatic Abbe condenser, NA1.25, iris diaphragm
Transmitted Illumination	High power Koehler compatible
Transmitted Light Field Lens	Iris diaphragm
Power	85-230VAC 50/60Hz

Objective Lenses

Magnification	Corrections	NA	Cover-glass Thickness
4X	Semi-plan achromatic	0.10	0.17mm
10X	Semi-plan achromatic	0.25	0.17mm
40X	Semi-plan achromatic	0.65	0.17mm
100X	Semi-plan achromatic	1.25	0.17mm

Magnification Chart

Eyepiece	Objective
	4X	10X	40X	100X
10X	40X	100X	400X	1000X
30X	120X	300X	1200X	3000X

Packing List :

One Trinocular Compensation-Free Head

One Microscope Body with Frame, Base, and Kohler Illumination System

Four High Quality Semi-Plan Objectives: 4X, 10X, 40X, and 100X

One Pair of Extreme Widefield Eyepieces: WF10X

One Pair of Extreme Widefield Eyepieces: WF30X

One Dust Cover

One Sample Immersion Oil
