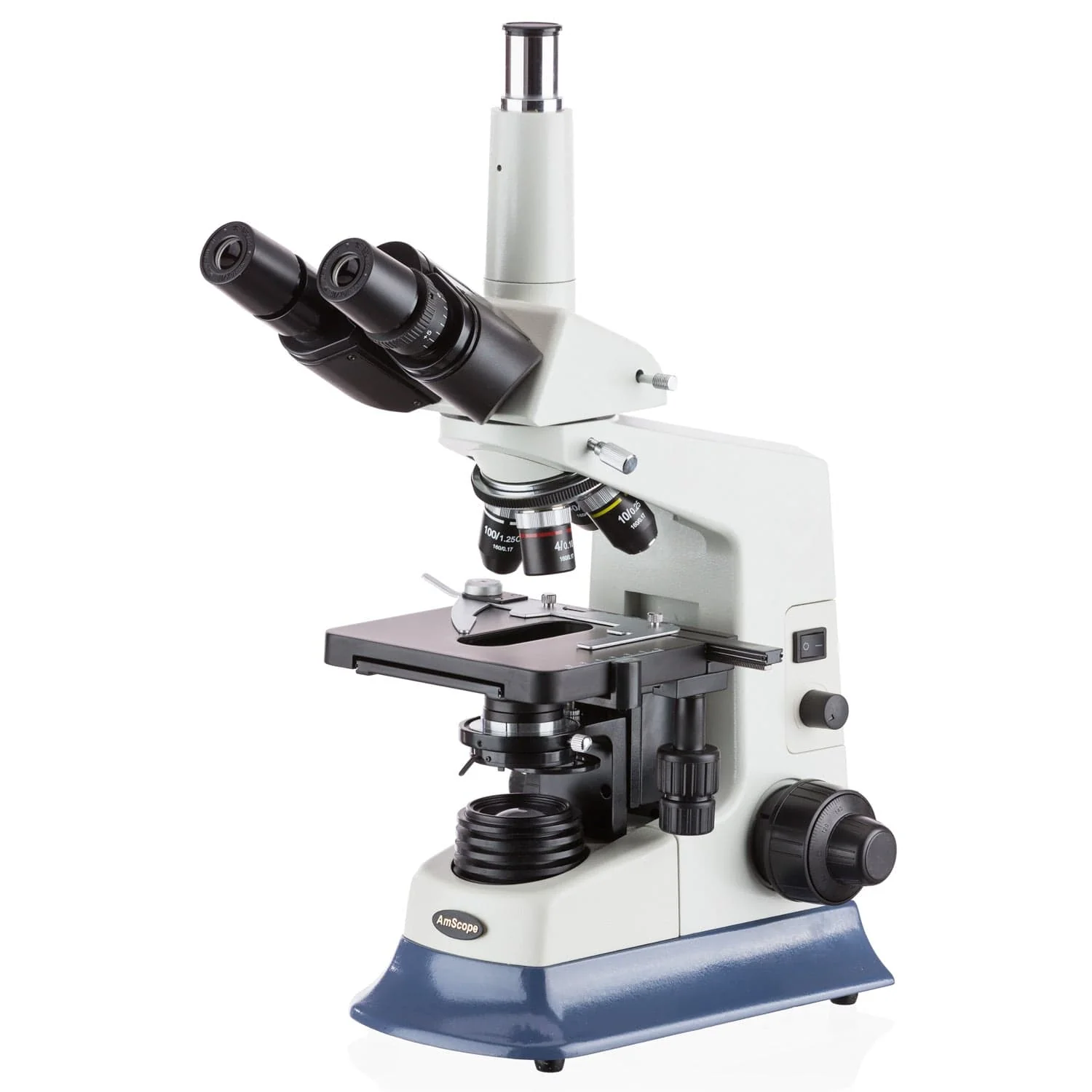

AmScope T590 Series Biological Trinocular Compound Microscope 40X-1600X Magnification

This professional model offers eight widefield magnification settings. It comes with a 30 degree inclined trinocular head and a contemporary frame design. Its trinocular port enables to add photo or video capability.

Features :

• Fully Coated Optical System with High Resolution Showing Sharp Image
• Magnifications: 40X-100X-400X-1000X, 64X-160X-640X-1600X
• 30 Degree Inclined, 360 Degree Rotatable Compensation Free Trinocular Head
• Quadruple, Reversed, Extra-Large Nosepiece with Wide, Knurled Grip for Easy Operation
• Large Double Layer Mechanical Stage with Slide Clips
• Coaxial Coarse & Fine Focusing with CA Knob Tension Control
• Upward Stage Stopper to Prevent Slide Breakage and Objective Damage
• Abbe Condenser with Iris Diaphragm & Swing-In Color Filter
• Built-In Variable Halogen Illumination System with Adjustable Brightness
• Compatible with Advanced Accessories Including Phase Contrast Kit, EPI-Fluorescent Kit and Darkfield Condensers
• Excellent Five (5) Year Warranty.



Specifications :

• Nosepiece: ball bearing quadruple
• Interpupillary Adjustment Mechanisms: 2-3/16" - 3-0" (55 - 75mm)
• Mechanical Tube Length: 6-5/16" (160mm)
• Head: trinocular anti-mould viewing head inclined at 30 degree
• Wide-Field Eyepiece: WF10X, P16X
• Achromatic Objectives: 4X, 10X, 40X (spring), 100X (spring, oil)
• Stage Dimensions: 5-1/2"x 6-5/16" (140x160mm)
• Stage Traveling Range: 2-3/4"x 2-0" (70x50mm)
• Focusing Range: 1-3/16" (30mm)
• Division of Fine Focusing: 0.0000787" (0.002mm)
• Abbe Condenser: NA=1.25 with rack and pinion focusing control
• Illumination: halogen lamp, 6V/20W
• Power Supply: 115V, CE certified

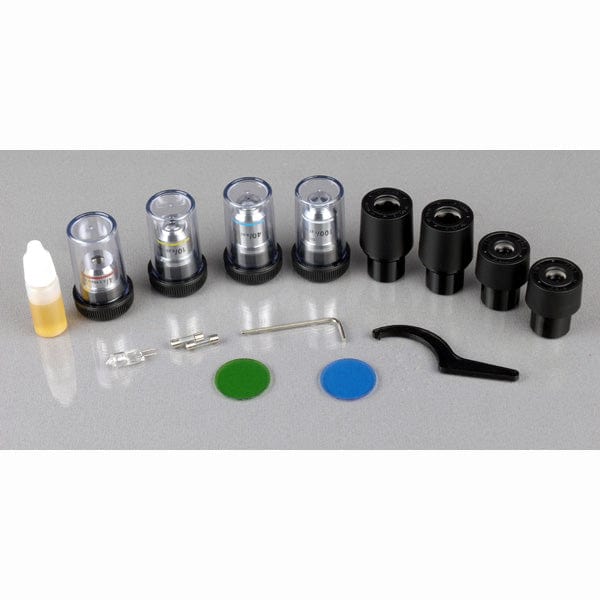

Packing List :

• One Trinocular Microscope Siedentopf Head
• One 23mm Photo Port
• One Microscope Body Frame with Backward Nosepiece, Mechanical Stage and Illumination System
• Four High Quality DIN Objectives, 4X, 10X, 40X and 100X
• One Pair of Widefield 10X Eyepieces
• One Pair of Widefield 16X Eyepieces
• Two Color Filters
• One Dust Cover
• One Power Cord
• One Spare Halogen Bulb
• One Focusing Tension Wrench
• Two Spare Fuses
• Immersion Oil Sample
• User's Manual Download
• Shipping Weight: 30 lbs
