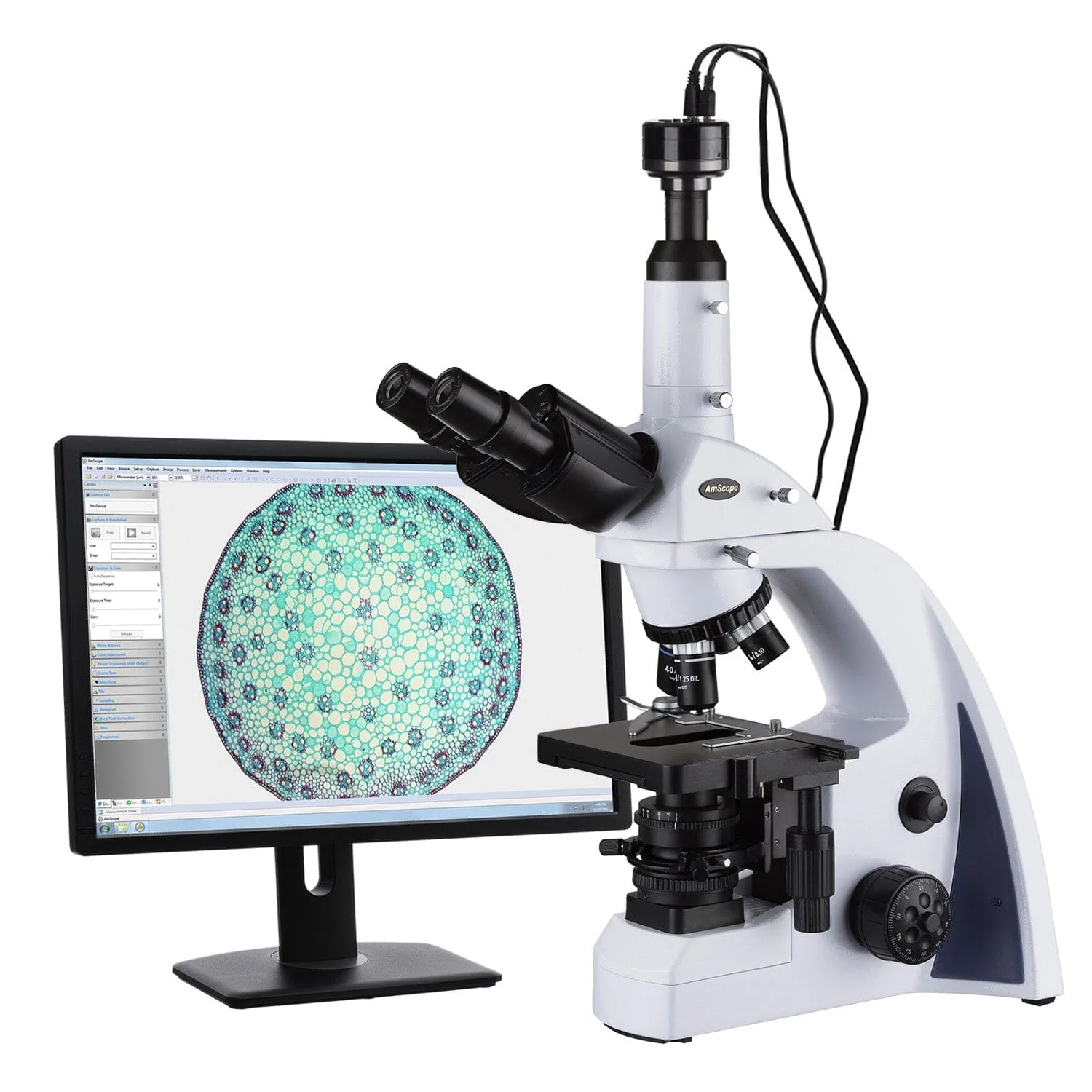

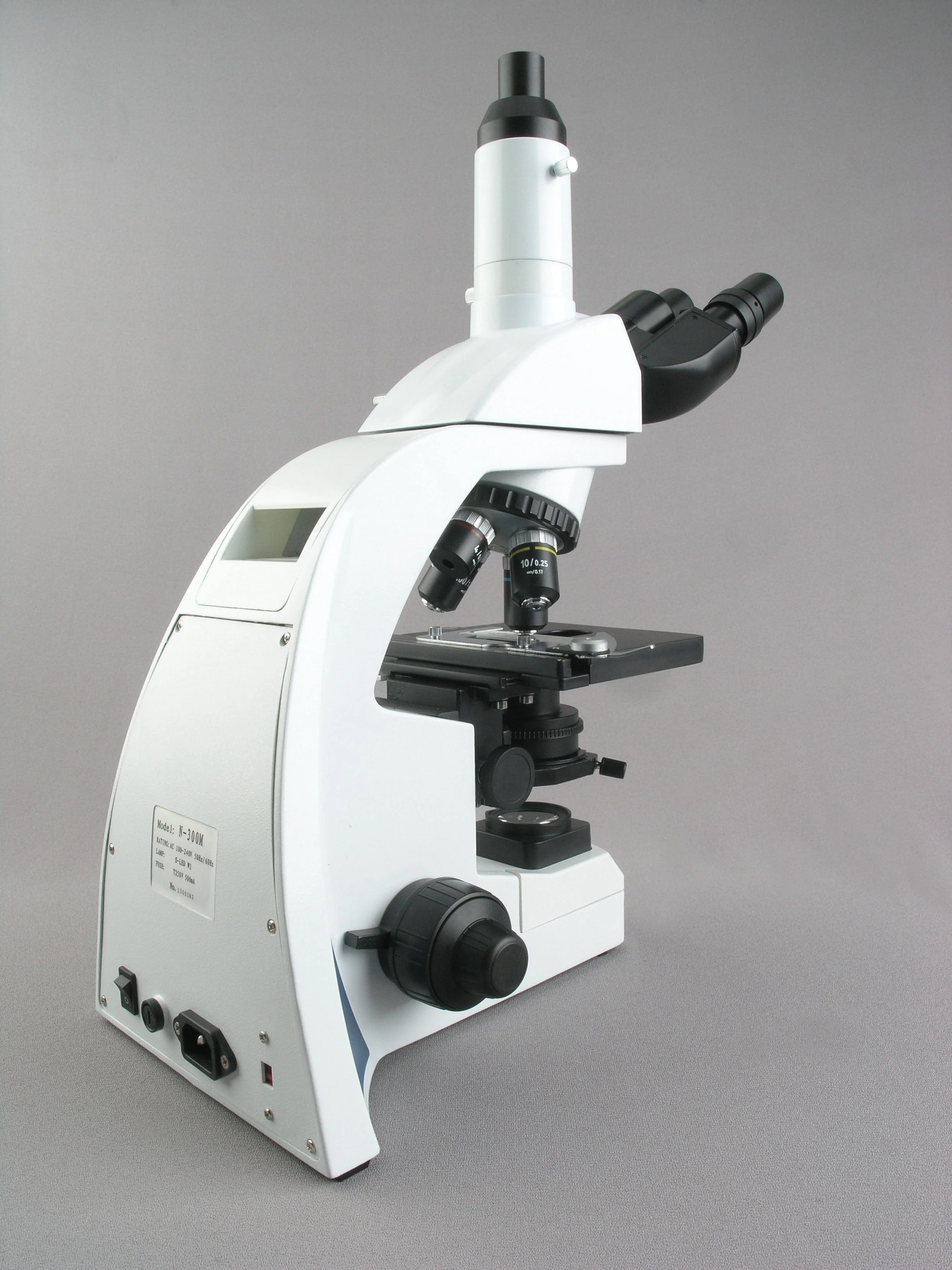

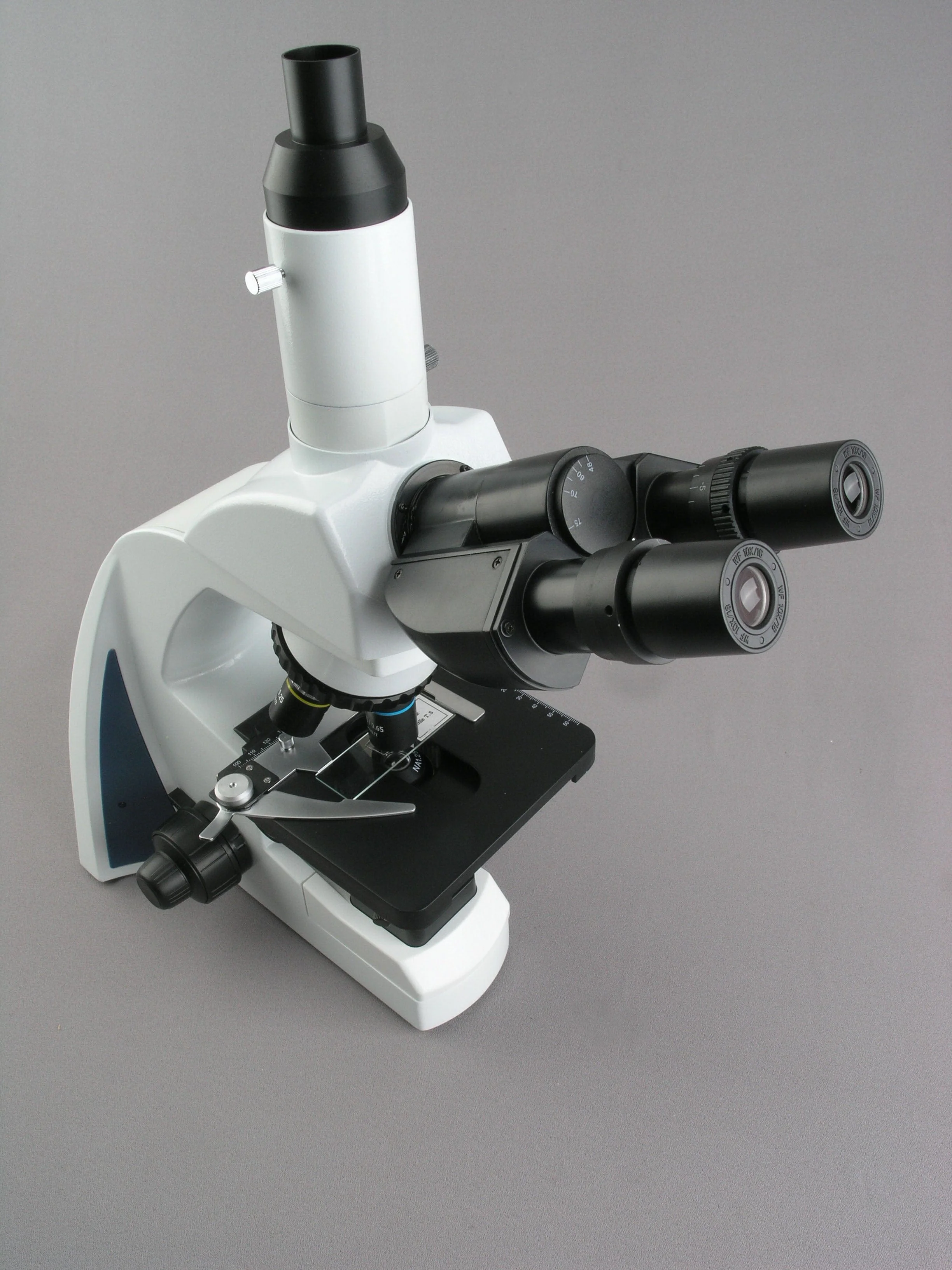

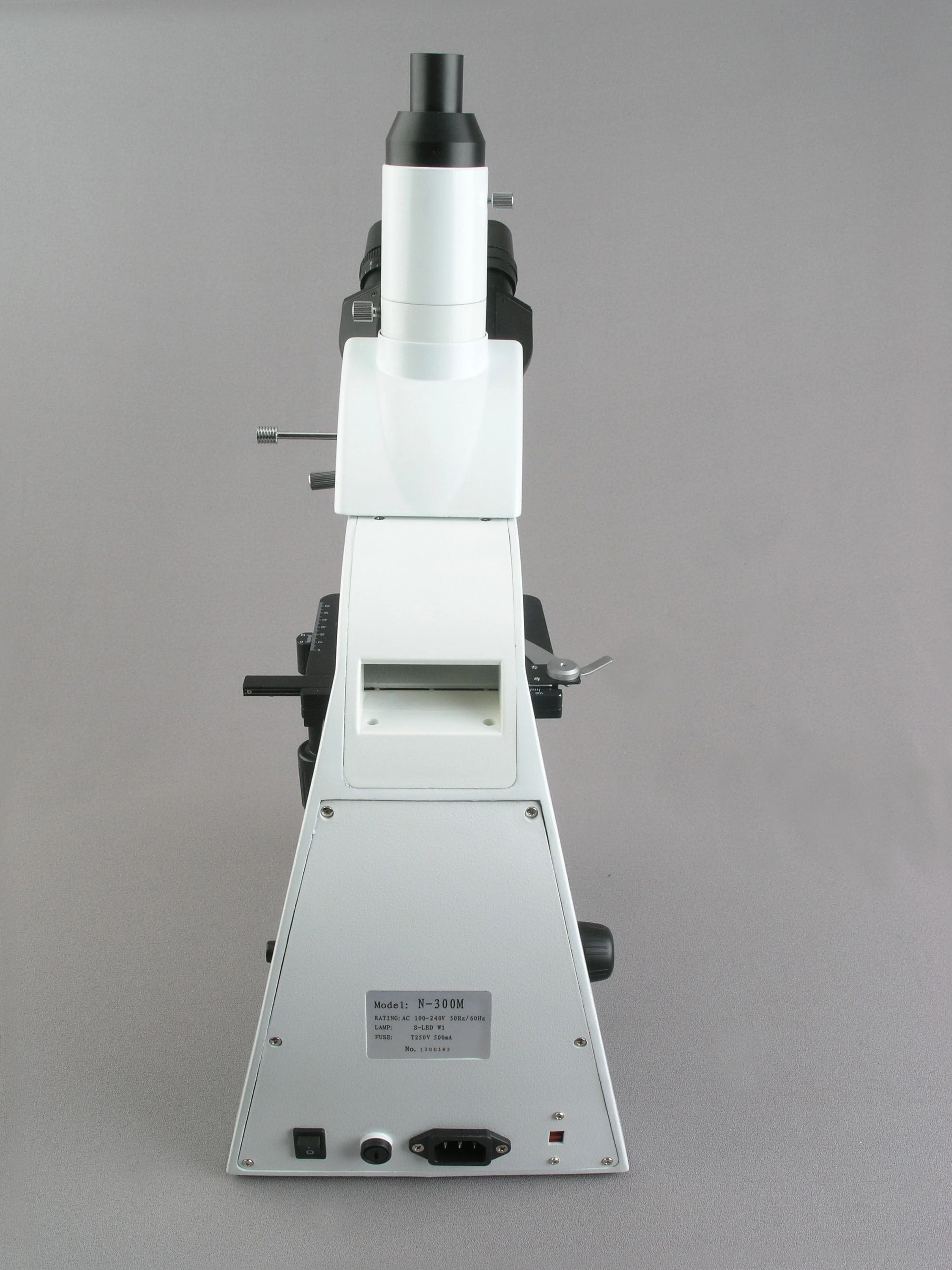

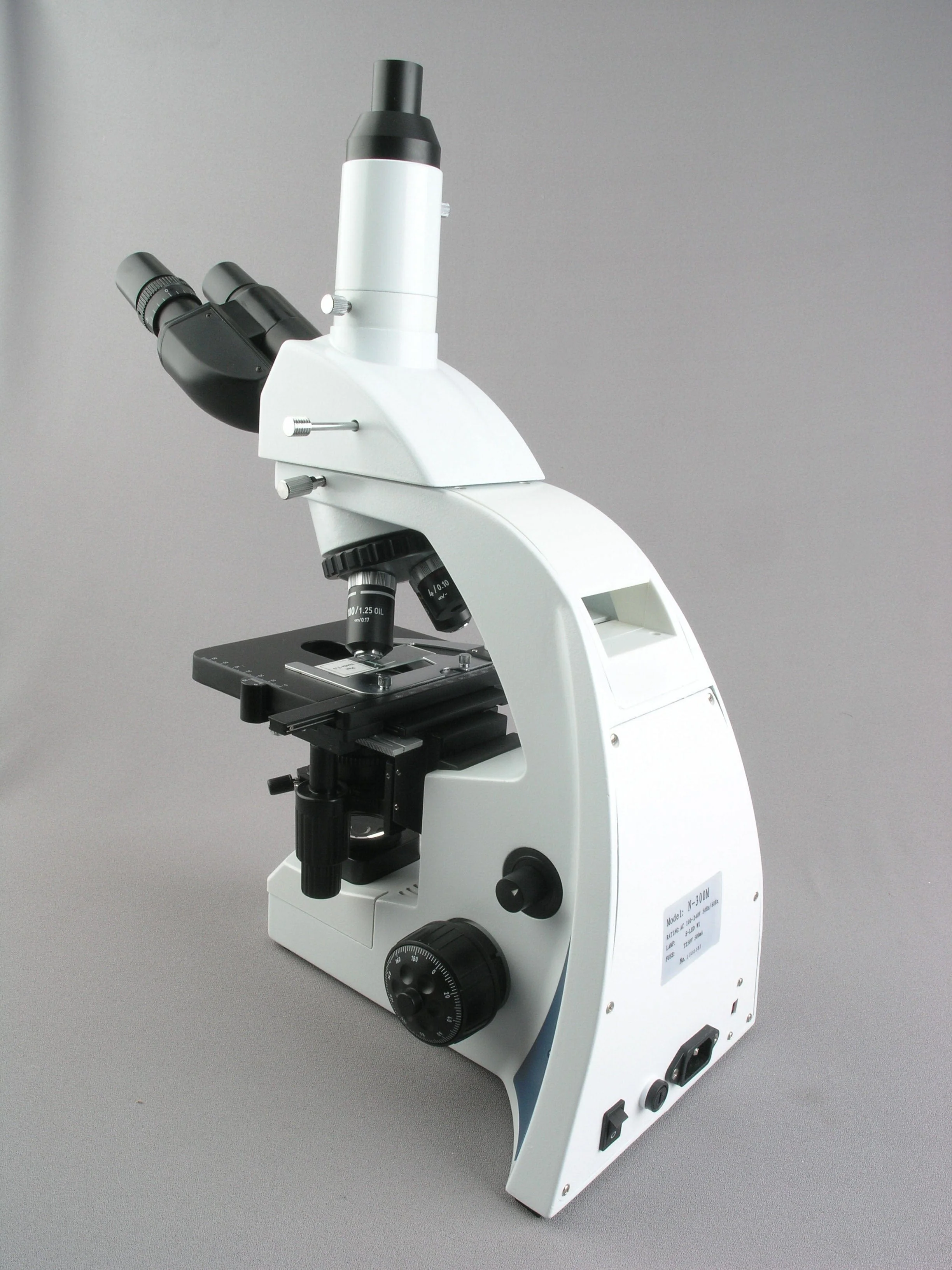

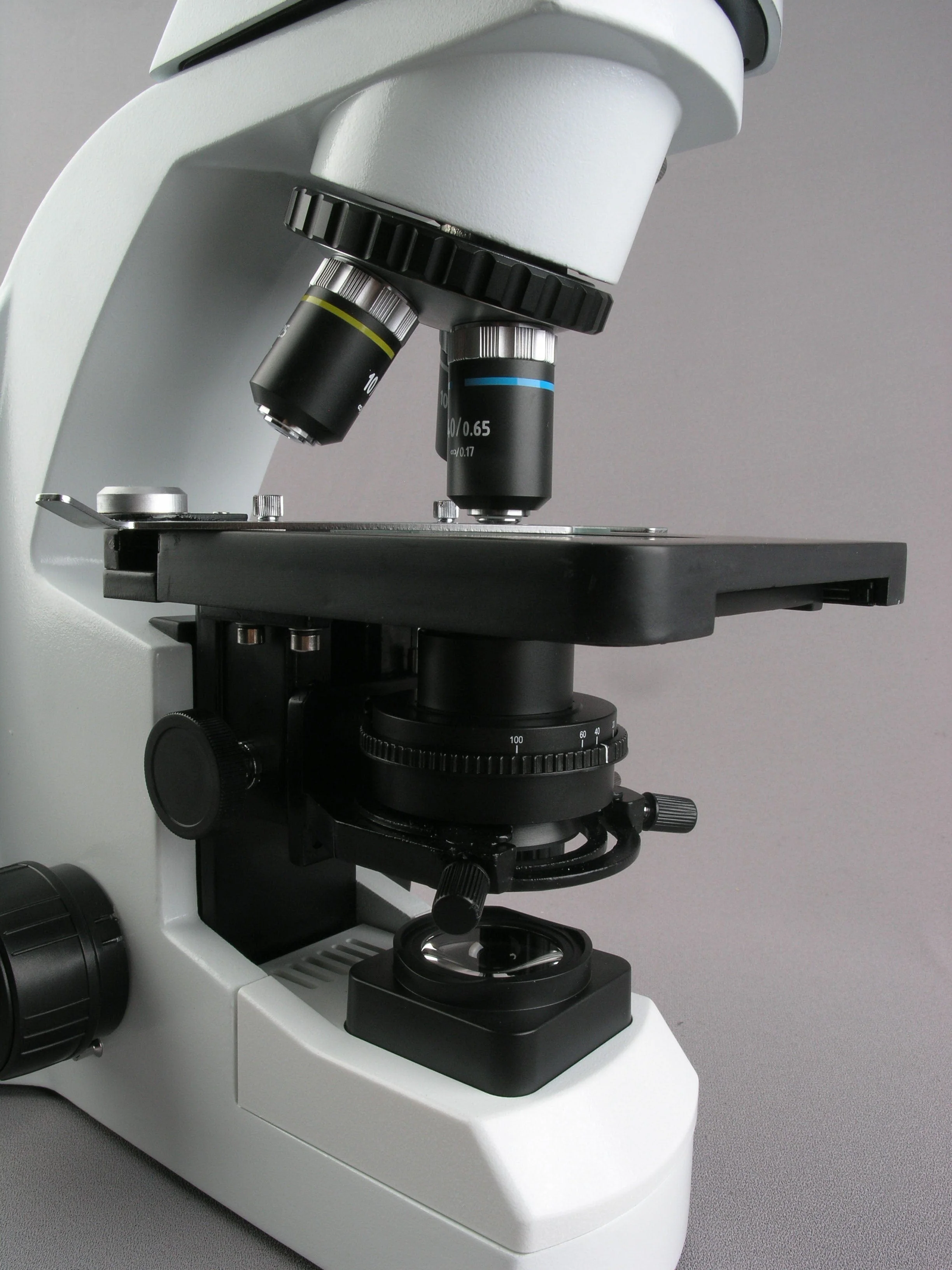

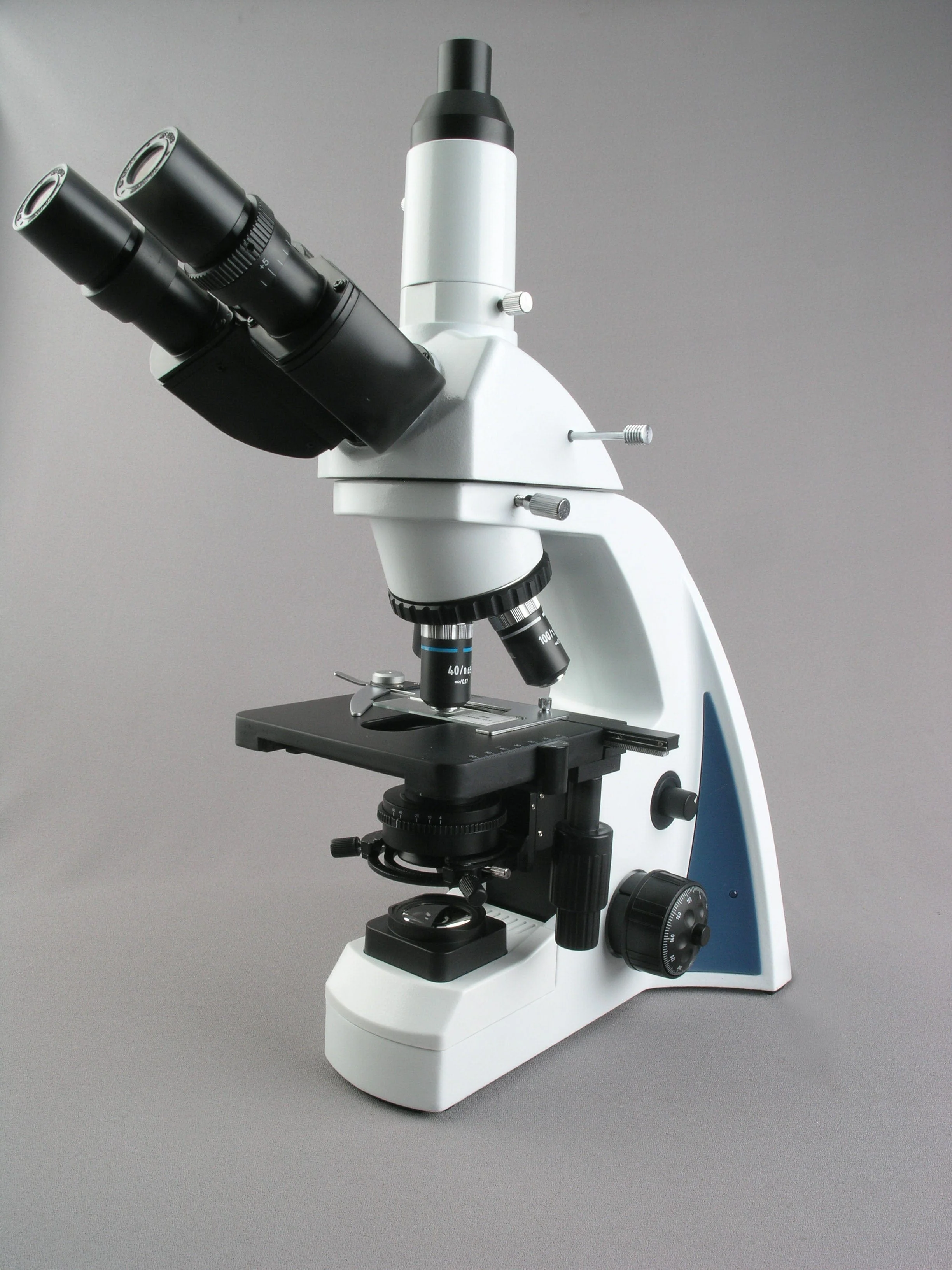

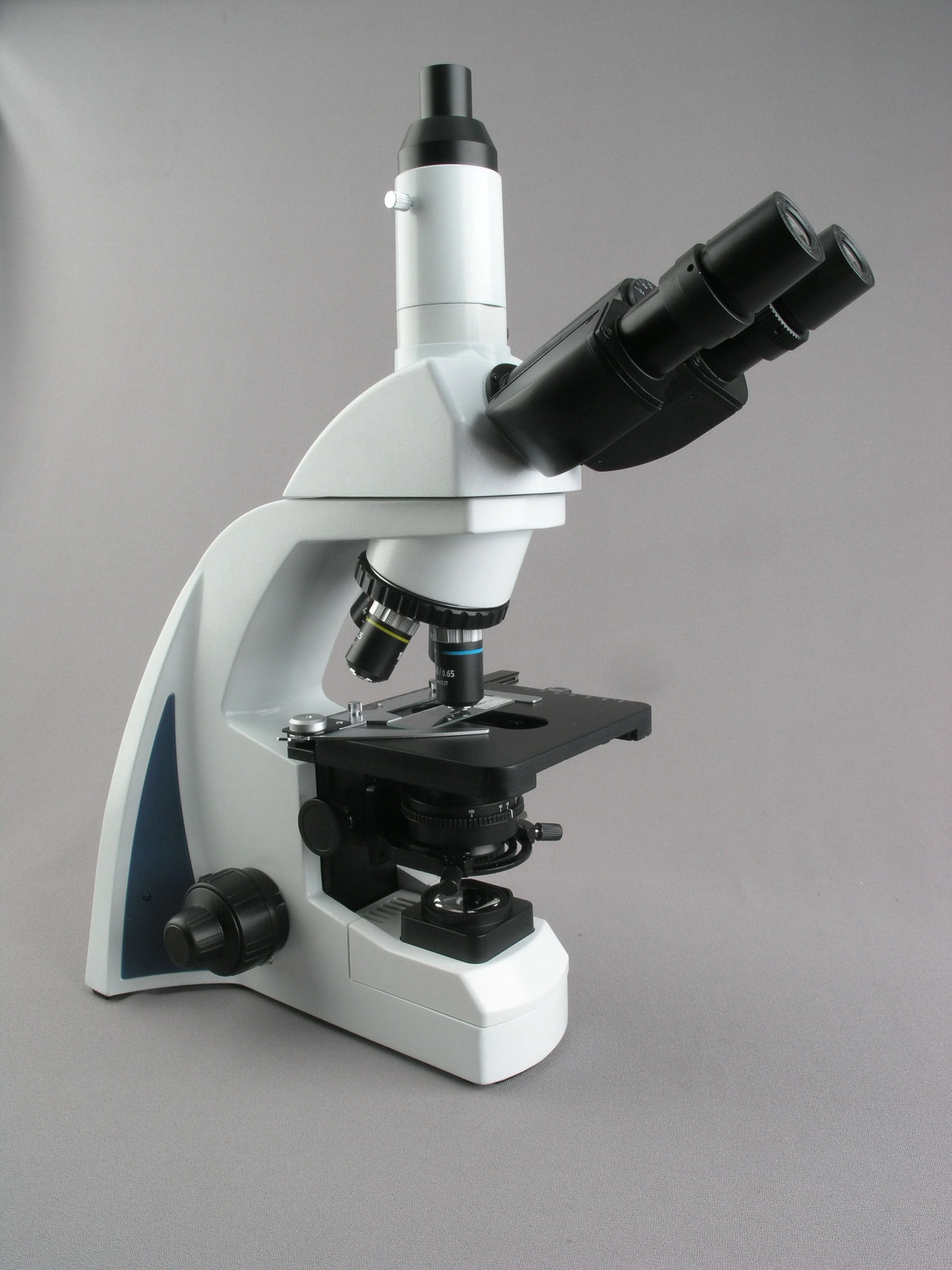

AmScope T670 Series Professional Infinity Trinocular Compound Microscope 40X-2000X Magnification With LED and HD Recording Camera

A superior professional infinity trinocular compound microscope, this instrument comes with an extreme widefield infinity optical system, which provides crystal clear images for high level microscopy work. The ideal level of comfort when in use is achieved by its 30 degree inclined ocular tubes (most useful when seated for long periods of time), and a 360 degree swiveling trinocular Siedentopf head to position the eyepieces wherever you are most comfortable in relation to the microscope on your bench. The infinity objectives are of the highest quality, and crucial features such as a coaxial coarse and fine focusing system, 3D mechanical stage, and wide band voltage (85v-230v) LED illumination system are all included. The reversed nosepiece configuration provides plenty of operating space in front of the microscope, and provides eight levels of magnification (achieved through the two pairs of eyepieces, 10x & 20x, and the 4 objectives of 4x, 10x, 40x, and 100x)--settings include 40X, 80X, 100X, 200X, 400X, 800X, 1000X, 2000X. Clinical offices, veterinary labs, and research labs will all be served very well by this superb precision compound microscope.

This package includes a 1080p digital camera with built-in recording, and HDMI output for live-viewing. The camera's compact, all-metal design make it sturdy yet unobtrusive. Video can be viewed live on an HDMI monitor or television at a smooth 60fps, and recorded onto MicroSD (not included) at 30fps.

Features :

An Affordable Infinity Optical Microscopy System with Kohler Illumination!

Reversed Nosepiece

Mechanical Stage with Slide Clamp

Ergonomic Design

Front Loaded Light Housing for Easy Access to Light Bulb

Fully Coated High Resolution Optical System

Crystal Clear Sharp Images

Precise Mechanical Control System

30° Inclined, 360° Swiveling, Trinocular Siedentopf Head

Eight Magnification Levels: 40X, 80X, 100X, 200X, 400X, 800X, 1000X, 2000X

Intensity-Variable Transmitted LED Lighting System

Abbe Condenser with Iris Diaphragm and Swing-Out Filter Holder

Rack and Pinion Adjustment for Condenser

Low Position Coaxial Stage Movement Control Knobs

Dual Side Coaxial Coarse and Fine Focusing Control

Adjustable Interpupillary Distance

Adjustable Diopter

Durable Cast Alloy Frame & Stand with Stain Resistant Enamel Finish

Four Infinity Objectives: 4X, 10X, 40X, 100X

Two Sets of Wide Field Eyepieces: Wide Field 10X (22mm Field of View) & WF20X

Large Double Layer Mechanical Stage with Stain Resistant Finish

Upward Limit Stop for Stage to Protect Objectives and Slides

Compatible with a Wide Range of Optional Accessories, Including Phase Contrast and Darkfield Condensers

Manufactured under ISO 9001 Quality Control Standards

Excellent Five (5) Year Factory Warranty

Unbeatable Low Price Guaranteed or Difference Back!

Satisfaction Guaranteed or Your Money Back!

Specifications :

Optical System: infinity corrected

Nosepiece: reversed, ball bearing quadruple

Head: Siedentopf trinocular head, 30-degree inclined

Eyepiece: WH10X/22mm & WF20X

Objectives: infinity objective 4X, 10X, 40X (spring), 100X (spring, oil)

Focusing: low position coaxial focus system

Interpupillary Adjustment Mechanisms: 2-3/16" - 3-0" (55 - 75mm)

Mechanical Stage: 7.1"x5.9" (180mm × 150mm)

Stage Traveling Range: 3"x 2" (75x50mm)

Division of Fine Focusing: 0.0000787" (0.002mm)

Condenser: N.A. 1.25, iris diaphragm & filter

Illumination: LED

Power Supply: 85V-230V wide voltage, CE certified

Camera Specifications:

Camera Sensor: Sony IMX291

Sensor Type: CMOS

Sensor Resolution: 2MP (1920 x 1080)

Sensor Size: 1/2.8" class -- 6.06mm(w) x 4.42mm(h), 7.50mm(diag)

Pixel Size: 2.9µm

Dynamic Range: 128dB

Signal Noise Ratio: 30dB

Light Spectrum Response: 380nm to 650nm

HDMI Output: 1920x1080p60

Image Capture: 1920x1080

Image Format: JPEG

Video Capture: 1920x1080 @ 30fps, 1280x720 @ 60fps

Video Format: MOV

Storage: MicroSD Card (TF) max 128GB (not included)

Power: 5V (micro USB)

Packing List :

One Trinocular Siedentopf Head

One Microscope Body Frame with Base and Kohler Illumination System

Four High Quality Infinity Objectives: 4X, 10X, 40X and 100X

One Pair of Extreme Widefield WH10X Eyepieces

One Pair of Extreme Widefield WF20X Eyepieces

One Power Cord

One Dust Cover

Immersion Oil

One HDMI camera

One HDMI cable

One power adapter for camera

One 0.5X C-mount reduction lens

User's Manual Download

Shipping Weight: 25 lbs
