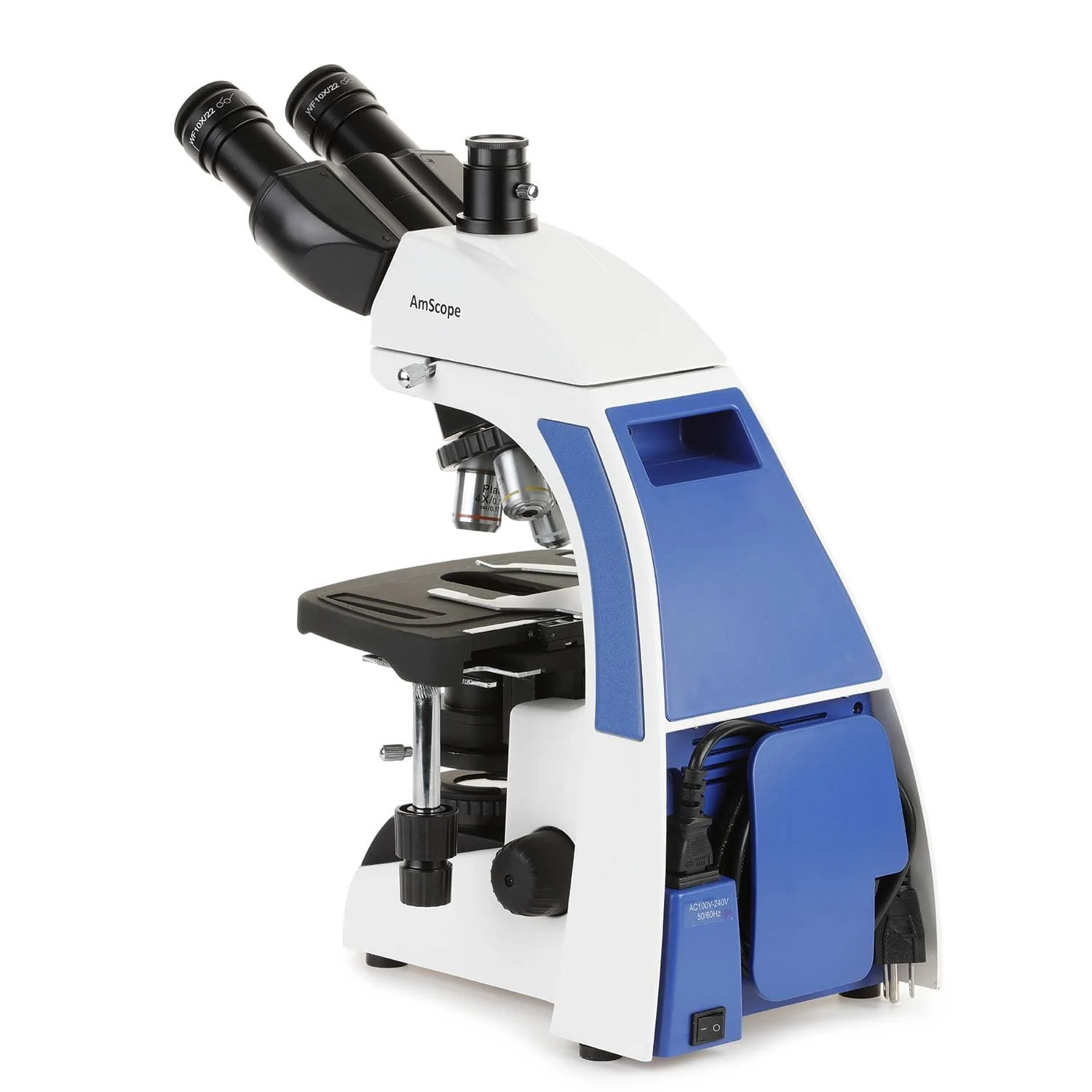

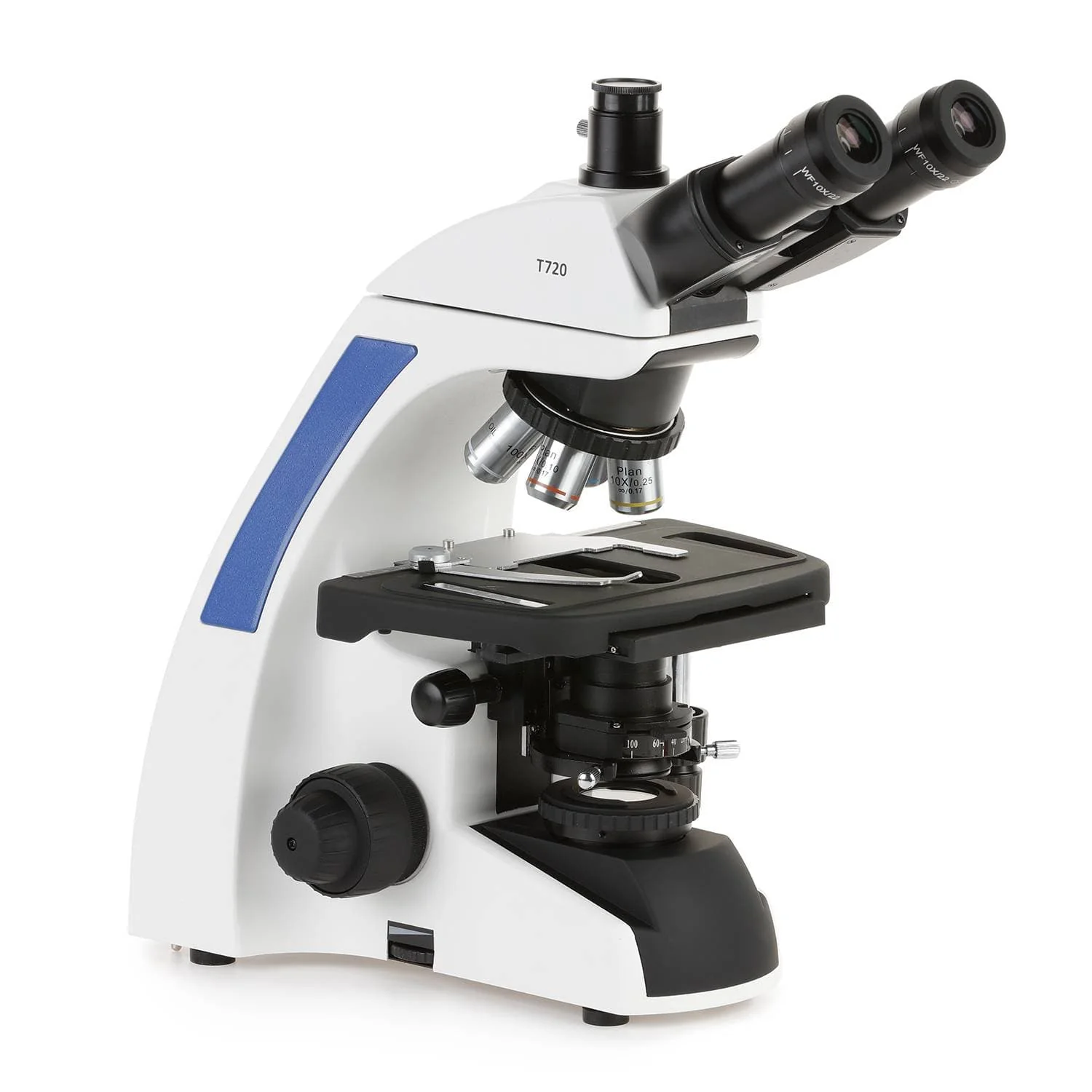

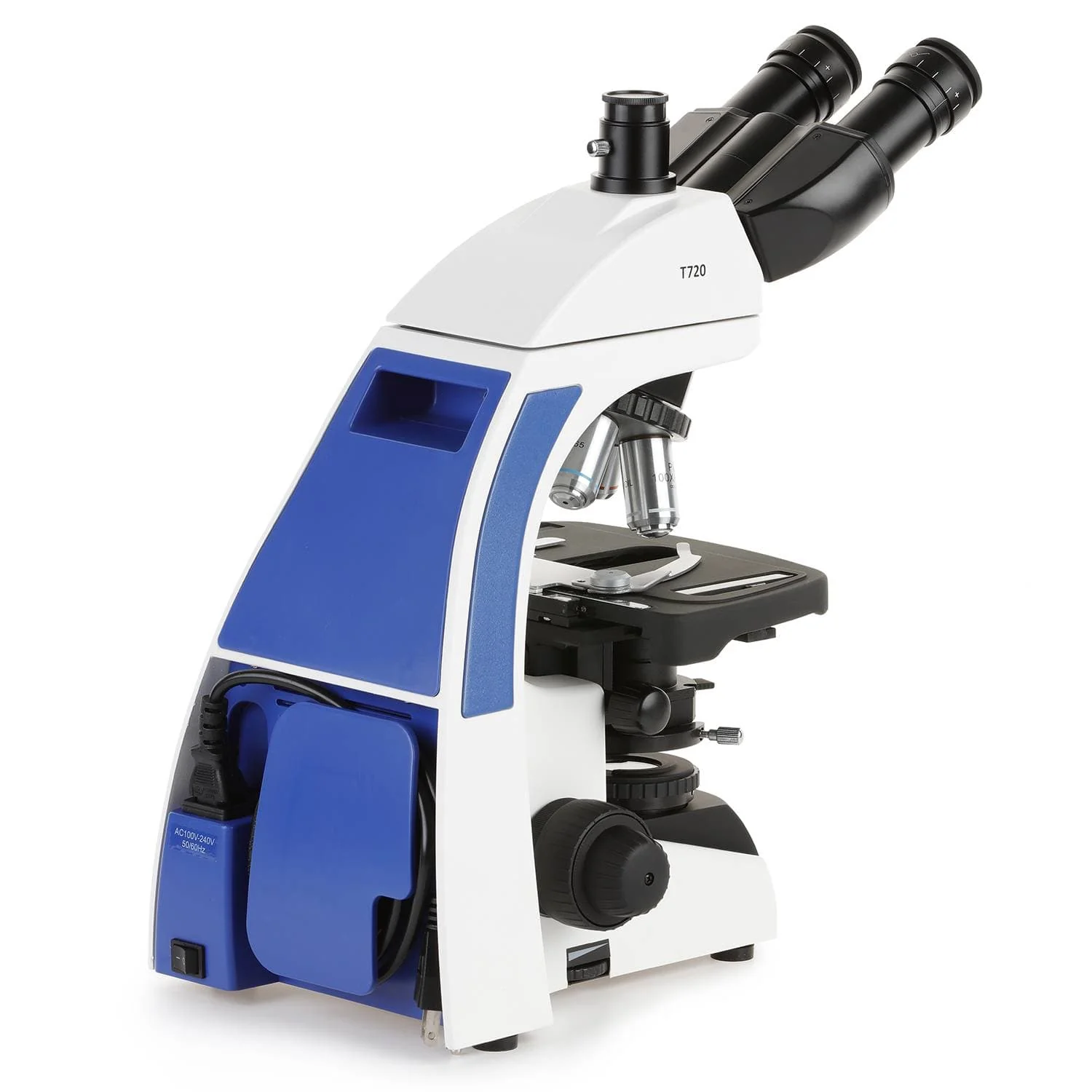

AmScope T720 Series Laboratory Brightfield Phase Contrast Plan Infinity Kohler Trinocular Compound Microscope 40X-1000X Magnification

The T720-PCT720-INF is a professional compound-microscope, with infinity-corrected plan optics, and a field-diaphragm and centerable condenser for Kohler illumination. Along with the bright-field condenser, an oil dark-field condenser and an iris-controlled objective-lens are included for applications requiring contrast enhancement. The backward nosepiece offers ergonomic control over the four objectives: 4X, 10X, 40X, 100X. With the 10X wide-field eyepieces, magnification levels from 10X to 1000X can be achieved with extreme clarity. The head can be swiveled 360°, and features a 30° incline with compensation-free interpupillary-adjustment. The ultra-smooth stage moves with coaxial translation controls. The 3W LED (30W halogen equivalent) provides a cool, daylight-balanced light-source. The phase contrast condenser is designed for use with translucent live samples to prevent the use of stains or dyes, and can provide high NA for higher magnifications.

Features :

Infinity Corrected Optical System with High Resolution

Fully Coated Optics with Crystal Clear & Sharp Images

Precise Mechanical Control System

Reversed Nosepiece Design

Kohler Illumination System with Field Diaphragm

Four Magnification Levels: 40X, 100X, 400X, 1000X

Variable-intensity Transmitted LED Lighting System

Abbe Condenser with Iris Diaphragm and Filter Holder

Rack and Pinion Adjustment for Condenser

Low Position Coaxial Stage Movement Controlling Knobs

Dual Side Coaxial Coarse and Fine Focusing Control

Adjustable Interpupillary Distance

Adjustable Diopter on Eyepieces

Durable Cast Alloy Frame with Stain Resistant Enamel Finish

Five Infinity Plan Objectives Included

Extreme Widefield Eyepieces

Quadruple, Reversed, Extra-Large Nosepiece with Wide, Knurled Grip for Easy Operation

Large Double Layer Mechanical Stage with Stain Resistant Coating

Upward Stage Limit Stop to Protect Objectives and Slides

Manufactured under ISO 9001 Quality Control Standards

Excellent Five (5) Year Factory Warranty

Specifications :

Optical System: infinity corrected

Nosepiece: reversed, ball bearing quintuple

Head: gemel type trinocular head, 30-degree inclined

Eyepiece: high eye-point eyepieces, WF10X22mm

Objectives: infinity plan objective 4X, 10X, 40X (spring), 100X (spring, oil)

Focusing: low position coaxial focus system

Focusing Range: 1-3/16" (30mm)

Interpupillary Adjustment Range: 2-3/16" - 3" (55-75mm)

Mechanical Tube Length: 6-5/16" (160mm)

Mechanical Stage: 8.5" x 5.9" (216mm x 150mm)

Stage Traveling Range: 2.9" x 2" (75x50mm)

Focusing Rang: 0.95" (24mm)

Division of Fine Focusing: 0.00003935" (0.001mm)

Illuminator: Built-in Kohler LED illumination system

Bright-field Condenser: N.A. 1.25 achromatic condenser

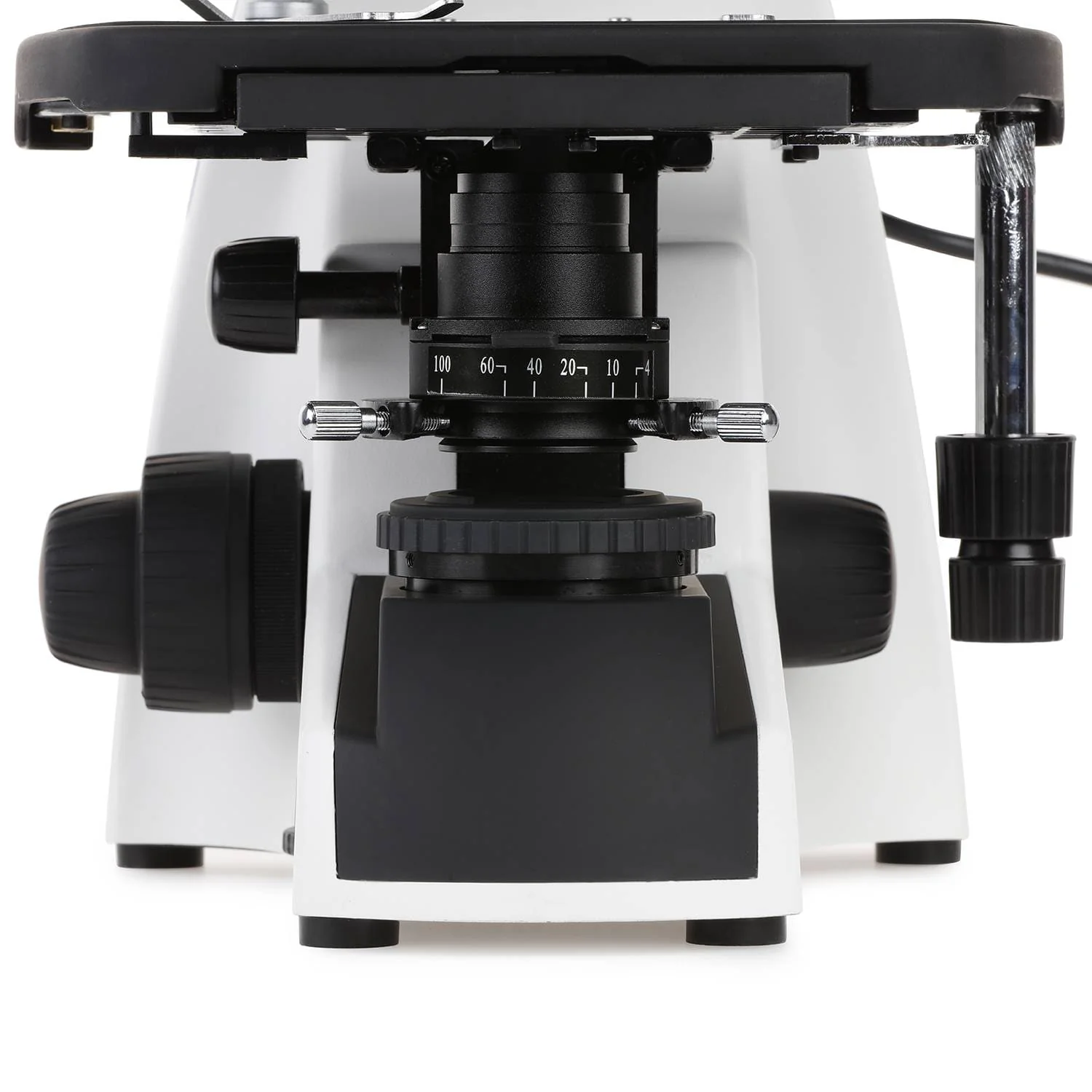

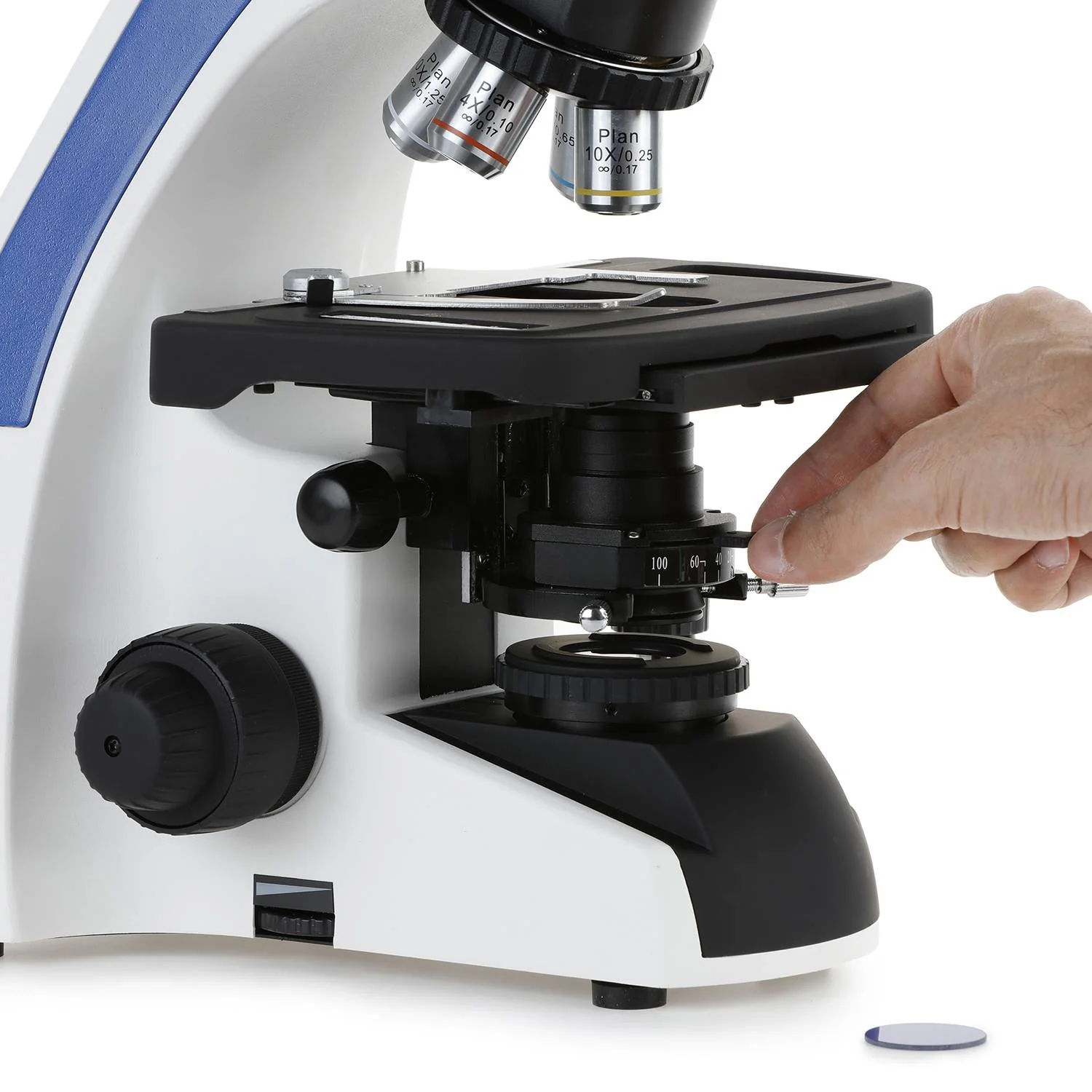

Phase Contrast Condenser Turret Kit

Illumination: LED

Power Supply: 90V-240 wide voltage, CE certified

Packing List :

One Trinocular Compensation-Free Head

One Microscope Body with Frame, Base, and Kohler Illumination System

Four High Quality Plan Achromatic Objectives: 4X, 10X, 40X, 100X

One Phase Contrast Turret Kit

One Pair of Extreme Widefield WF10X Eyepieces

One Dust Cover
