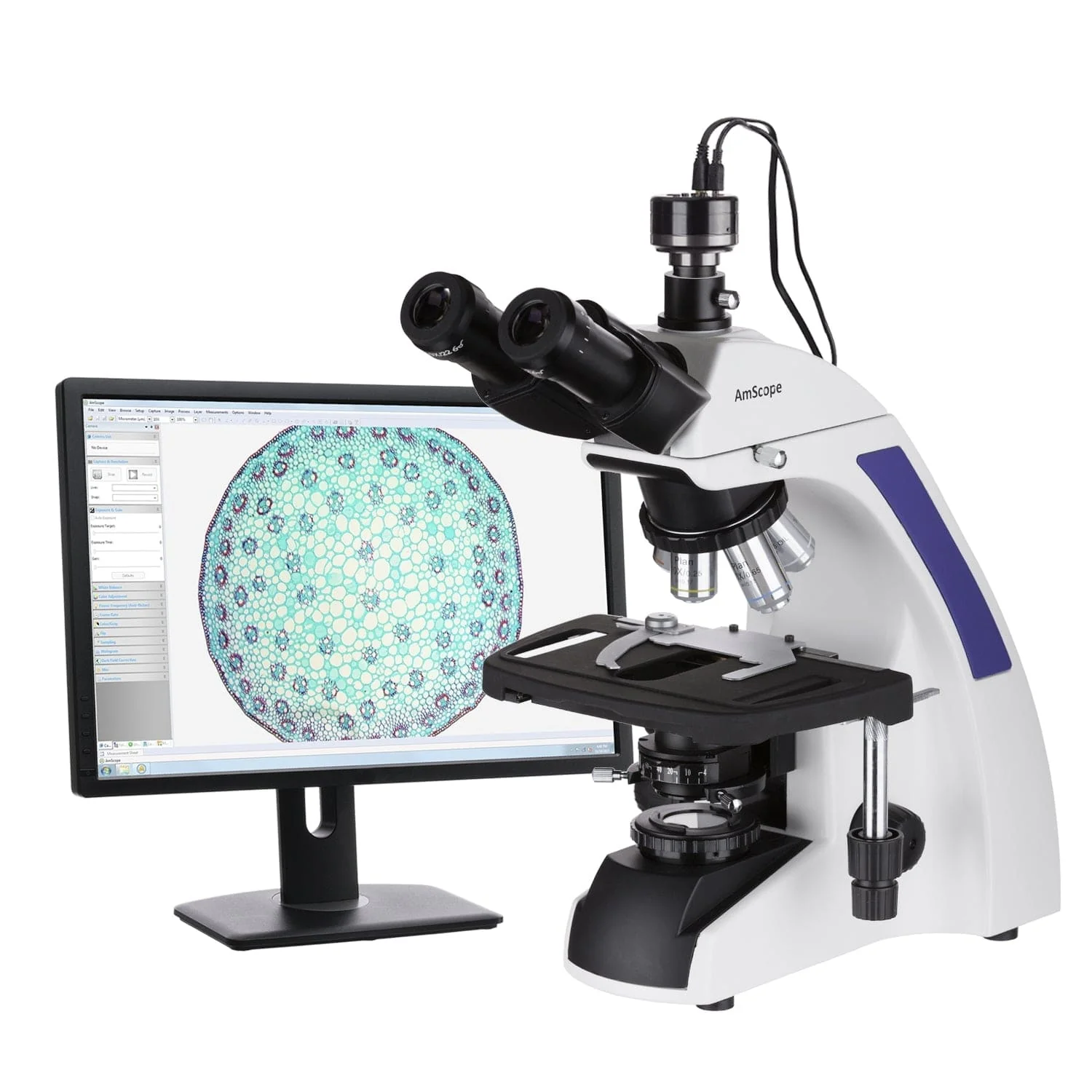

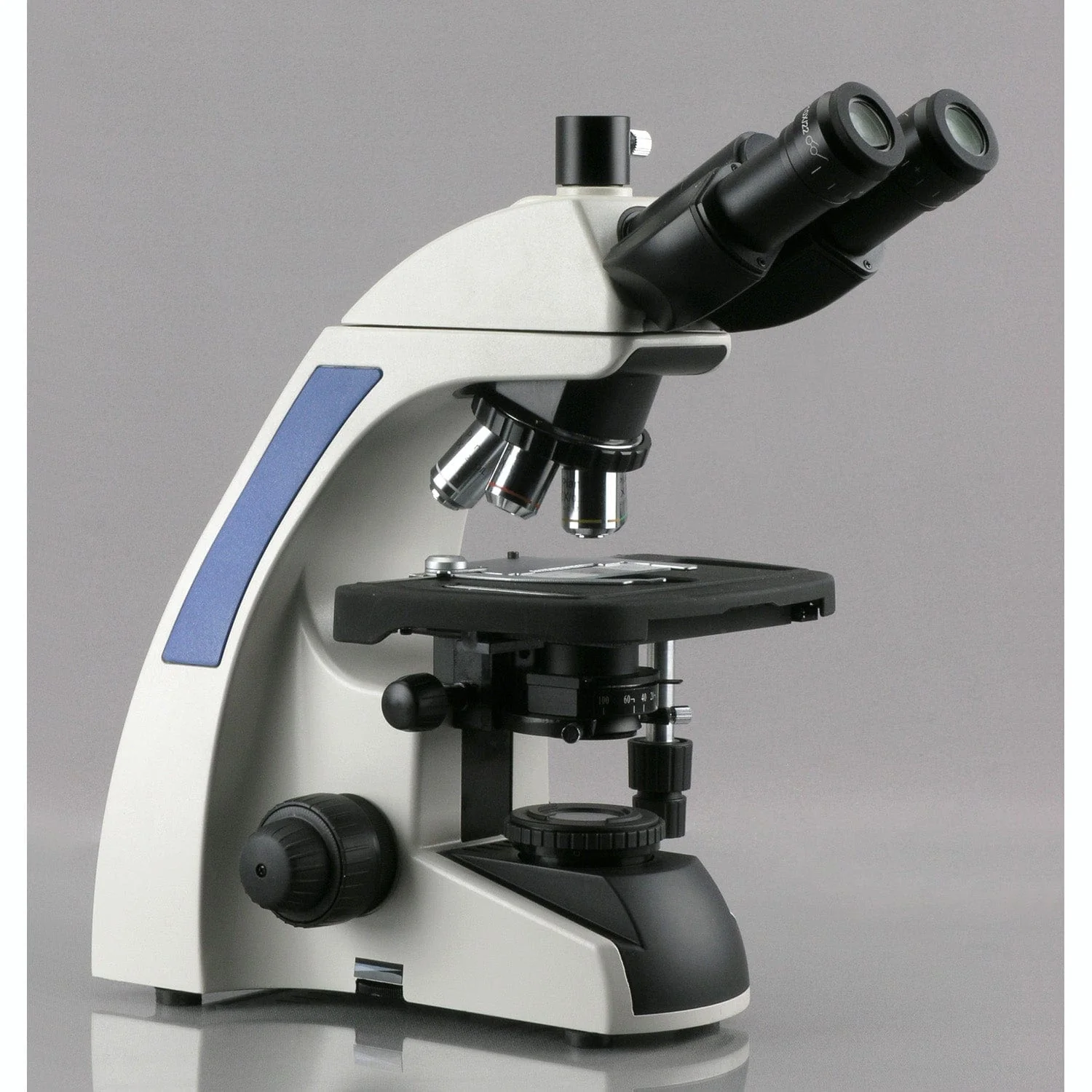

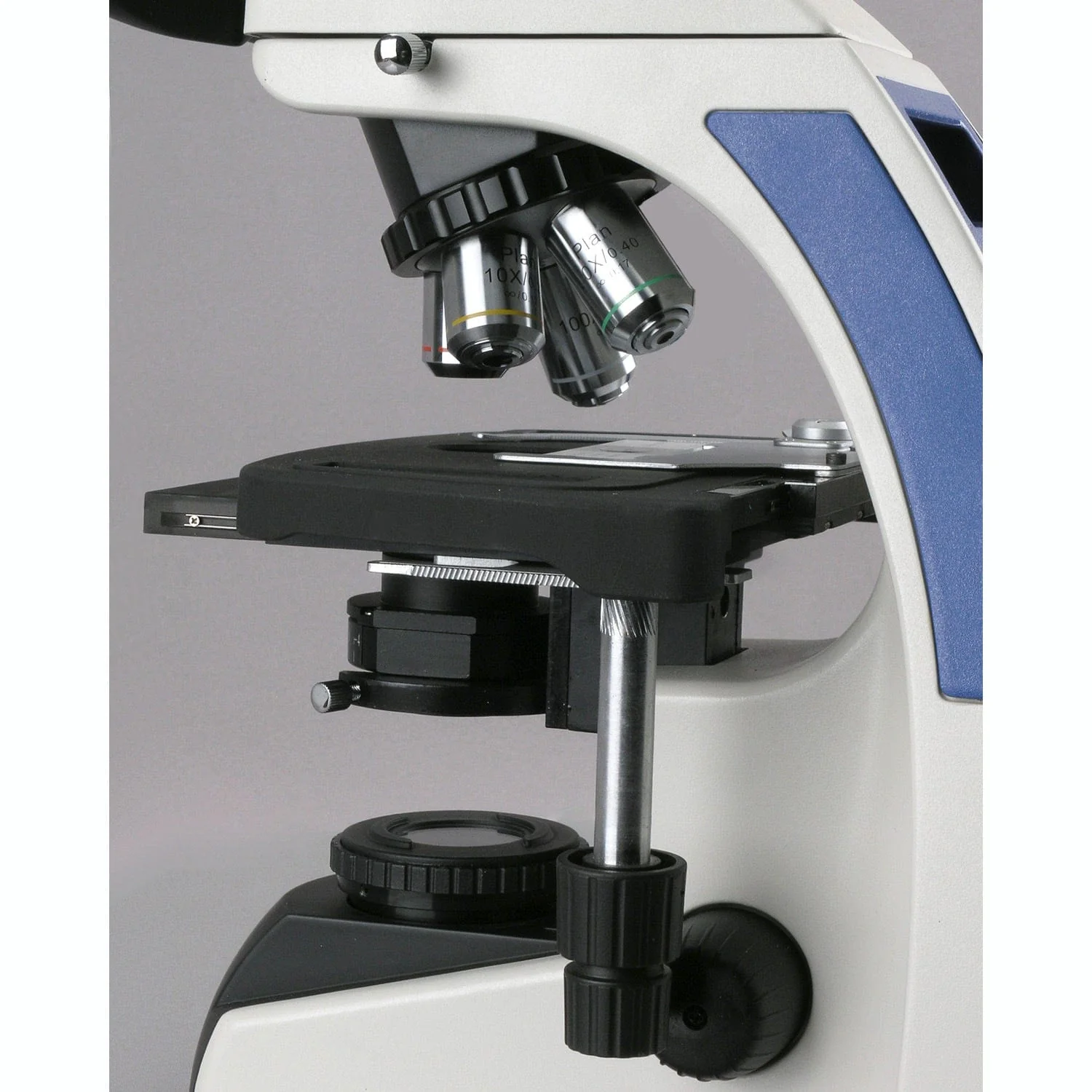

AmScope T720 Series Laboratory Plan Infinity Kohler Trinocular Compound Microscope 40X-1500X Magnification with HD Recording Camera

This brand new professional trinocular compound microscope comes equipped with an infinity Plan optical system and offers advanced features as well as research-grade performance. Its crystal-clear optics and precise mechanical systems promise high-quality performances for advanced applications. The backward nosepiece-design allows spacious room for convenient operation. This microscope has four high-quality Plan Achromatic objectives (4X, 10X, 40X, 100X), a pair of extreme widefield 10X eyepieces, a pair of 15X eyepieces, a Kohler illumination system, a 30-degree incline on the ocular tubes for comfortable viewing, 360-degree swiveling, compensation-free trinocular head, a coaxial coarse & fine focusing system, and a 3D mechanical stage. It provides eight levels of magnification: 40X, 60X, 100X, 150X, 400X, 600X, 1000X, 1500X. It is an ideal instrument for advanced researches.

This package includes a 1080p digital camera with built-in recording, and HDMI output for live-viewing. The camera's compact, all-metal design make it sturdy yet unobtrusive. Video can be viewed live on an HDMI monitor or television at a smooth 60fps, and recorded onto MicroSD (not included) at 30fps.

Features :

Infinity Corrected Optical System with High Resolution

Fully Coated Optics with Crystal Clear & Sharp Images

Precise Mechanical Control System

Reversed Nosepiece Design

Kohler Illumination System with Field Diaphragm for Lighting Control

30-Degree Inclined, 360-Degree Swiveling, Compensation Free Trinocular Head

Eight Magnification Levels: 40X, 60X, 100X, 150X, 400X, 600X, 1000X, 1500X

Intensity-Variable Transmitted LED Lighting System

Abbe Condenser with Iris Diaphragm and Filter Holder

Rack and Pinion Adjustment for Condenser

Low Position Coaxial Stage Movement Controlling Knobs

Dual Side Coaxial Coarse and Fine Focusing Control

Adjustable Interpupillary Distance

Adjustable Diopter on Eyepieces

Durable Cast Alloy Frame with Stain Resistant Enamel Finish

Four Infinity Plan Objectives Included

Two Pairs of Extreme Widefield Eyepieces Included (EWF10X & WF15X)

Quadruple, Reversed, Extra-Large Nosepiece with Wide, Knurled Grip for Easy Operation

Large Double Layer Mechanical Stage with Stain Resistant Coating

Upward Stage Limit Stop to Protect Objectives and Slides

Manufactured under ISO 9001 Quality Control Standards

Excellent Five (5) Year Factory Warranty

Specifications :

Optical System: infinity corrected

Nosepiece: reversed, ball bearing quadruple

Head: gemel type trinocular head, 30-degree inclined

Eyepiece: high eye-point eyepieces, WF10X22mm, WF15X

Objectives: infinity plan objective 4X, 10X, 40X (spring), 100X (spring, oil)

Focusing: low position coaxial focus system

Focusing Range: 1-3/16" (30mm)

Interpupillary Adjustment Range: 2-3/16" - 3" (55-75mm)

Mechanical Tube Length: 6-5/16" (160mm)

Mechanical Stage: 8.5" x 5.9" (216mm x 150mm)

Stage Traveling Range: 2.9" x 2" (75x50mm)

Focusing Rang: 0.95" (24mm)

Division of Fine Focusing: 0.00003935" (0.001mm)

Illuminator: Built-in Kohler LED illumination system

Condenser: N.A. 1.25 achromatic condenser

Illumination: Kohler, LED

Power Supply: 90V-240 wide voltage, CE certified

Built in measurement capabilities

Weight: 28 lbs

Camera Specifications:

Camera Sensor: Sony IMX291

Sensor Type: CMOS

Sensor Resolution: 2MP (1920 x 1080)

Sensor Size: 1/2.8" class -- 6.06mm(w) x 4.42mm(h), 7.50mm(diag)

Pixel Size: 2.9µm

Dynamic Range: 128dB

Signal Noise Ratio: 30dB

Light Spectrum Response: 380nm to 650nm

HDMI Output: 1920x1080p60

Image Capture: 1920x1080

Image Format: JPEG

Video Capture: 1920x1080 @ 30fps, 1280x720 @ 60fps

Video Format: MOV

Storage: MicroSD Card (TF) max 128GB (not included)

Power: 5V (micro USB)

Packing List :

One Trinocular Compensation-Free Head

One Microscope Body with Frame, Base, and Kohler Illumination System

Four High Quality DIN Plan Achromatic Objectives: 4X, 10X, 40X and 100X

One Pair of Widefield Eyepieces: WF10X

One Pair of Widefield Eyepieces: WF15X

One Dust Cover

One HDMI camera

One HDMI cable

One Power Adapter for Camera

One 0.5X C-mount Reduction Lens

Immersion Oil

User's Manual
