The Story

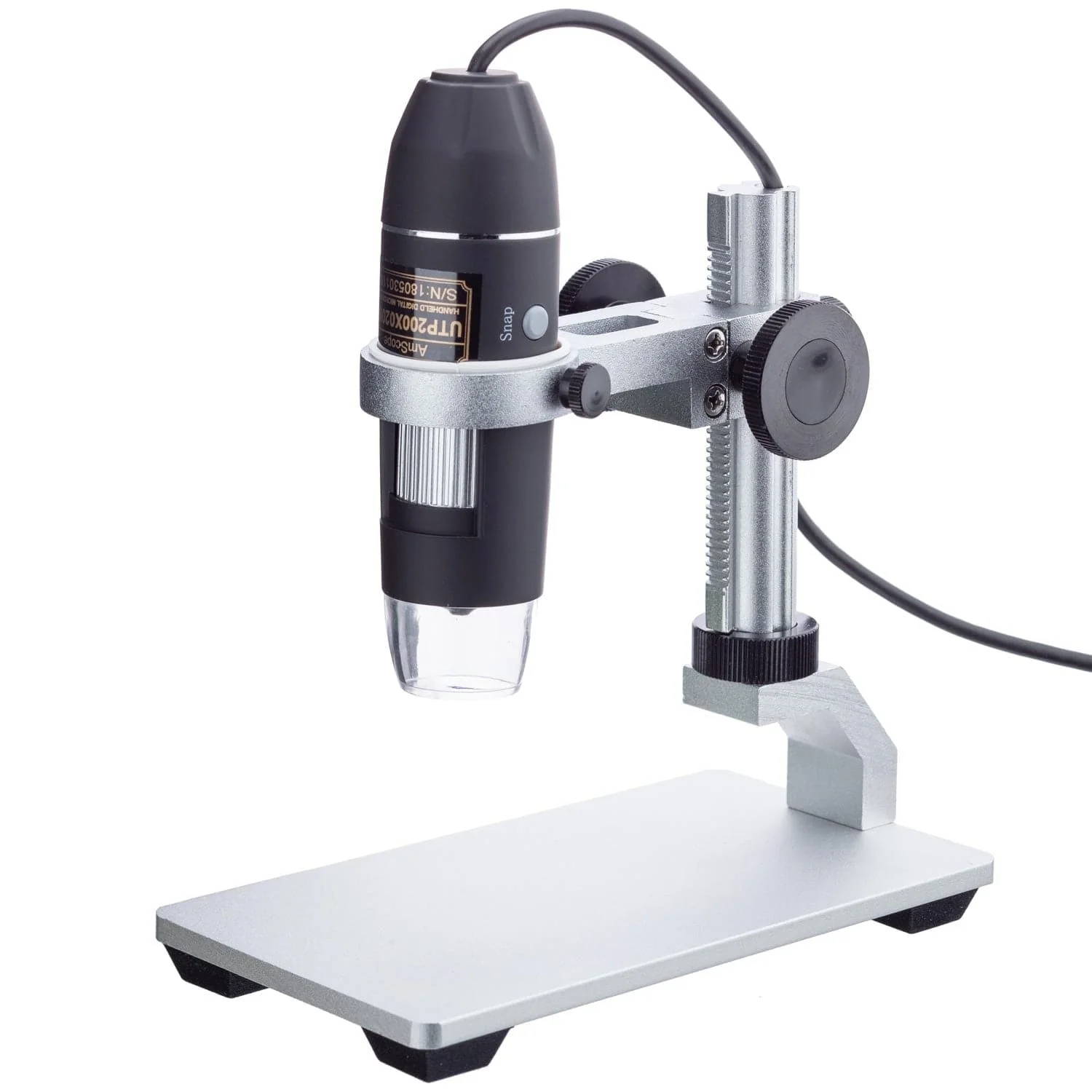

The UTP200X020MP USB digital microscope provides a high-quality, low-cost solution for digital-imaging. Used with a stand or handheld, the microscope provides up to 200X magnification when used with your computer. A simple USB connection is all it takes, and the provided software allows you to view real-time video. You can record video files or still images, or just watch the live feed while you explore the microscopic world. Eight built-in LEDs provide light to ensure clear images.
The applications are only limited by the imagination. You can use the microscope to get a closer look at everyday items, or plan an experiment such as bacteria-culturing. The digital microscope can work from varying distances, and provides a safe way to view things. It's often used for watch-repair and soldering, because it can provide hands-free magnification on a computer screen.
The UTP200X020MP uses a universal UVC driver, so it is compatible with most desktop computers including Windows, Mac, and Linux operating systems. The provided software for Windows includes advanced tools for time-lapse, image-stitching, measurements, and much more. The lite version of the software for Mac and Linux provides basic functionality for capturing photos and videos, along with color-correction and measurement tools. For Android users, an OTG micro-USB or USB-C adapter (not provided) can be used to connect the microscope to OTG-compatible devices, such as smartphones and tablets. The microscope draws its power from the USB connection, so you can turn a compatible Android device into a fully-portable digital-microscopy system!
Specifications
| Sensor Type | Sensor Optical Format | Transfer Method |
|---|---|---|
| CMOS (color) | 1/3.2" | Rolling Shutter |
| Pixels | Pixel Size | Aspect Ratio |
| 2.0M | 2.8µm x 2.8µm | 4:3, 16:9 |
| Spectral Range (IR Cut Filter) |
Frame Rate(s) (Maximum) |
Exposure Time |
| 380nm - 650nm |
34fps @ 640x480 30fps @ 800x600 |
0.5ms to 30ms |
| Connectivity | Power | Compatibility |
| USB 2.0 | 5V over USB | Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux |
Software
| OS Requirements | Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+ | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB port | |||||||||||||||
| Features |
|
