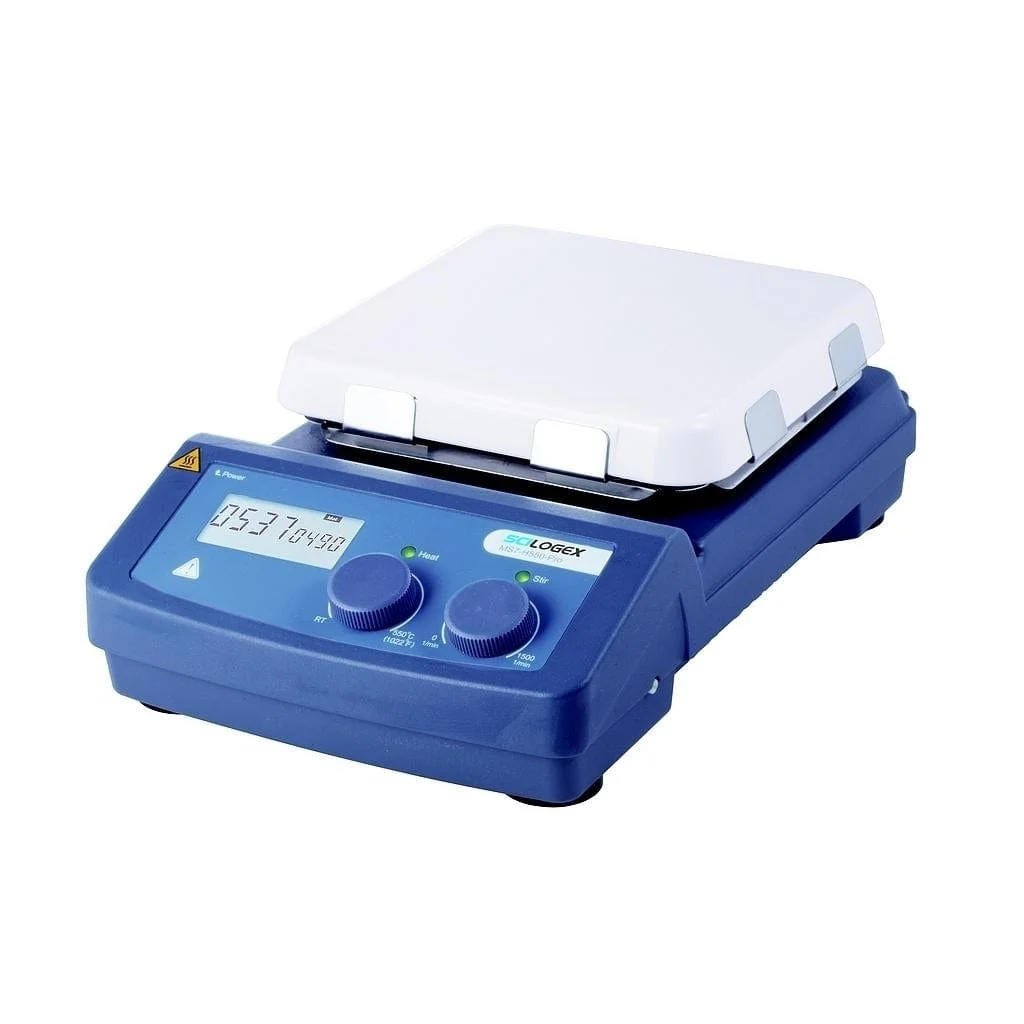

Scilogex SCI550-Pro 7x7 LCD Digital Hotplate Stirrer (550°C Max)

• Easy-to-read independent back-lit LCD displays for heat and stirring
• Digital speed controlling, max. speed at 1500rpm
• Built-in PID controller ensures safe heating of the medium with overheating protection
• Heat only, stir only or heat and stir together functions
• Max. heating plate temperature 550°C
• Glass-ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer
• RS232 for remote control, providing PC control and data transmission
• Low-temperature stability
• External temperature control is possible by connecting the temperature sensor(PT1000) with accuracy at ±0.2°C
• Accessory PT-1000 stand available (built-in stand mount)
• Electronic speed control for constant speed even during changes in load
• Maintenance-free DC brushless motor for long life and more stirring power
• Two rotating knobs enable easy adjustment of speed and temperature
• High magnetic adhesion
• “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off
• cTUVus approved for UL and CSA
• 2 YEAR WARRANTY



The MS7-H550-Pro is one of the most technically advanced hotplate-stirrers in the marketplace. With independent back-lit LCD displays for both heat and stirring functions and PID technology. The MS7-H550-Pro controls temperature at +/- 1ºC. It also incorporates a DC brushless (spark-free) motor for extremely long life and excellent performance.



SCILOGEX 550°C series magnetic stirrer is developed for demanding applications. It is widely used in chemical synthesis, physical and chemical analysis, bio-pharmaceuticals, etc. Combining with a glass-ceramic work plate, brushless DC motor and external temperature sensor, the work plate temperature is optimized up to 550°C.



SCI550-Pro LCD Digital Magnetic Hotplate Stirrer Specifications:

Work plate dimension[W x D]	184x184mm(7 inches)
Work plate material	Glass-ceramic
Motor type	Brushless DC motor
Motor input power	18W
Motor output power	10W
Power	1050W
Heating output	1000W
Voltage	100-120/200-240V 50/60Hz
Stirring positions	1
Max. stirring quantity[H2O]	20L
Max. magnetic bar[length]	80mm
Speed range	100-1500rpm, resolution ±1rpm
Speed display	LCD
Temperature display	LCD
Heating temperature range	Room Temp.-550°C, increment 1°C
Temperature control accuracy	±1°C(<100°C) ±1%(>100°C)
Overheating protection	580°C
Overheating protection	±0.1°C
External temperature sensor	PT1000 (accuracy ±0.2)
"Hot" warning	50°C
Data connector	RS232
Protection class	IP21
Dimension[WxDxH]	215x360x112mm
Weight	5.3kg
Permissible ambient temperature and humidity	5-40°C, 80%R
