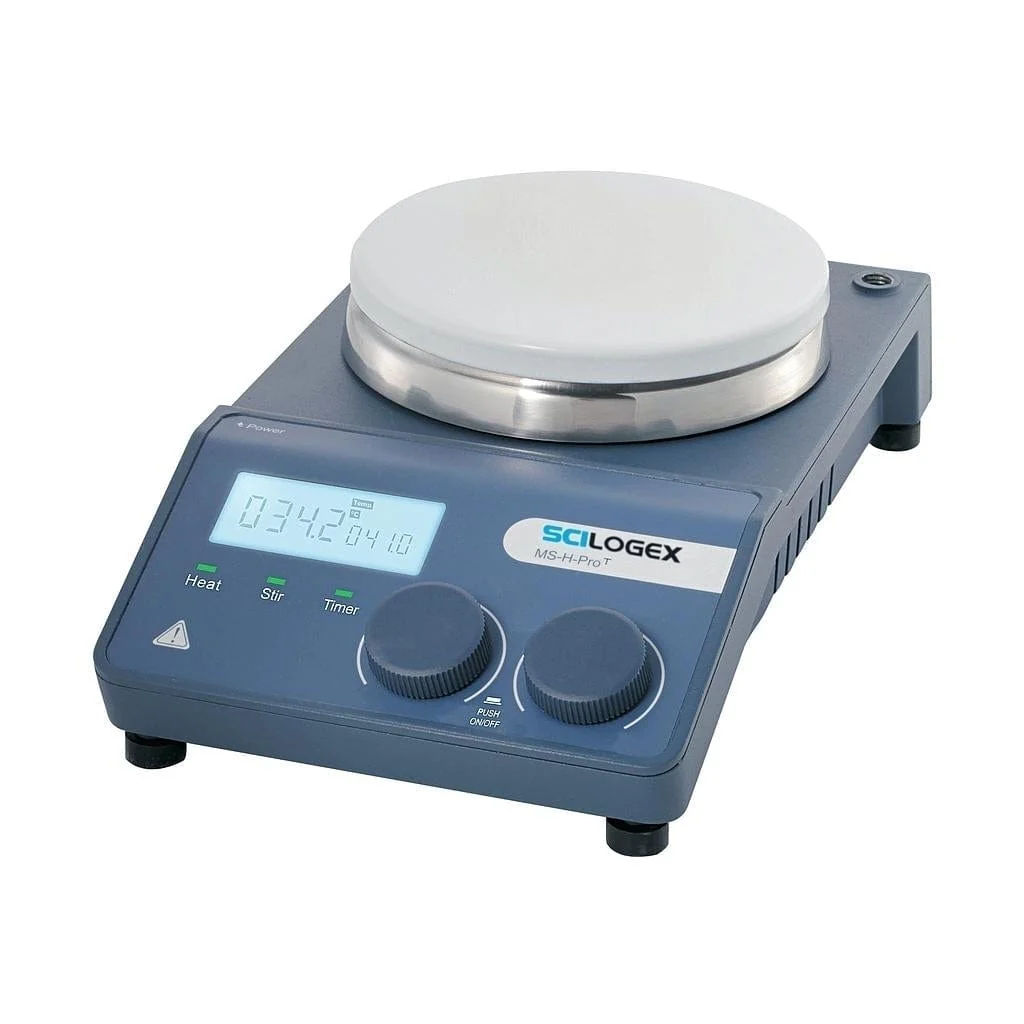

Scilogex SCI340-ProT Circular-top LCD Digital Hotplate Stirrer, with timer (340°C Max)

SCI340-ProT Circular-top Digital Magnetic Hotplate Stirrer Features:

• Heat only, stir only or heat and stir together functions, High-resolution LCD display shows actual temperatures and speed
• Digital speed control with max. speed up to 1500rpm
• External temperature control is possible by simply connecting a PT-1000 temperature sensor (sold separately) with accuracy at ±0.2°C
• Max. stirring quantity of H2O at 20L
• RS232 function provides PC control and data transmission
• Wide range timer function from 1min to 99h59min(MS-H-ProT only)
• The “HOT” warning will flash if the plate temperature is above 50°C even when the hotplate is turned off
• Automatic spin bar retrieval
• Low-temperature stability
• Digital temperature control with max. temperature at 340°C
• Stainless steel work plate with ceramic coating provides good chemical-resistant performance
• Accessory reaction blocks for flasks and vessels available sold separately
• Electronic speed control for constant speed even during changes in load
• Brushless DC motor is maintenance-free
• High magnetic adhesion
• Comes with a free 50mm L x 5mm Dia. Magnetic Stir bar
• cTUVus approved for UL and CSA
• 2 Year Warranty



The SCI340-ProT is one of the most technically advanced hotplate-stirrers in the marketplace and features an independent back-lit LCD display for both heat, stirring and timer functions and PID technology. The MS-H-Pro-T controls temperature at +/- 1ºC. Simply set the timer from 1min to 99hr-59min and the hotplate will heat at the target temperature for the set time period and automatically turn off. If the stirring function is activated, the unit will continue to stir until switched off. The MS-H-Pro-T also has a DC brushless (spark-free) motor for extremely long life and excellent performance.



SCILOGEX 340°C magnetic hotplate stirrers include all leading safety standards and features for superior ease of use and are cost-effective. They are widely used in chemical synthesis, physical and chemical analysis, biopharmaceuticals, etc.



SCI340-ProT Circular-top Digital Magnetic Hotplate Stirrer Specifications:

Work plate dimension	φ135mm(5 inches)
Work plate material	stainless steel cover with ceramic
Motor type	Brushless DC motor
Motor input power	18W
Motor output power	10W
Power	550W
Heating output	500W
Voltage	100-120V 60Hz
Stirring positions	1
Max. stirring quantity[H2O]	20L
Max. magnetic bar[length]	80mm
Speed range	100-1500rpm, resolution±1rpm
Speed display	LCD
Temperature display	LCD
Heating temperature range	Room Temp.-340°C, increment 1°C
Temperature control accuracy	±1°C(<100°C)±1%(>100°C)
Over-temperature protection	360°C
Temperature display accuracy	±0.1°C
External temperature sensor	PT1000 (accuracy ±0.2)
"Hot" warning	50°C
Timer function	1min to 99h 59min
Data connector	RS232
Protection Class	IP42
Dimension[WxDxH]	160×280×85mm
Weight	2.8kg
Permissible ambient temperature and humidity	5-40°C, 80%RH
