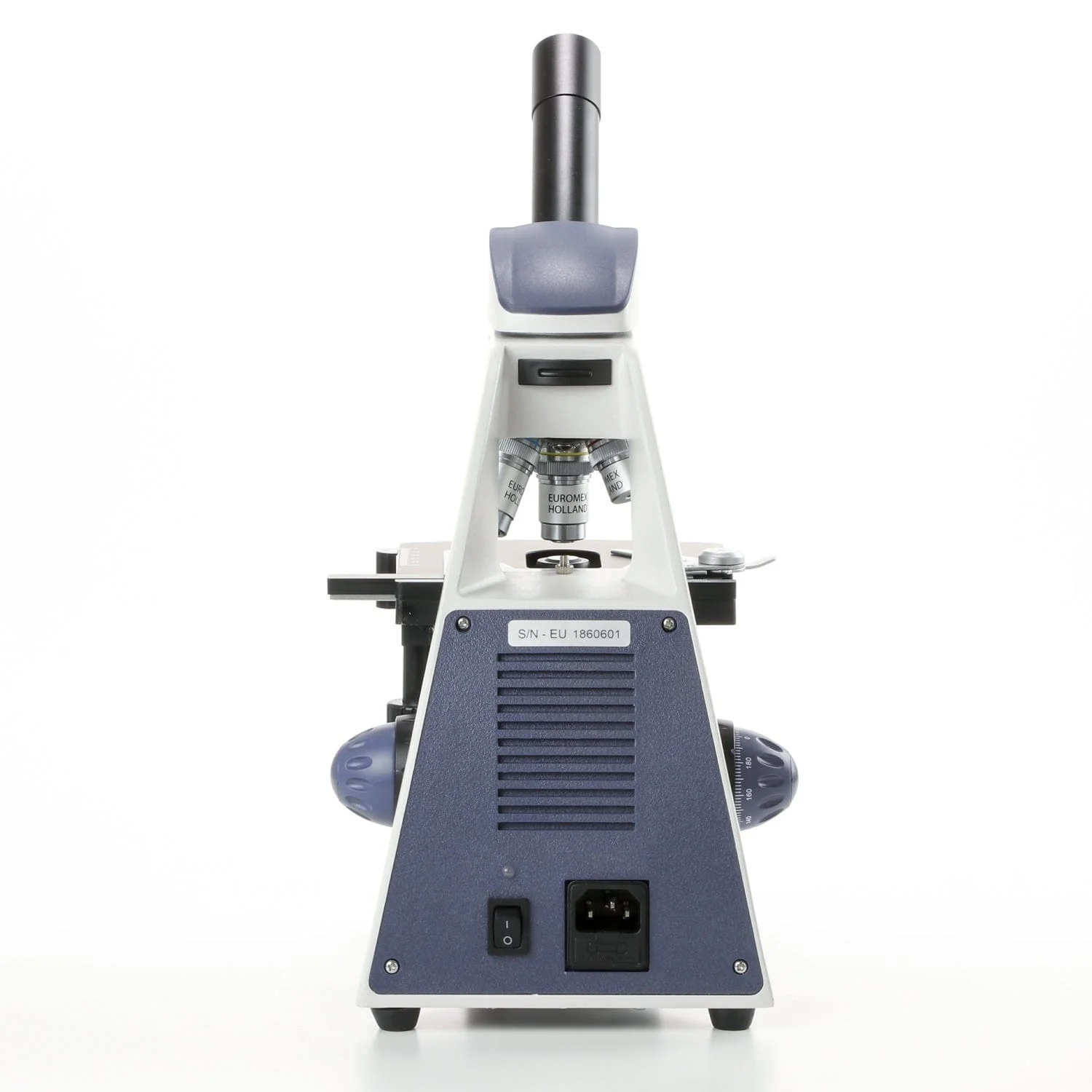

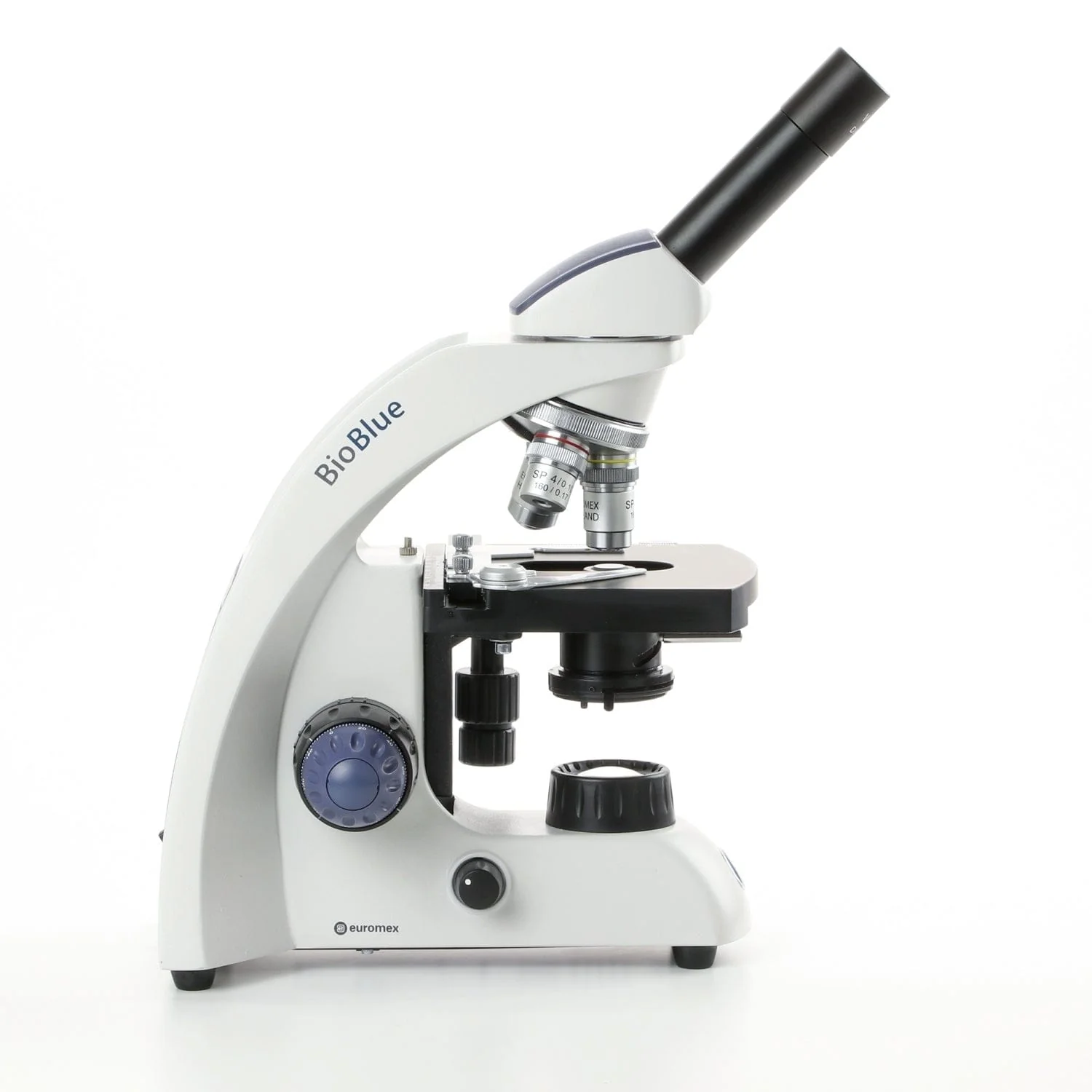

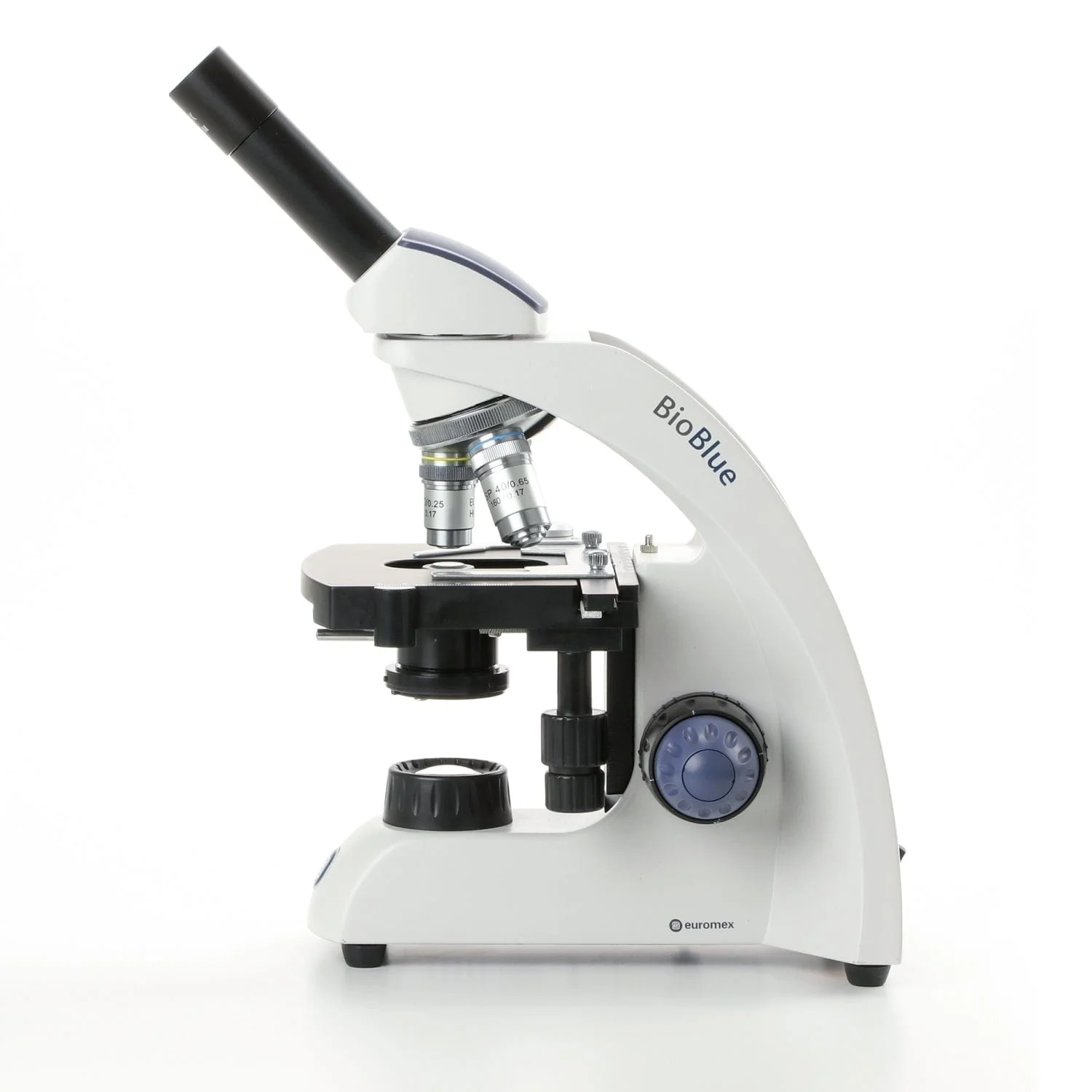

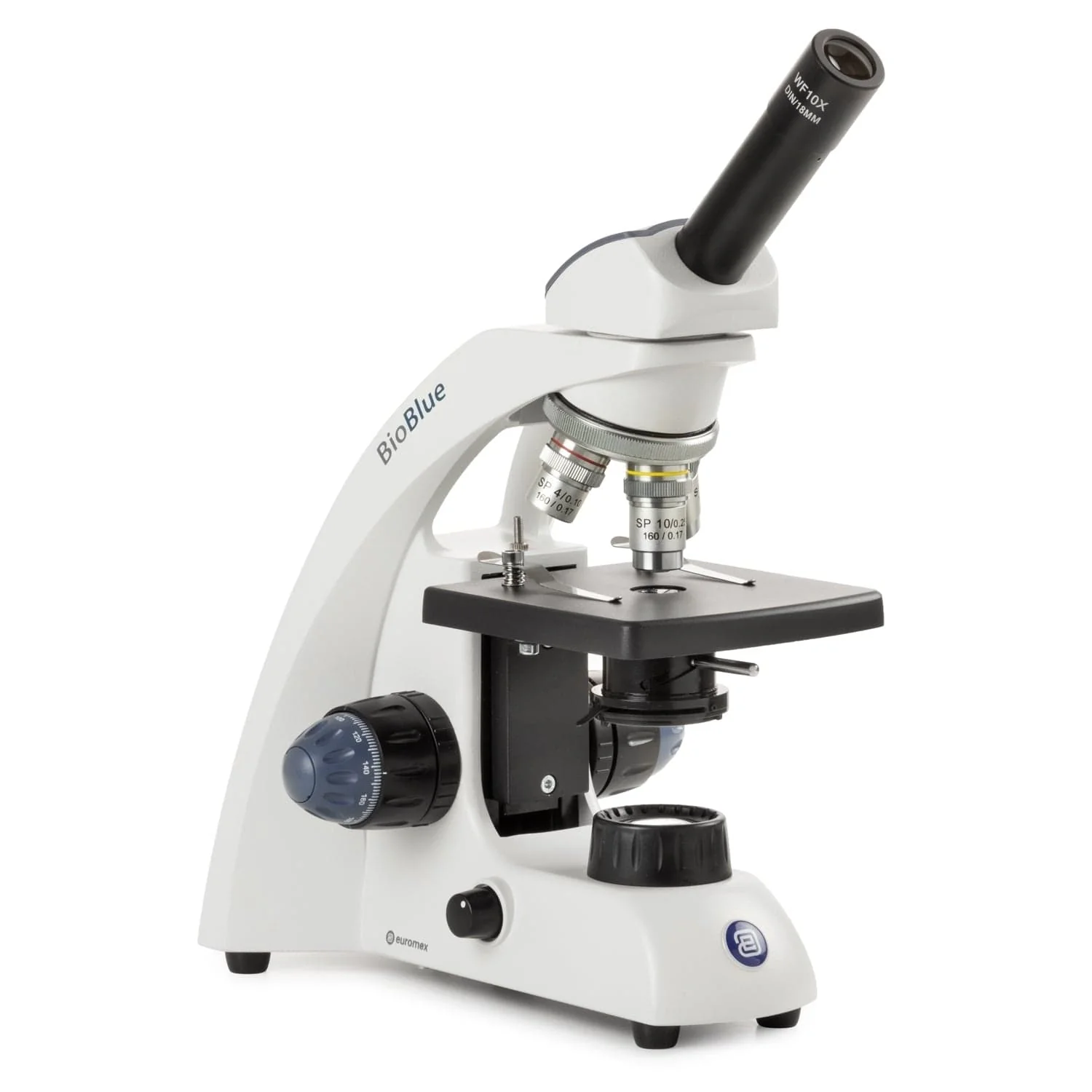

Euromex BioBlue Series Portable Monocular Compound Microscope

BioBlue BB4200 monocular microscope SMP 4/10/S40x objectives, Plain stage with clamps, 1 W LED cordless illumination

Extensive experience of Euromex optical engineers has contributed to the development and implementation of the BioBlue series with the finest optical components and guaranteed performance, which means clear bright images at every magnification. The modern microscopes of the BioBlue series are especially developed for educational purposes with primary focus on ergonomics and today’s quality standards.

These microscopes are supplied with secured eyepieces and adjustable rack stop to prevent damage to sample and objectives. The DIN WF 10x/18 eyepieces and the semi plan achromatic corrected 45 mm DIN objectives of the BioBlue BB4200 generate a crisp high-resolution image. When changing magnification the image remains perfectly in focus and centered. The 120 x 120 mm plain stage enable precision positioning of the specimen.

Features :

• Monocular with 45° inclined tubes
• 1W LED illumination with rechargeable batteries and integrated power supply
• WF10x/18mm eyepiece(s)
• Ergonomic stand
• Reversed nosepiece for four semi plan objectives
• Coaxial coarse and fine adjustments with rack stop
• Height adjustable abbe condenser with iris diaphragm and filter holder

Specifications :

EYEPIECE(S)

• WF10x/18 mm Wide field
• Secured and with pointer for monocular models

HEAD

• All heads are 360° rotatable and secured
• Monocular model with 45° inclined tubes

NOSEPIECE

• Reversed quadruple nosepiece on ball bearings.

OBJECTIVES

• Supplied with semi plan 4x/0.10, 10x/0.25, 40x/0.65 oil immersion objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

FOCUSING

• Coaxial coarse and fine adjustments with 200 graduations. Precision 2 μm per graduation, 0.4 mm per rotation
• Total travel approximately 23 mm
• Supplied with an adjustable rack stop to prevent damage to sample and objectives
• The coarse adjustment is equipped with friction control

STAGE

• 120 x 120 mm plain stage supplied with two non-removable object clamps

POLARIZATION EQUIPMENT

• The swing-out analyzer is mounted in a slider under the head. The rotatable 360° polarizer fits on the collector lamp

CONDENSER

• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

ILLUMINATION

• Supplied with an adjustable 1W LED illumination
• Rechargeable batteries and integrated power supply for cordless operation

PACKAGE CONTENT

• Supplied with power cord, dust cover, a spare fuse, user manual
• LED illumination is supplied with a white filter
• All packed in a polystyrene box
