$124.60The Story

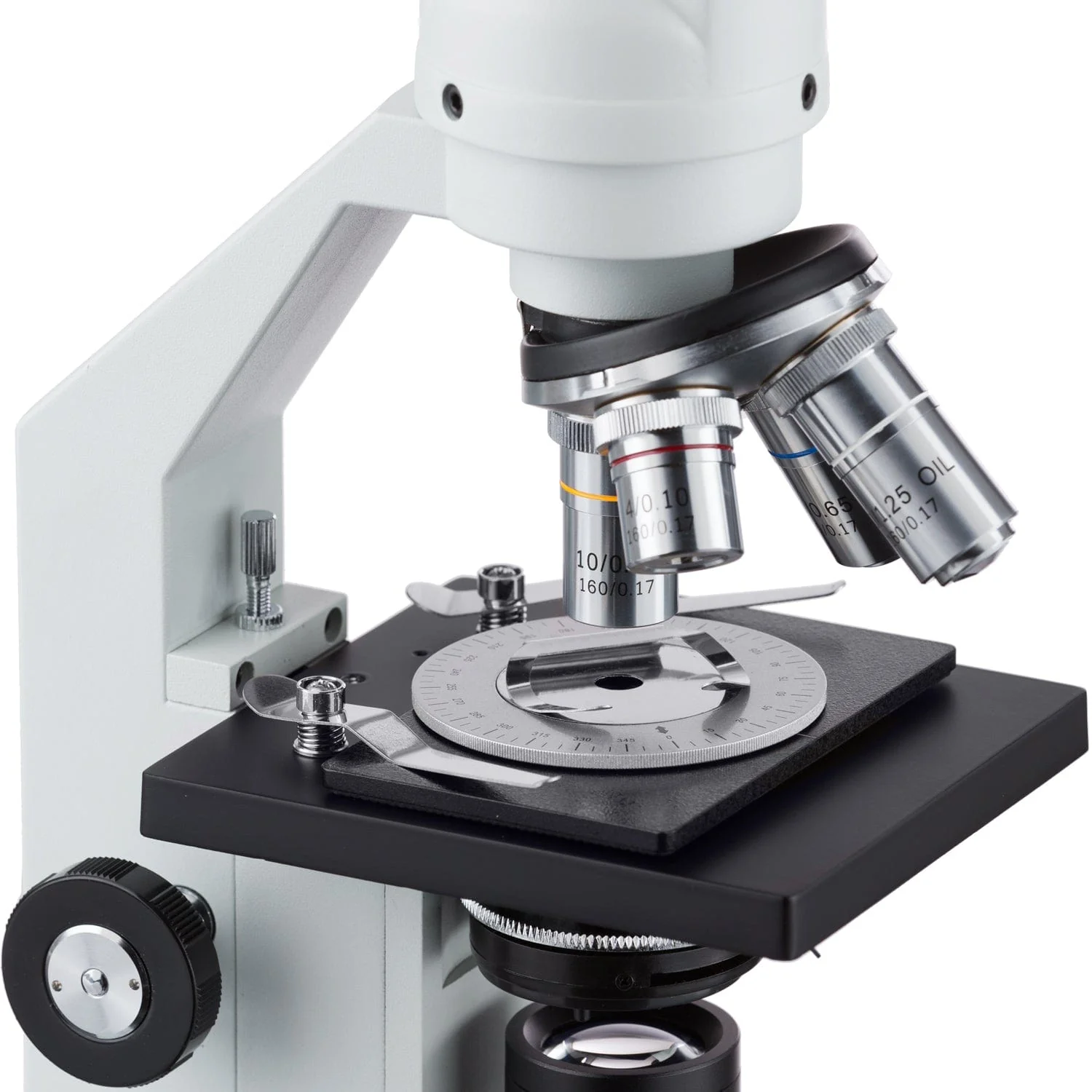

This monocular compound microscope offers polarizing and brightfield features. It comes with a 45° inclined 360° swiveling monocular head, coarse fine focusing, built-in illumination system, and a polarizing kit. It is a standard brightfield compound microscope without putting on the polarizing kit. It offers eight polarizing and eight brightfield magnifications settings (40X, 64X, 100X, 160X, 400X, 640X, 1000X, and 1600X). It is a right microscope for both brightfield and polarizing applications.
Features :- A great polarizing and brightfield microscope
- 45° Inclined 360° Swiveling Monocular Head
- Large Plain Stage with Clips and Stain Resistant Finish
- Separate Coarse Fine Focusing
- Fully Coated Optical System with High Resolution
- Crystal Clear Sharp Images
- High Quality Student Microscope
- Perfect for Up to High School Students
- Eight Levels of Magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X
- Upward Stage Stopper to Protect Slides and Objectives
- Built-In Illumination System
- Abbe condenser with iris diaphragm filter holder
- Focusing Control Knobs on Both Sides
- Four DIN Achromatic Objectives
- Full Optical Glass Elements
- Precise Ground Glass Lens
- All Metal Mechanical Components
- Rugged Metal Frame with Stain Resistant Enamel Finish
- Two Eyepieces Included
- Polarizing with Round Stage and Lens Kit included
- Manufactured under ISO 9001 Quality Control Standard
- Excellent Five (5) Year Factory Warranty Specifications :
- Nosepiece: quadruple
- Head: 45° inclined monocular
- Wide-field Eyepiece: WF10X
- Wide-field Eyepiece: WF16X
- Achromatic Objectives: 4X, 10X, 40X (spring), 100X (oil, spring)
- Stage Dimensions: 4-3/8" x 4-3/4" (110x120mm)
- Abbe Condenser: NA=1.25 with iris diaphragm filter
- Focusing Control: rack pinion
- Illumination: tungsten lamp, 115V/20W
- Accessories: dust cover and a bottle of immersion oil
- Microscope Dimensions: 7-1/2" x 5-1/8" x 15-0"
- Weight: 8 lbs Packing List :
- Four Achromatic DIN Objectives, 4X, 10X, 40X and 100X
- One Widefield Eyepiece, WF10X
- One Widefield Eyepiece, WF16X
- One Polarizing Kit with Round Stage and Lens
- One Wrench for Tension Adjustment
- Two Color Filters
- One Spare Bulb
- One Dust Cover
- Immersion Oil
- User's Manual Download For ages 10+
