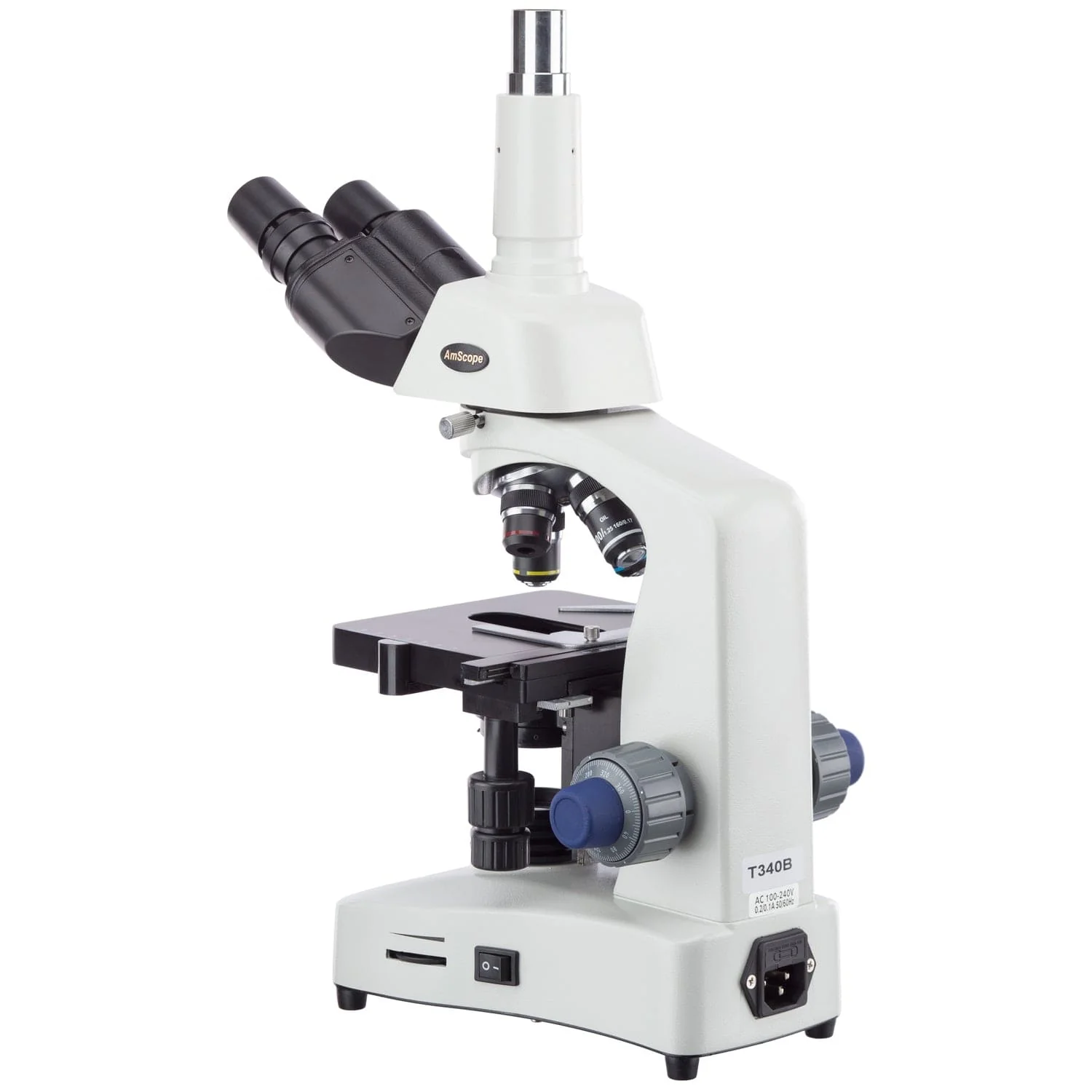

AmScope T340 Series Siedentopf Trinocular Compound Microscope 40X-2000X Magnification with 5MP Digital Camera

This trinocular compound microscope with 5MP USB2.0 color digital camera is designed for clinical examination and teaching demonstration in medical field, veterinary offices, laboratories and colleges. It comes with Siedentopf trinocular head, backward nosepiece, 3D mechanical stage, and powerful halogen illumination. It offers eight settings (40X, 80X, 100X, 200X, 400X, 800X, 1000X and 2000X).

The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

This microscopy system is an ideal instrument for biological, veterinary, bacteriological and pharmaceutical applications.

Features :

• High Quality Professional Grade Compound Microscope with 5MP Digital Image Camera
• Eight Magnification Settings: 40X, 80X, 100X, 200X, 400X, 800X, 1000X and 2000X
• Backward nosepiece allocates spacious operating room
• Perfect for Clinics, Vets, Doctors and College Students
• 30 Degree Inclined 360 Degree Swiveling Siedentopf Trinocular Head

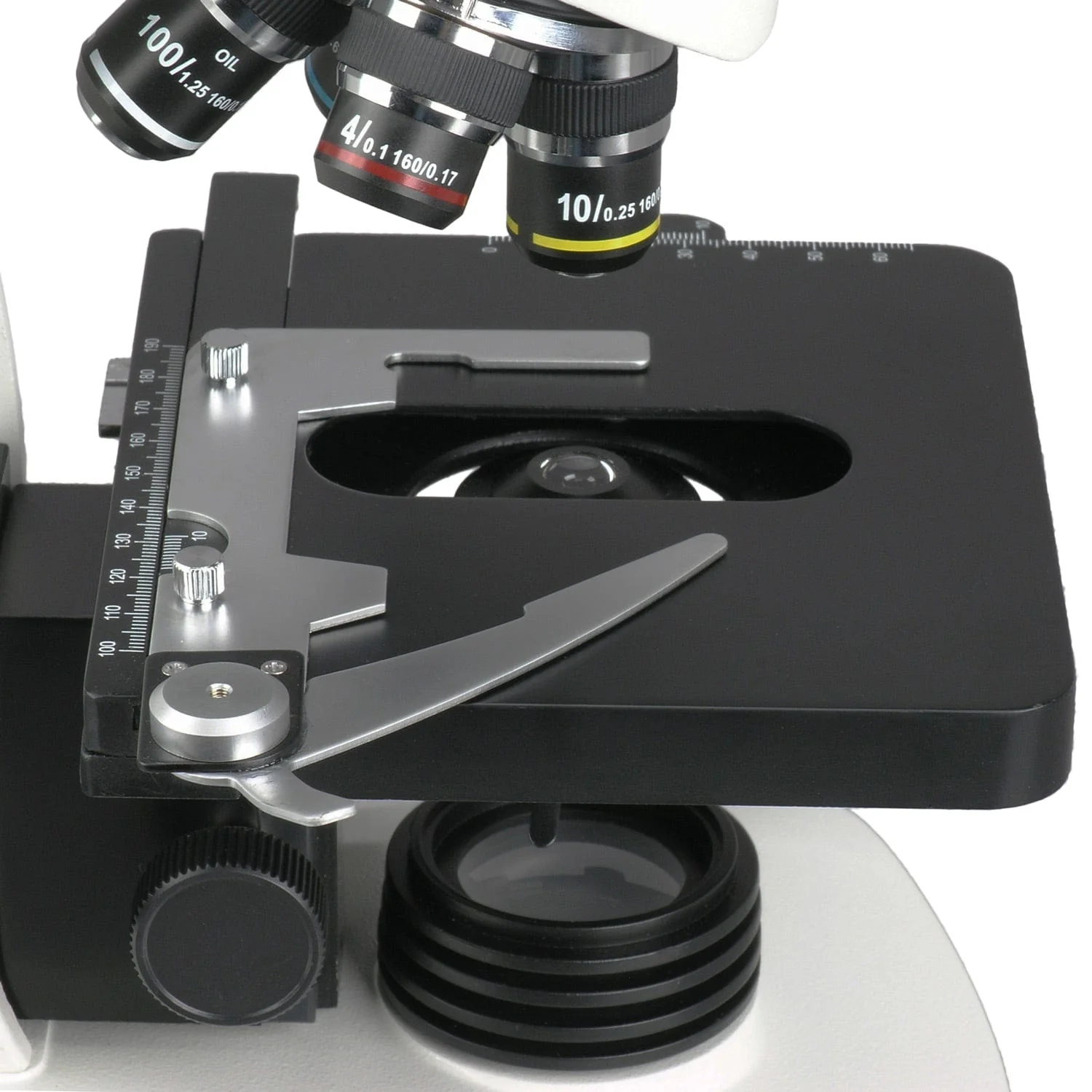

• 3D X-Y Mechanical Stage with Stain Resistant Finish and Slide Clips
• Coaxial Coarse Fine Focusing with Tension Control and Stopper
• Crystal Clear High Definition Sharp Images
• Fully Coated Optical System with High Resolution
• Dual Side Focusing Control Knobs
• Built-in Halogen Illumination System with Adjustable Brightness
• Abbe Condenser with Iris Diaphragm Swing-Out Filter Holder
• Four DIN Achromatic Objectives
• Two Sets of Eyepieces Included
• Full Optical Glass Elements
• Precise Ground Glass Lens
• All Metal Mechanical Components
• Adjustable Interpupillary Distance
• Adjustable Diopter on Ocular
• Solid Metal Frame Construction with Stain Resistant Enamel Finish
• Fuse and a Bottle of Immersion Oil Included
• Manufactured Under ISO 9001 Quality Control Standard
• Excellent Five (5) Year Factory Warranty

Specifications :

• Nosepiece: quadruple
• Head: 30 degree inclined Siedentopf trinocular head 360 degree swiveling
• Interpupillary Distance: 48mm-75mm
• Diopter: Adjustable left eye tube
• Eyepiece: WF10X/18mm and WF20X
• Achromatic Objective: 4X, 10X, 40X (spring), 100X (spring, oil)
• Stage Dimensions: 110mm x 140mm
• Stage Traveling Range: 78mm X 40mm
• Focusing: Coaxial coarse fine, with tension control and stopper
• Abbe Condenser: NA=1.25 with iris diaphragm filter
• Illumination: variable 20W halogen
• Power Supply: 110V/220V
• Filter: blue and green
• Accessories: Eye-guards, dust cover, immersion oil

Camera Specifications:

• Sensor: Aptina MT9P001
• Sensor Type: CMOS
• Sensor Size: 5.7x4.28mm
• Pixel Size: 2.2
• Resolution: 5.1MP
• Frame Rate: 5@2592x1944, 18@1280x960, 60@640x480
• Sensitivity: 0.53 V/lux-sec
• Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Software Specifications:

• OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
• Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port

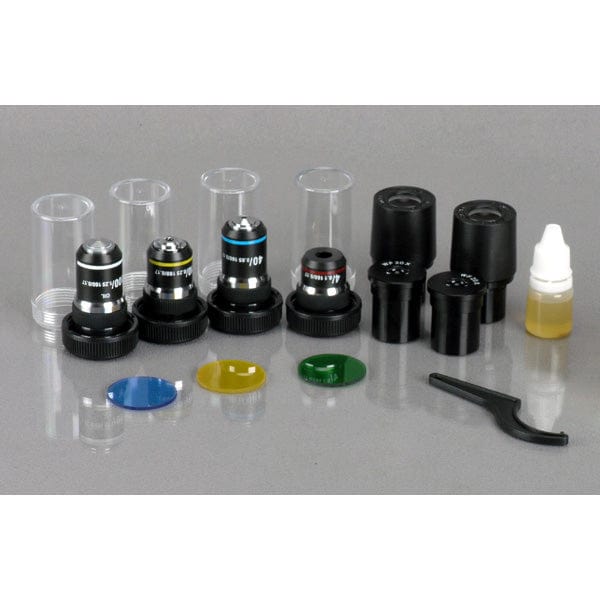

Packing List :

• Trinocular Microscope Head
• Microscope Body Frame with Base
• Four High Quality DIN Objectives, 4X, 10X, 40X and 100X
• One Pair of 10X Widefield Eyepieces
• One Pair of 20X Widefield Eyepieces
• One Color Filter
• One Dust Cover
• Immersion Oil
• User's Manual Download

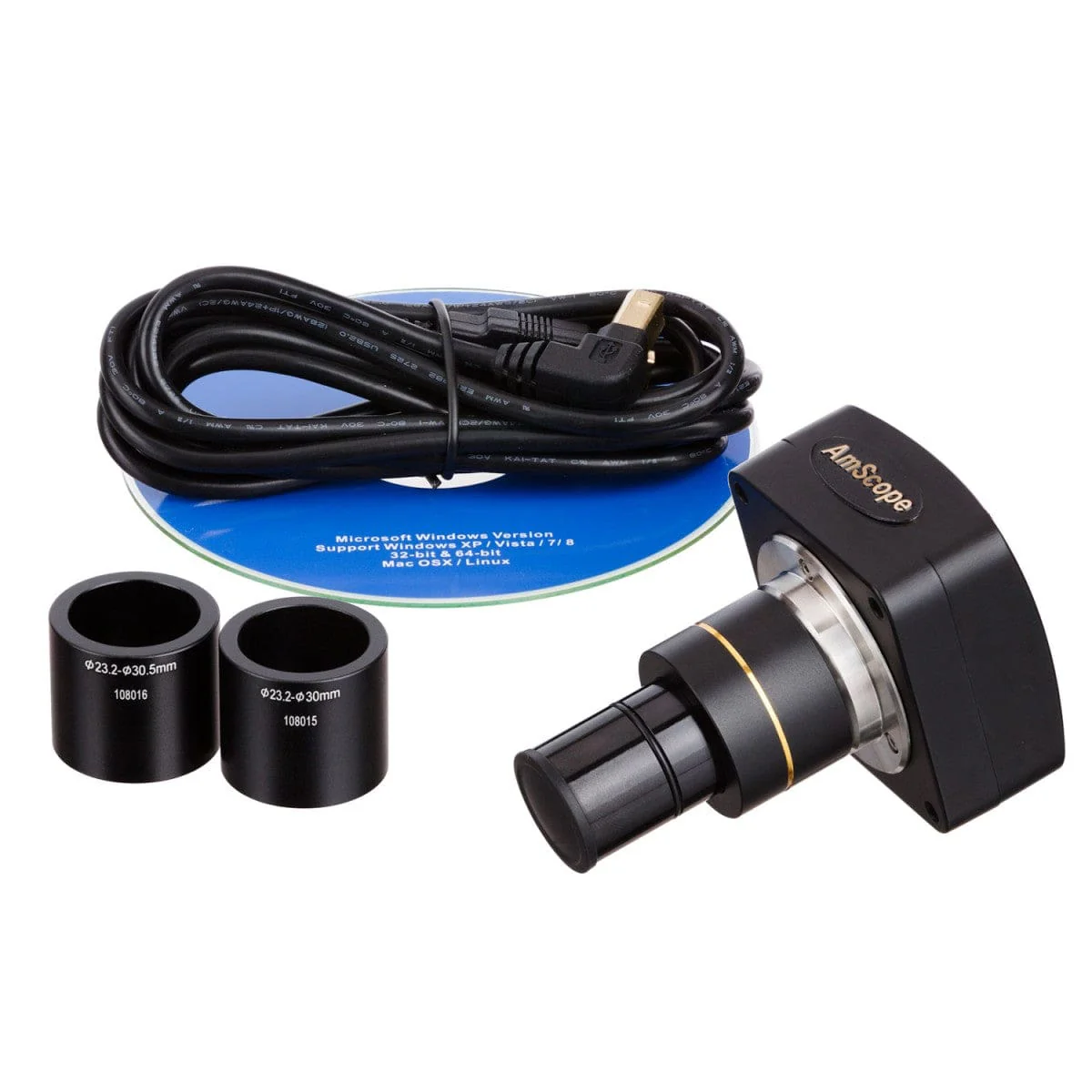

• One 5MP USB2.0 Microscope Digital Camera & 0.5X Reduction Lens
• One USB Cable
• Two Adapter Sleeves (23.2mm-30mm & 23.2mm-30.5mm)
• Shipping Weight: 20 lbs
